VALUE 14.99.3460 AV extender

VALUE HDMI Extender over Twisted Pair 25 m. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Video in: HDMI 1.3, Video out: HDMI 1.3. Output current: 2 A, Power consumption (typical): 5 W, Power requirements: DC 5V; 2A 1 an Receiver. Dimensions (WxDxH): 20 x 45 x 80 mm, Weight: 246 g

Yes

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1200 pixels
Cable types supported: Cat5e
Maximum transfer distance: 30 m
Supported video modes: 480i, 480p, 576i, 720p, 1080i, 1080p
Bandwidth: 2.25 Gbit/s
Feature: HDCP

Ports & interfaces

RJ-45 input ports: 2
RJ-45 output ports: 2
HDMI in: 2
HDMI version: 1.3
Video in: HDMI 1.3
Video out: HDMI 1.3
Feature: DC-in jack

Power

Output current: 2 A
Power consumption (typical): 5 W
Power requirements: DC 5V; 2A1 an Receiver

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Dimensions (WxDxH): 20 x 45 x 80 mm
Weight: 246 g

Technical details

Contents: Transmitter (2x RJ-45 F, HDMI F), Receiver (2x RJ-45, HDMI F), 1x power supply (5V, 2A) for receiver, manual

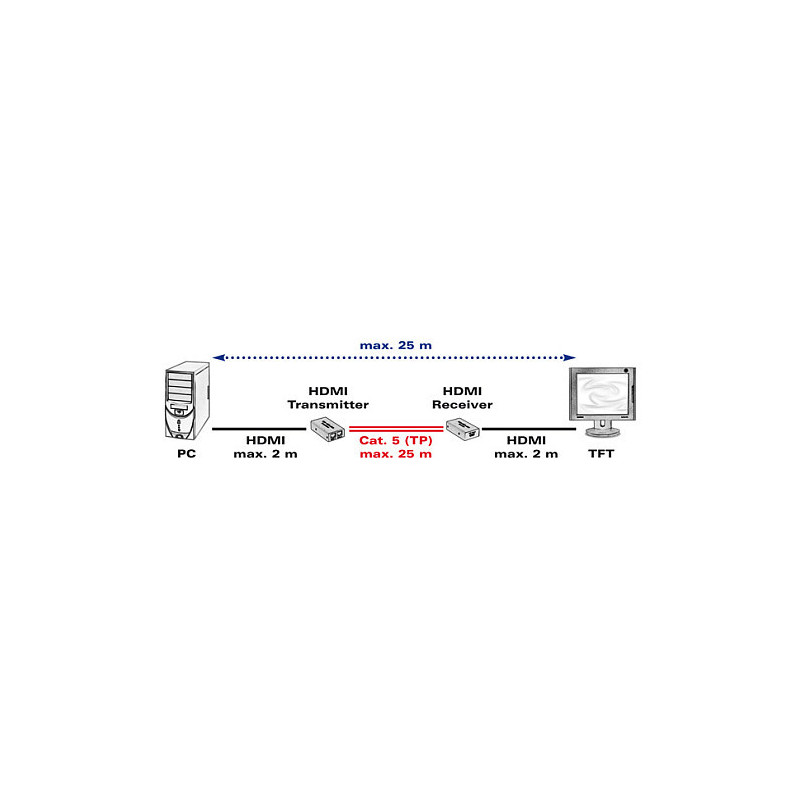

Technical features: extends the signal up to 30m
