ROLINE 14.01.3643 AV extender

ROLINE 14.01.3643. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 70 m. Connectivity technology: Wired. Power source type: DC, Operating voltage: 12 V, Input current: 1 A. Receiver dimensions (WxDxH): 88 x 100 x 23 mm, Receiver weight: 199 g, Transmitter dimensions (WxDxH): 88 x 100 x 23 mm. Quantity per pack: 1 pc(s), Package width: 200 mm, Package depth: 240 mm

Description

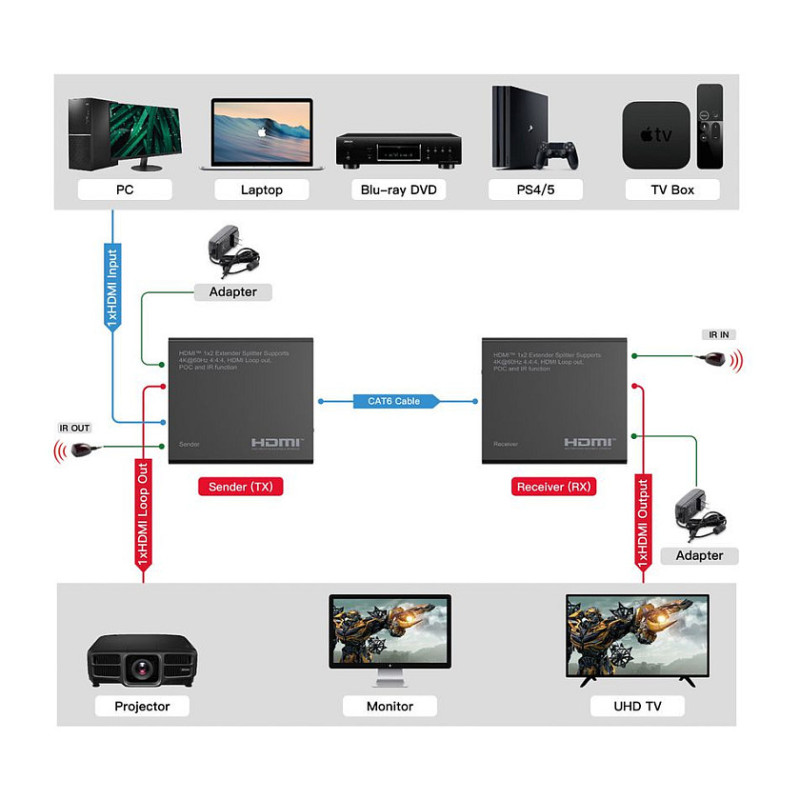

This ROLINE HDMI Extender and Splitter combines extension and splitting functions as it distributes the input of the HDMI signal to the local and the up to 70 m far output simultaneously - perfect for digital signage applications that require high quality HDMI video up to 4K@60Hz 4:4:4. It can also transmit IR signals from remote controls - ideal for controlling your video source from your video destination. It has a single-ended power supply so that both the transmitter and receiver can be powered by a single 12 V power supply.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Maximum transfer distance: 70 m
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Maximum refresh rate: 60 Hz
Bandwidth: 6 Gbit/s
Audio formats supported: DTS, LPCM
Feature: HDCP
Material: Metal
Colour depth: 12 bit
HDCP version: 1.4/2.2

Ports & interfaces

Connectivity technology: Wired
HDMI in: 1
Number of HDMI outputs: 2

Power

Power source type: DC
Operating voltage: 12 V
Input current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Receiver dimensions (WxDxH): 88 x 100 x 23 mm
Receiver weight: 199 g
Transmitter dimensions (WxDxH): 88 x 100 x 23 mm
Transmitter weight: 201 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 200 mm
Package depth: 240 mm
Package height: 70 mm
Package weight: 500 g

Packaging content

Feature: AC adapter included
Cables included: IR
Feature: Manual
Feature: Mounting brackets included
