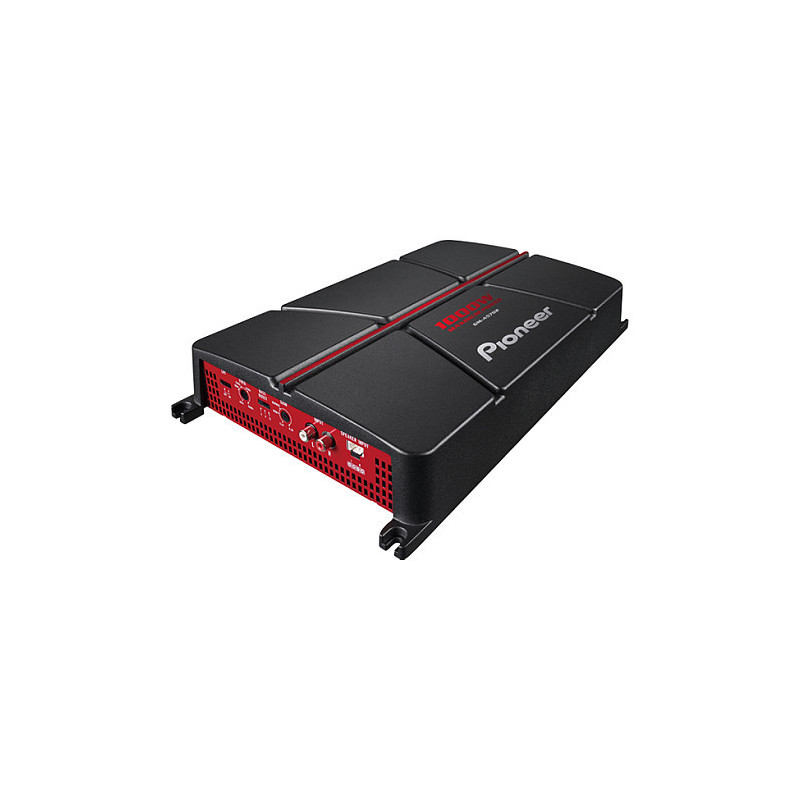

Pioneer GM-A5702 car audio amplifier

Pioneer GM-A5702. Amplifier class: A/B, Peak power per channel: 480 W, Audio output channels: 2.0 channels. Speakers connectivity type: RCA. Product colour: Black, Red. DC input voltage: 14.4 V, Maximum current: 36 A. Width: 356 mm, Depth: 215 mm, Height: 60 mm
TECHNOLOGY OF GM SERIES
From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.
VARIABLE LPF
Variable LPF (Low Pass Filter) allows for adjustable frequency between 40 Hz to 500 Hz* and greater car audio system flexibility according to subwoofer characteristics and personal listening preference.
BASS BOOST
Bass Boost featured in the GM-A6704 and GM-A5702 can be set to levels variably from 0 to 12 dB for optimal bass. This precise control can enhance the overall balance and impact of all sounds according to listening preference and music style. The GM-A5702 allows adjustment in three steps: 0 dB, 6 dB or 12 dB.
GROWING POWER, SHRINKING SIZE
New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.
AUTOMATIC SIGNAL SENSING AND TURN-ON
Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.
When connected to an OEM receiver or a receiver without RCA output using speaker wire the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.

Performance

Amplifier class: A/B
Audio output channels: 2.0 channels
Peak power per channel: 480 W
Low pass filter: Yes
RMS power output per channel (1 Ohm): 300 W
RMS power output per channel (2 Ohm): 480 W
RMS power output per channel (4 Ohm): 480 W
Low pass filter range: 40 - 500 Hz
Bass boost: 0 - 12 dB
Signal-to-Noise Ratio (SNR): 75 dB
Frequency range: 10 - 70000 Hz
RMS rated power: 1000 W
Built-in crossover: Yes

Ports interfaces

Speakers connectivity type: RCA
Line inputs (RCA): 2

Features

Product colour: Black, Red

Technical details

Connectivity technology: Wired
Bass adjustment: Yes
Bridge function: Yes
Fuse rating: 30A x 2

Power

DC input voltage: 14.4 V
Maximum current: 36 A

Weight dimensions

Width: 356 mm
Depth: 215 mm
Height: 60 mm
Weight: 2.22 kg

Packaging content

Manual: Yes
