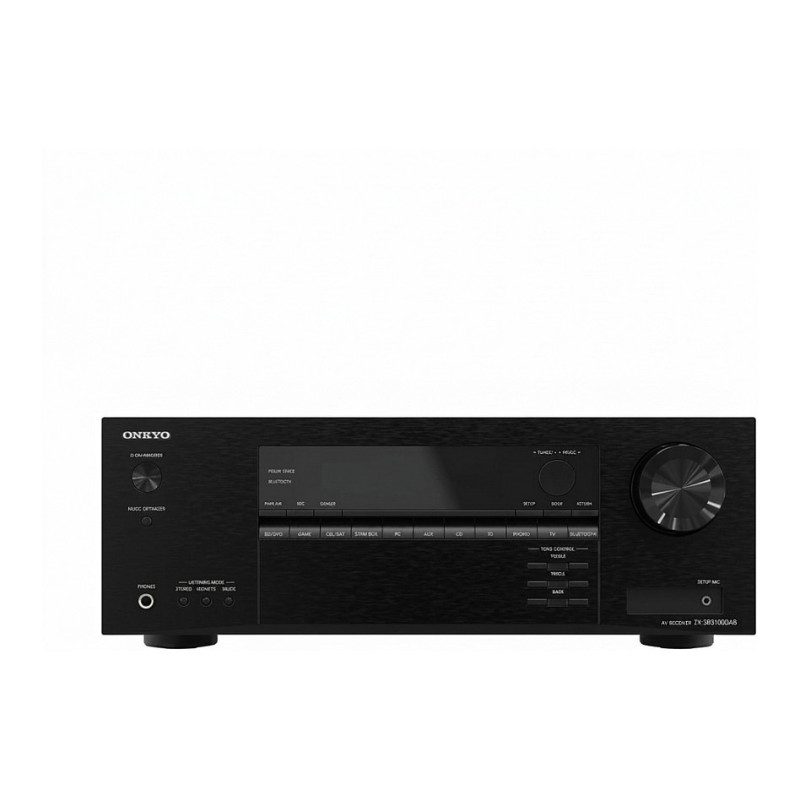

ONKYO TX-SR3100 AV receiver

ONKYO TX-SR3100. Power output per channel (20-20KHz@8 Ohm): 80 W, Audio output channels: 5.2 channels, Receiver type: Surround. Headphone connectivity: 6.3 mm. Speakers connectivity type: Binding post, Connectivity technology: Wired Wireless. Supported radio bands: FM. Supported graphics resolutions: 3840 x 2160, 7860 x 4320, High Dynamic Range (HDR) technology: Dolby Vision, High Dynamic Range 10+ (HDR10 Plus)
The all-new TX-SR3100 powers epic movie nights, much-needed binge sessions, gaming marathons, and more with the most immersive and sought-after AV tech of the day.
Elevate your home entertainment system with this user-friendly, feature-packed AVR
A stellar combination for wraparound sound
Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, meaning effects can move from speaker to speaker all around the room to wrap your audience in the latest films and games or with your favorite classic titles.
Smooth, sharp action
HDMI 2.1a supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. Combined, 60Hz refresh rate enable smooth and sharp viewing of high-speed action, and HDMI 2.1a with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Clarity and color like you've never seen
See images on-screen with new clarity and vivid color. Dolby Vision and HDR10+ technology will level-up your favorite content so you can relax and enjoy the newest content with crisp, clear visuals and dynamic colors, all from the comfort of your couch.
Perfect positioning without the effort
AccuEQ Room Calibration streamlines the initial setup of your home theater by ensuring your receiver and speakers are properly calibrated to the room they're in. This technology compensates for differences in speaker size and distance to equalize response so you get exceptional audio playback no matter the space you're in.
Hear every whisper
Emphasize dialogue and vocals with the TX-SR3100's Vocal Enhancer technology. By adding the Center element to your Front Left and Front Right speakers, it allows you to more clearly pick up on conversations during action scenes with loud explosions or quiet moments in heady dramas—no matter what where the volume is set.
Hear the musical nuance
Our Music Optimizer DSP listening mode reconstructs data that can be lost when audio files are compressed (which can happen with WMA, AAC and MP3 formats). This technology brings audio files back to their original lossless quality by creating new signals to restore minor details left out during the compression process.
Virtually immersive
When playing any Dolby format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers. Sounds that should be coming from up high and far off will sound like they really are.
With Klipsch Optimize Mode, integrate Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Simply select the model speakers you'll be using for each individual channel, and the optimized crossover setting will be automatically applied.
8K/4K Ultra HD delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels.
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

Audio

Power output per channel (20-20KHz@8 Ohm): 80 W
Audio output channels: 5.2 channels
Receiver type: Surround
Power output per channel (1KHz@6 Ohm): 155 W
Total Harmonic Distortion (THD): 0.08%
Frequency range: 20 - 20000 Hz

Inputs

HDMI in: 4

Outputs

Number of HDMI outputs: 1
Headphone outputs: 1
Headphone connectivity: 6.3 mm

Ports interfaces

Speakers connectivity type: Binding post
Connectivity technology: Wired Wireless
FM antenna ports quantity: 1
Phono inputs (RCA): 3

Network

Ethernet LAN: No
Wi-Fi: No
Bluetooth: Yes

Radio

Supported radio bands: FM

Optical drive

Optical drive included: No

Storage

Card reader integrated: No

Video

Supported graphics resolutions: 3840 x 2160, 7860 x 4320
High Dynamic Range (HDR) technology: Dolby Vision, High Dynamic Range 10+ (HDR10 Plus)
3D: No

Technical details

Display: TFT
Audio decoders: DTS:X, Dolby Atmos, Dolby Surround
Audio Return Channel (ARC): Yes
Apple docking: No
Remote control included: No
Product colour: Black
Audio amplifier: Yes
AirPlay: No
Amplifier output power: 80 W
HDCP: Yes
HDCP version: 2.3

Power

AC input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 465 W

Weight dimensions

Weight: 8.4 kg

Packaging data

Package weight: 9 kg

Other features

Package width: 430 mm
Package depth: 365 mm
Package height: 190 mm
