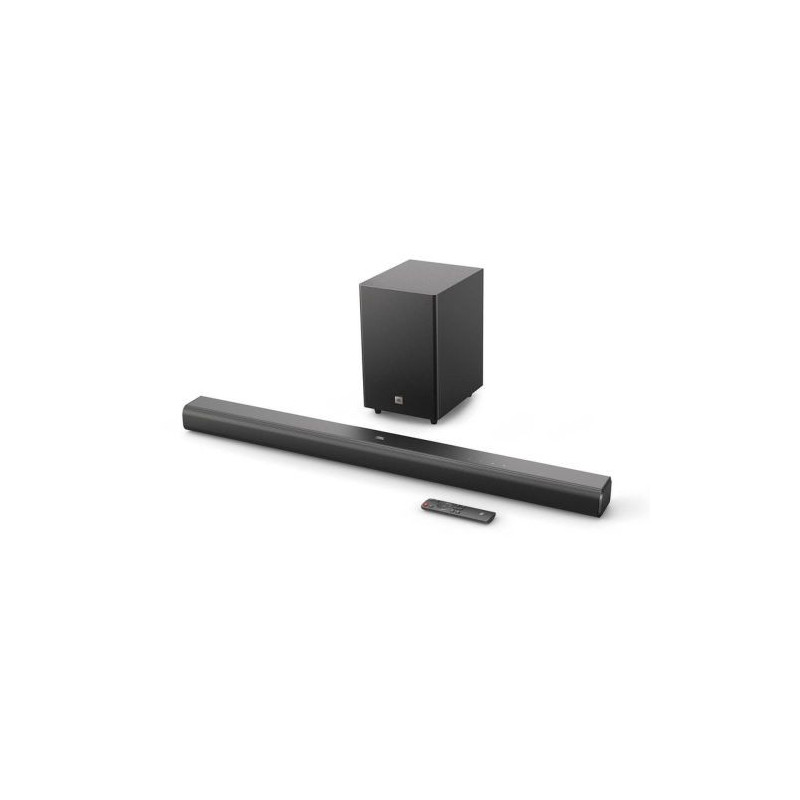

JBL Bar Cinema SB550 3.1 Bluetooth Soundbar Black EU

Technical Specifications:

• Sound System: 3.1 channel


• Power Supply: 100 - 240V AC, ~ 50/60Hz


• Total Speaker Power Output (Max @THD 1%): 250W


• Soundbar Output Power (Max @THD 1%): 150W


• Subwoofer Output Power (Max @THD 1%): 100W


• Soundbar Transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters


• Subwoofer Transducer: 5.25" (133 mm), wireless subwoofer


• Standby Power: < 0.5 W


• Operating Temperature: 0°C - 45°C

Audio Specifications

• Frequency Response: 45Hz - 20kHz (-10dB)


• Audio Inputs:




  • 1 Optical


  • Bluetooth


  • USB (USB playback available in US version; for other versions, USB is for service only)





Dimensions:

• Soundbar Dimensions (W x H x D): 950 x 64 x 80 mm / 37.4'' x 2.5'' x 3.1''


• Subwoofer Dimensions (W x H x D): 200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"


• Soundbar Weight: 2.5 kg / 5.5 lbs


• Subwoofer Weight: 4.2 kg / 9.3 lbs


• Packaging Dimensions (W x H x D): 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"


• Packaging Weight: 8.8 kg / 19.4 lbs

Control and Connection Specifications:

• USB Port: Type A


• USB Rating: 5V DC, 0.5A


• Supporting File Formats: mp3


• MP3 Codec:




  • MPEG 1 Layer 2/3


  • MPEG 2 Layer 3


  • MPEG 2.5 Layer 3






• MP3 Sampling Rate: 16 - 48 kHz


• Bluetooth Version: 5.3


• Bluetooth Profile: A2DP 1.3, AVRCP 1.6


• Bluetooth Transmitter Frequency Range: 2400 MHz - 2483.5 MHz


• Bluetooth Max. Transmitting Power: <10 dBm (EIRP)


• Bluetooth Modulation: GFSK, π/4 DQPSK, 8DPSK


• 2.4G Wireless Transmitter Frequency Range: 2402-2481 MHz


• 2.4G Wireless Transmitter Power: <10 dBm (EIRP)


• 2.4G Wireless Modulation: GFSK

Video Specifications:

• HDMI ARC (Audio Return Channel): 1


• HDMI HDCP Version: 1.4

Items included:

• Soundbar


• Wireless Subwoofer


• Remote Control with Batteries


• Power Cords (up to 8 pcs depending on region SKUs)


• HDMI Cable


• Wall-Mount Bracket Kit with Screws


• Quick Start Guide


• Warranty Card


• Safety Sheet
