j5create JVA06 video capturing device

j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black. Product colour: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max): 1920 x 1080 pixels. Supported resolutions: 640 x 480 720 x 480 720 x 576 800 x 600 1280 x 720 1024 x 768 1360 x 768 1280 x 800 1152 x..., Maximum frame rate: 60 fps, Supported video modes: 1080p. USB connector type: USB Type-A, USB Type-C, USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). Power supply type: USB, Output voltage: 20 V, Output current: 0.9 A. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Yes, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Bundled software: Recommended software: OBS™

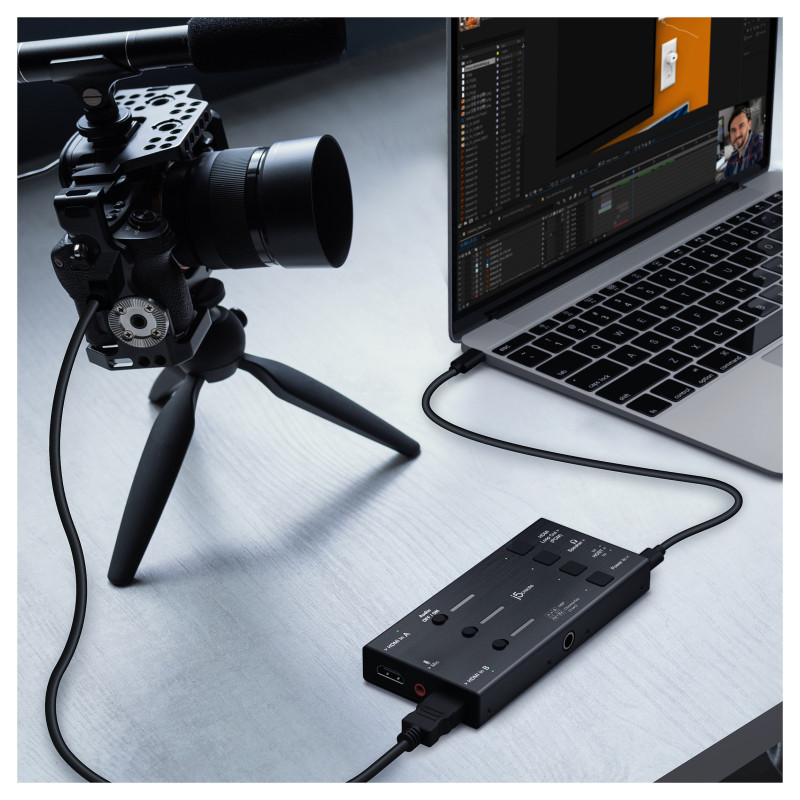

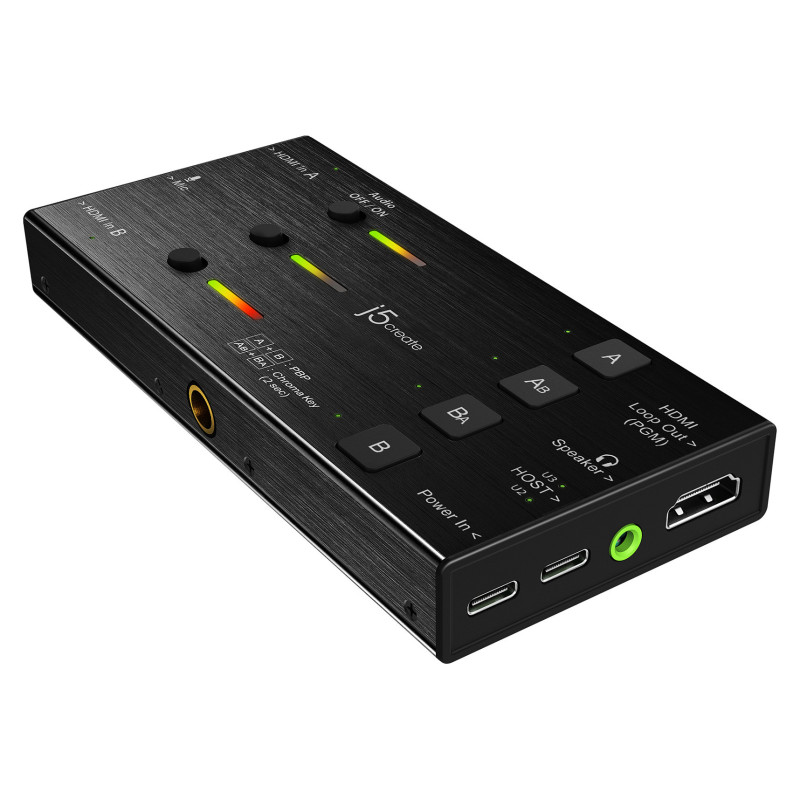

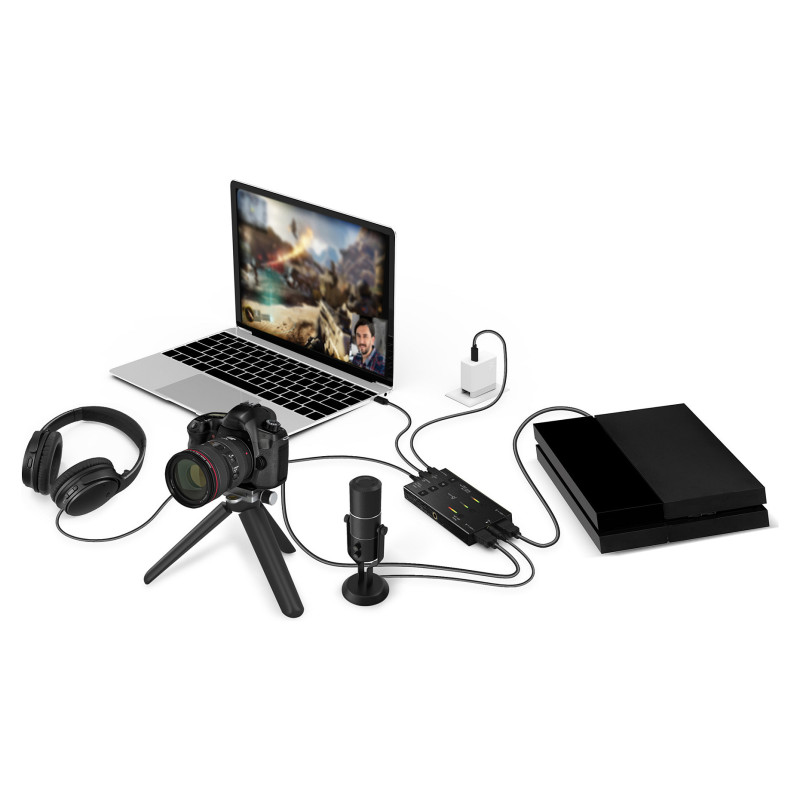

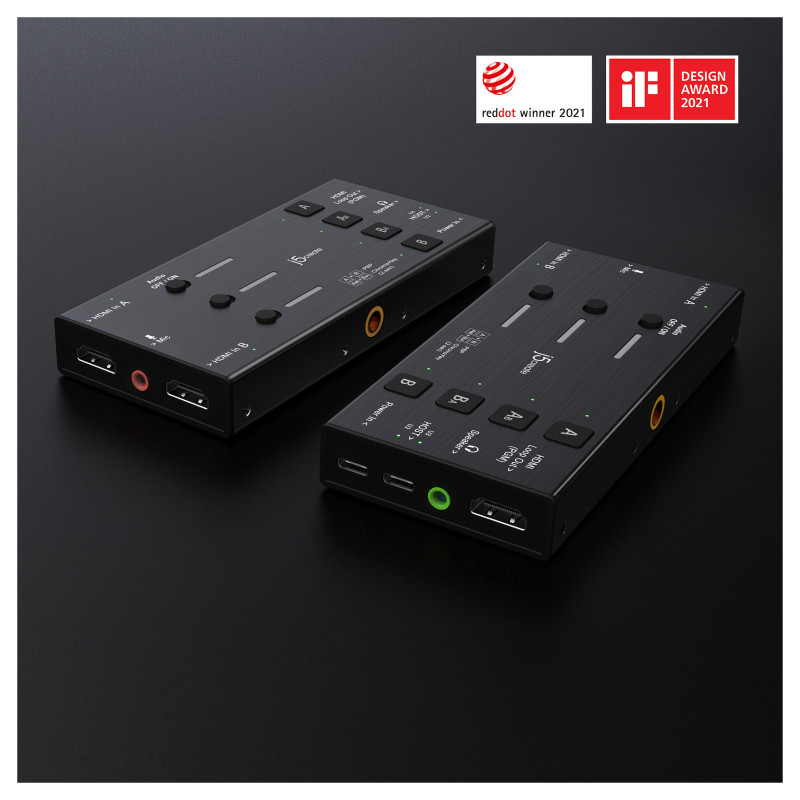

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you're live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.

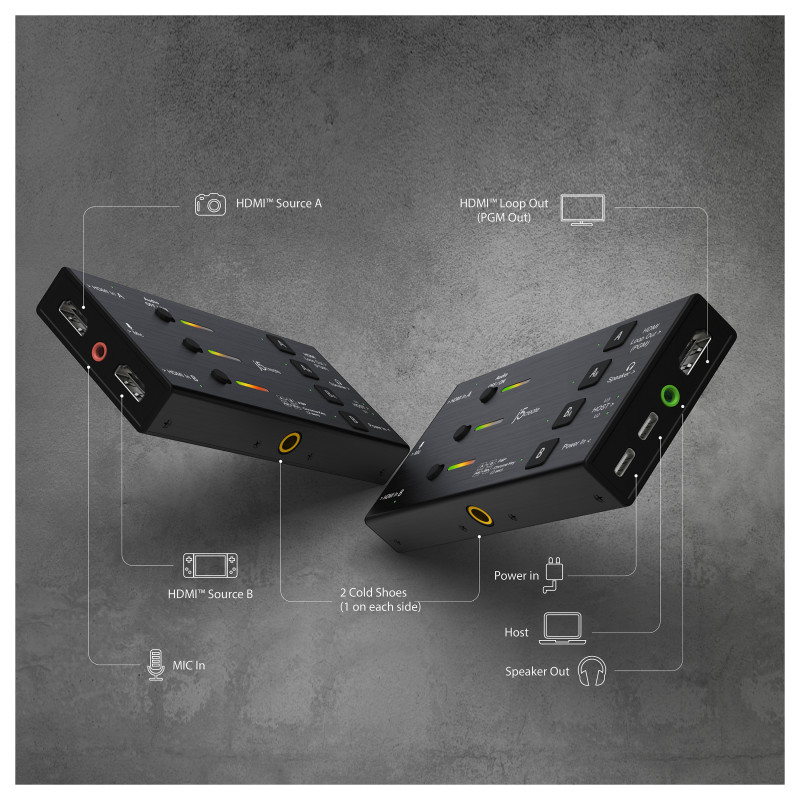

With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).

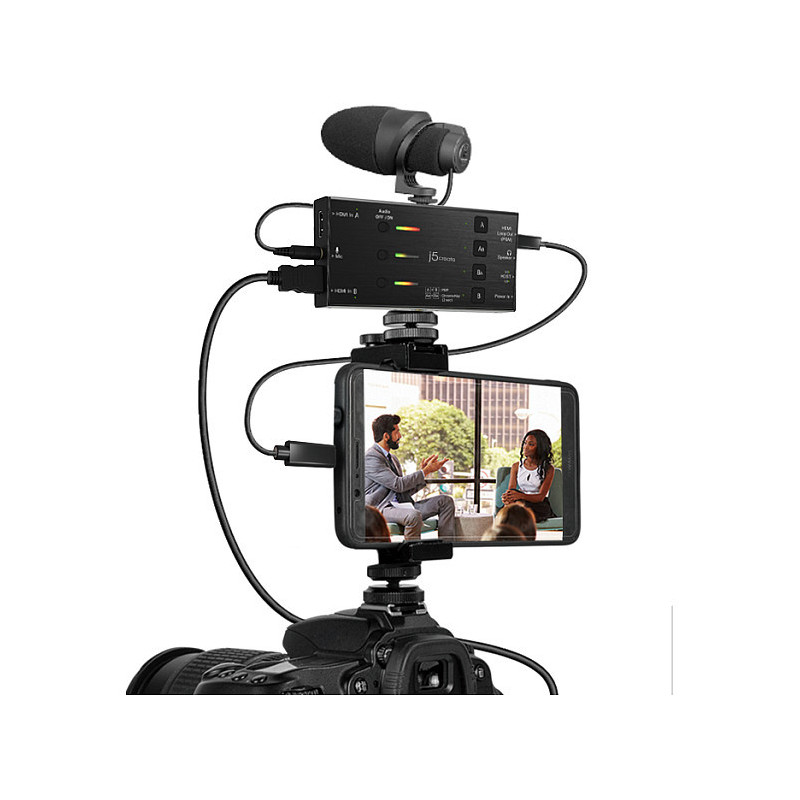

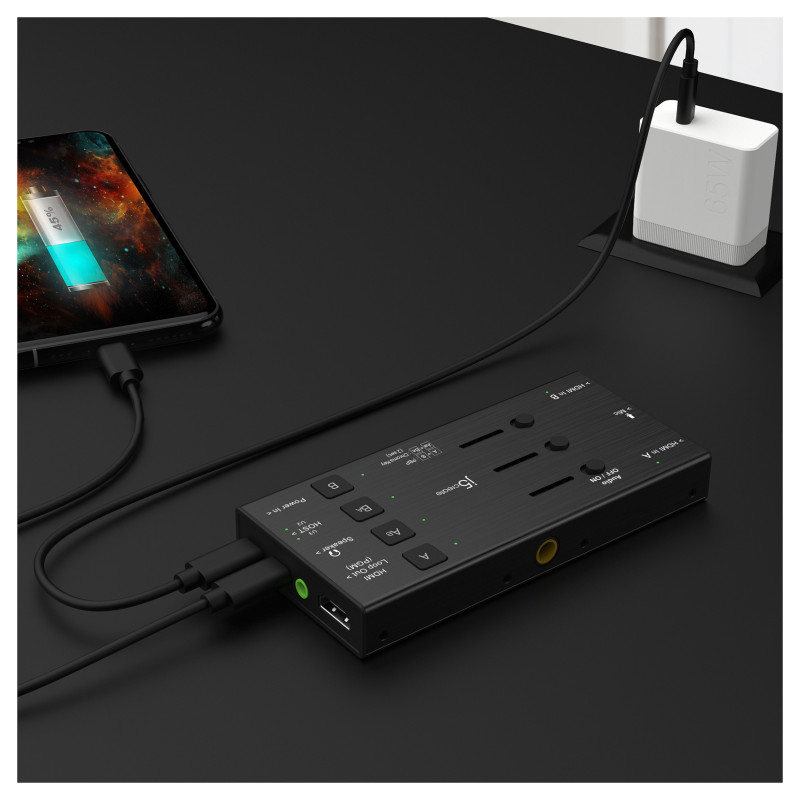

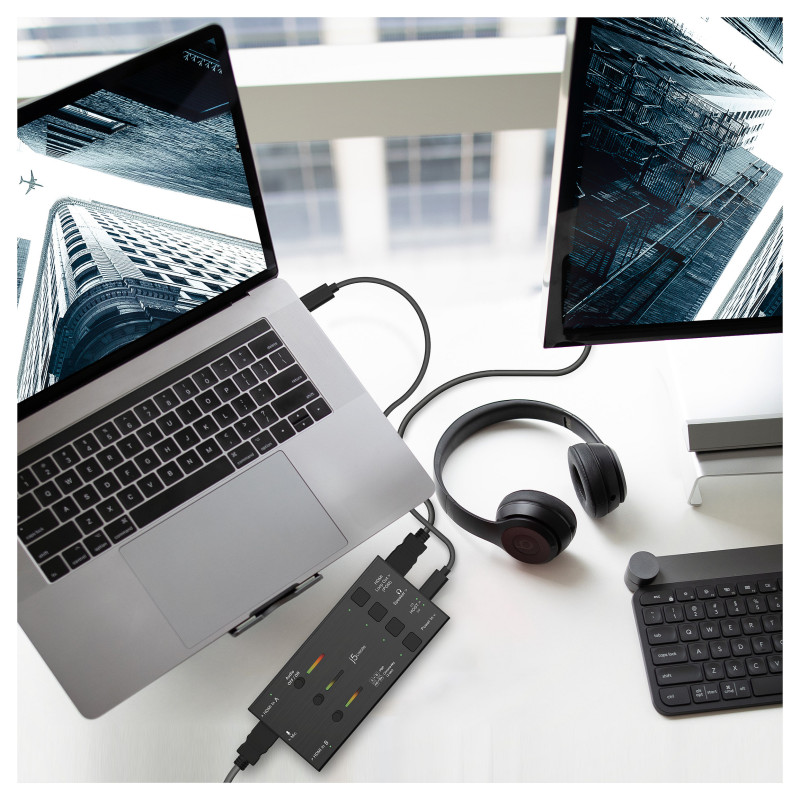

The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.

Performance

Product colour: Black
Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max): 1920 x 1080 pixels
LED indicators: USB
Capturing from: Digital camera, Game console, PC
Supported aspect ratios: 16:9
Housing material: Aluminium
Cable length: 0.6 m
Country of origin: Taiwan

Video

Analog signal format system: Not supported
Maximum frame rate: 60 fps
Supported video modes: 1080p

Audio

Supported audio channels: 2

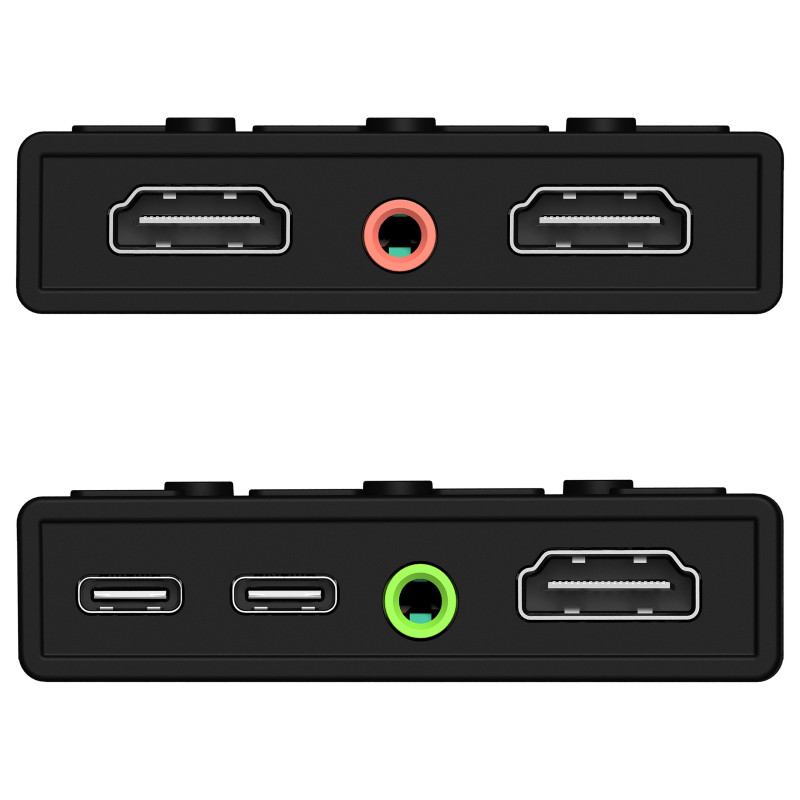

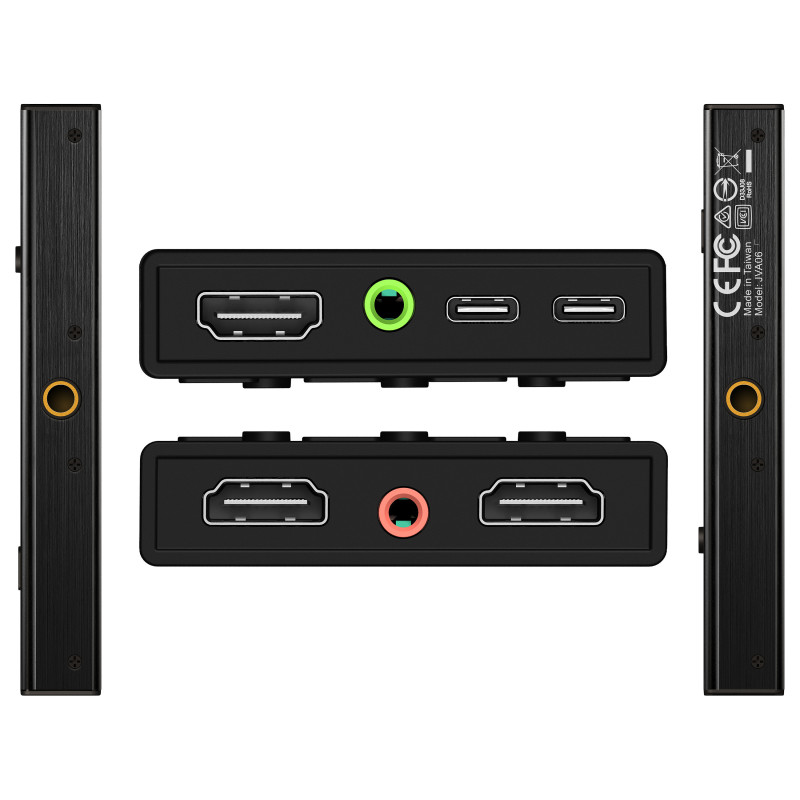

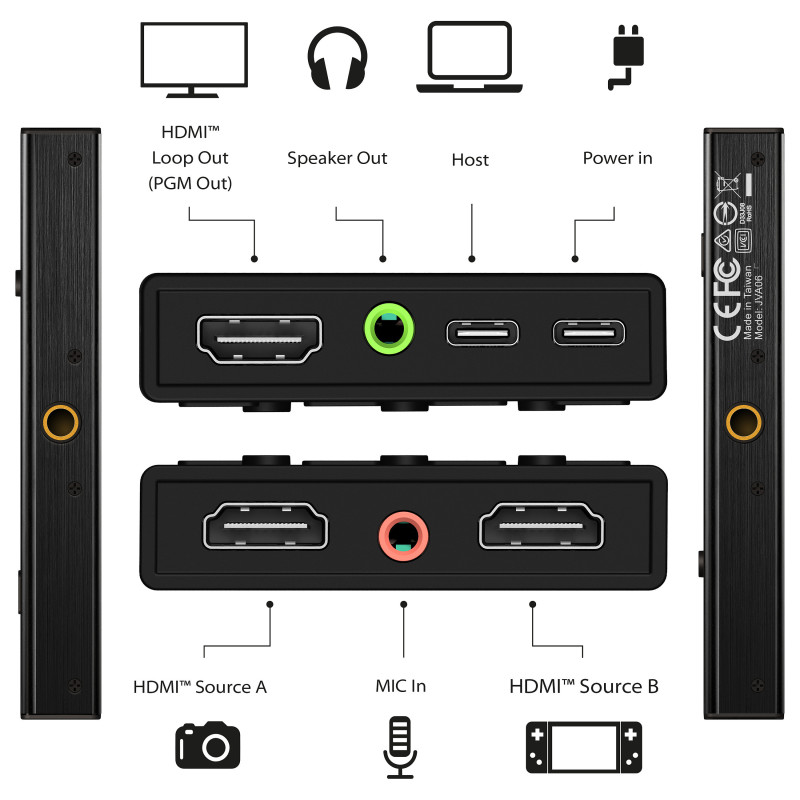

Ports & interfaces

Feature: USB port
USB connector type: USB Type-A, USB Type-C
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity: 2
HDMI ports quantity: 3
HDMI in: 2
Number of HDMI outputs: 1

Power

Power supply type: USB
Output voltage: 20 V
Output current: 0.9 A

Software

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Yes
Feature: Mac compatibility
Linux operating systems supported: Yes
Bundled software: Recommended software: OBS™

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 65 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 85%

Technical details

Warranty period: 2 year(s)

Weight & dimensions

Width: 134.6 mm
Depth: 63.7 mm
Height: 18.4 mm
Weight: 175 g

Packaging data

Package weight: 415 g
Package height: 70 mm
Package width: 155 mm
Package depth: 95 mm
Package type: Box

Packaging content

Cables included: HDMI, USB Type-C, USB Type-C to USB Type-A
Feature: Quick installation guide
Feature: Manual
Quantity: 1
