HDMI Signal Generator - Lindy HDMI 4K60 Signal Generator And Display Emulator 32683 Black
Product reference:
14-4002888326834

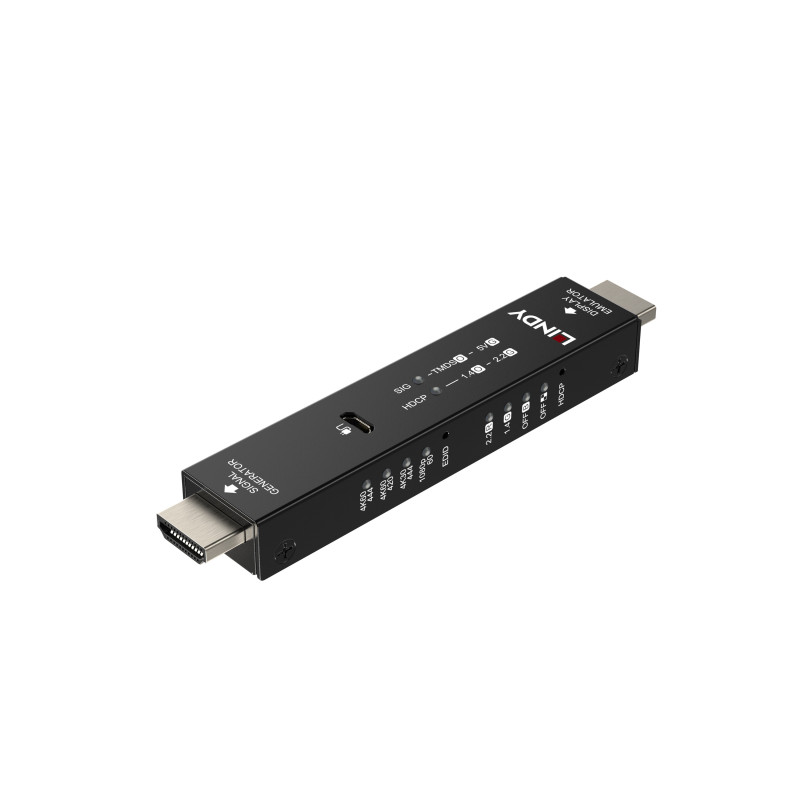

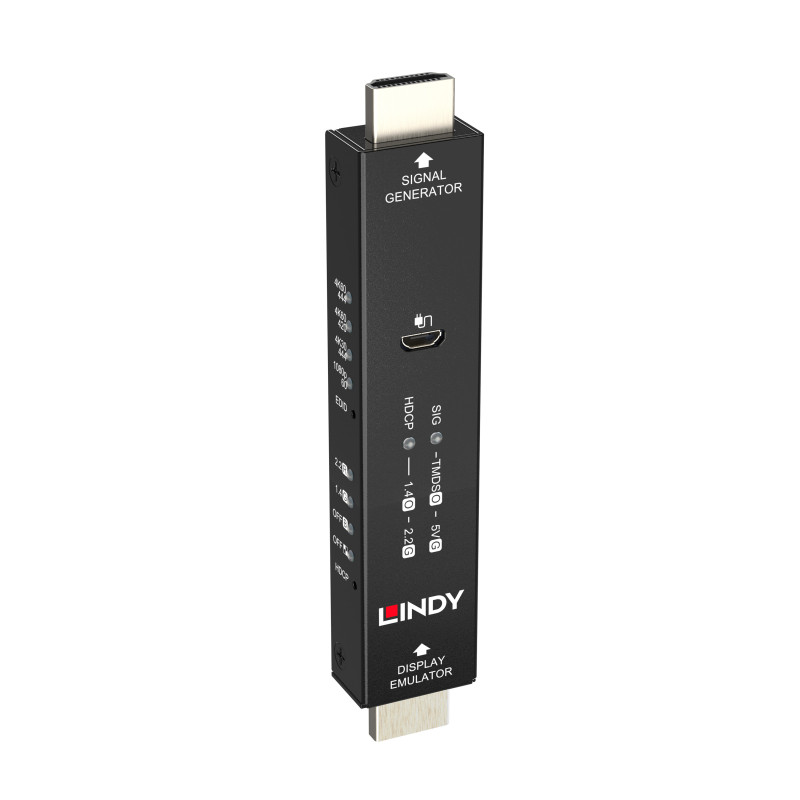

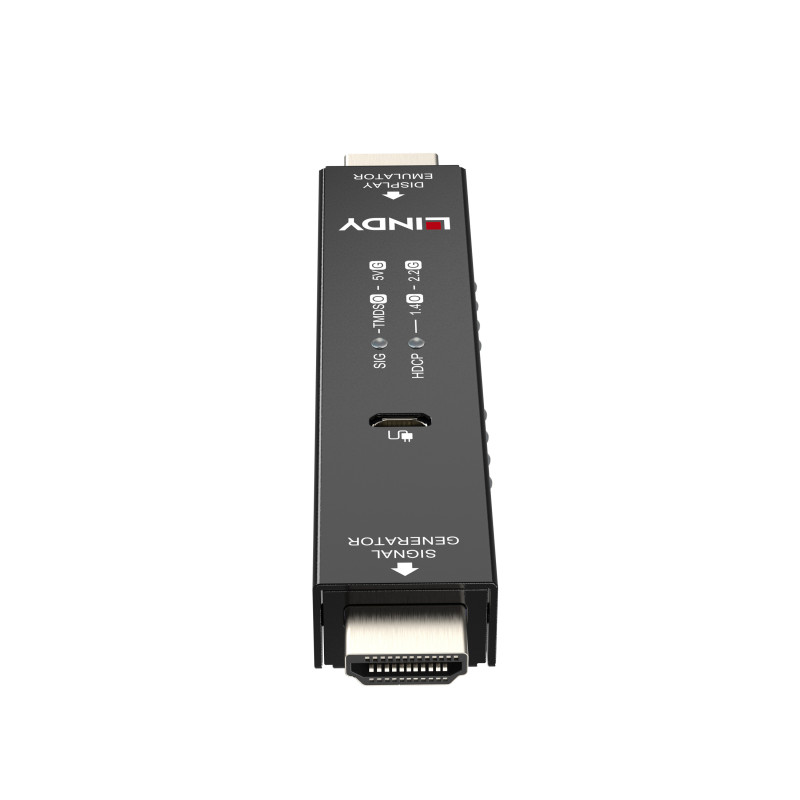

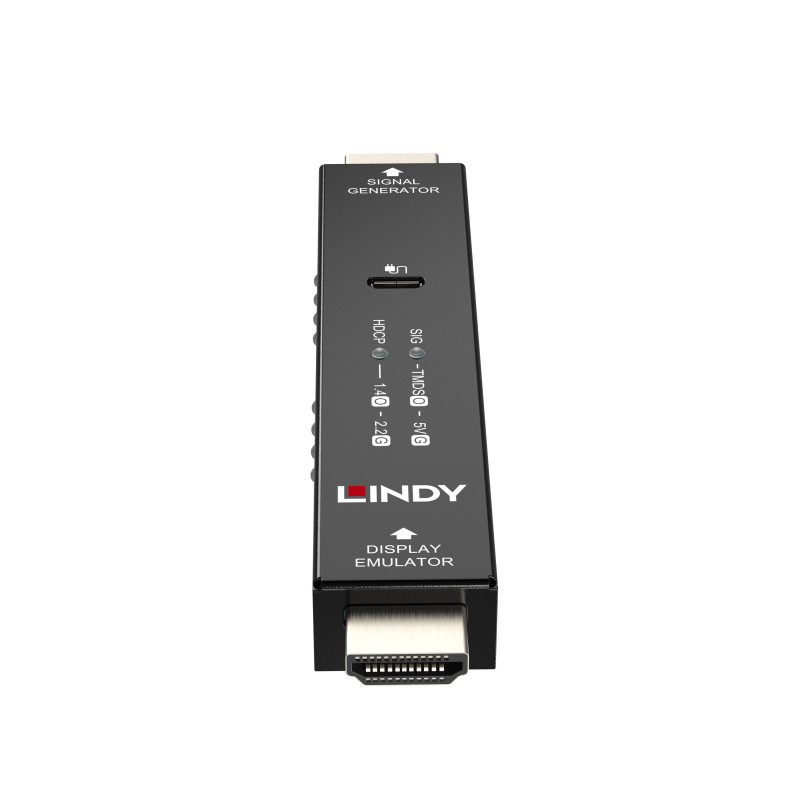

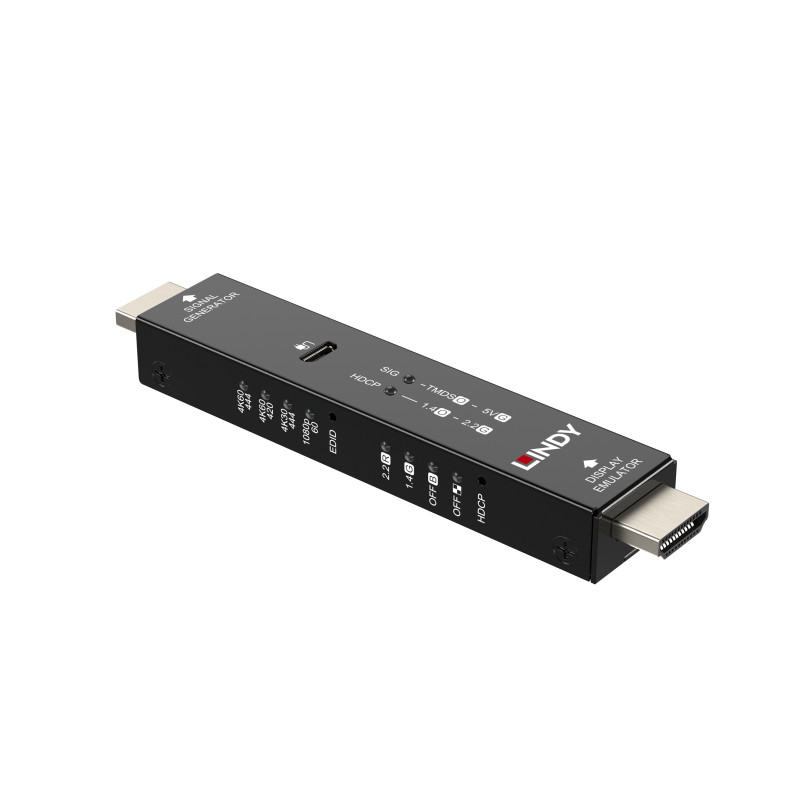

The compact HDMI 2.0 signal generator and display emulator supports resolutions up to 3840 × 2160 at 60 Hz, 18 Gbps data transfer rate, HDCP 2.2 / 1.4, selectable EDID modes and HDCP analysis. The black metal device (100 × 22 × 13.6 mm) has male HDMI input and output connectors, USB Micro-B power supply and micro-button control.
HDMI Signal Generator - Lindy HDMI 4K60 Signal Generator And Display Emulator 32683 Black
Product reference:
14-4002888326834
The compact HDMI 2.0 signal generator and display emulator supports resolutions up to 3840 × 2160 at 60 Hz, 18 Gbps data transfer rate, HDCP 2.2 / 1.4, selectable EDID modes and HDCP analysis. The black metal device (100 × 22 × 13.6 mm) has male HDMI input and output connectors, USB Micro-B power supply and micro-button control.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Lindy HDMI 4K60 signal generator and screen emulator 32683
Compact HDMI 2.0 signal generator and display emulator supporting up to 3840 × 2160 resolution at 60 Hz, 18 Gbps bandwidth, HDCP 2.2/1.4, selectable EDID modes and HDCP analysis. The 100 × 22 × 13.6 mm black metal device has male HDMI input and output connectors, USB Micro-B power and micro-button control.
- HDMI 2.0 signal generator and display emulator for testing and troubleshooting HDMI equipment
- Supports up to 3840 × 2160 resolution at 60 Hz, 4:4:4 8-bit color, and 18 Gbps bandwidth
- Supports HDCP 2.2 and 1.4 and has HDCP analysis function
- Selectable EDID modes: 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4 and 1080p at 60 Hz
Product information | |
|---|---|
| Product type | HDMI 4K60 signal generator and display emulator |
| Brand | Lindy |
| Model | 32683 |
| Color | Black |
| Purpose | For testing and troubleshooting HDMI equipment, including signal, display, EDID and HDCP analysis |
Technical specifications | |
| HDMI standard | HDMI 2.0 |
| HDMI interface | HDMI |
| Management | Micro buttons |
| HDCP analysis | Supported |
| EDID modes | Selectable 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4 and 1080p 60 Hz modes |
| Energy consumption | 1.2W |
Connectors | |
| HDMI input | HDMI Type A male |
| HDMI output | HDMI Type A male |
| Power connector | USB Micro-B female |
Physical specifications | |
| 100 × 22 × 13.6 mm (W × W × H) | |
| Weight | 0.04 kg |
| Housing material | Metal |
| Operating temperature | From −5°C to 55°C |
| Storage temperature | From −25°C to 70°C |
| Relative humidity | 10-90%, non-condensing |
Package contents | |
| Attached items |
|
Safety information | |
| Safety warning | Use the device only for testing HDMI signals, screen emulation, and related troubleshooting. Connect it to a suitable USB power source and protect it from moisture, excessive heat, and physical damage. |
| Height | 60mm |
| Length | 250mm |
| Weight | 75 g |
| Width | 130mm |
