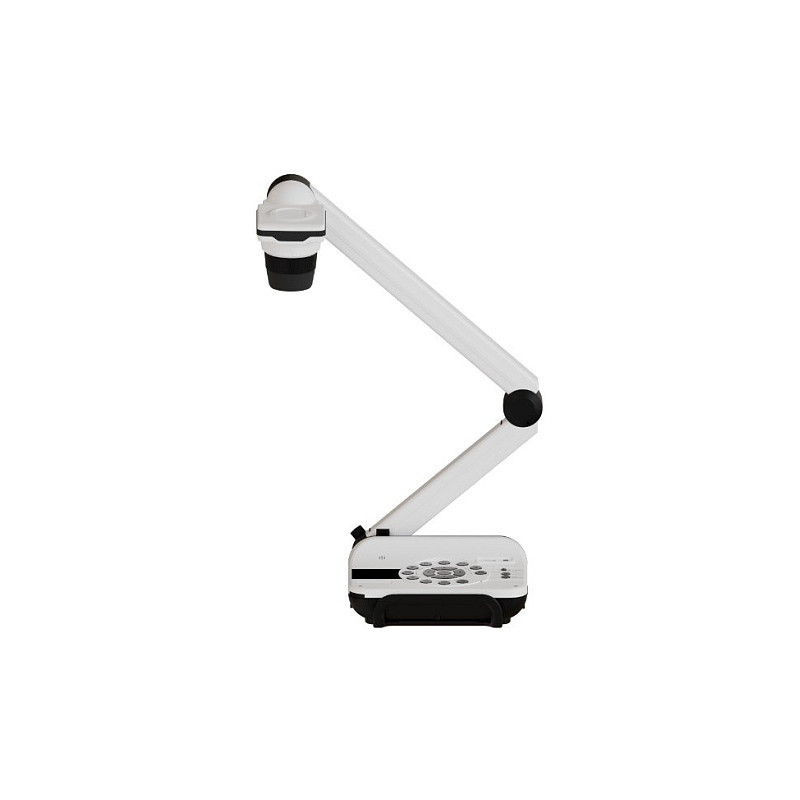

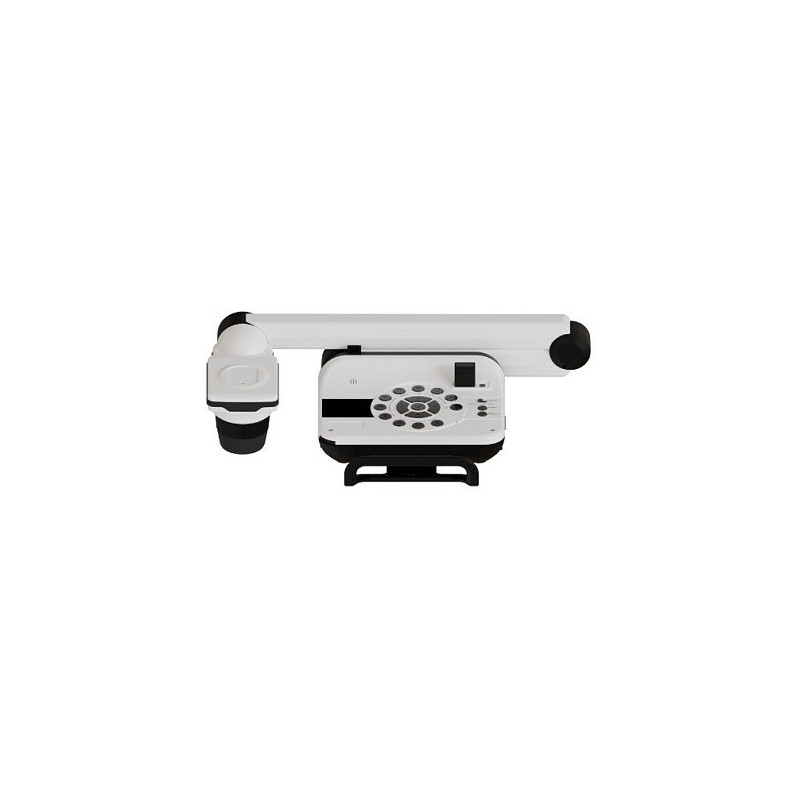

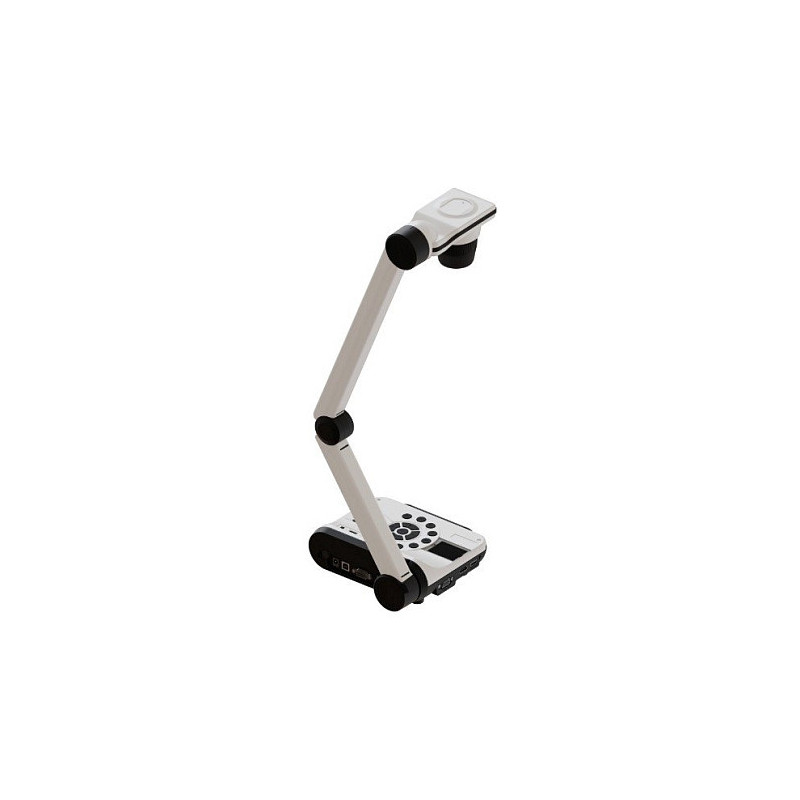

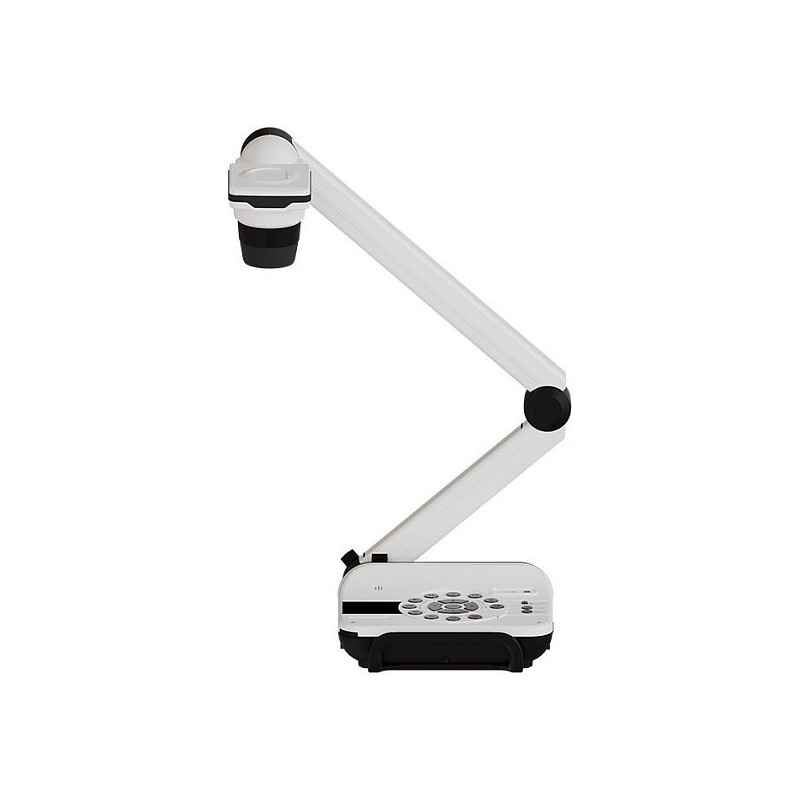

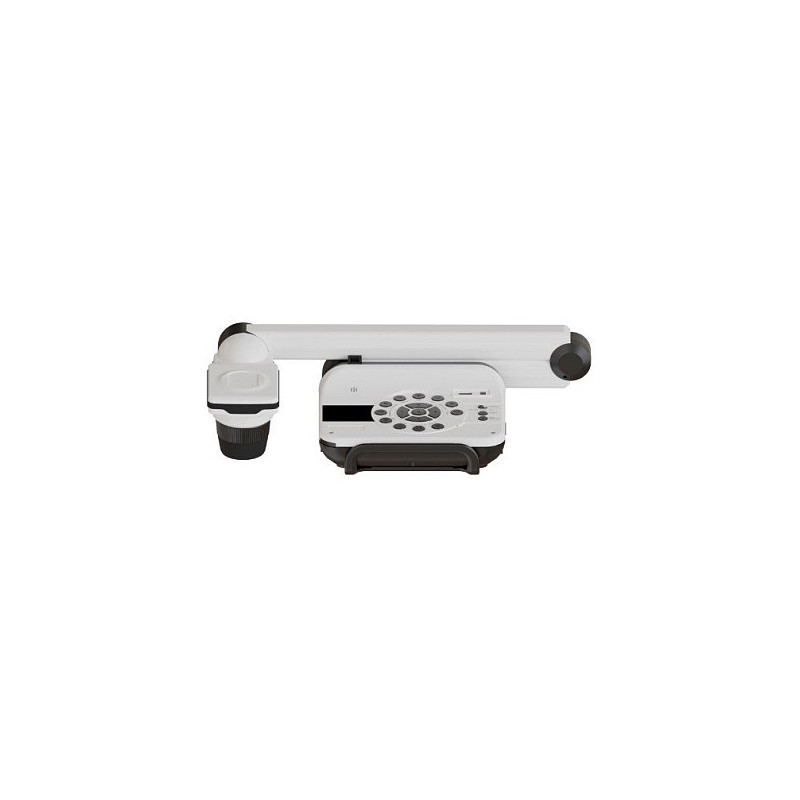

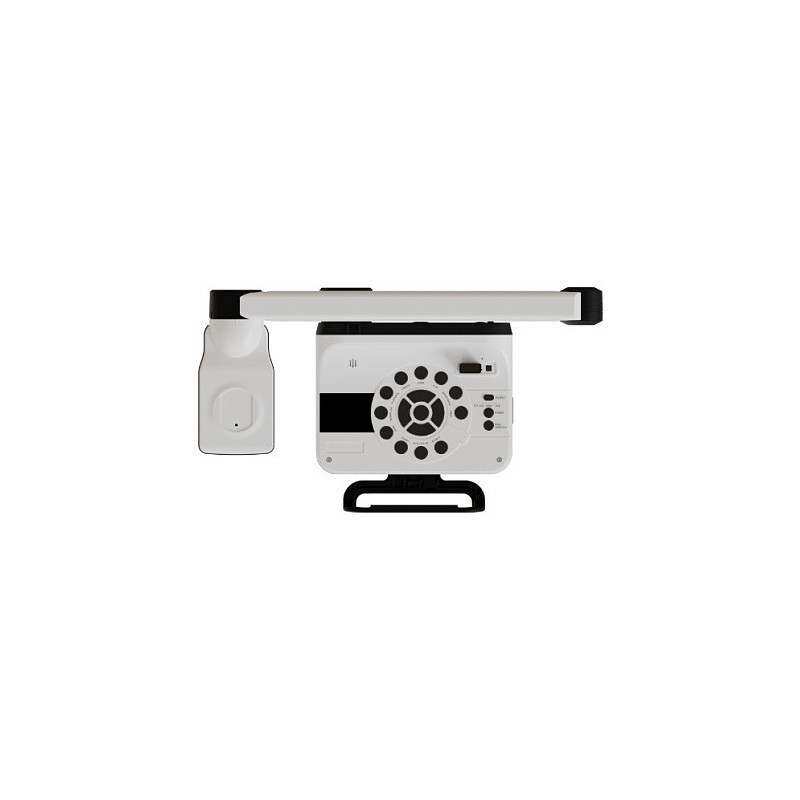

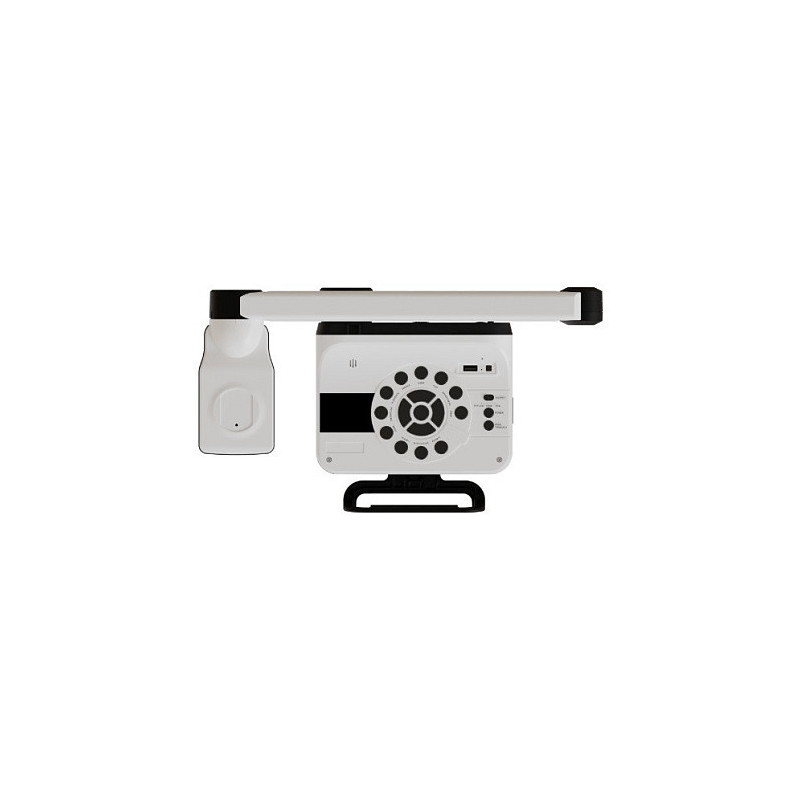

Optoma DC557 document camera

Optoma DC557. Effective sensor resolution: 13 MP, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"), Sensor type: CMOS. Optical zoom: 17x, Digital zoom: 16x. Interface: USB 2.0, USB connector type: USB Type-A, USB Type-B. Compatible memory cards: SD. Power supply type: DC, Power consumption (typical): 0.9 W, Operating voltage: 5 V

13MP Folding arm document camera with 4K video preview and Miracast
Built with Miracast technology, the DC557 4K document camera is optimised for seamless wireless display sharing and presentations, without the need for additional hardware - Simplifying collaboration for meeting rooms, classrooms, and other professional environments.

Create an inspirational space where even the smallest of objects can be enlarged onto a huge screen for a more in-depth learning experience.

Teaching staff, presenters and students are now able to share even the smallest objects or detailed experiments with a larger audience using an Optoma visualiser. Suitable for classrooms, lecture theatres, boardrooms and auditoriums, it's a great way to give students an interactive learning experience.

Camera

Effective sensor resolution: 13 MP
Optical sensor size: 25.4 / 3.06 mm (1 / 3.06")
Sensor type: CMOS
Supported graphics resolutions: 3840 x 2160, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1024 x 768 (XGA)
Feature: Video recording
Maximum video resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Maximum frame rate: 60 fps
Feature: Image freeze
Light source: LED

Lens system

Feature: Auto focus
Optical zoom: 17x
Digital zoom: 16x

Ports & interfaces

Interface: USB 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
USB connector type: USB Type-A, USB Type-B
Feature: Miracast
Audio output: Yes
VGA (D-Sub) input ports: 1
VGA (D-Sub) output ports: 1
RS-232 ports: 1
Feature: DC-in jack

Storage

Feature: Card reader integrated
Compatible memory cards: SD

Technical details

Document size (max): A3
Product colour: White, Black

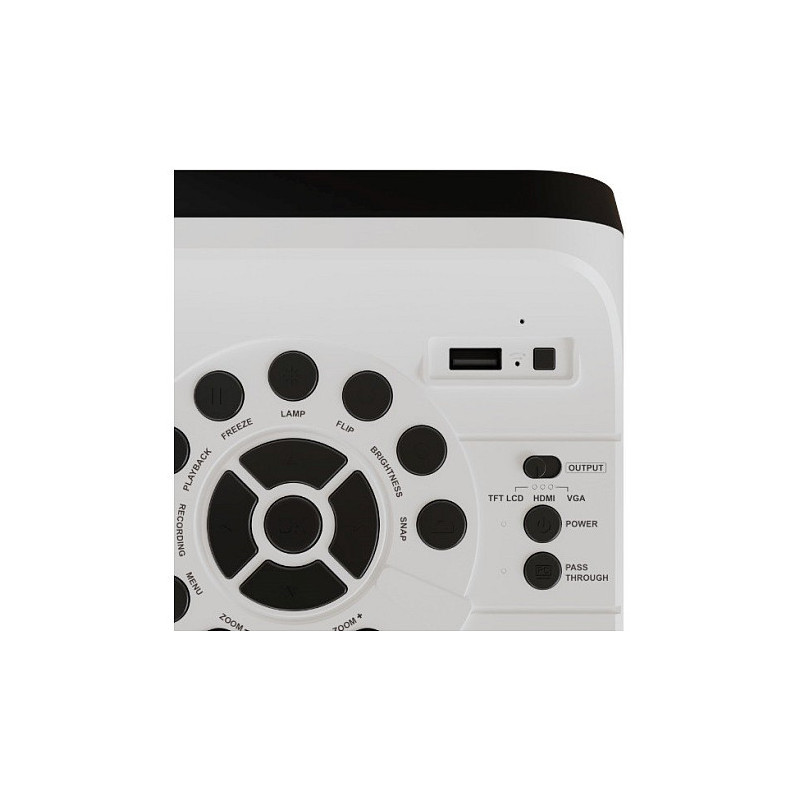

Control type: Buttons

Power

Power supply type: DC
Power consumption (typical): 0.9 W
Operating voltage: 5 V
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 370 mm
Depth: 178 mm
Height: 88 mm
Weight: 2.6 kg

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 3.8 kg

Packaging content

Feature: AC adapter included
Feature: Microscope adapter included
Feature: Remote control included
Feature: Manual
Cables included: VGA, USB, HDMI
Feature: Receiver included
