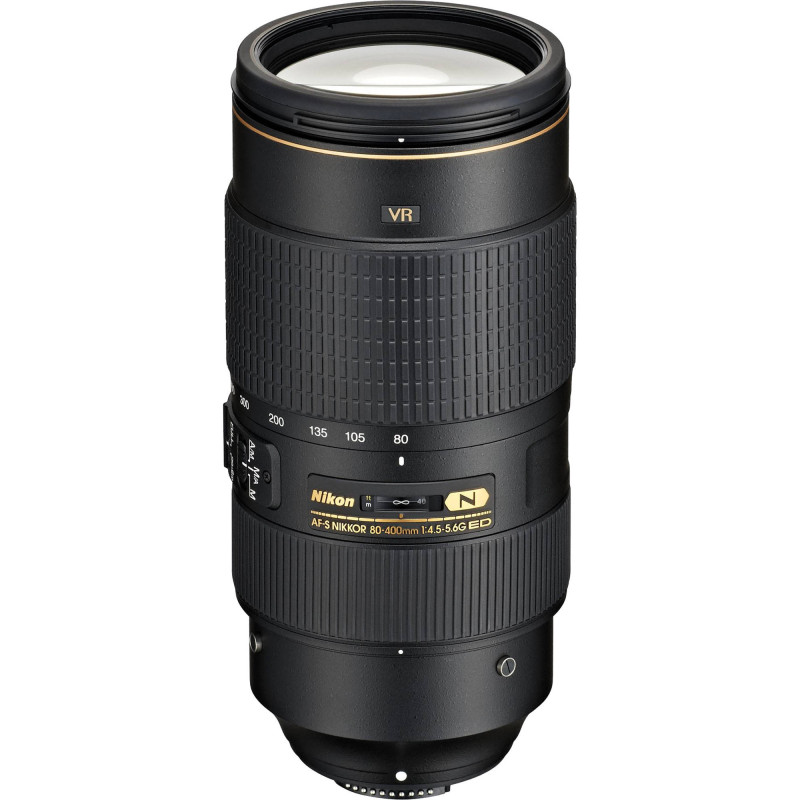

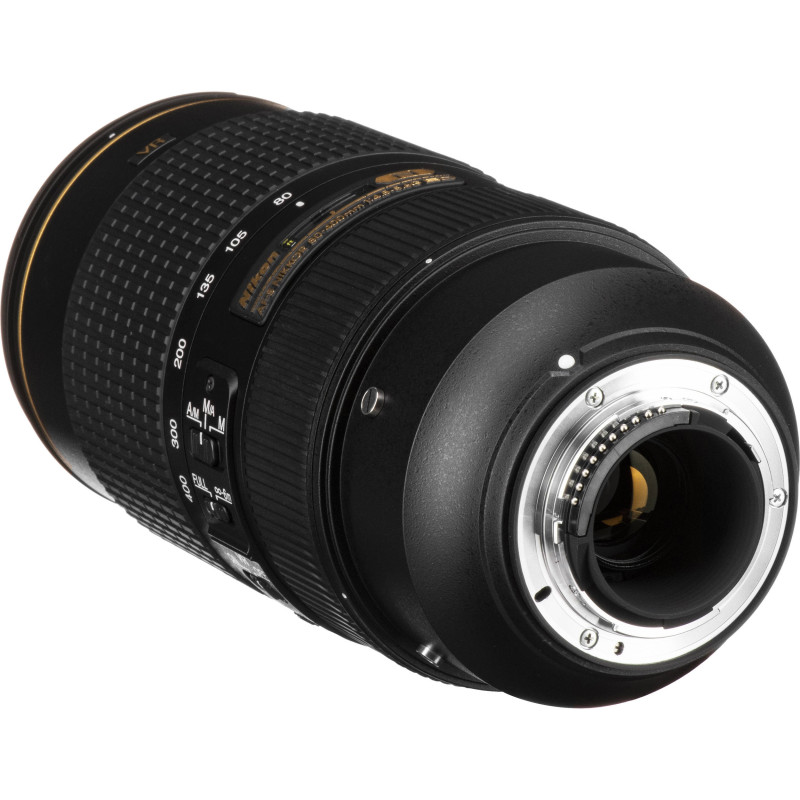

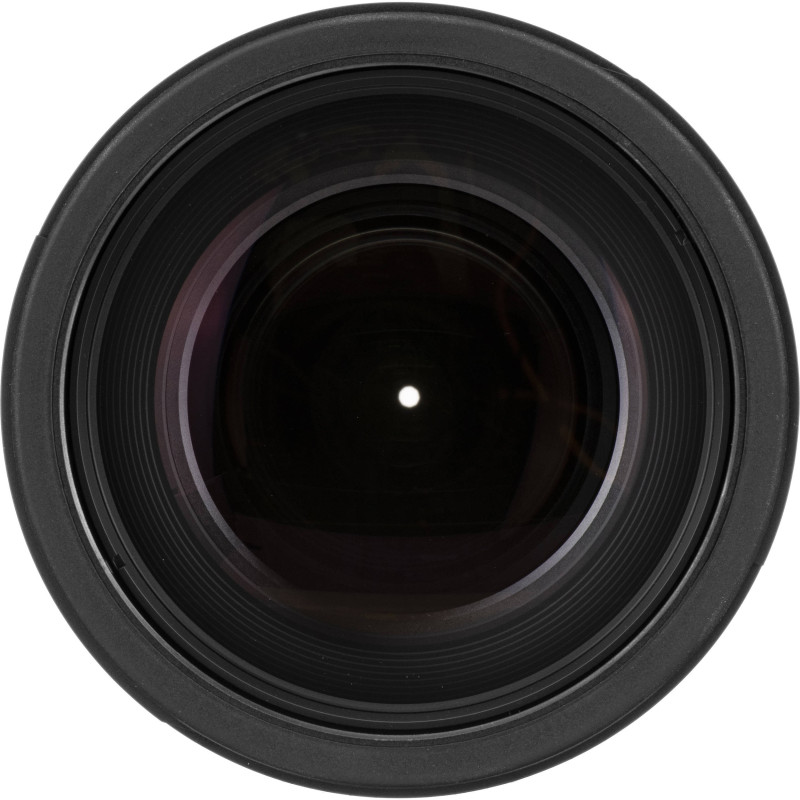

Nikon AF-S NIKKOR 80-400mm f / 4.5-5.6G ED VR

Nikon AF-S NIKKOR 80-400mm f/4.5-5.6G ED VR

A high-performance telephoto zoom lens for FX-format SLRs.
With a wide 80-400mm focal range and advanced optical design, this lens can be used to capture a wide range of subjects, such as wildlife, landscapes and sports.
Nikon Vibration Reduction allows the shutter to be shot four stops slower, so handheld images are clear at all focal lengths. Four ED (Extra-low Dispersion) and one Super ED glass element correct chromatic aberration and optical color defects that occur at longer focal lengths.

• FX-format telephoto zoom lens: 80-400mm focal length (120-600mm when used with Nikon DX format SLR).


• Exceptional optical properties: Four ED (Extra-low Dispersion) glass elements and one Super ED glass element help correct chromatic aberration and optical color defects that occur at longer focal lengths.


• Nanometer crystal coating: significantly less ghosting and flare, even in backlight conditions.


• Vibration Reduction (VR) system: Standard, Active and Tripod modes. The effects of camera shake are reduced and the shutter speed can be reduced by four stops.


• Silent Wave engine (SWM): fast, quiet and accurate autofocus.


• Three focus modes: A/M (autofocus with manual override, AF priority), M/A (autofocus with manual override, manual focus priority), and M (manual focus).


• AF with teleconverter: AF works even when a 1.4x teleconverter is attached to a camera that supports f/8.


• Focus limit switch: FULL and ∞-6 m allow you to reduce focusing time when shooting at a certain distance.


• Lens barrel lock: (if the barrel is pushed to the 80 mm position) ensures that the barrel does not extend due to its own weight when the lens is not in use.

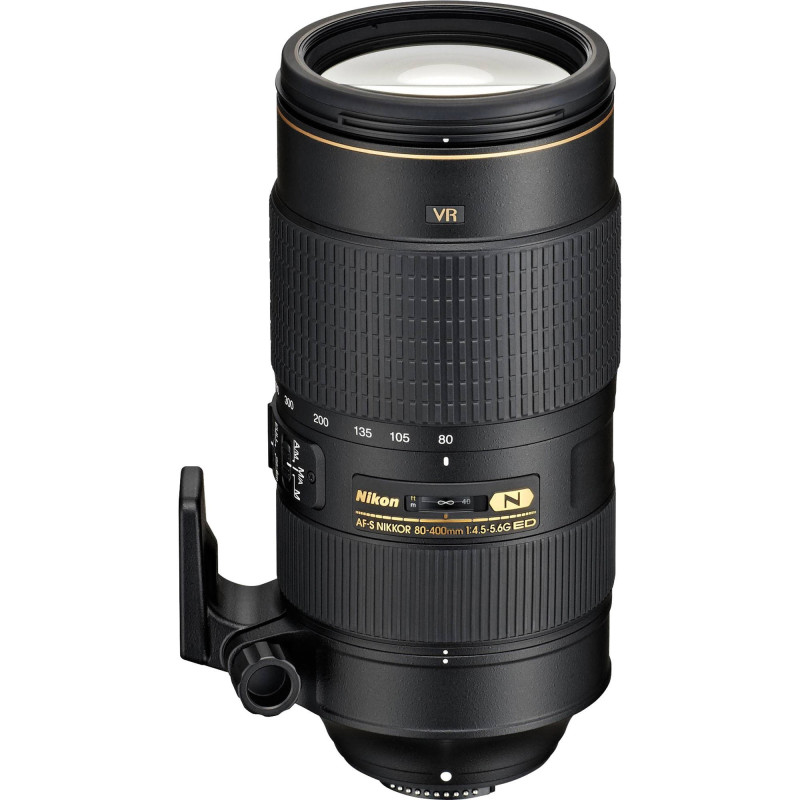

• Removable tripod support: added.

Technical data

Viewing angle

30° 10′-6° 10′ (20°-4° - Nikon DX format)

Maximum recovery ratio

Approximately 1/5 of the time.

Lens construction

20 elements in 12 groups (including 4 ED lens elements, 1 Super ED lens element and lens elements with Nano Crystal Coat)

Maximum aperture

f/4,5-5,6

Smallest aperture

f/32-40

Diameter x length (distance from lens mount)

Approx. 95.5 mm maximum diameter x 203 mm (distance from camera lens mount)

Weight

Approx. 1,570 g (3.5 lb) with tripod ring. Approx. 1,480 g (3.3 lb) without tripod ring

Filter mounting ring size

77mm (W=0.75mm)

Focal length

80-400mm

Included accessories

77mm snap-on front lens cap LC-77, rear lens cap LF-4, lens case CL-M2, lens cap HB-65

Minimum focusing distance

AF: 1.75 m (5.74 ft) from focal plane at all zoom positions; MF: 1.5 m (4.92 ft) from focal plane at all zoom positions

Number of diaphragm elements

9 (rounded aperture)
