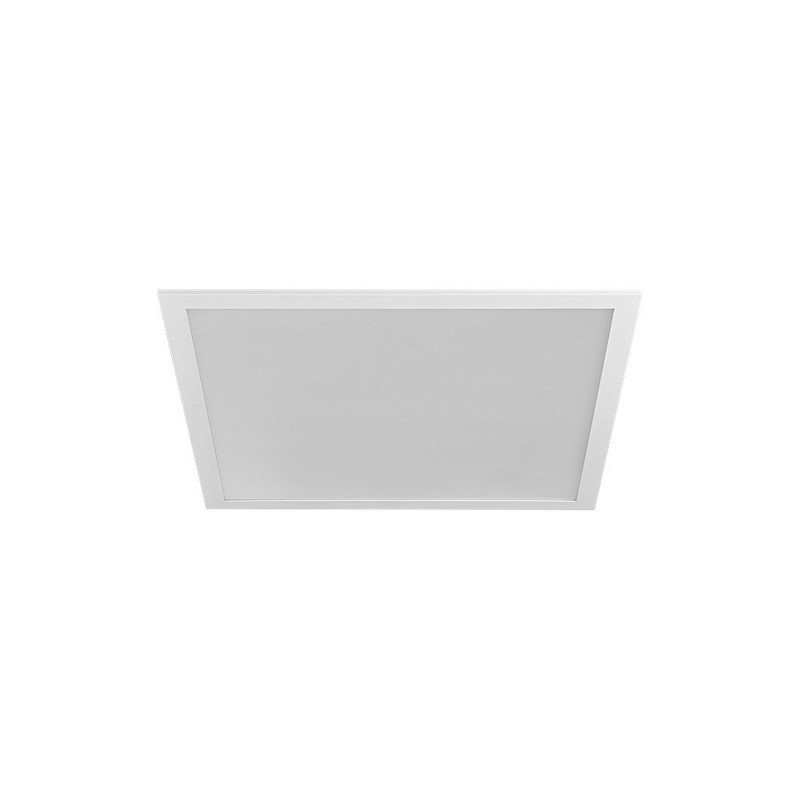

OPPLE Lighting LEDPanelS-E4 Sq620-32W-830

OPPLE Lighting LEDPanelS-E4 Sq620-32W-830. Shape: Square, Mounting surface type: Ceiling, Product colour: White. Light colour type: White, Light output (max): 4000 lm, Beam angle (max): 115°. Power source type: AC, Input voltage: 220 - 240 V, AC input frequency: 50 / 60 Hz. Width: 620 mm, Depth: 620 mm, Height: 35 mm. Package width: 40 mm, Package depth: 673 mm, Package height: 630 mm

Features

Shape: Square
Mounting surface type: Ceiling
Product colour: White
Housing material: Aluminium, Polystyrene (PS)
International Protection (IP) code: IP20
Protection class: II
Mechanical impact protection code: IK03
Average ambient temperature: 25 °C
Certification: CE

Lamps

Light colour type: White
Light output (max): 4000 lm
Color Rendering Index (CRI): 80
Beam angle (max): 115°
Luminous efficacy: 125 lm/W
Number of switch cycles: 100000
Power factor: 0.9
Equivalent bulb power: 18 W

Power

Input voltage: 220 - 240 V
AC input frequency: 50 / 60 Hz
Power source type: AC
Inrush current: 40 A
Inrush time: 316 ms
DC input voltage: 180 - 280 V
AC input voltage: 220 - 240 V

Weight dimensions

Width: 620 mm
Depth: 620 mm
Height: 35 mm
Weight: 1.73 kg
Cable length: 1 m

Packaging data

Package width: 40 mm
Package depth: 673 mm
Package height: 630 mm
Package weight: 2.36 kg

Other features

Glow-wire test: 650°C
Driver failure rate at 5000 h: 1%
Median useful life L70B50: 60000 h
Median useful life L80B50: 50000 h
Operating temperature (T-T): -10 - 45 °C
