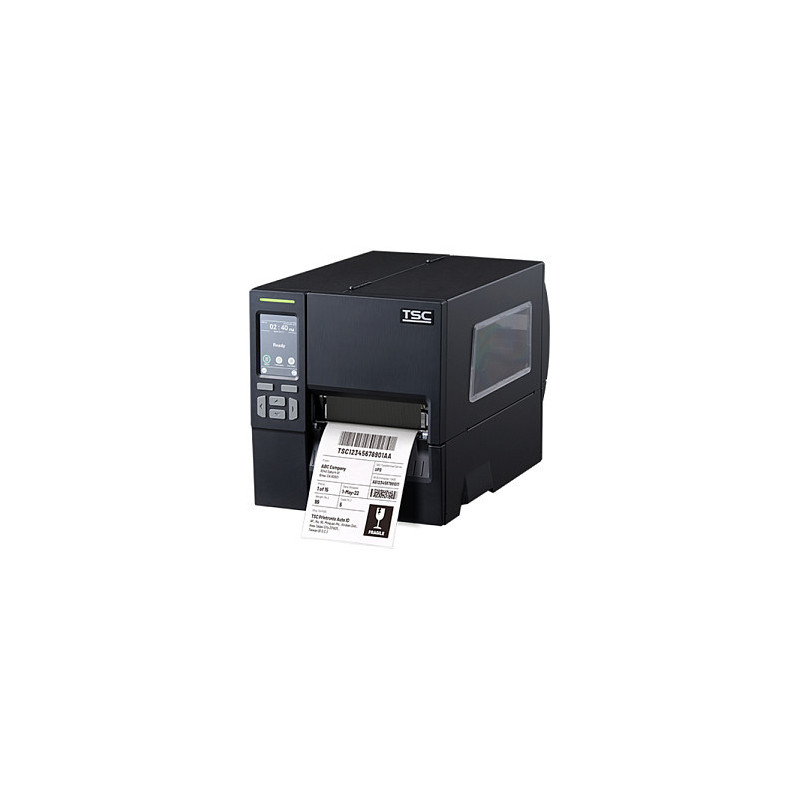

TSC MB241T label printer

TSC MB241T. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 304.8 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, USB port. Product colour: Black

The MB Series industrial label printers are value leaders for 4-inch-wide thermal printing. The all-metal print mechanism of MB Series guarantees durability in high-volume printing. The MB Series handles special media types like harder and thicker hangtags and is available with a wide range of optional accessories to support diverse applications. These accessories include linerless, peel-off and RFID upgrade kits, an internal rewinder, and a cutter, all designed to enhance functionality and meet dynamic business demands. They are ideal for limited space and excel in print quality and versatility, making them an outstanding choice for various printing needs. Notably, the MB241 Series Linerless has received the prestigious Red Dot Award: Product Design 2025 in recognition of its forward-thinking approach to modern design, including its sustainability-driven features.

The printer capabilities are designed with auto-switching emulation for hassle-free deployment. TSC Standalone Creator generates a printer LCD UI for quick template access, while TSCPRTGo acts as an extended display for mobile printing. SOTI Connect, TSC Console, and the Internal Embedded Webpage enable remote fleet management.

The newly introduced MB241 Series boasts the bifold media door, cutting operational space requirements by 24%. The MB241 Series boasts 100% recyclable packaging and printer casing, with over 90% recyclable components, minimizing their environmental impact.

Printing

Print technology: Direct thermal / Thermal transfer
Maximum resolution: 203 x 203 DPI
Number of printable dots: 8 dot
Print speed: 304.8 mm/sec
Maximum printing width: 10.7 cm
Maximum print height: 2.54 cm

Paper handling

Ribbon width: 11 cm
Ribbon length: 450 m
Maximum media length: 12 cm

Ports & interfaces

Connectivity technology: Wired & Wireless
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Bluetooth
Feature: USB port
RS-232 ports: 1

Performance

Page description languages: DPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II
Internal memory: 256 MB
Flash memory: 256 MB
Feature: Built-in processor
Feature: Built-in RFID module
Feature: Tape end detection
Feature: Open cover detection

Design

Product colour: Black
Feature: Built-in display
Display: LCD
Display diagonal: 10.2 cm (4")
Control type: Touch

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
AC adapter output voltage: 24 V

Operational conditions

Operating relative humidity (H-H): 25 - 85%
Storage relative humidity (H-H): -40 - 60%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 10 - 90 °C

Weight & dimensions

Width: 248 mm
Depth: 436 mm
Height: 274 mm
Weight: 9.1 kg

Packaging content

Cables included: AC, USB

Other features

Warranty period: 2 year(s)
