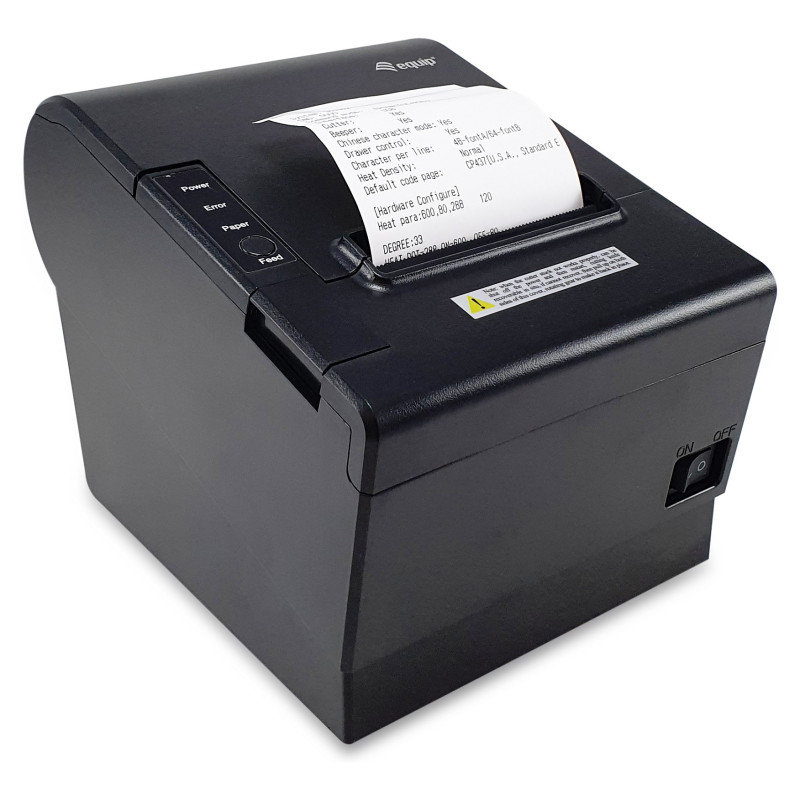

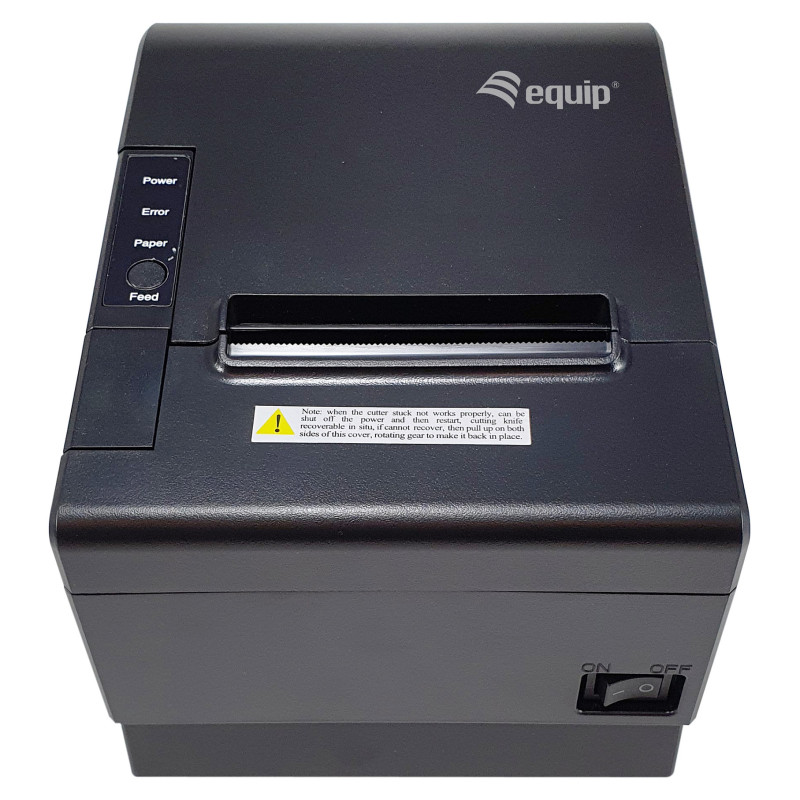

Equip 351006 POS printer

Equip 58/80mm Thermal POS Receipt Printer with Auto Cutter, USB/Bluetooth/WiFi/Cash Drawer connection. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Supported paper width: 50 - 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired & Wireless, USB connector: USB Type-B, Standard interfaces: RJ-11. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, QR Code, UPC-A, UPC-E, Page description languages: ESC/POS, Print head life: 100 km. Product colour: Black

The equip® POS range offers reliable equipment to suit a wide variety of Point of Sale (POS) situations and business needs. The solutions are designed for retail, service-type businesses or the food and beverage industry.

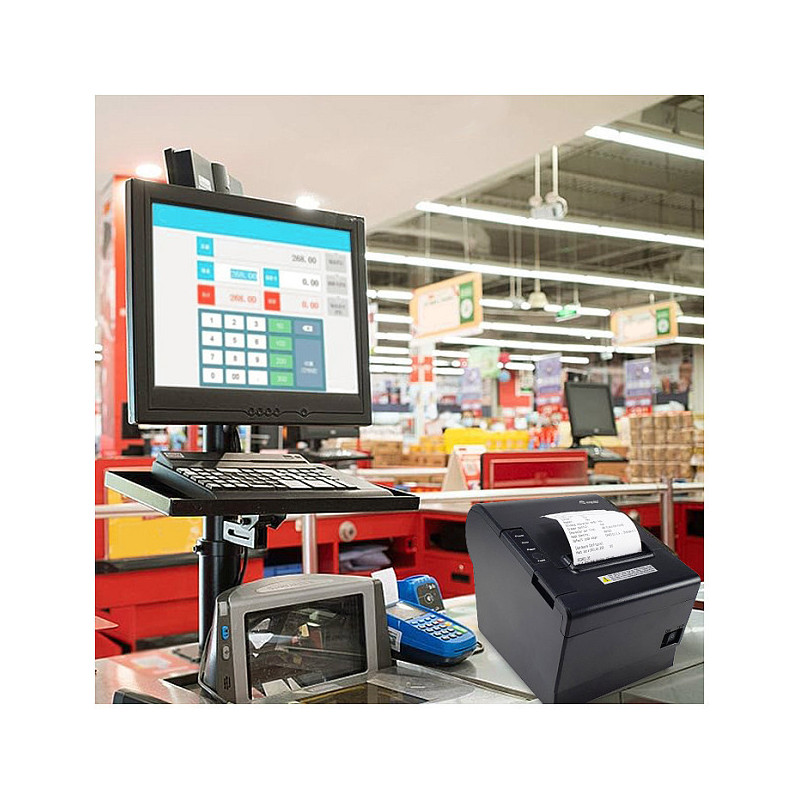

The equip® Thermal POS Receipt Printers are perfect for situations such as customer checkout and food and beverage operations. The printer is compatible with ESC/POS printing commands and offers high-speed, stable printing and auto-cutter functionality.

Printing

Maximum resolution: 203 x 203 DPI
Print columns: 576 dots/line
Print speed: 300 mm/sec
Print technology: Thermal
Type: POS printer

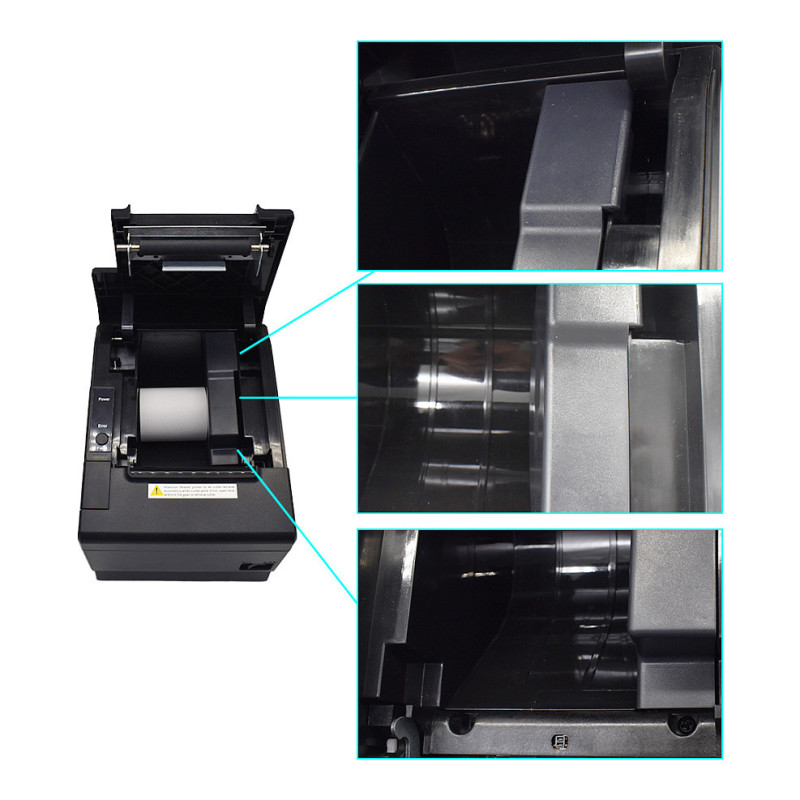

Paper handling

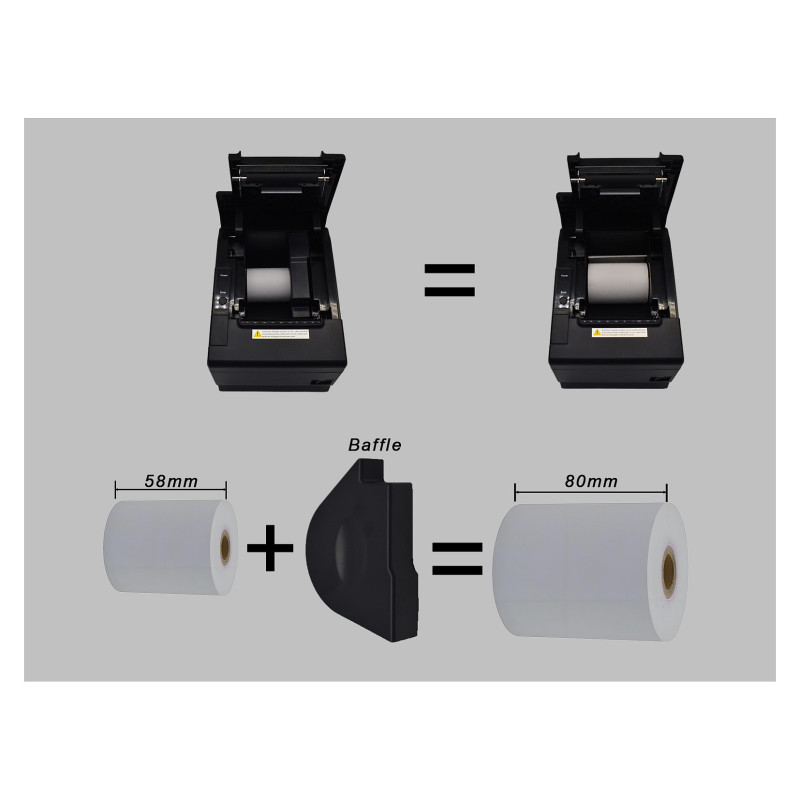

Supported paper width: 50 - 80 mm
Maximum printing width: 7.2 cm

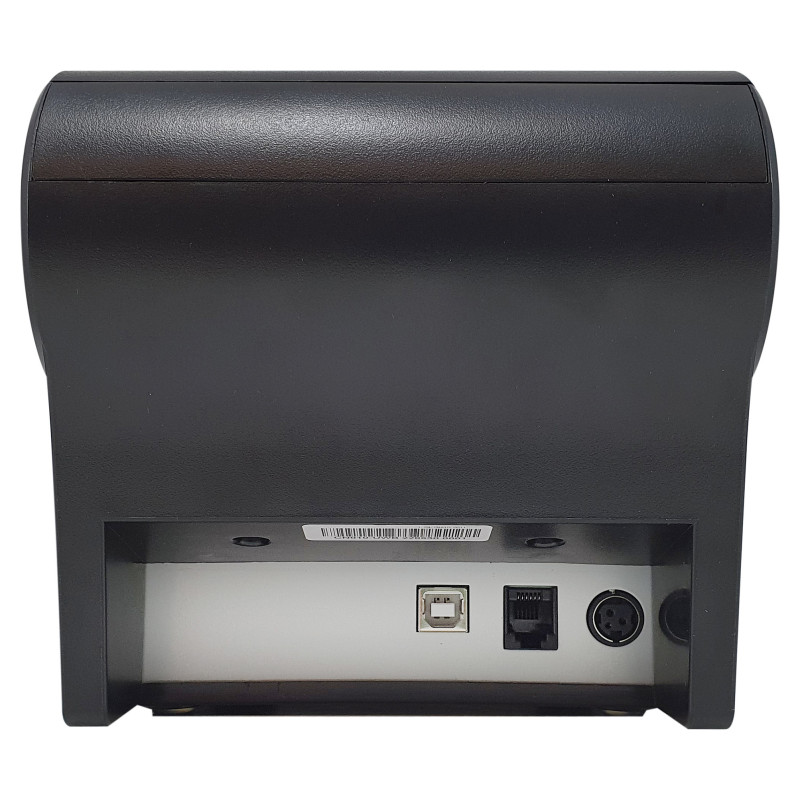

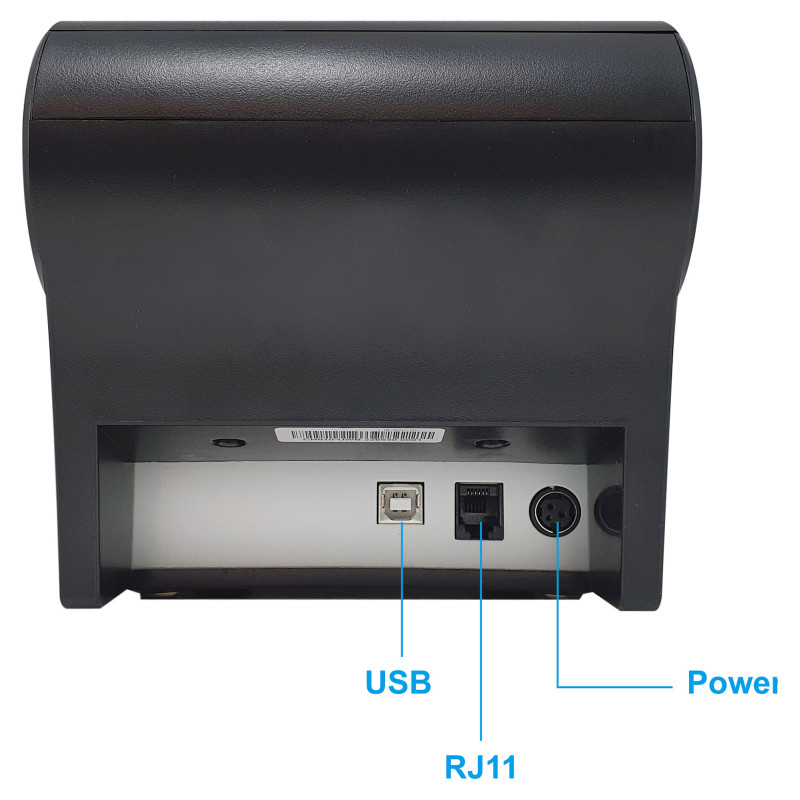

Ports & interfaces

Feature: USB port
USB 2.0 ports quantity: 1
USB connector: USB Type-B
Feature: Bluetooth
Connectivity technology: Wired & Wireless
Standard interfaces: RJ-11

Network

Feature: Wi-Fi

Features

Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, QR Code, UPC-A, UPC-E
Page description languages: ESC/POS
Feature: Cutter
Print head life: 100 km
Country of origin: China

Design

Product colour: Black

Power

Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC output voltage: 24 V

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Feature: Mac compatibility
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Mobile operating systems supported: Android
Linux operating systems supported: Ubuntu 12.04, Ubuntu 14.04

Weight & dimensions

Width: 195 mm
Depth: 145 mm
Height: 143.3 mm
Weight: 1.2 kg

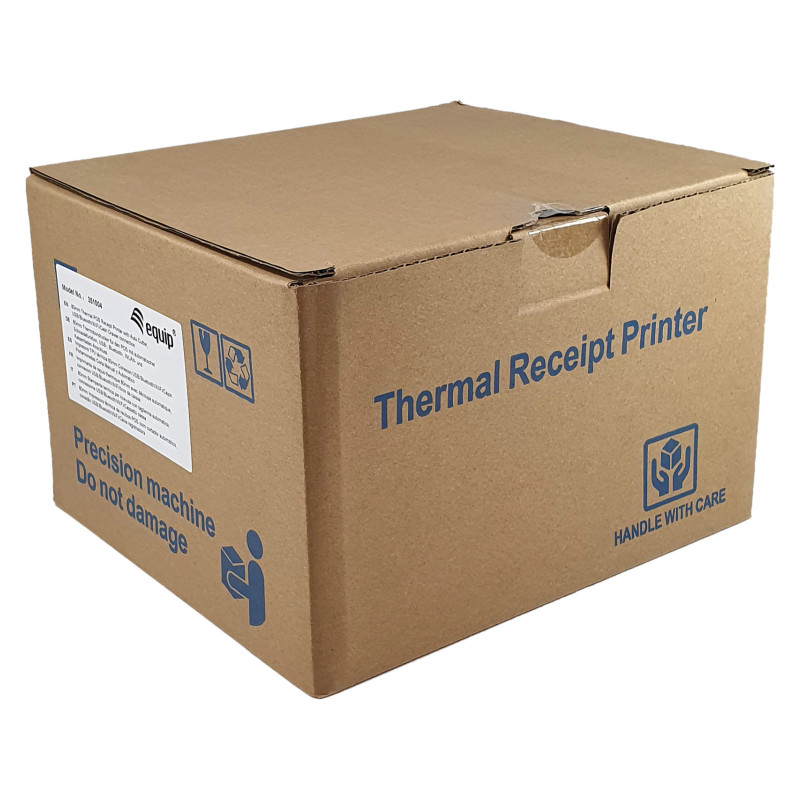

Packaging data

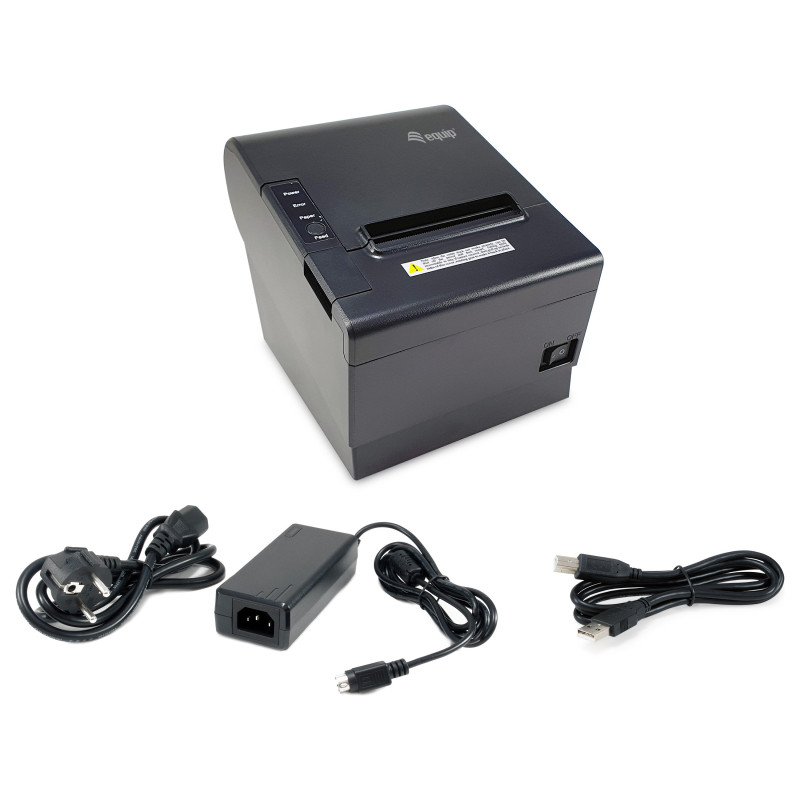

Cables included: AC, USB
Package width: 201 mm
Package depth: 230 mm
Package height: 152 mm
Package weight: 1.6 kg

Packaging content

Feature: Drivers included
Feature: Quick start guide
Feature: AC adapter included

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case width: 425 mm
Master (outer) case length: 477 mm
Master (outer) case height: 328 mm
Master (outer) case gross weight: 13 kg
Customs product code (TARIC): 8443321000

Technical details

Compliance certificates: CE, RoHS
