Equip 351003 POS printer

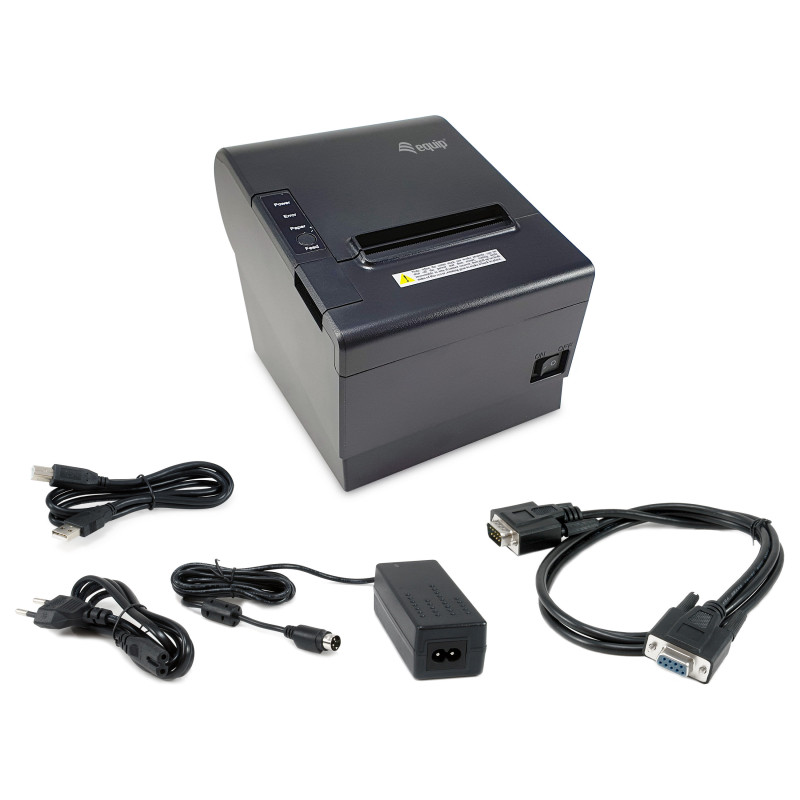

Equip 80mm Thermal POS Receipt Printer with Auto Cutter, USB/Ethernet/Serial/Cash Drawer connection. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 8 cm, Supported paper width: 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired, USB connector: USB Type-B, Serial interface type: RJ-11, RS-232. Built-in barcodes: 1D, 2D, QR Code, EAN13, Code 128 (A/B/C), EAN8, UPC-A, Code 39, UPC-E, ITF, PDF417, Code 93, Internal memory: 8 MB, Flash memory: 4 MB. Product colour: Black

The equip® POS range offers reliable equipment to suit a wide variety of Point of Sale (POS) situations and business needs. The solutions are designed for retail, service-type businesses or the food and beverage industry.

The equip® Thermal POS Receipt Printers are perfect for situations such as customer checkout and food and beverage operations. The printer is compatible with ESC/POS printing commands and offers high-speed, stable printing and auto-cutter functionality.

Printing

Maximum resolution: 203 x 203 DPI
Print speed: 250 mm/sec
Character sets: ASCII
Print technology: Thermal
Type: POS printer

Paper handling

Maximum roll diameter: 8 cm
Supported paper width: 80 mm
Maximum printing width: 7.2 cm

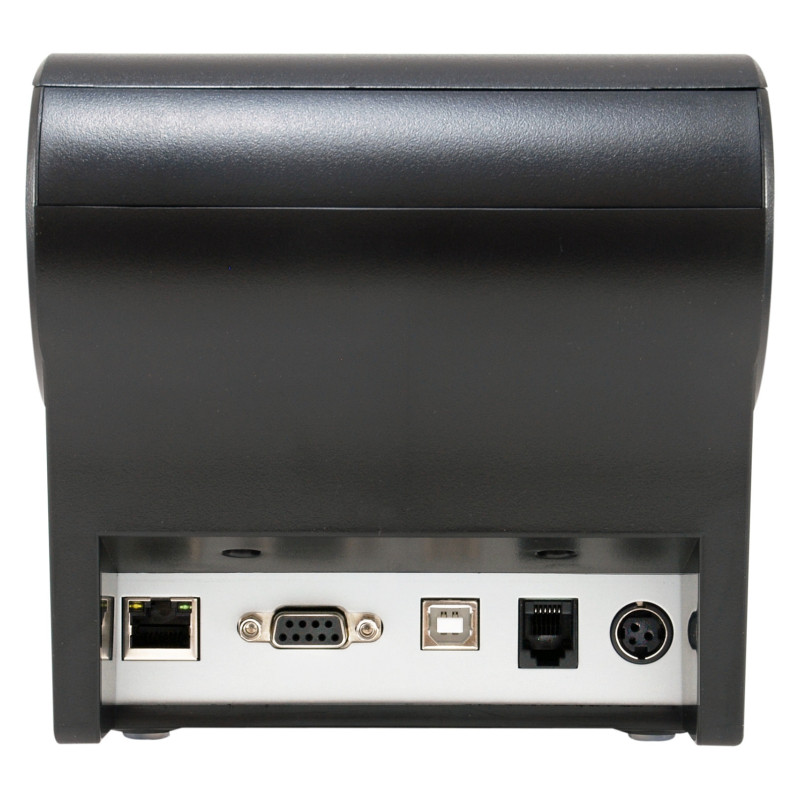

Ports & interfaces

Feature: USB port
USB 2.0 ports quantity: 1
USB connector: USB Type-B
Feature: Serial interface
Serial interface type: RJ-11, RS-232
Connectivity technology: Wired

Network

Feature: Ethernet LAN

Features

Built-in barcodes: 1D, 2D, QR Code, EAN13, Code 128 (A/B/C), EAN8, UPC-A, Code 39, UPC-E, ITF, PDF417, Code 93
Internal memory: 8 MB
Flash memory: 4 MB
Feature: Cutter
Autocutter durability: 1000000 million cuts
Print head life: 100 km
Country of origin: China

Design

Product colour: Black

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 25 - 80%
Storage relative humidity (H-H): 0 - 93%

System requirements

Feature: Mac compatibility
Mac operating systems supported: Yes
Linux operating systems supported: Ubuntu 12.04, Ubuntu 14.04

Weight & dimensions

Width: 195 mm
Depth: 145 mm
Height: 143.3 mm
Weight: 1.04 kg

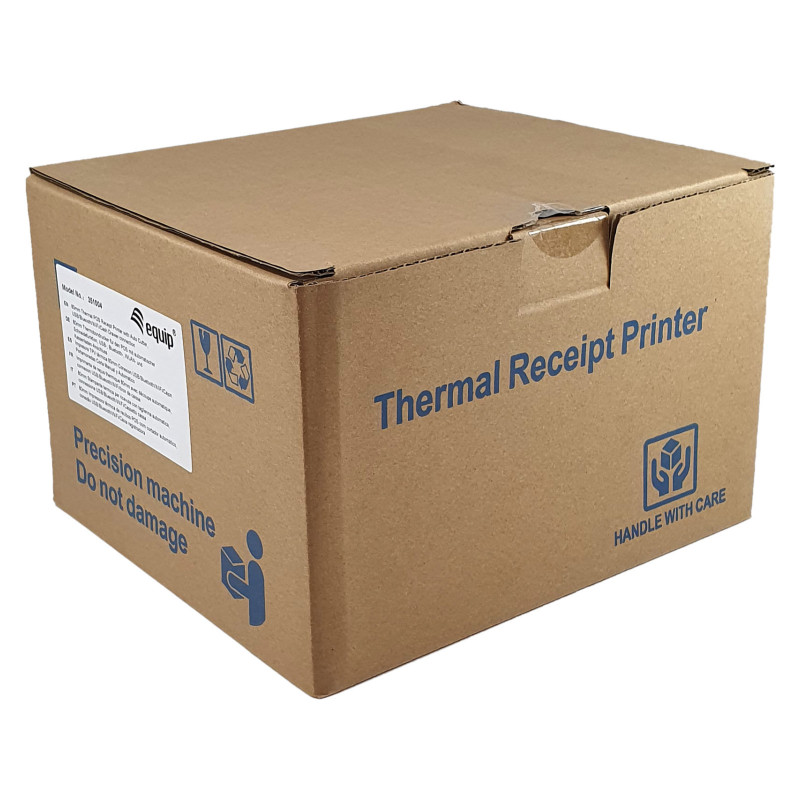

Packaging data

Cables included: AC, RS-232, USB
Package width: 201 mm
Package depth: 230 mm
Package height: 152 mm
Package weight: 1.61 kg

Packaging content

Feature: Quick start guide
Feature: AC adapter included

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case width: 425 mm
Master (outer) case length: 477 mm
Master (outer) case height: 328 mm
Master (outer) case gross weight: 13.9 kg

Technical details

Feature: Sustainability compliance
Compliance certificates: RoHS, CE
