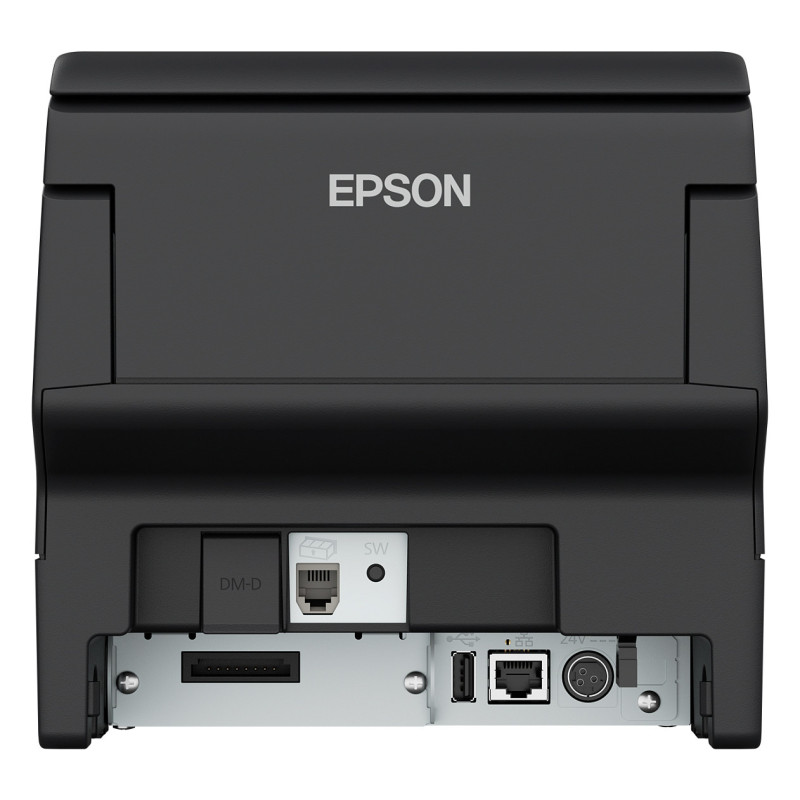

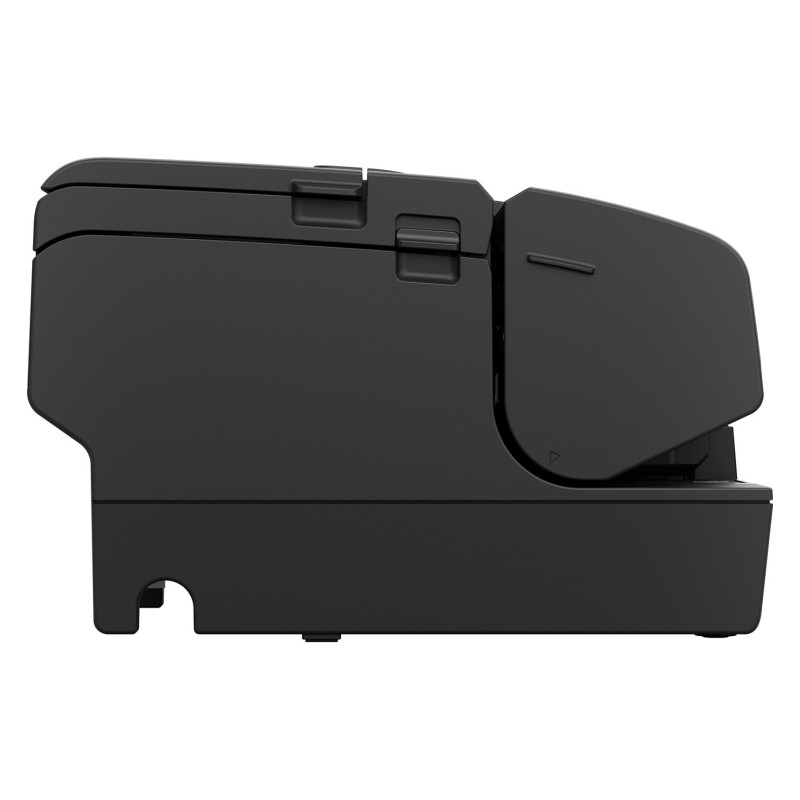

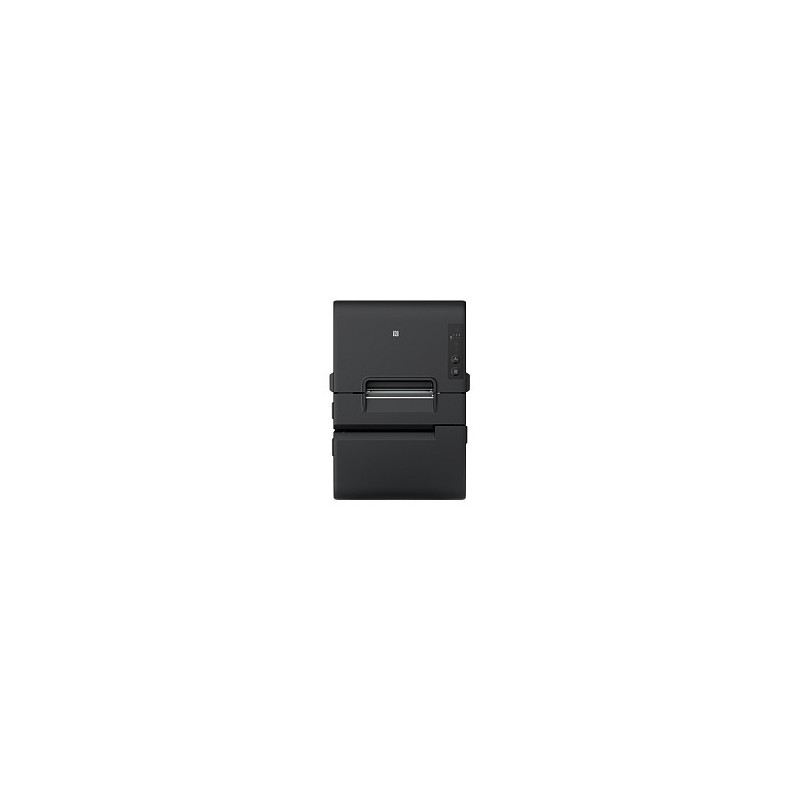

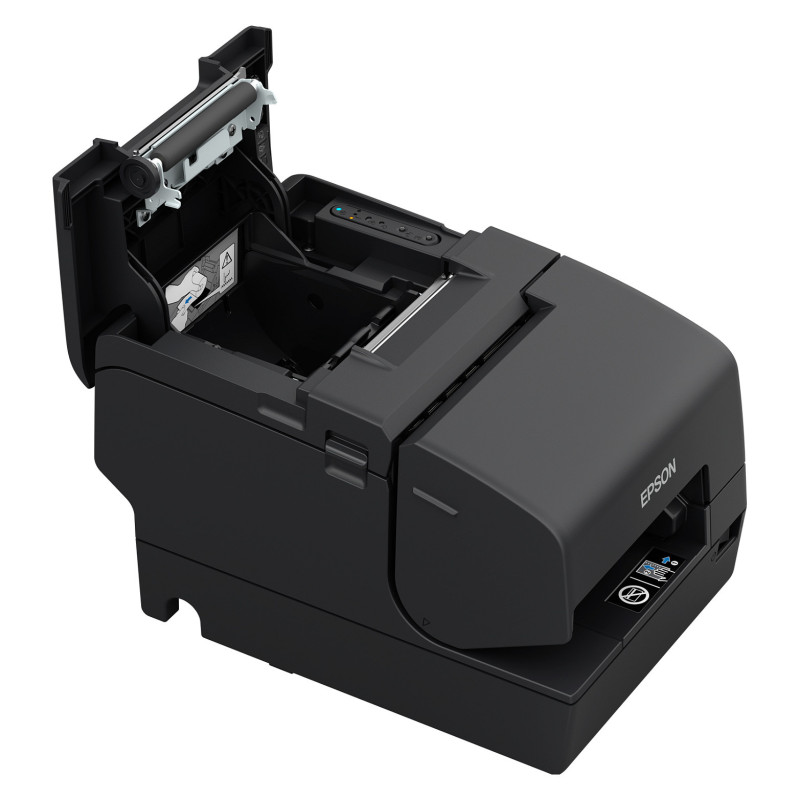

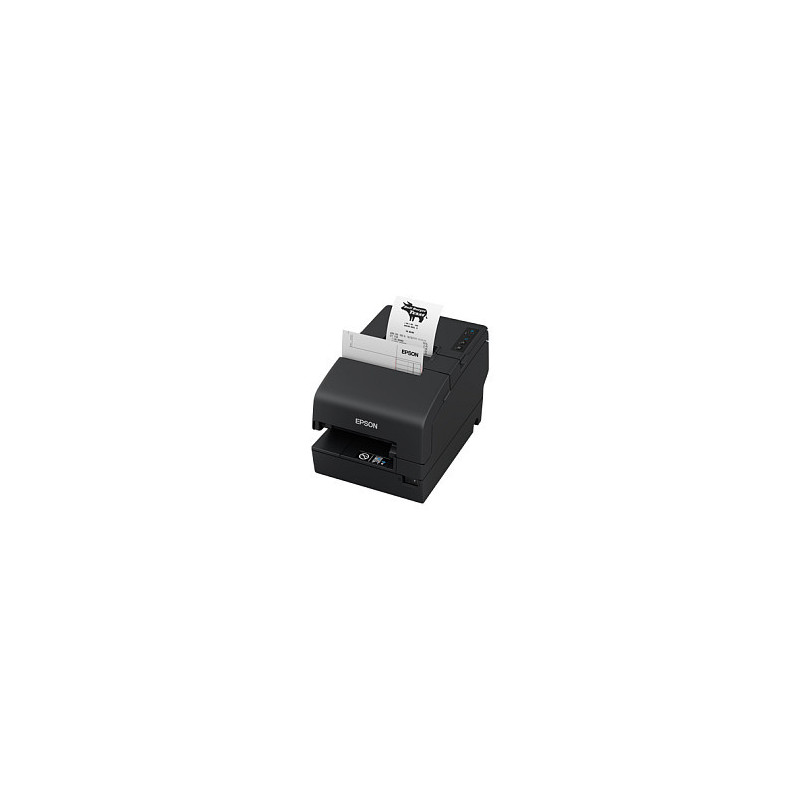

Epson TM-H6000VI

Epson TM-H6000VI-102,Srl,Blk, PSU, EU. Print technology: Thermal, Type: POS printer, Maximum resolution: 180 x 180 DPI. Printing media thickness: 48 - 80, Maximum roll diameter: 8.3 cm, Supported paper width: 79.5 mm. Connectivity technology: Wired & Wireless, USB connector: USB Type-A / USB Type-B, Serial interface type: RS-232. Ethernet LAN data rates: 10,100 Mbit/s. Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1..., Page description languages: ESC/POS

Integrated POS printer
This TM-H6000VI is capable of receipt printing, slip printing and cheque processing in one unit. It's reliable, provides useful connectivity features and offers a very low total cost of ownership. It's ideal for businesses requiring cheque-processing facilities at point of sale, and print receipts with the same unit.The TM-H6000VI is cloud enabled, ready for the new world of Epson.

More productivity
Ideal for busy environments, the TM-H6000VI offers a selection of features that help businesses boost overall efficiency. It prints at speeds up to 500mm/s¹, offers fast cheque processing and a swift auto-cutter.

Reliable and efficient
In fast paced environments, it's essential to minimise downtime. The TM-H6000VI is a dependable solution with the thermal printer now effective for 200km of receipts, while its auto-cutter is capable of three million cuts.

Range of connectivity features
The TM-H6000VI is designed to handle all types of POS solutions with ease. It's flexible enough to adapt to the demands of modern retail environments including Server Direct Print (SDP) to print and display data from external servers, as well as multiple interfaces for tablet and PC coexistence. The TM-H6000VI is now cloud enabled, ready for Epson's next phase of innovation.

Stay tuned with the trends in the POS Market
Looking for a future-proof printer that's simple and quick to set-up? ePOS-Print, ePOS-display and NFC tagging make it possible to incorporate new functionalities at the Point of Sale and allow quick tablet POS set-up.

Printing

Maximum resolution: 180 x 180 DPI
Print speed: 500 mm/sec
Print technology: Thermal
Type: POS printer

Paper handling

Printing media thickness: 48 - 80
Maximum roll diameter: 8.3 cm
Supported paper width: 79.5 mm

Ports & interfaces

Feature: USB port
USB connector: USB Type-A / USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Connectivity technology: Wired & Wireless
Feature: Near Field Communication (NFC)
Interface: USB 1.0, USB 2.0-A, RS-232, Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out, Customer Display

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s

Features

Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, PDF417, UPC-A, UPC-E
Page description languages: ESC/POS

Design

Product colour: Black

Power

Power source type: DC
Power consumption (printing): 26.6 W

Operational conditions

Operating temperature (T-T): 5 - 45 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 186 mm
Depth: 278 mm
Height: 181 mm
Weight: 4.4 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 295 mm
Package depth: 385 mm
Package height: 295 mm
Package weight: 6.07 kg

Logistics data

Products per pallet: 56 pc(s)
Products per pallet layer: 8 pc(s)
Pallet gross width: 80 cm
Pallet gross length: 120 cm
Pallet gross height: 2.21 m
Products per pallet (UK): 70 pc(s)
Products per pallet layer (UK): 10 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.21 m

Technical details

Box contents: Connector Cover, Power switch cover, Ribbon cartridge (slip), Roll paper, Setup guide
