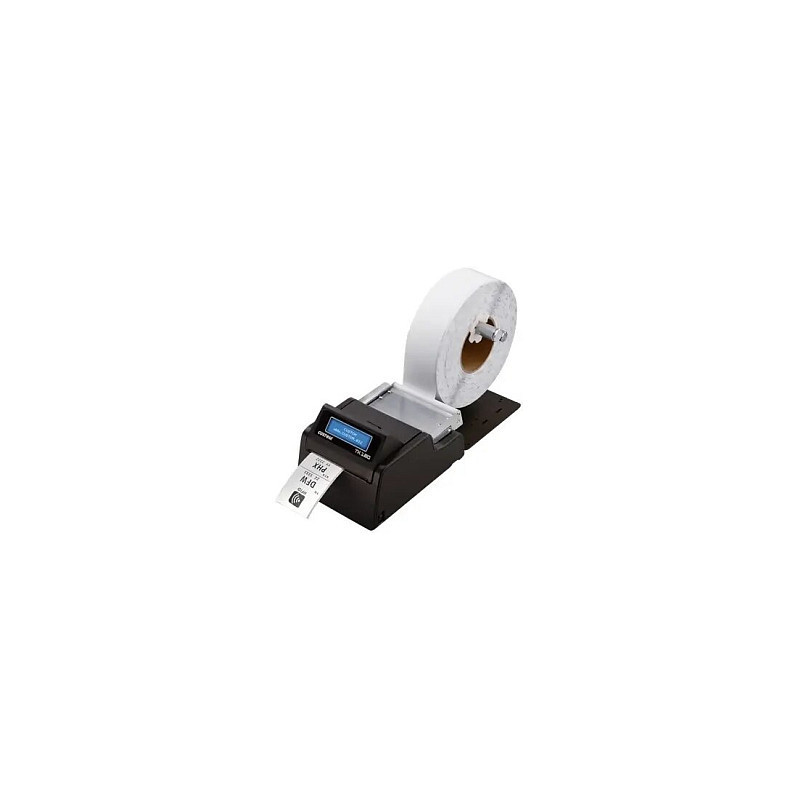

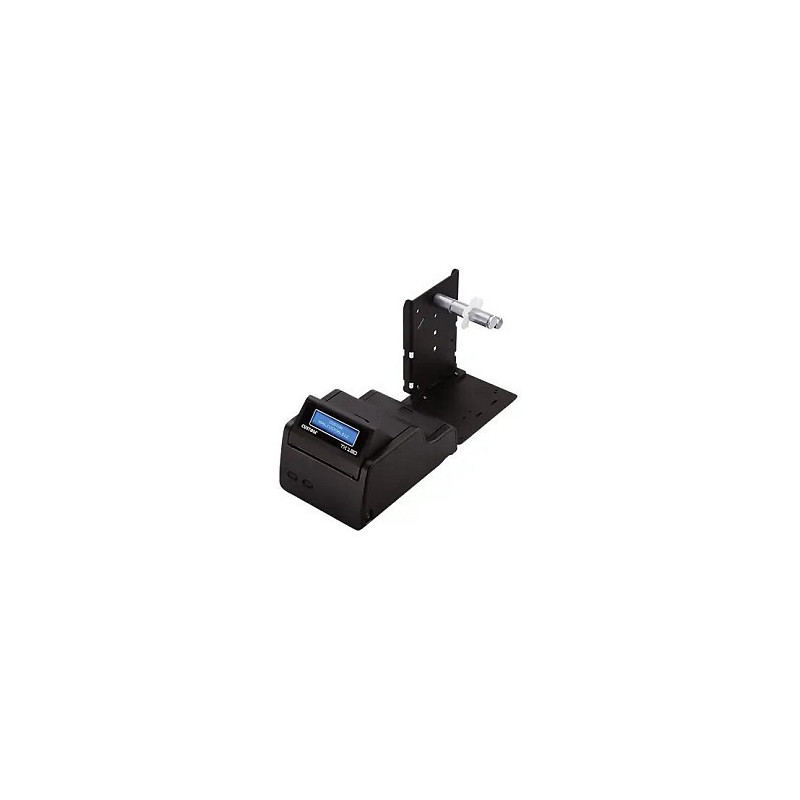

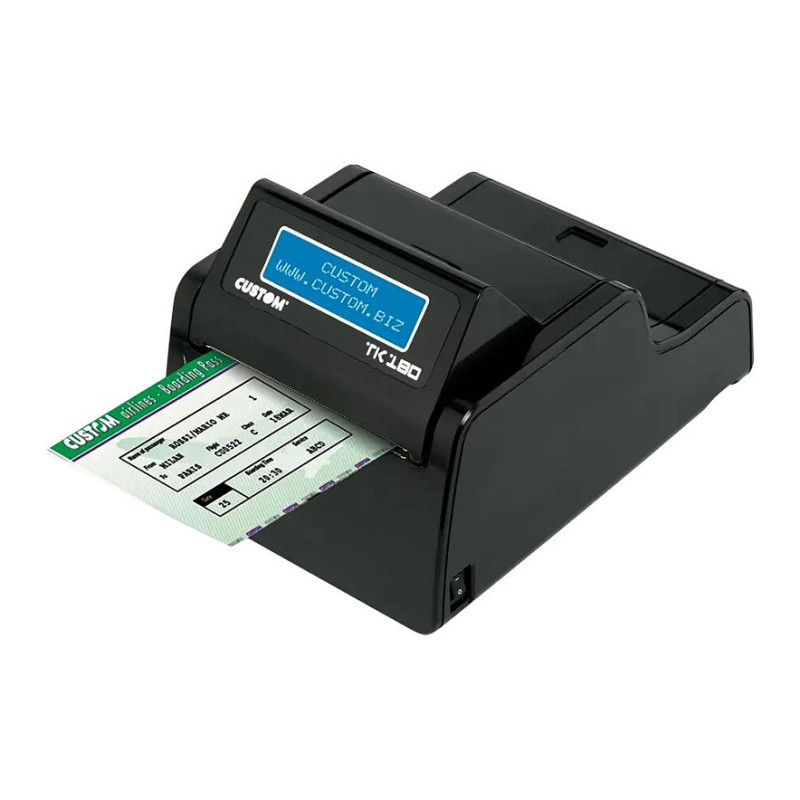

CUSTOM TK180 label printer

CUSTOM TK180. Print technology: Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 200 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 82.5 mm. Product colour: Black

Baggage tag and boarding pass printer with tear-off bar

TK180 is the most compact combined BPP and BTP printer with native AEA firmware for a seamless integration in CUTE and CUPPS platforms. Specially designed for small check-in desks where space is a major issue, TK180 can handle BPP tickets as well as paper rolls for receipts. The bag tag support is provided by the optional paper roll holder. TK180 is a dual printer, since it can work both as BPP or BTP tool using the same firmware, configurable via set up. The NATIVE AEA 2012 firmware allow easy integration in any software architecture, without requiring any additional software. TK180 is equipped with a powerful internal processor and Hot swap function. Reliable and fast printing at 200 mm/s. The Ethernet, RS232 and USB interfaces assure easy and flexible integration, in any airport. In addition to the most common sensors, it is also provided with the new mobile VeriNotch sensor, capable of identifying black marks or gaps on any type of paper. TK180 has an automatic sensor calibration feature which is automatically activated every time paper is loaded and prevents any ticket wastage thereby contributing to environmental sustainability and reducing management costs. 2 sides tear-off. Display. TK180 supports the UHF RFID according to IATA 1740C, standard EPC Gen2.

Printing

Print technology: Thermal transfer
Maximum resolution: 300 x 300 DPI
Number of printable dots: 8 dot
Print speed: 200 mm/sec
Printing colours: Black
Maximum printing width: 8.25 cm
Printing characters: 2D barcode, Barcode, Text

Paper handling

Maximum label width: 8.25 cm
Maximum roll diameter: 20 cm
Media thickness: 70/255 mm
Supported paper width: 82.5 mm
Core diameter: 2.54 cm

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
RS-232 ports: 1
Optional connectivity: Serial (RS-232), USB 2.0

Performance

Internal memory: 3 MB
Flash memory: 3 MB
Certification: CE, RED compliantFCC compliantISO 18000-6BPhilips UCODE EPC 1.19EPC Class1 Gen2 / ISO 18000-6C

Design

Product colour: Black

Power

AC input voltage: 100 - 240 V
AC adapter output voltage: 24 V
AC adapter output current: 1.5 A

System requirements

Windows operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 130 mm
Depth: 185.9 mm
Height: 118.9 mm
Weight: 1.9 kg
