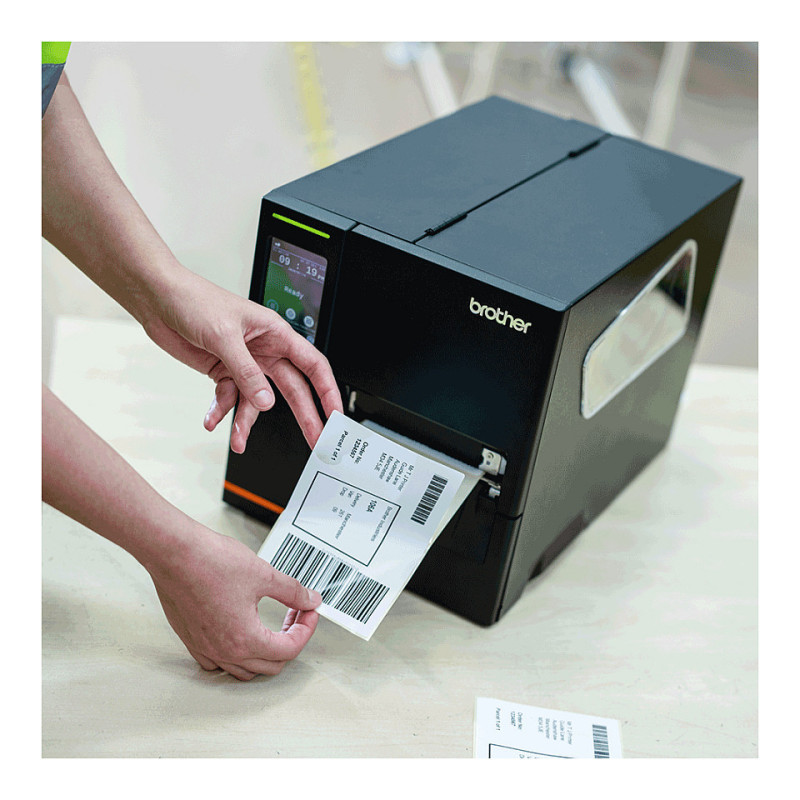

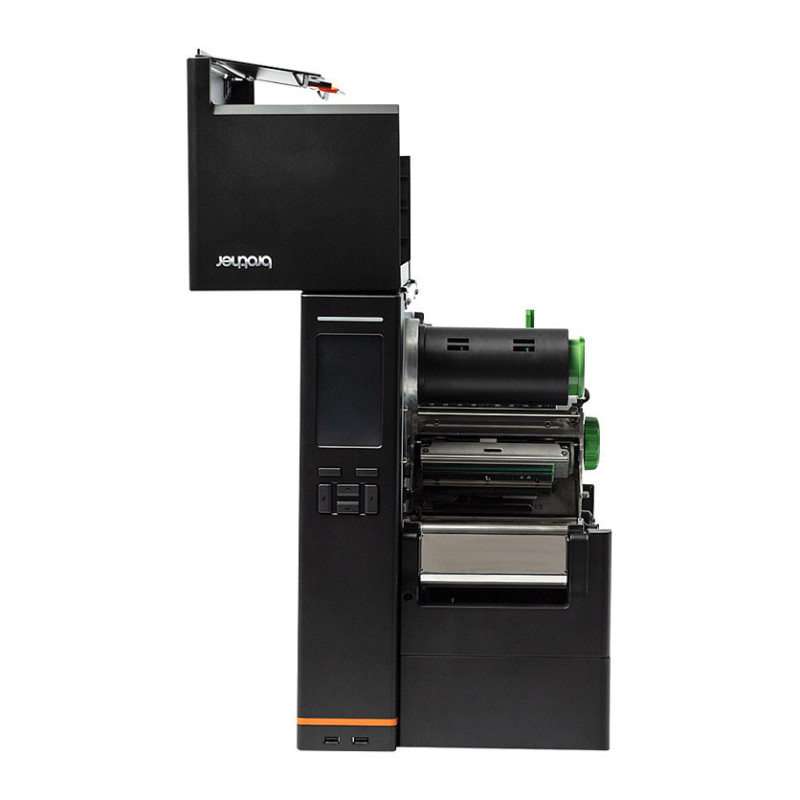

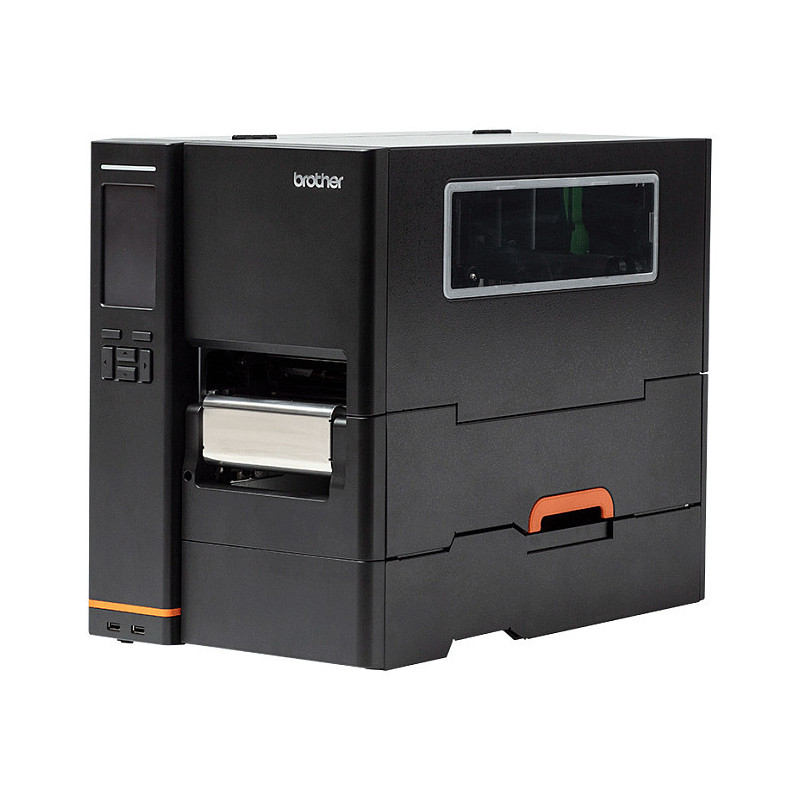

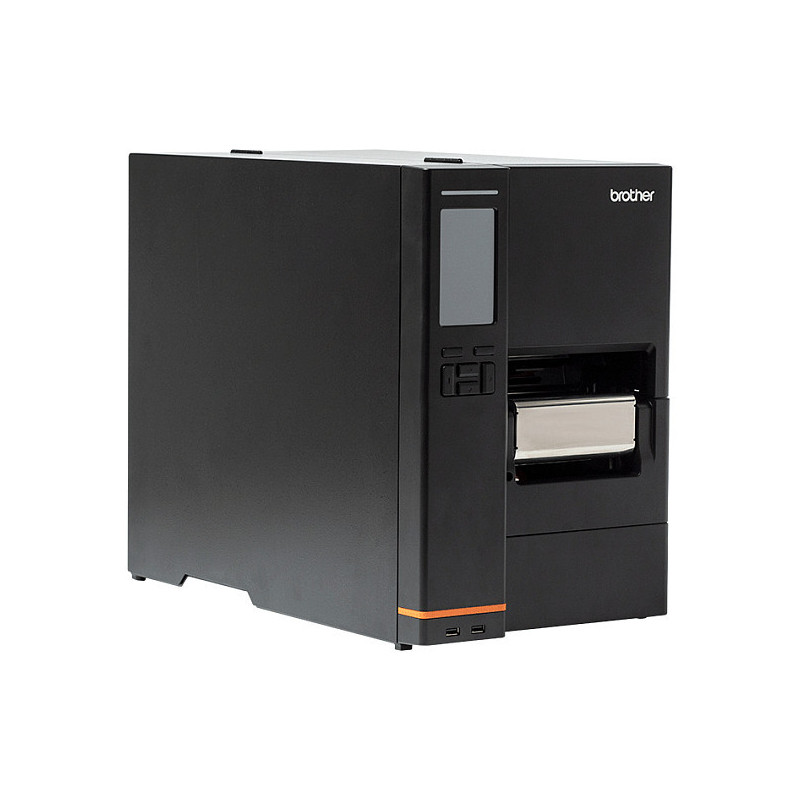

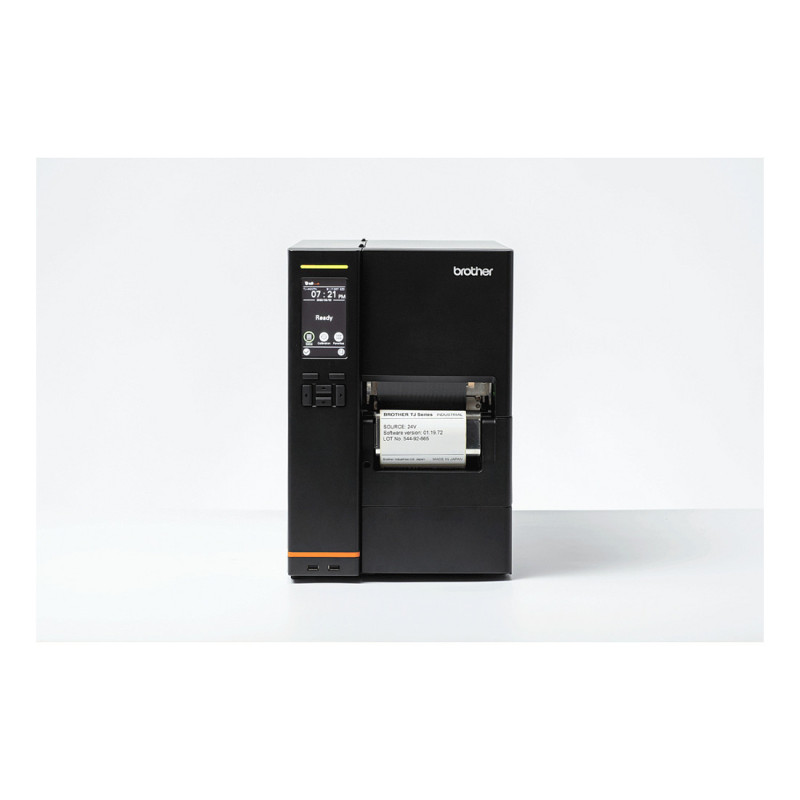

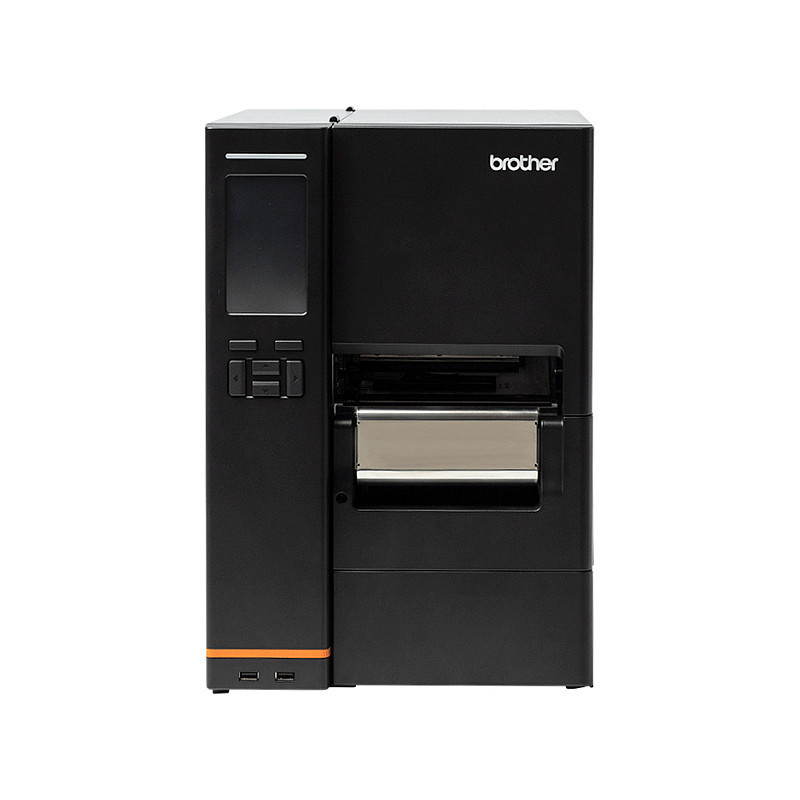

Brother TJ4522TN label printer

Brother TJ4522TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 305 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black

Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer. With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.Brother's 5-year return-to-base warranty and optional service packs for this product can help protect your business from costly downtime, disruptions, and inconveniences.

Printing

Print technology: Direct thermal / Thermal transfer
Maximum resolution: 300 x 300 DPI
Print speed: 305 mm/sec
Maximum printing width: 10.4 cm
Minimum print length: 5 mm
Maximum print length: 11.43 m

Paper handling

Ribbon width: 11.4 cm
Ribbon length: 600 m
Maximum label width: 11.4 cm
Maximum roll diameter: 20.3 cm
Core diameter: 7.62 cm

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
RS-232 ports: 1
Optional connectivity: Bluetooth, Wireless LAN

Performance

Page description languages: DPL, EPL2, ZPL II
Internal memory: 256 MB
Flash memory: 512 MB
Number of fonts: 8

Design

Product colour: Black
Feature: Colour display
Control type: Buttons, Touch

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 25 - 85%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C

Weight & dimensions

Width: 400 mm
Depth: 635 mm
Height: 545 mm
Weight: 19.4 kg

Packaging data

Package weight: 21.7 kg

Packaging content

Cables included: AC
Feature: Software development kit (SDK)

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross height: 17.9 cm
Pallet gross weight: 205.2 kg
Master (outer) cases per pallet: 9 pc(s)
Master (outer) cases per pallet layer: 3 pc(s)
Layers per pallet: 3 pc(s)
Products per pallet: 9 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

LED indicators: Error, Power, Status
Country of origin: Taiwan
Languages support: Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
