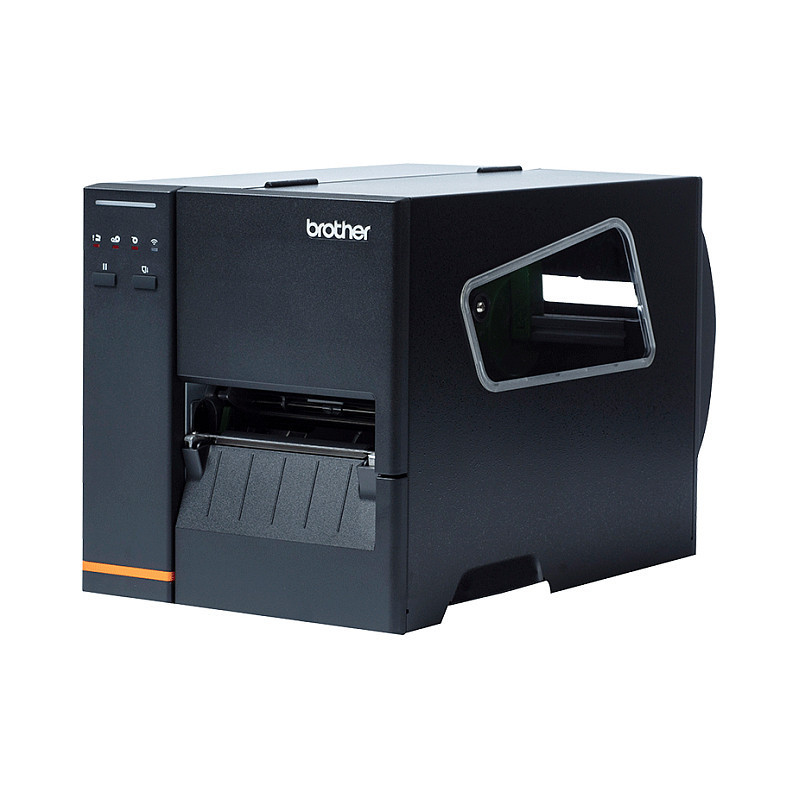

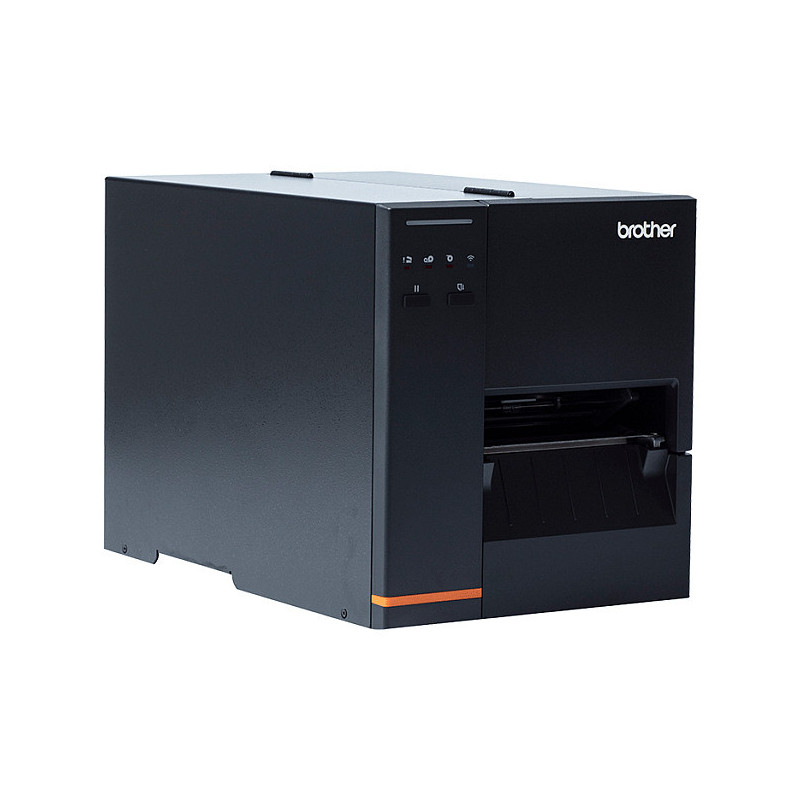

Brother TJ-4020TN label printer

Brother TJ-4020TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 254 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black

The Brother TJ-4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4020TN has been built with you in mind. Brother's 5-year return-to-base warranty and optional service packs for this product can help protect your business from costly downtime, disruptions, and inconveniences.

Printing

Print technology: Direct thermal / Thermal transfer
Maximum resolution: 203 x 203 DPI
Print speed: 254 mm/sec
Maximum printing width: 10.7 cm
Minimum print length: 5 mm
Maximum print length: 25.4 m

Paper handling

Ribbon width: 4 cm
Ribbon length: 450 m
Maximum label width: 12 cm
Maximum roll diameter: 20.3 cm
Core diameter: 7.62 cm

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
RS-232 ports: 1

Performance

Page description languages: DPL, EPL2, ZPL II
Internal memory: 128 MB
Flash memory: 128 MB
Number of fonts: 8

Design

Product colour: Black
Display: No
Control type: Buttons

System requirements

Windows operating systems supported: Windows 10, Windows 8.1
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 25 - 85%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C

Weight & dimensions

Width: 350 mm
Depth: 530 mm
Height: 370 mm
Weight: 9.42 kg

Packaging data

Package weight: 11 kg

Packaging content

Cables included: AC, USB
Feature: Software development kit (SDK)

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross height: 16.3 cm
Pallet gross weight: 238.4 kg
Master (outer) cases per pallet: 20 pc(s)
Master (outer) cases per pallet layer: 5 pc(s)
Layers per pallet: 4 pc(s)
Products per pallet: 20 pc(s)

Technical details

Pallet type: 1200 x 1000 mm

Other features

LED indicators: Error, Power, Status
Country of origin: Taiwan
Languages support: Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
