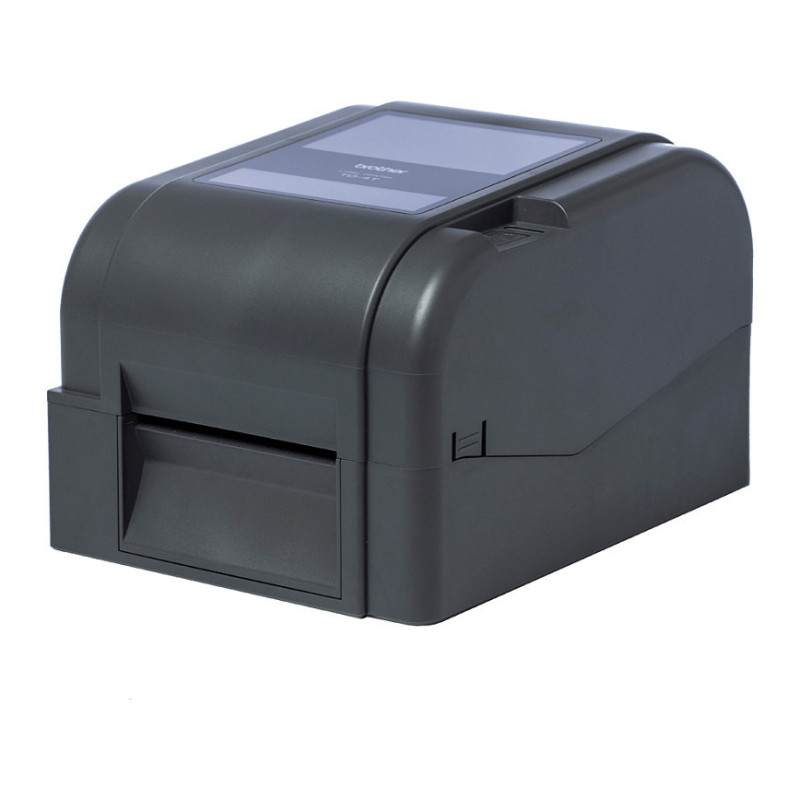

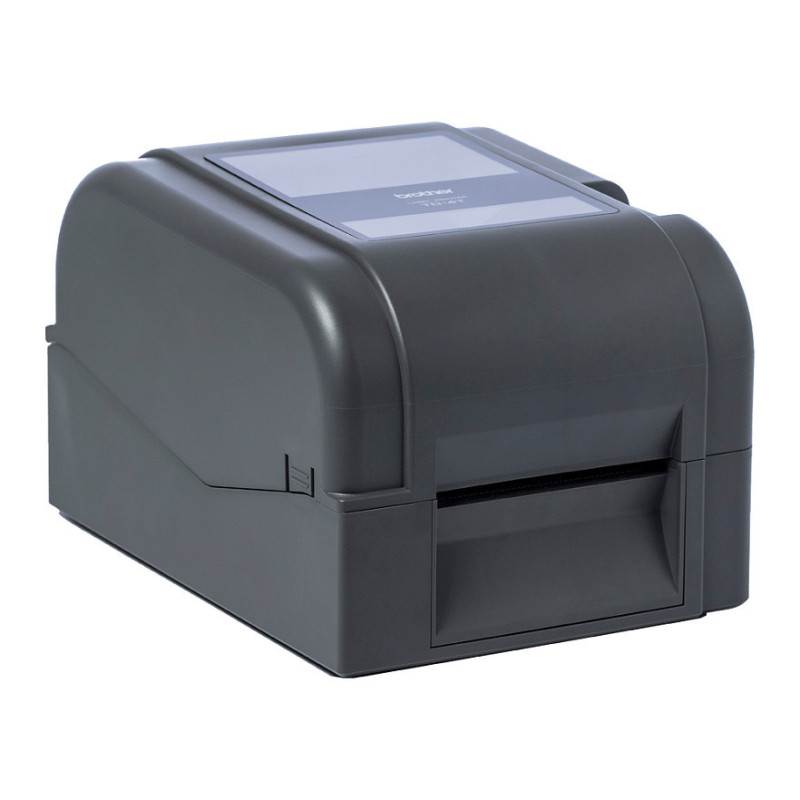

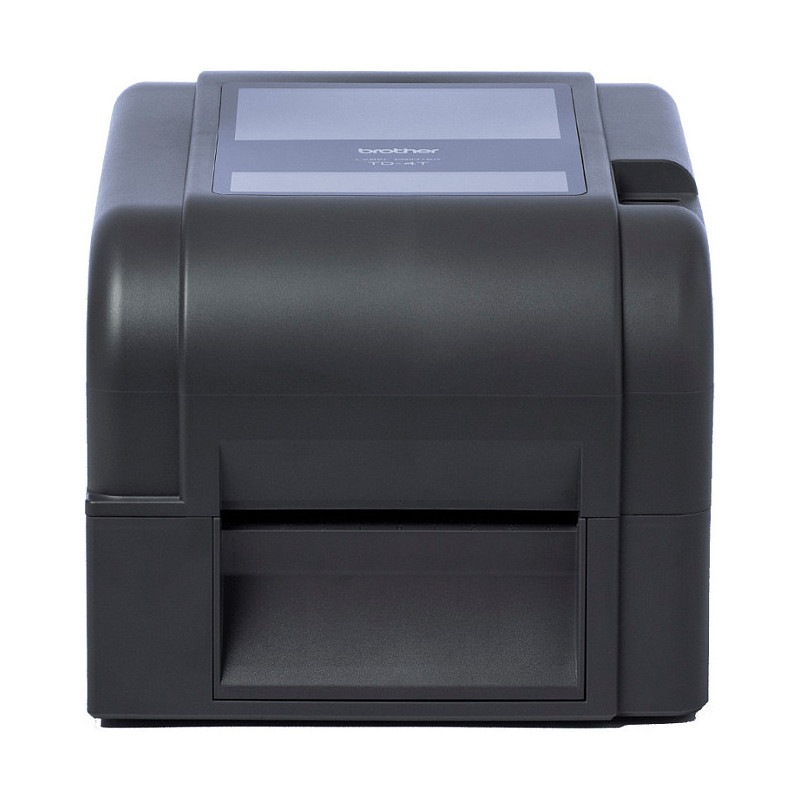

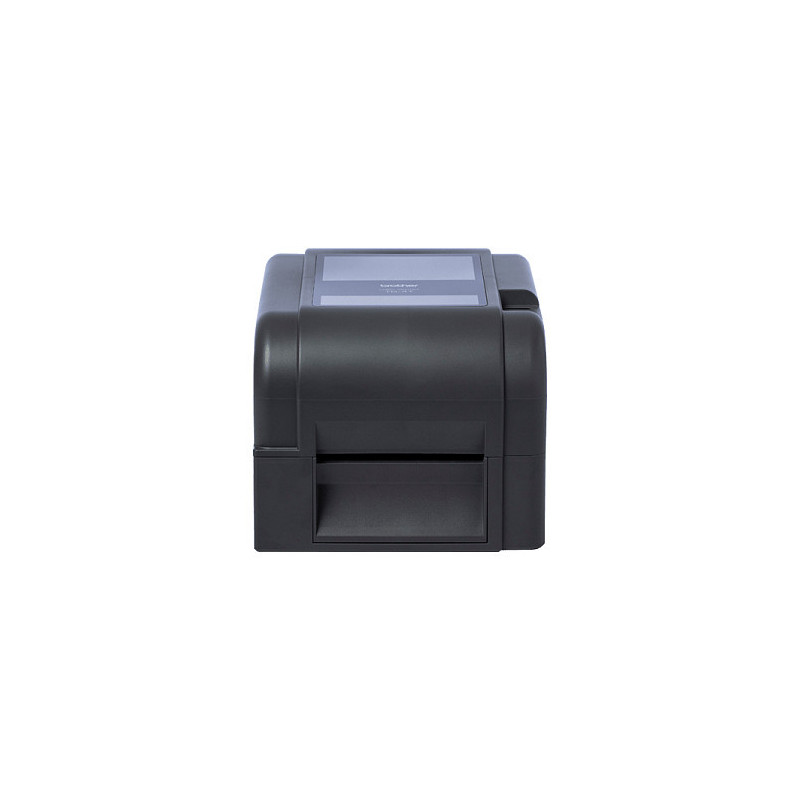

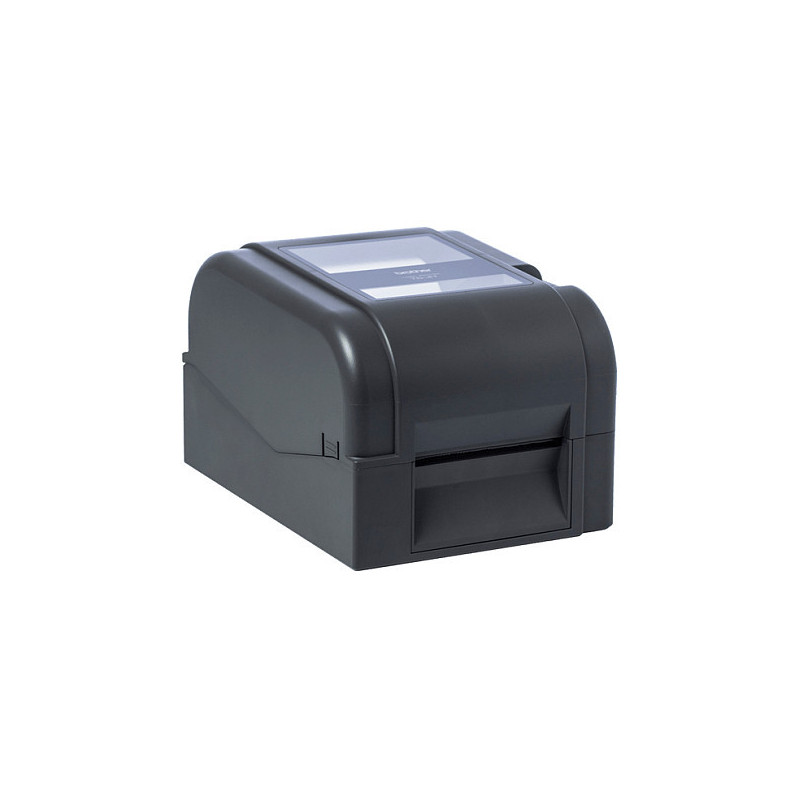

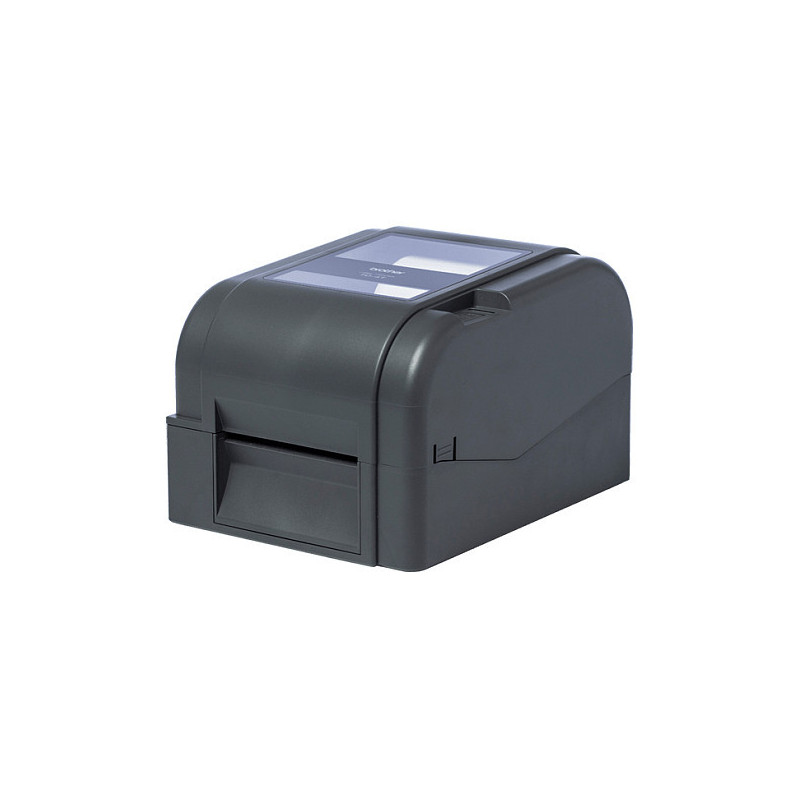

Brother TD-4420TN label printer

Brother TD-4420TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black

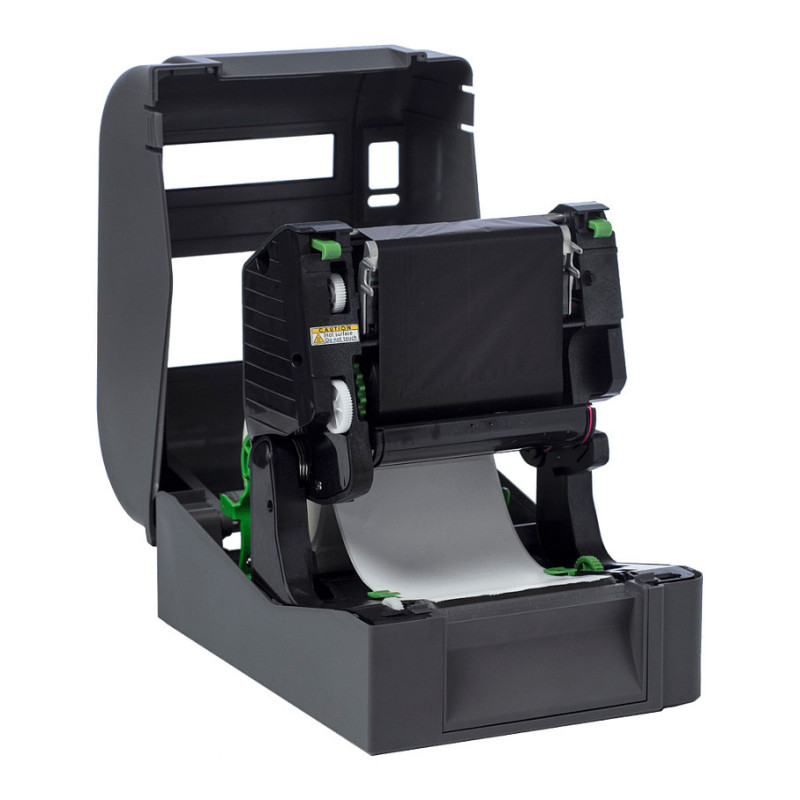

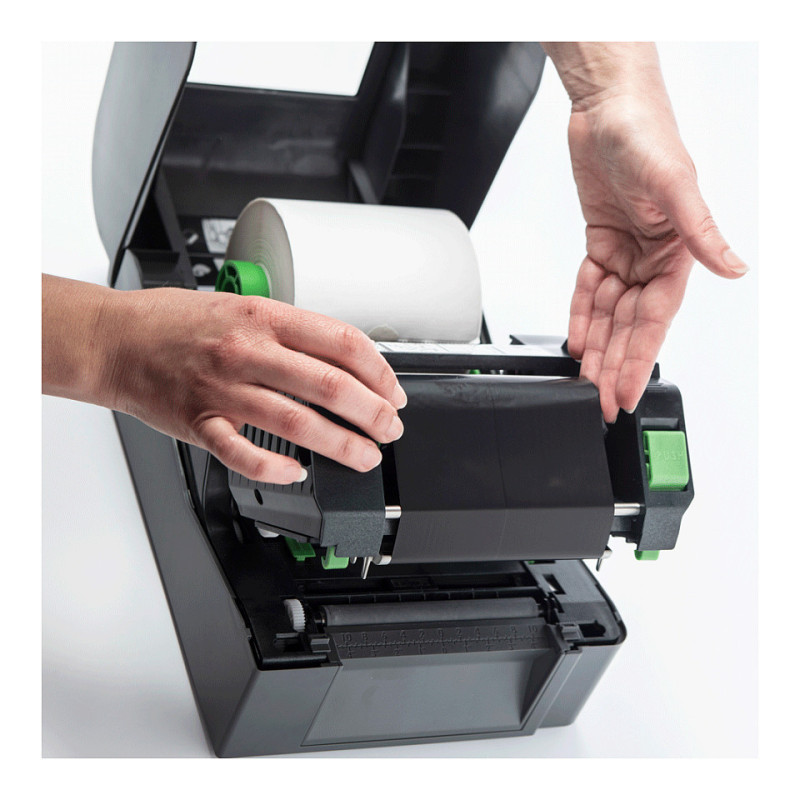

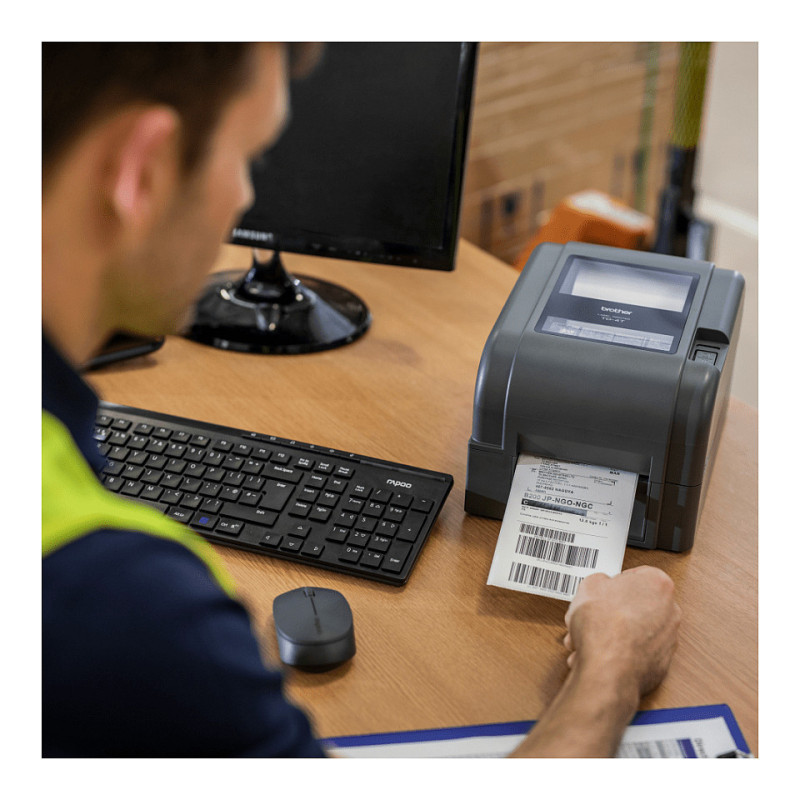

The TD-4420TN uses innovative thermal transfer technology to create durable labels that stand up to the toughest of tests. SAP and BarTender compatibility* ensure it fits perfectly into your workflows, and there's the added bonus of customisation options like label peelers, cutters and external roll holders. Plus, you can also use the in-built direct thermal technology to print high-volume, low-cost labels for everyday usage.

Printing

Print technology: Direct thermal / Thermal transfer
Maximum resolution: 203 x 203 DPI
Print speed: 152 mm/sec
Print speed: 6 lpm
Maximum print height: 10.8 cm
Maximum print length: 25.4 m

Paper handling

Maximum label width: 11.2 cm
Maximum roll diameter: 12.7 cm
Core diameter: 2.54 cm

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
USB 2.0 ports quantity: 2
RS-232 ports: 1

Performance

Page description languages: DPL, EPL, ZPL, ZPL II
Internal memory: 64 MB
Flash memory: 128 MB
Number of fonts: 8

Design

Product colour: Black
Display: No

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
AC adapter output current: 2 A

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 5 - 40%
Storage relative humidity (H-H): 25 - 85%
Operating temperature (T-T): 10 - 90 °C
Storage temperature (T-T): -40 - 60 °C

Weight & dimensions

Width: 275 mm
Depth: 405 mm
Height: 245 mm
Weight: 3.15 kg

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 3.93 kg

Packaging content

Cables included: AC, USB
Feature: Quick start guide
Feature: Warranty card
Feature: AC adapter included
Feature: Software development kit (SDK)
Feature: Starter roll included

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross height: 16.2 cm
Pallet gross weight: 211.9 kg
Master (outer) cases per pallet: 48 pc(s)
Master (outer) cases per pallet layer: 8 pc(s)
Layers per pallet: 6 pc(s)
Products per pallet: 48 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

LED indicators: Yes
Country of origin: China
Languages support: Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Number of languages: 11
Spare part retention: 5 year(s)
