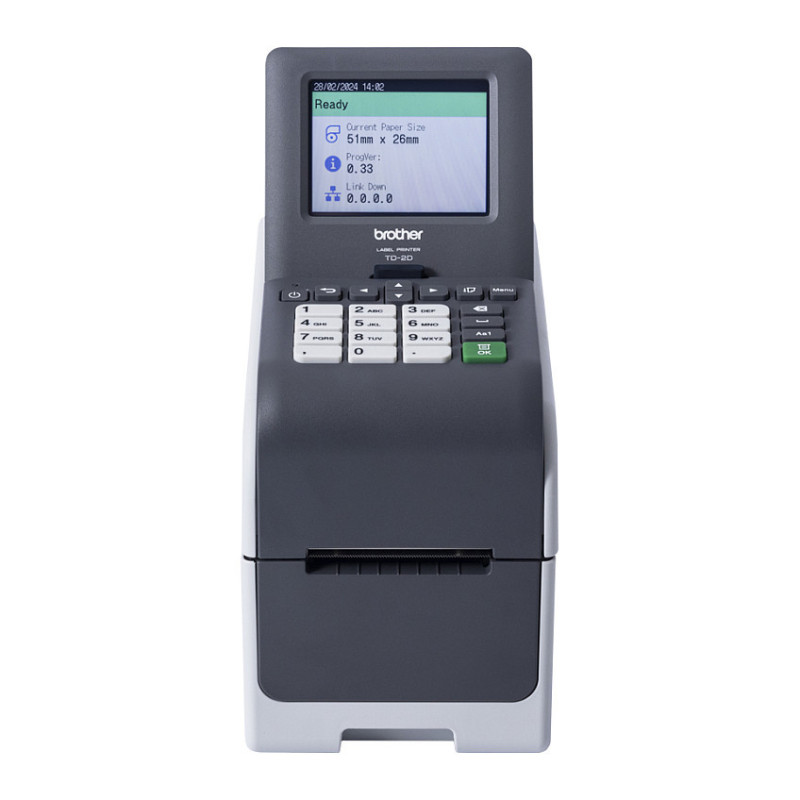

Brother TD-2350DSA203 label printer

Brother TD-2350DSA203. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Wi-Fi, Bluetooth, Bluetooth version: 5.2+EDR, USB port. Product colour: Black, Grey

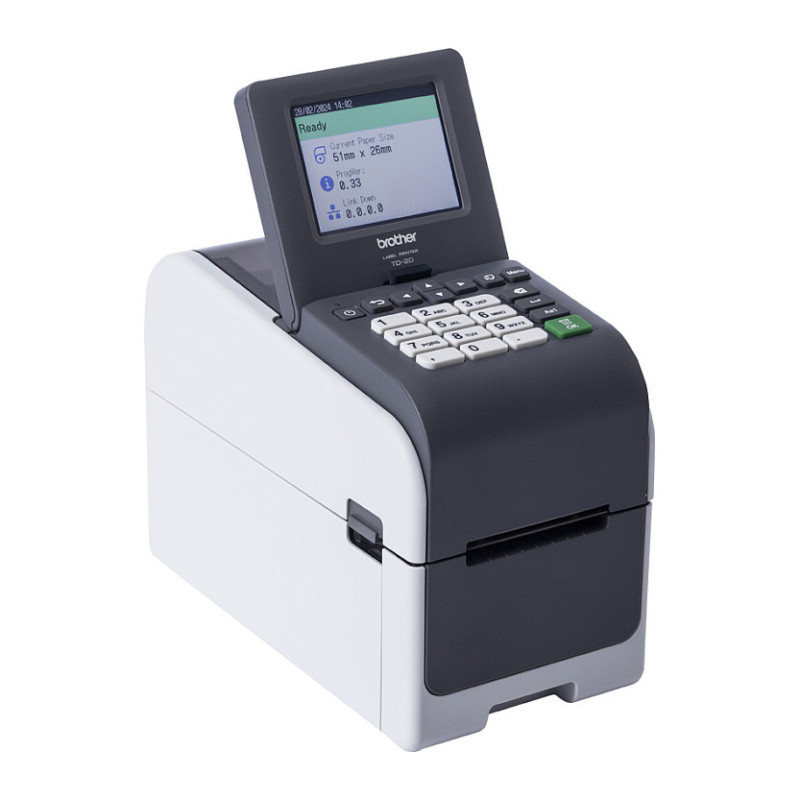

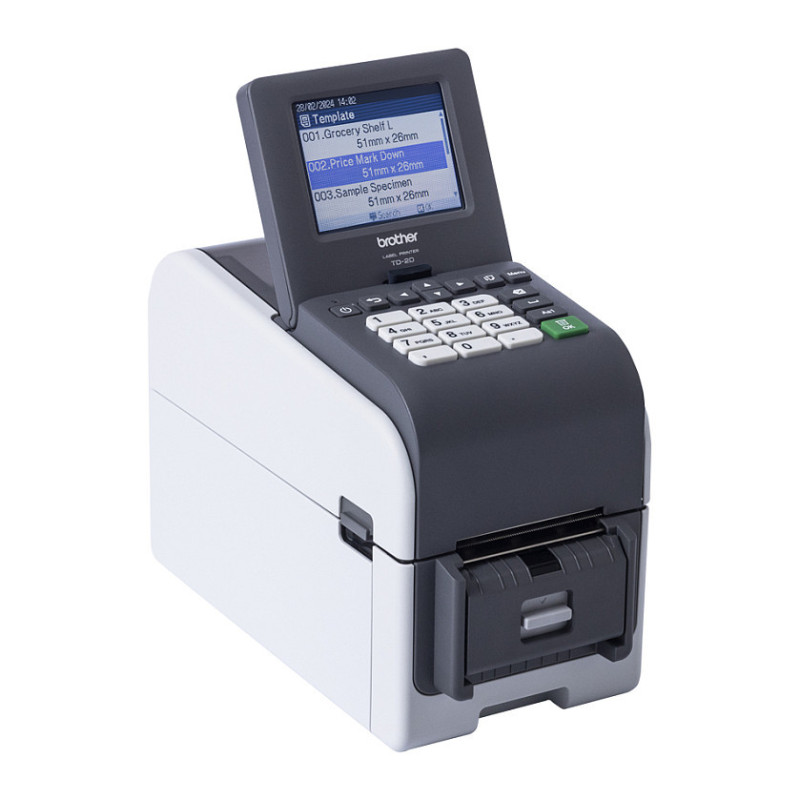

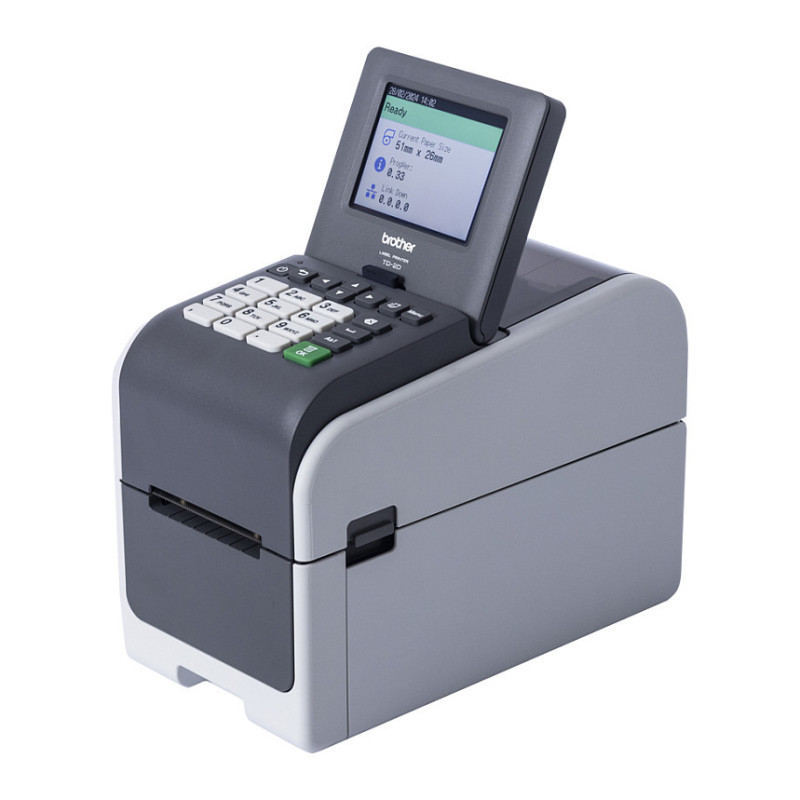

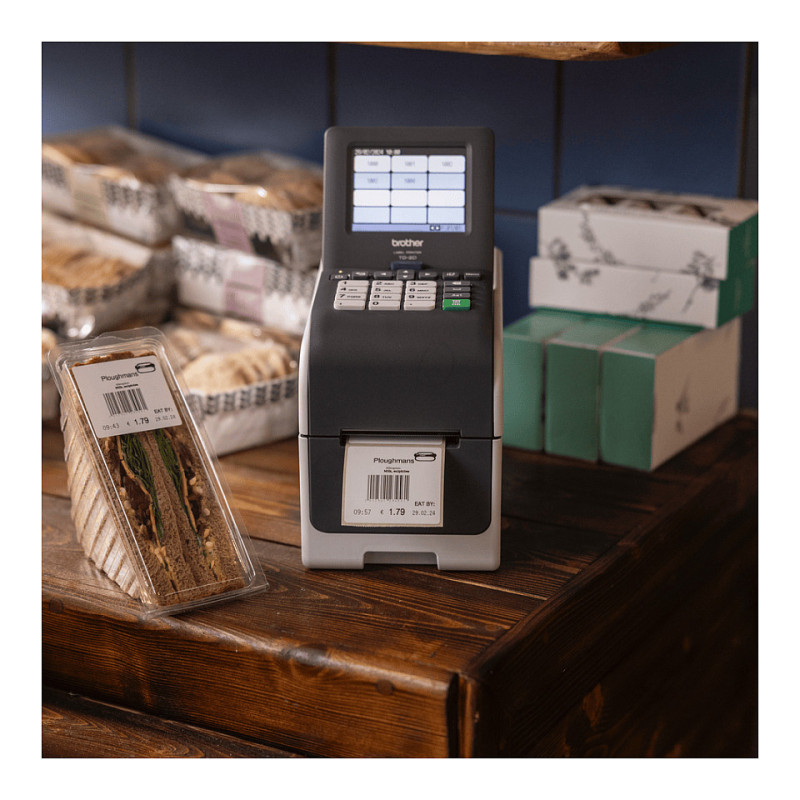

With an intuitive LCD screen, the TD-2350D203 is a user-friendly desktop label printer. The professional quality resolution, makes this label maker ideal for printing 2D barcodes. Barcodes are easily scanned and quickly processed. The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.The printer has a range of specialised features and high-quality print resolution, the TD-2D is the perfect label printer for retail, healthcare and food traceability - where you need to be able to print high-quality receipts, labels or wristbands in any location.

Printing

Print technology: Direct thermal
Maximum resolution: 203 x 203 DPI
Print speed: 152 mm/sec
Maximum printing width: 5.9 cm
Minimum print length: 6.4 mm

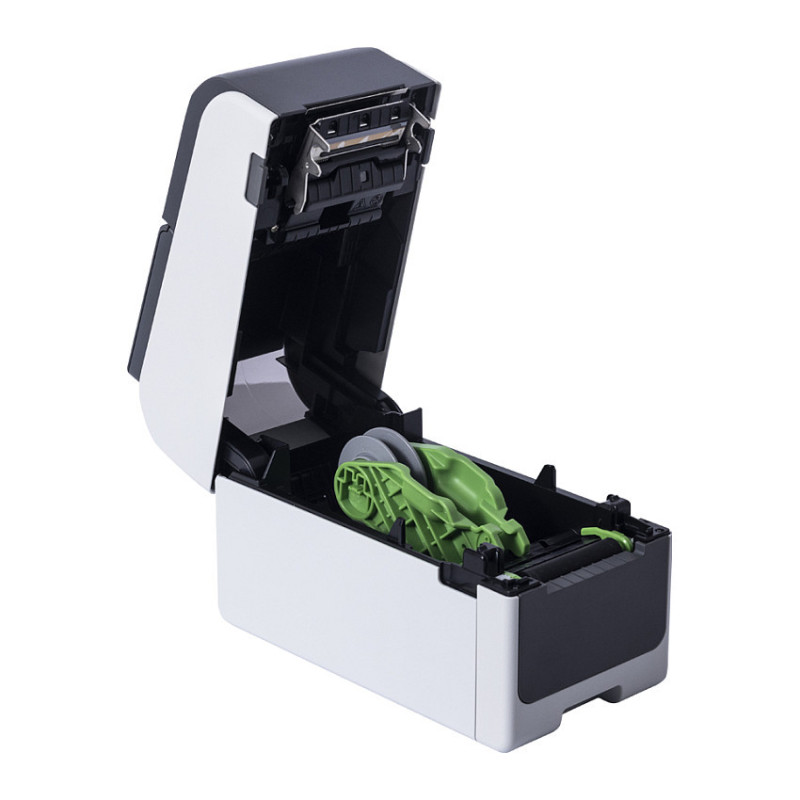

Paper handling

Ribbon length: 3 m
Maximum label length: 3 m
Maximum roll diameter: 12.7 cm
Media thickness: 0.058 - 0.279 mm

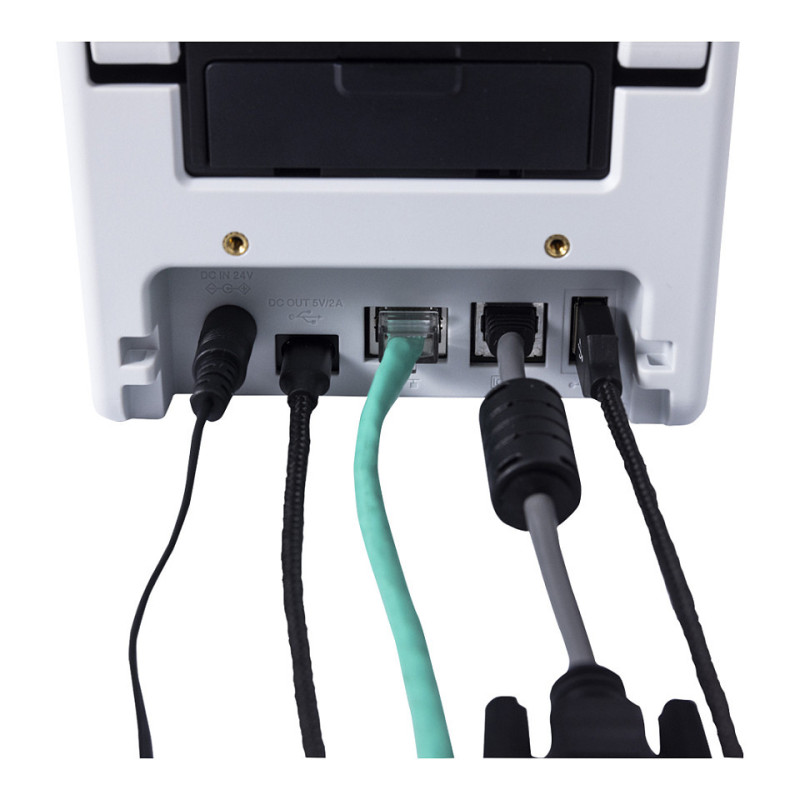

Ports & interfaces

Connectivity technology: Wired & Wireless
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Feature: Bluetooth
Bluetooth version: 5.2+EDR
Feature: USB port
USB 2.0 ports quantity: 1
RS-232 ports: 1

Performance

Page description languages: ESC P, Raster_P
Internal memory: 256 MB
Number of fonts: 10
Security algorithms: 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, WPA-PSK, WPA2-PSK, WPA3-SAE

Design

Product colour: Black, Grey

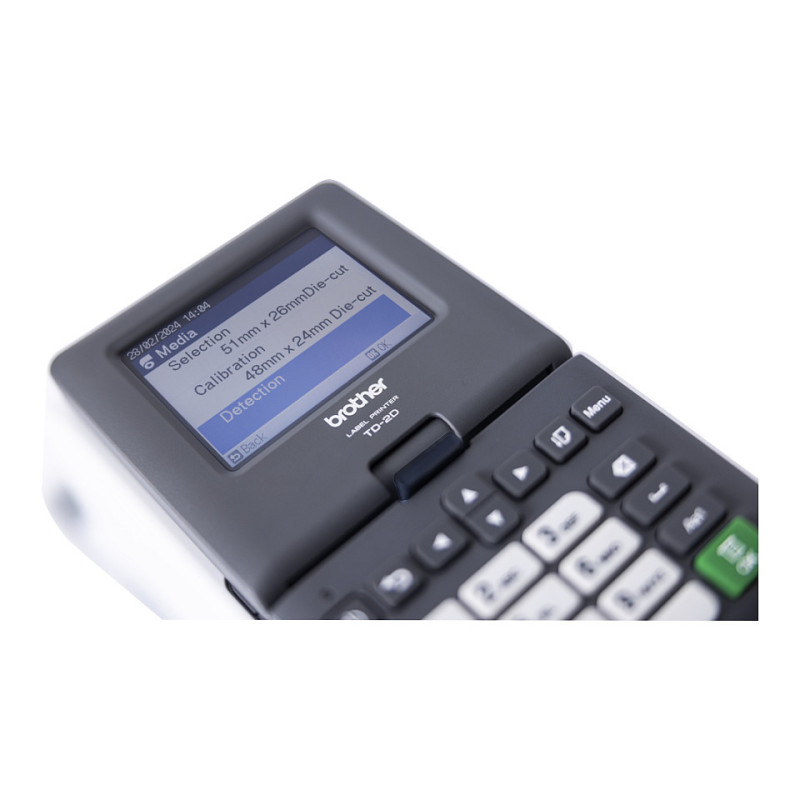

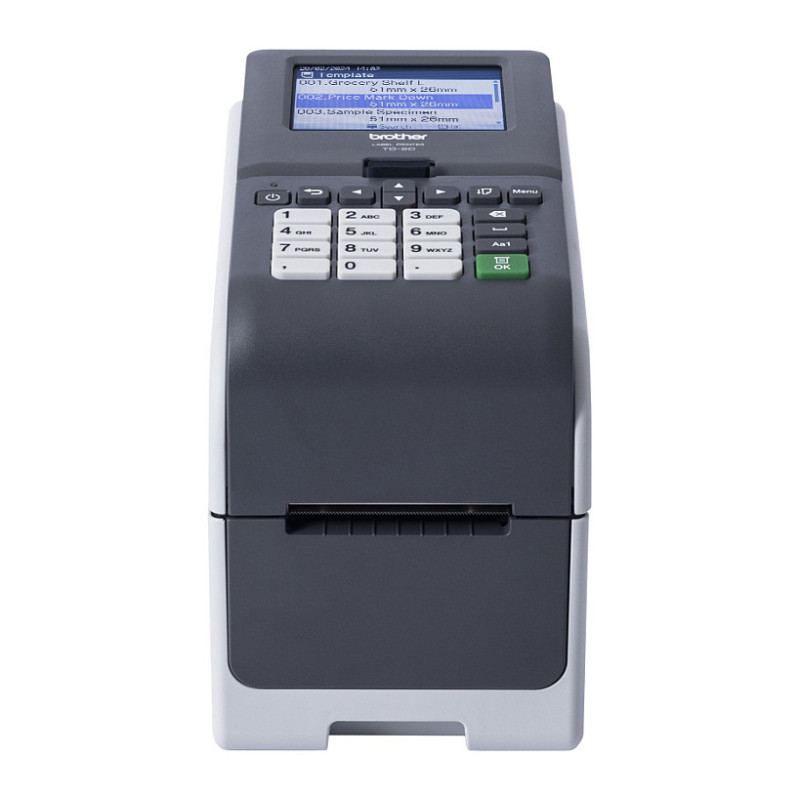

Feature: Built-in display
Display: LCD
Feature: Colour display
Control type: Buttons, Touch

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 24 V
AC adapter output current: 3.6 A
USB port voltage: 5 V
USB port current: 3 A
Power source type: AC

System requirements

Windows operating systems supported: Windows 10, Windows 11
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 181 mm
Depth: 306 mm
Height: 325 mm
Weight: 1.86 kg

Packaging data

Package width: 306 mm
Package depth: 181 mm
Package height: 325 mm
Package weight: 2.9 kg

Packaging content

Cables included: USB

Logistics data

Pallet gross height: 17.8 cm
Pallet gross weight: 631.2 kg
Master (outer) cases per pallet: 20 pc(s)
Master (outer) cases per pallet layer: 4 pc(s)
Layers per pallet: 5 pc(s)
Products per pallet: 60 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

Country of origin: Vietnam
Warranty period: 3 year(s)
Spare part retention: 5 year(s)
