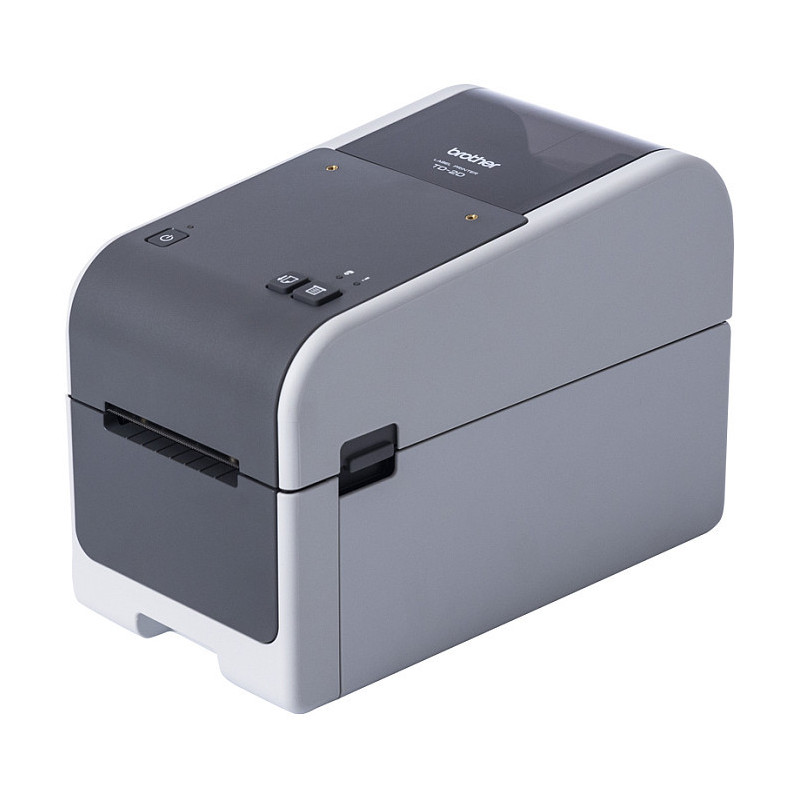

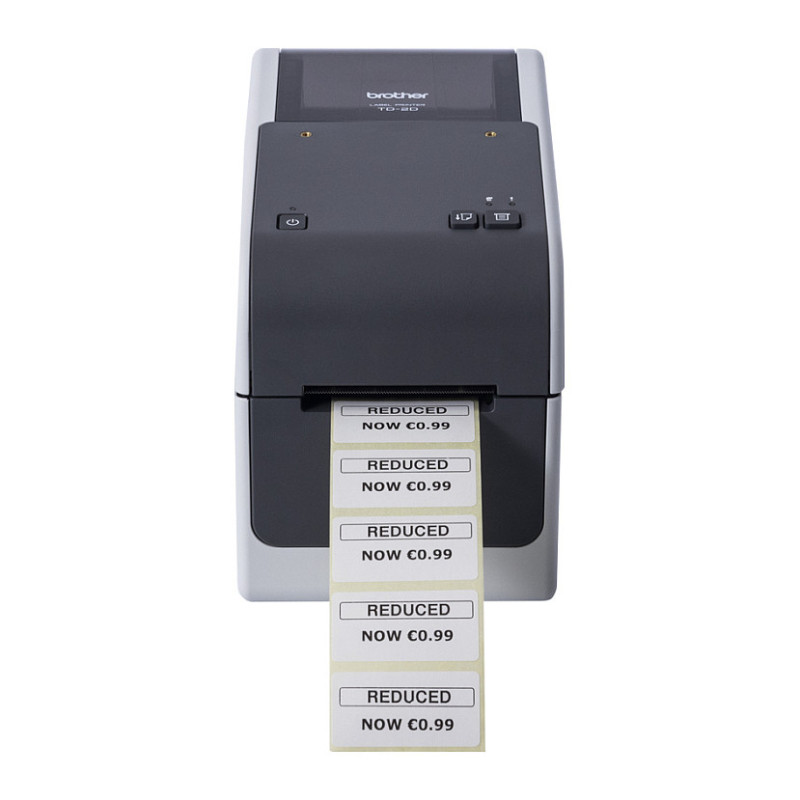

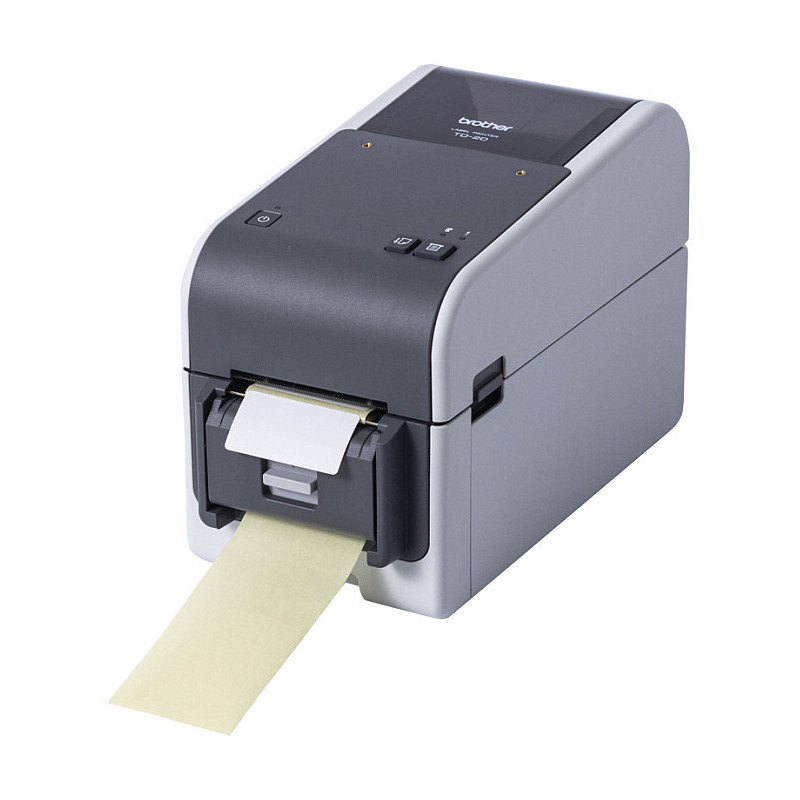

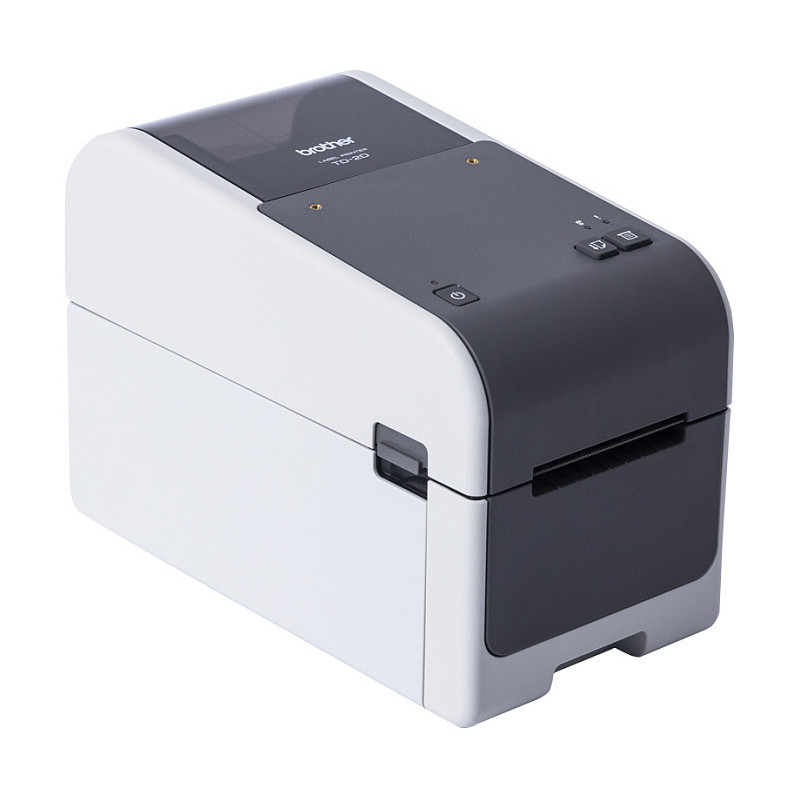

Brother TD-2320D203 label printer

Brother TD-2320D203. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black, Grey

Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320D203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business.With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail, healthcare and food traceability - where you need to be able to print high-quality receipts, labels or wristbands in any location.

Printing

Print technology: Direct thermal
Maximum resolution: 203 x 203 DPI
Print speed: 152 mm/sec
Maximum printing width: 5.9 cm
Minimum print length: 6.4 mm

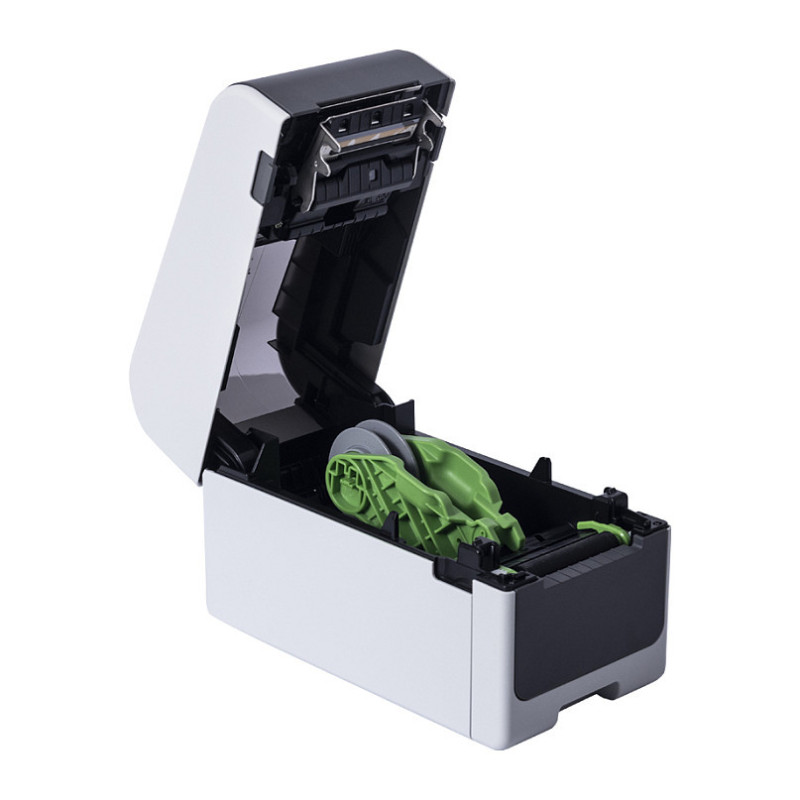

Paper handling

Maximum label length: 3 m
Maximum roll diameter: 12.7 cm
Media thickness: 0.058 - 0.279 mm
Core diameter: 3.81 cm

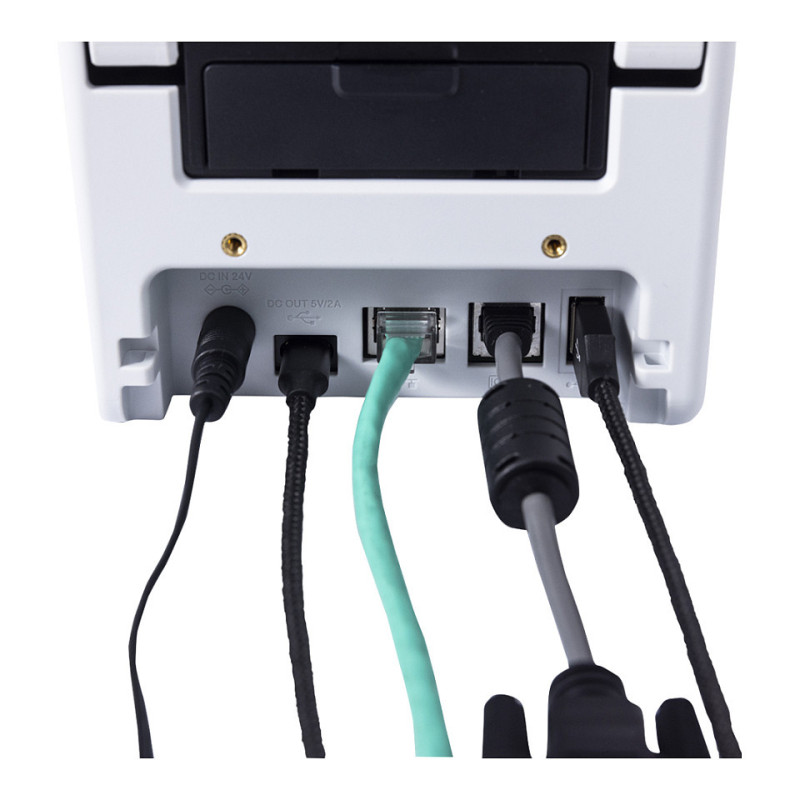

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
RS-232 ports: 1

Performance

Internal memory: 256 MB
Flash memory: 64 MB

Design

Product colour: Black, Grey
Control type: Buttons

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source type: AC, USB

System requirements

Windows operating systems supported: Windows 10, Windows 11
Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 119 mm
Depth: 224 mm
Height: 158 mm
Weight: 1.59 kg

Packaging data

Package width: 306 mm
Package depth: 181 mm
Package height: 325 mm
Package weight: 2.63 kg

Packaging content

Cables included: AC, USB

Logistics data

Pallet gross height: 17.8 cm
Pallet gross weight: 631.2 kg
Master (outer) cases per pallet: 20 pc(s)
Master (outer) cases per pallet layer: 4 pc(s)
Layers per pallet: 5 pc(s)
Products per pallet: 60 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

Country of origin: Vietnam
Warranty period: 3 year(s)
Spare part retention: 5 year(s)
