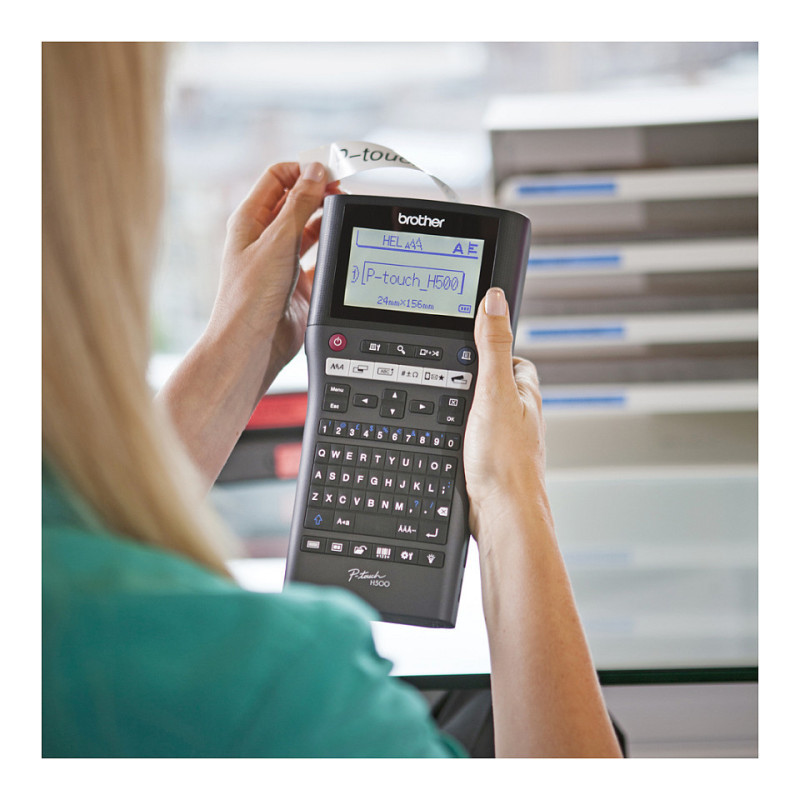

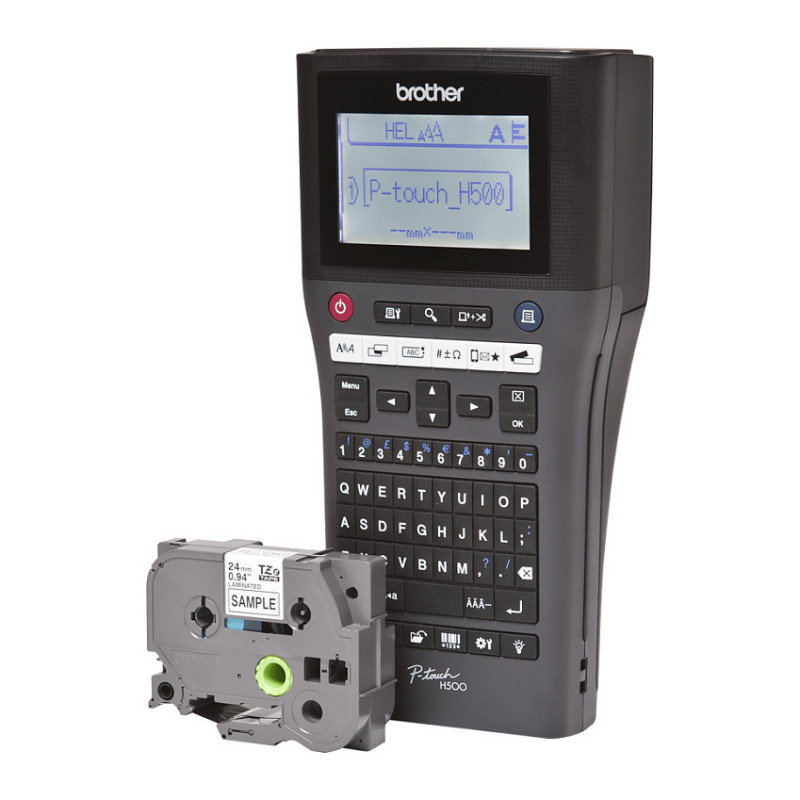

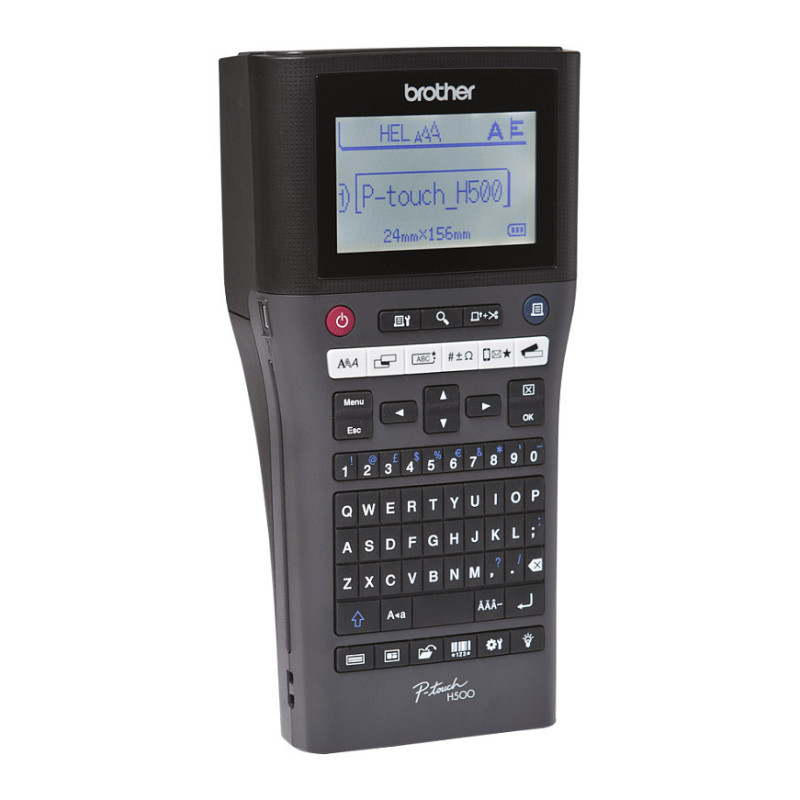

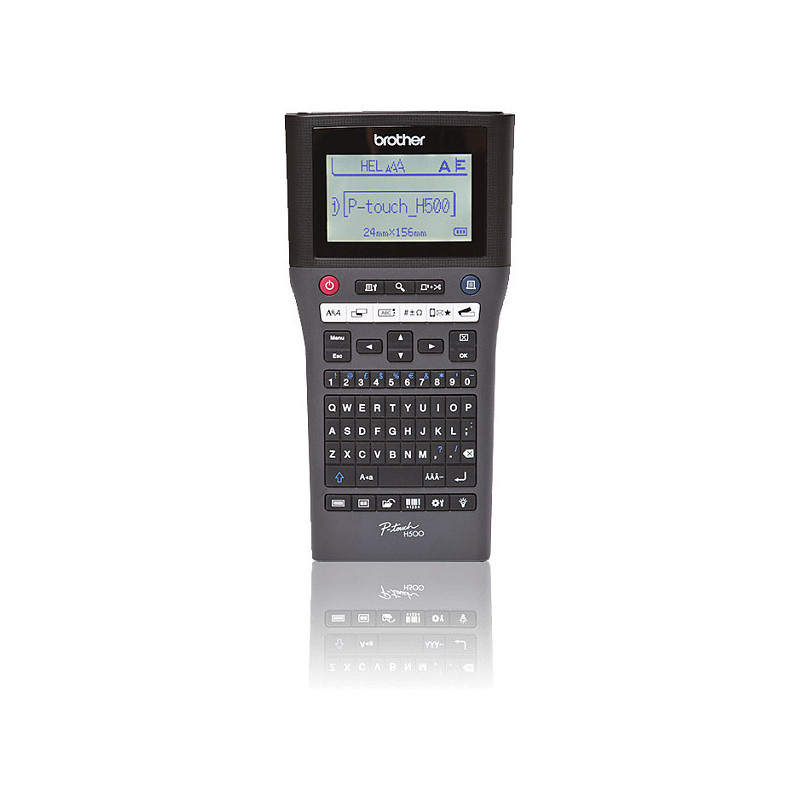

Brother PT-H500 label printer

Brother PT-H500. Maximum resolution: 180 x 180 DPI, Print speed: 30 mm/sec. Connectivity technology: Wired, USB port. Keyboard layout: QWERTY. Tape type: TZe. Product colour: Black

Design and print impressively durable labels from your Mac, Windows PC or right from the palm of your hand with the PT-H500. Adding images, frames and barcodes to your labels is simple with direct USB connection to your computer, and you can also create stylish text using the installed True Type fonts.

Printing

Maximum resolution: 180 x 180 DPI
Print speed: 30 mm/sec
Maximum printing width: 2.4 cm
Maximum print height: 1.8 cm
Feature: Vertical printing

Paper handling

Feature: Autocutter
Maximum label width: 2.4 cm

Ports & interfaces

Connectivity technology: Wired
Feature: USB port
Feature: PC connected
USB 2.0 ports quantity: 1

Performance

Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN128, EAN13, EAN8, GS1-128, ITF, UPC-A, UPC-E
Number of fonts: 14
Tape type: TZe
Tape cutting: Automatic
Image formats supported: BMP, JPG, TIF
Number of styles: 10
Number of printing lines (max): 7
Feature: Underline

Design

Product colour: Black
Feature: Built-in display
Display: LCD
Feature: Backlight display
Display number of lines: 3 lines
Display number of characters: 16
Keyboard layout: QWERTY

Power

Number of batteries supported: 6
Feature: Auto power off
Feature: Rechargeable

System requirements

Mac operating systems supported: Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion

Weight & dimensions

Width: 305 mm
Depth: 125 mm
Height: 300 mm
Weight: 995 g

Packaging data

Package weight: 1.65 kg

Packaging content

Cables included: USB
Feature: Quick start guide

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross height: 17.5 cm
Pallet gross weight: 169.2 kg
Master (outer) cases per pallet: 30 pc(s)
Master (outer) cases per pallet layer: 6 pc(s)
Layers per pallet: 5 pc(s)
Products per pallet: 90 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

Feature: Print preview
Label memory: 50 label(s)
Country of origin: China
Number of frames: 99
Spare part retention: 5 year(s)
