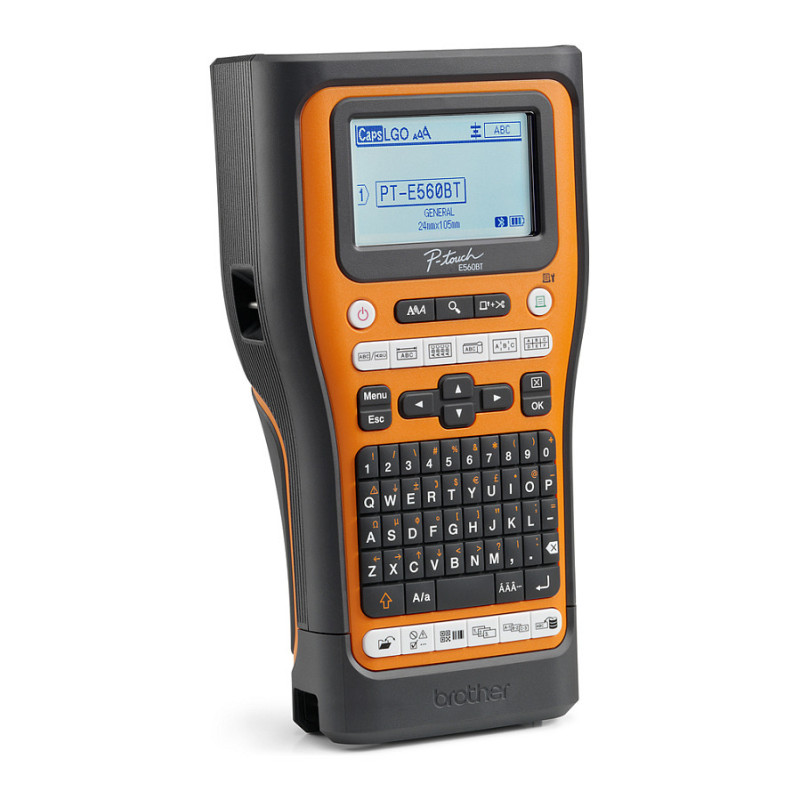

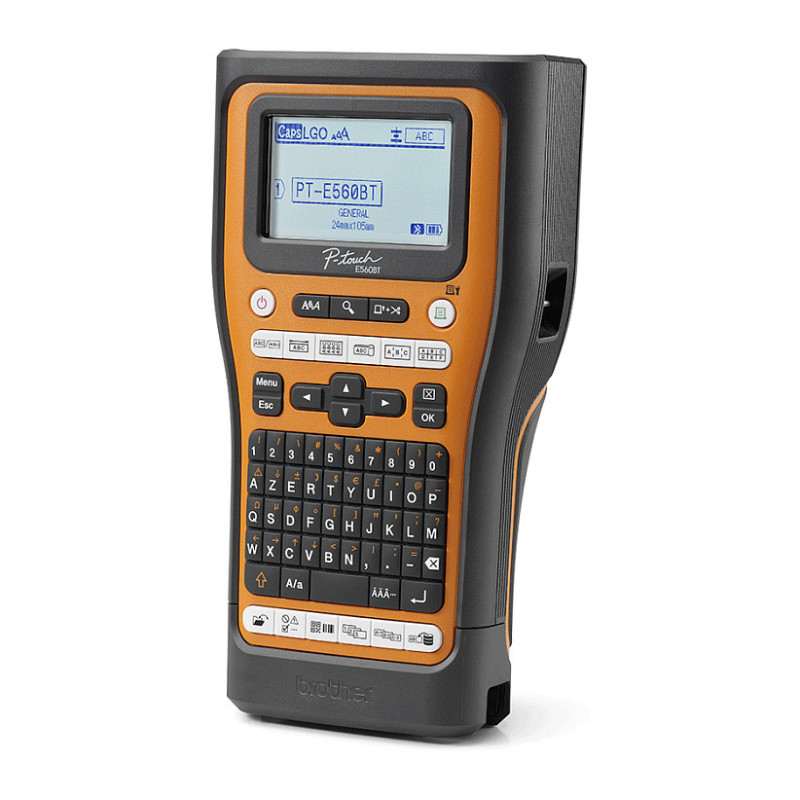

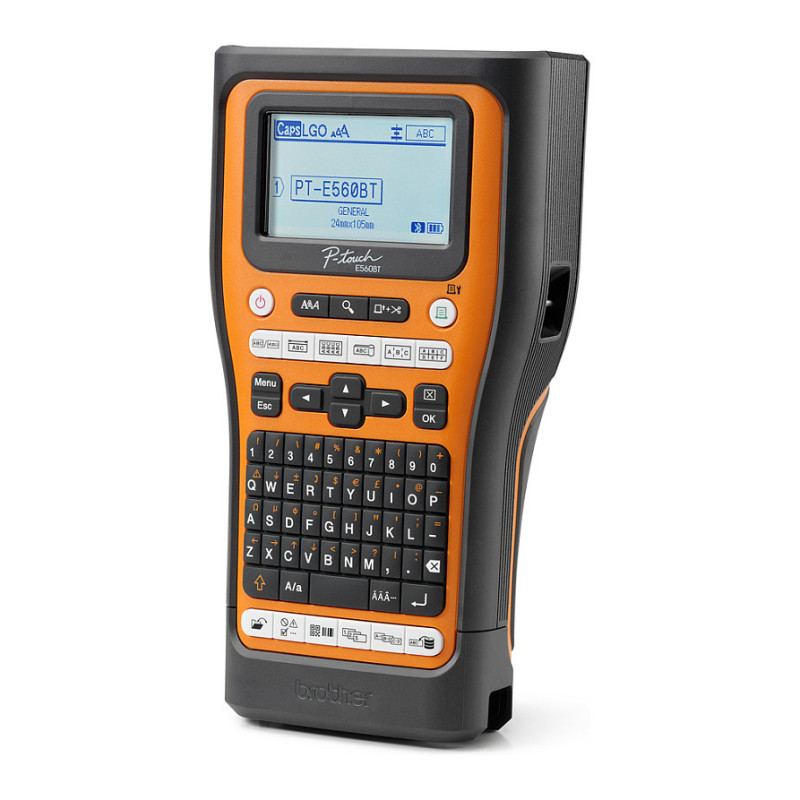

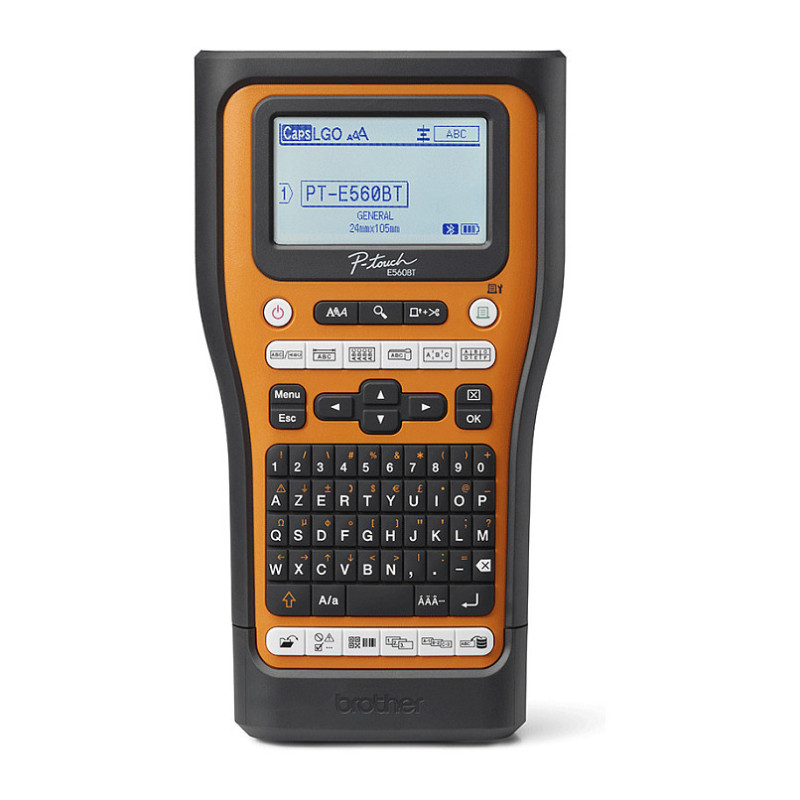

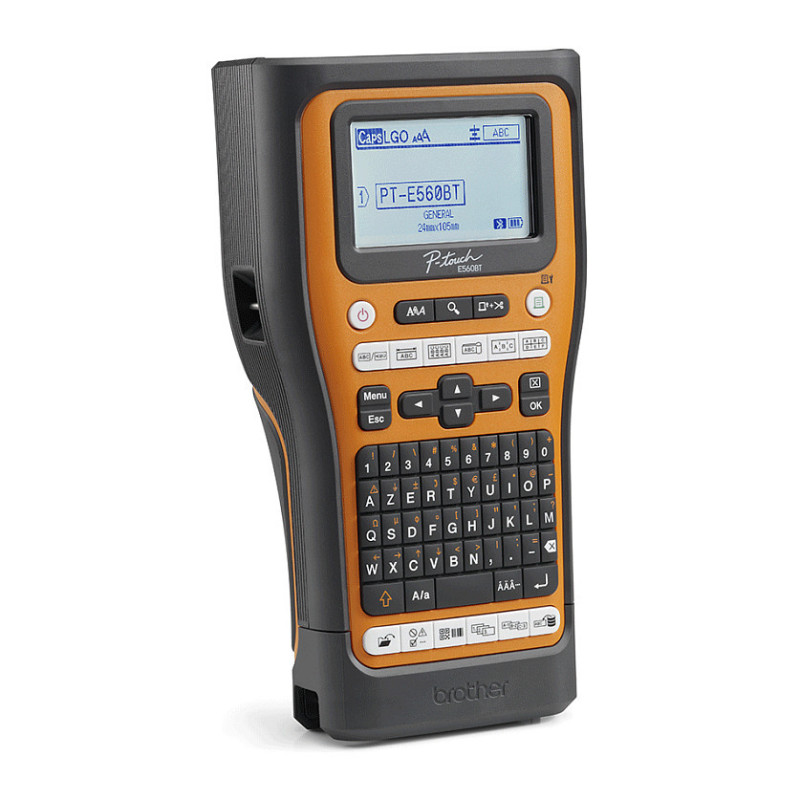

Brother PT-E560BTVP label printer

Brother PT-E560BTVP. Print technology: Thermal transfer, Maximum resolution: 180 x 180 DPI, Print speed: 20 mm/sec. Connectivity technology: Wired & Wireless, Bluetooth, Bluetooth version: 5.0, USB port. Keyboard layout: QWERTY. Tape type: HSE/TZe. Product colour: Black, Orange

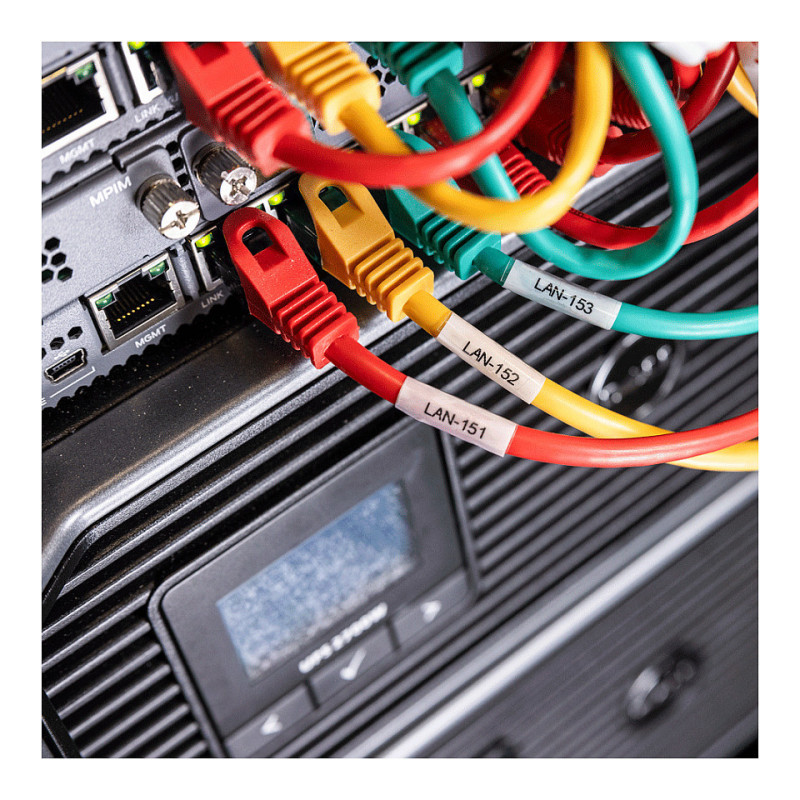

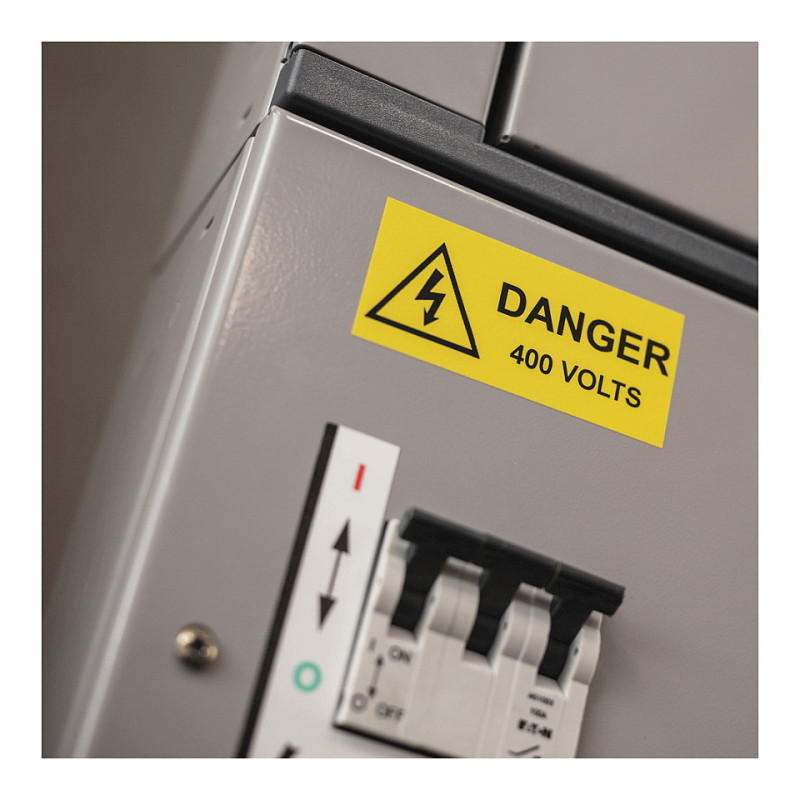

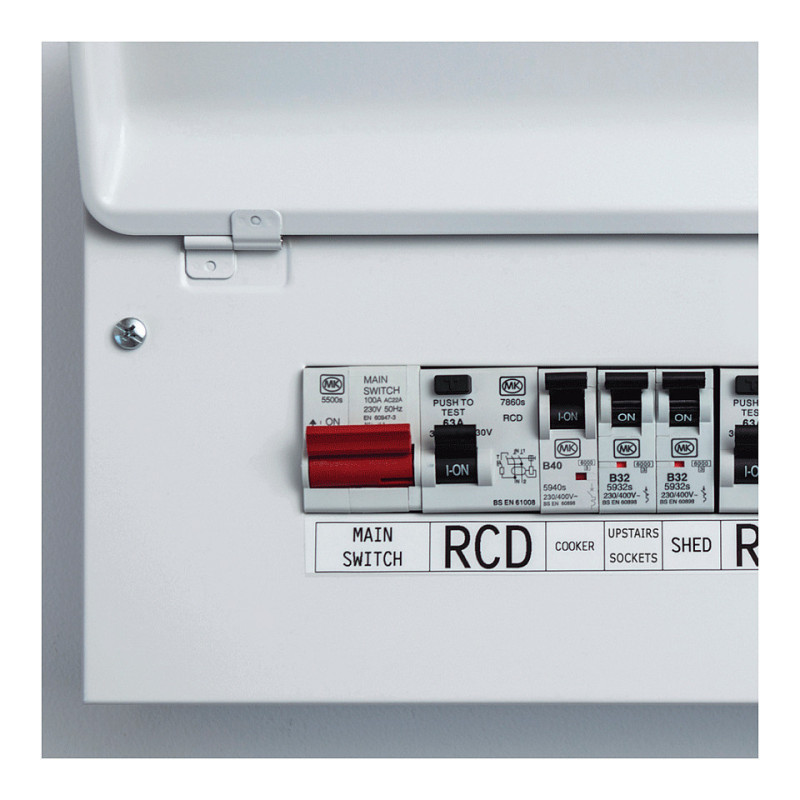

Clear identification and safety are critical for any electrical or datacom installation, including danger & warning signs, switch gear, electrical wires, consumer units, patch panels, racks & cabinets, CAT5E / CAT6A network cabling and more. Equipped with a large graphic display and dedicated functions for the most common labelling tasks, the PT-E560BT is your ideal partner for producing long-lasting, durable labels on-demand, saving you time on site. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - so you can be confident that you're getting the job done properly and professionally.

Printing

Print technology: Thermal transfer
Maximum resolution: 180 x 180 DPI
Number of printable dots: 128 dot
Print speed: 20 mm/sec
Maximum printing width: 2.4 cm
Maximum print height: 1.8 cm

Paper handling

Feature: Autocutter
Feature: Half-cutter

Ports & interfaces

Connectivity technology: Wired & Wireless
Feature: Bluetooth
Bluetooth version: 5.0
Feature: USB port

Performance

Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E
Number of fonts: 14
Tape type: HSE/TZe

Design

Product colour: Black, Orange
Feature: Built-in display
Display: LCD
Feature: Backlight display
Keyboard layout: QWERTY

Power

Battery type: Built-in battery
Number of batteries supported: 1

Battery

Battery technology: Lithium-Ion (Li-Ion)

System requirements

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported: Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16

Weight & dimensions

Width: 132 mm
Depth: 244 mm
Height: 80 mm
Weight: 1.05 kg

Packaging data

Package width: 126 mm
Package depth: 334.4 mm
Package height: 393 mm
Package weight: 3.49 kg

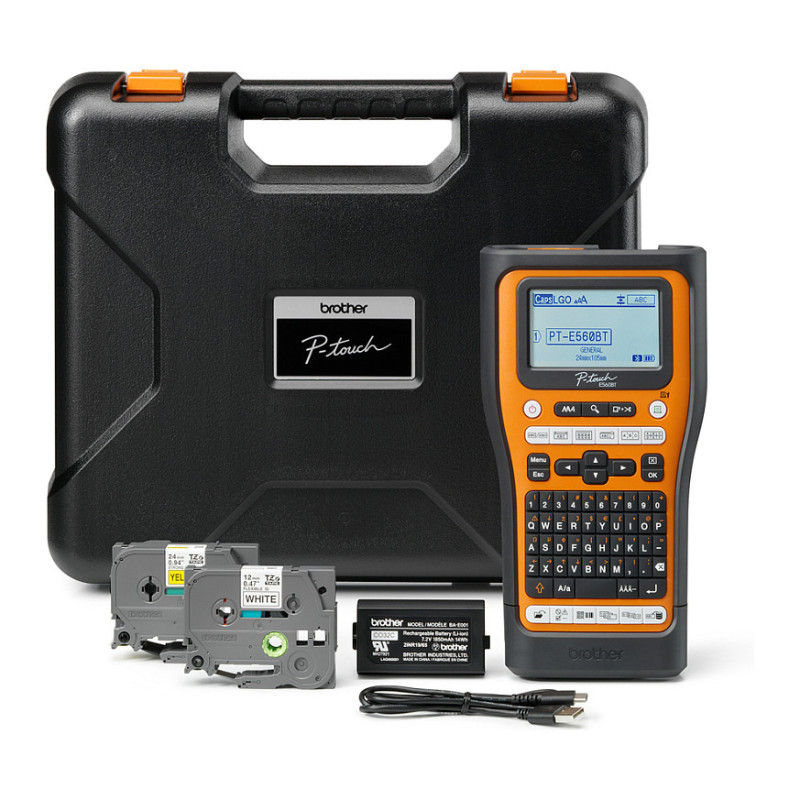

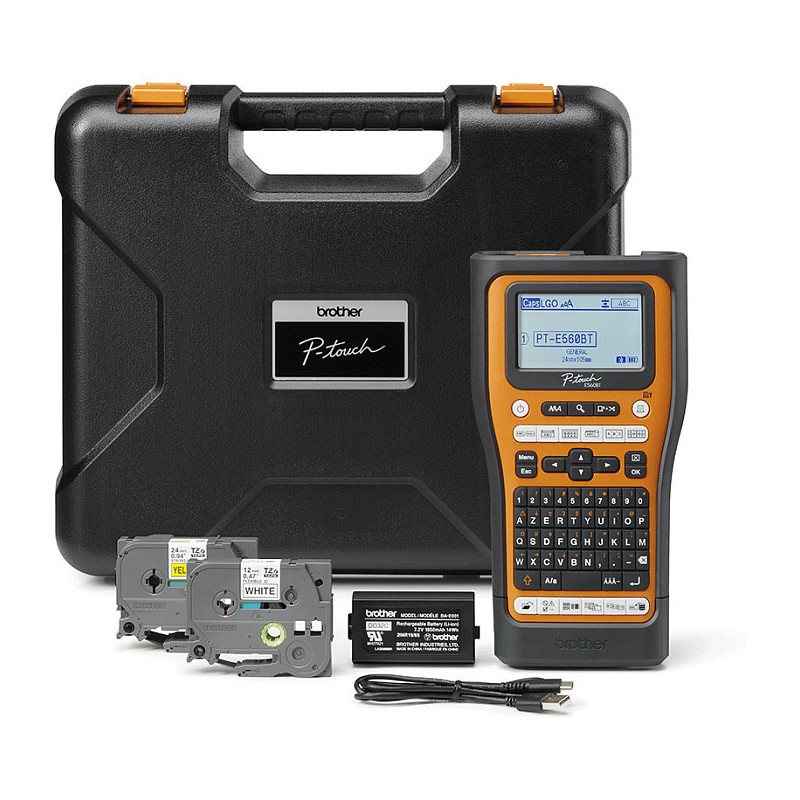

Packaging content

Cables included: USB
Feature: Batteries included
