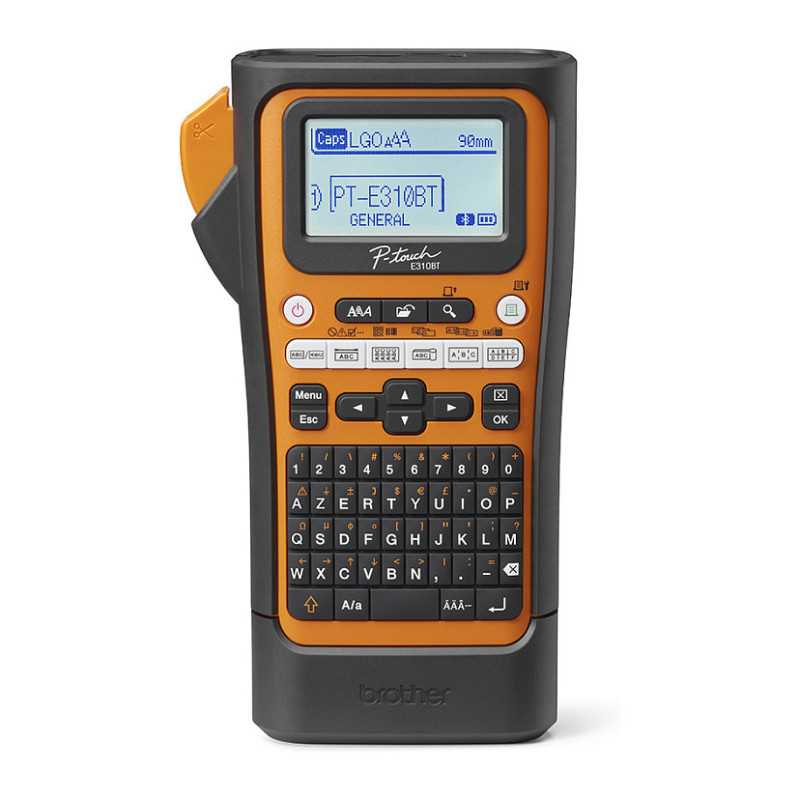

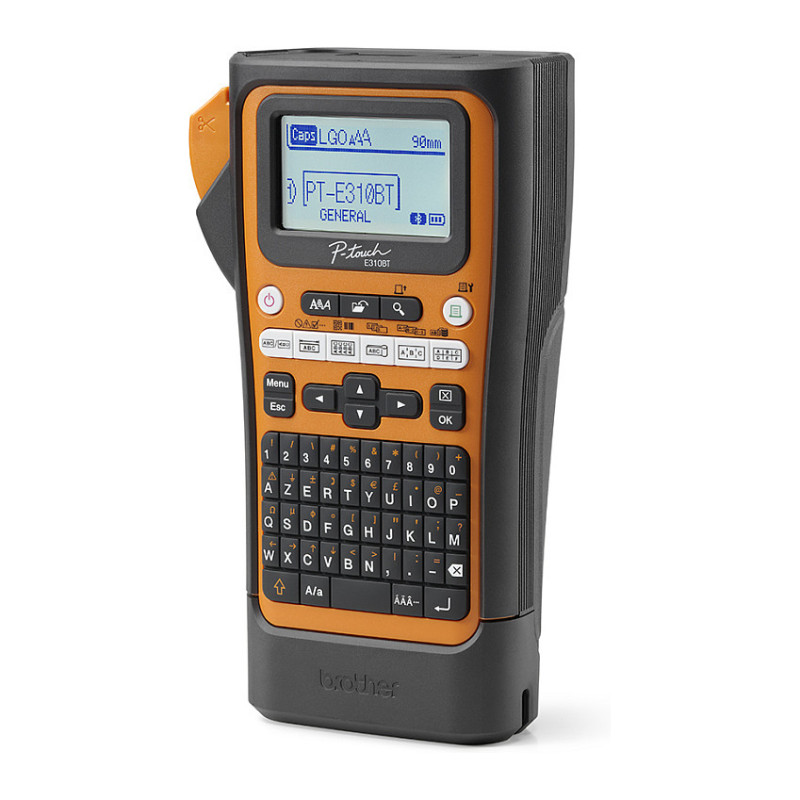

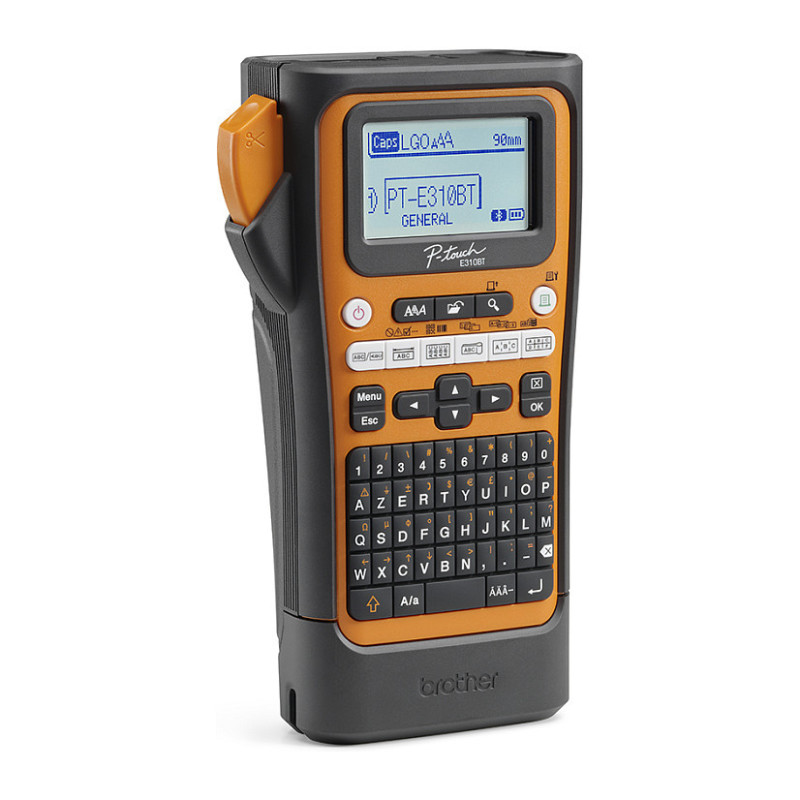

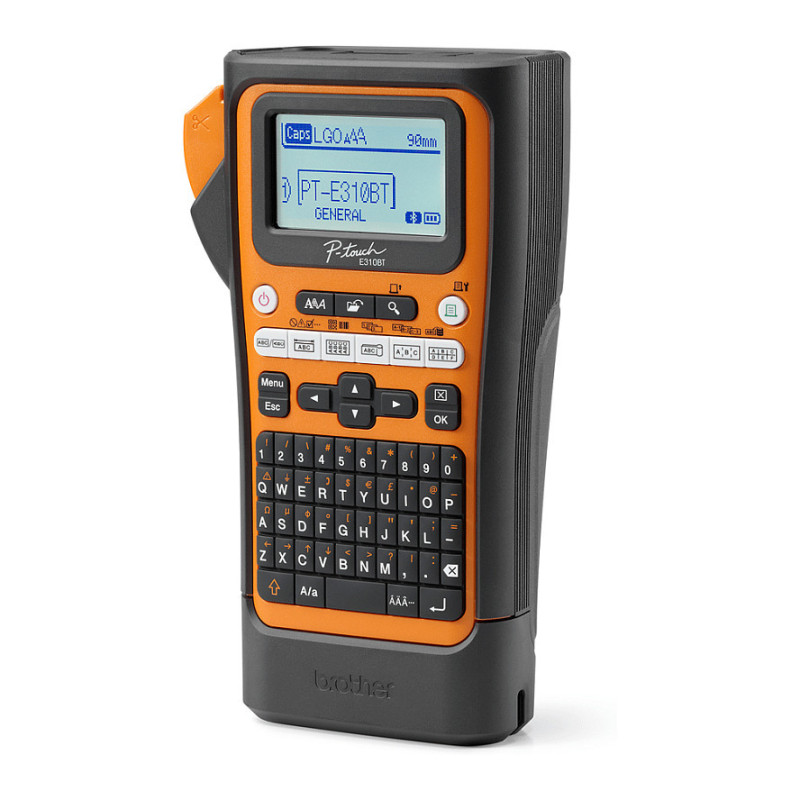

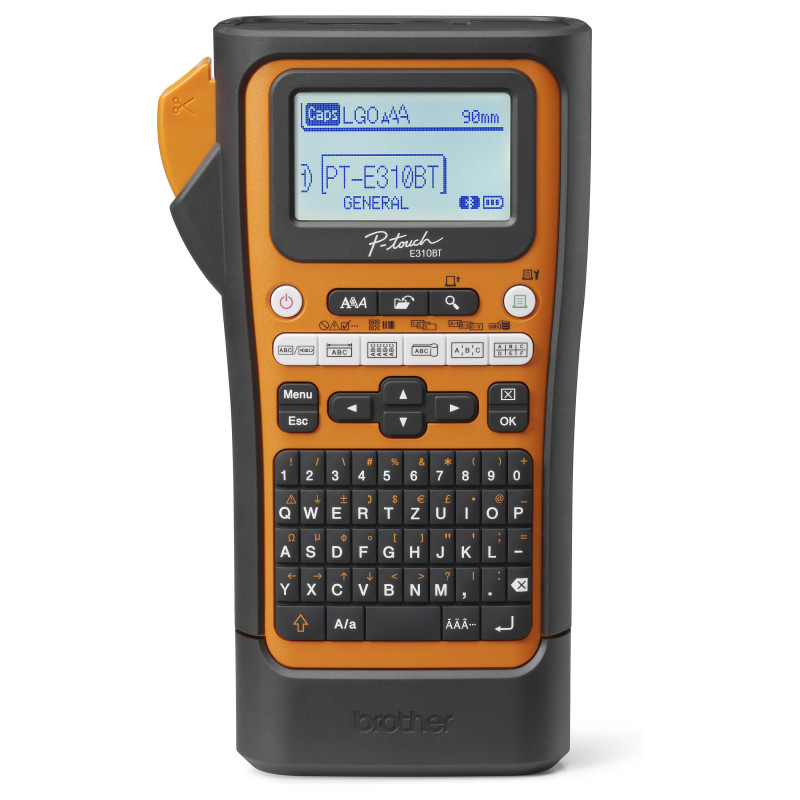

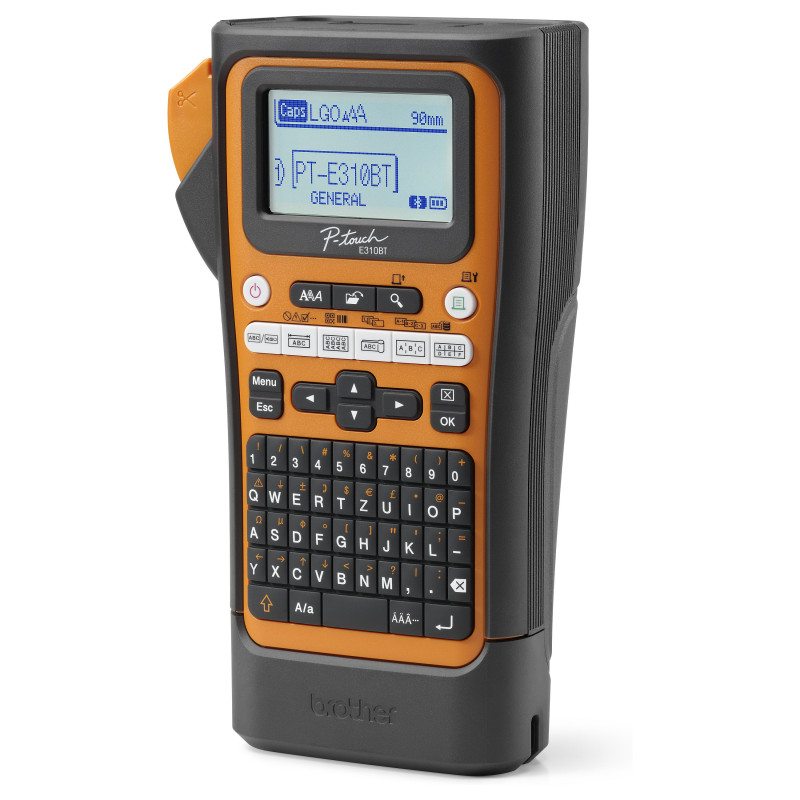

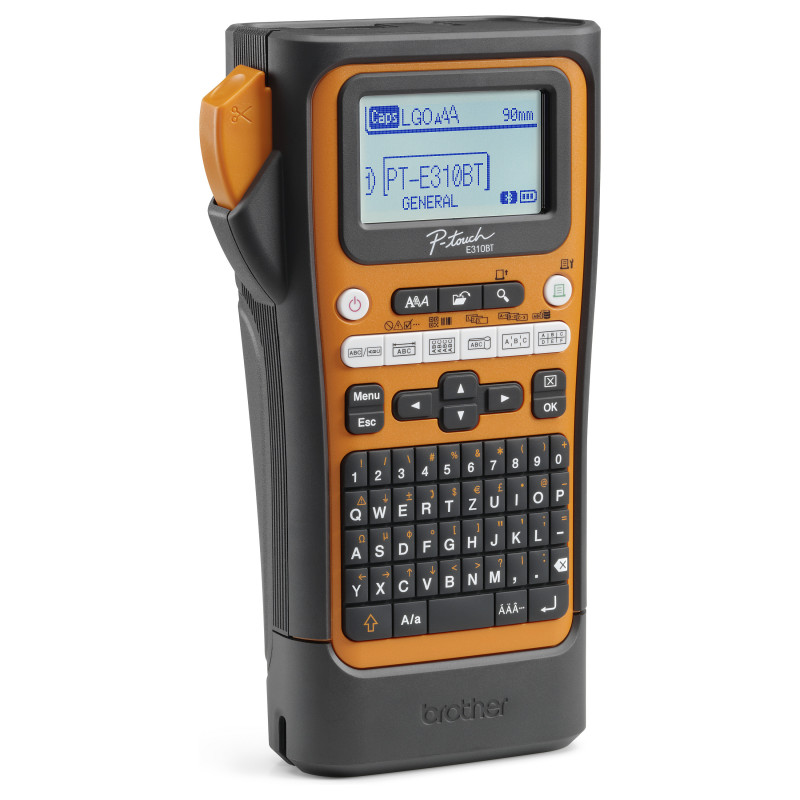

Brother PT-E310BTVP label printer

Brother PT-E310BTVP. Print technology: Thermal transfer, Maximum resolution: 180 x 180 DPI, Print speed: 20 mm/sec. Connectivity technology: Wired & Wireless, Bluetooth, Bluetooth version: 5.0, USB port. Keyboard layout: QWERTY. Tape type: HSE/TZe. Product colour: Black, Orange

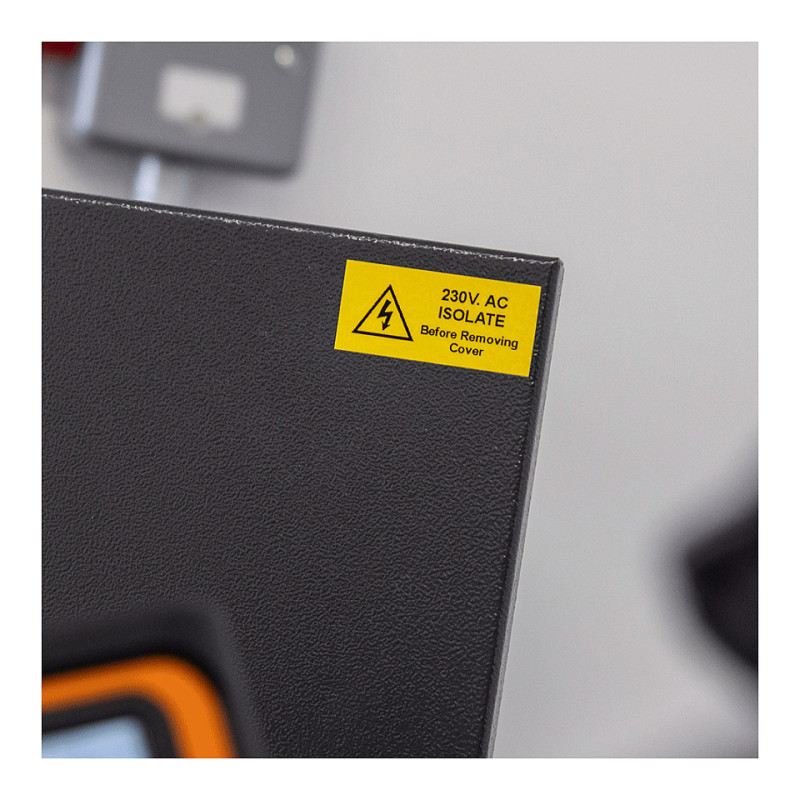

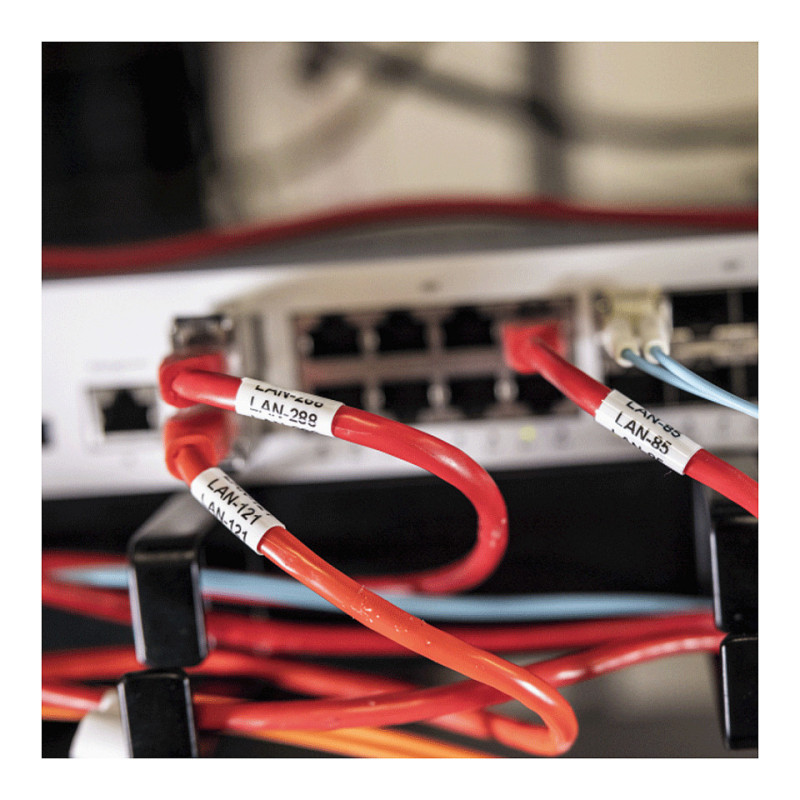

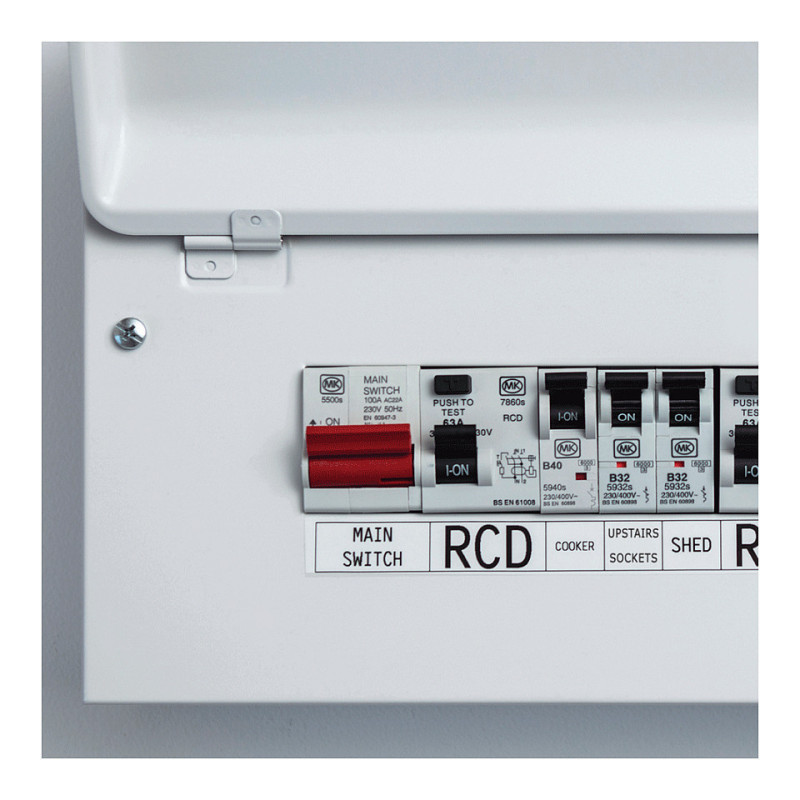

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires. Print labels in standalone mode using the built-in QWERTY keyboard, large display and specialist labelling functions. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - our market-leading machines are built to last, with labels that match.

Printing

Print technology: Thermal transfer
Maximum resolution: 180 x 180 DPI
Number of printable dots: 128 dot
Print speed: 20 mm/sec
Maximum printing width: 1.58 cm
Maximum print height: 1.8 cm
Feature: Vertical printing
Feature: Mirror printing
Feature: Rotated printing
Maximum print length: 1 m

Ports & interfaces

Connectivity technology: Wired & Wireless
Feature: Bluetooth
Bluetooth version: 5.0
Feature: USB port

Performance

Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E
Number of symbols: 477
Number of fonts: 7
Tape type: HSE/TZe
Number of printing lines (max): 5
Feature: Underline

Design

Product colour: Black, Orange
Keyboard number of keys: 64
Feature: Built-in display
Display: LCD
Feature: Backlight display
Keyboard layout: QWERTY

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Battery type: Built-in battery
Number of batteries supported: 1
Battery technology: Lithium-Ion (Li-Ion)
Feature: Auto power off
Power source type: Battery

Battery

Battery weight: 190 g
Battery capacity: 14 Wh
Feature: Rechargeable battery

System requirements

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported: Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16

Operational conditions

Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 135 mm
Depth: 236 mm
Height: 70 mm
Weight: 800 g

Packaging data

Package width: 126 mm
Package depth: 334.4 mm
Package height: 393 mm
Package weight: 3.08 kg

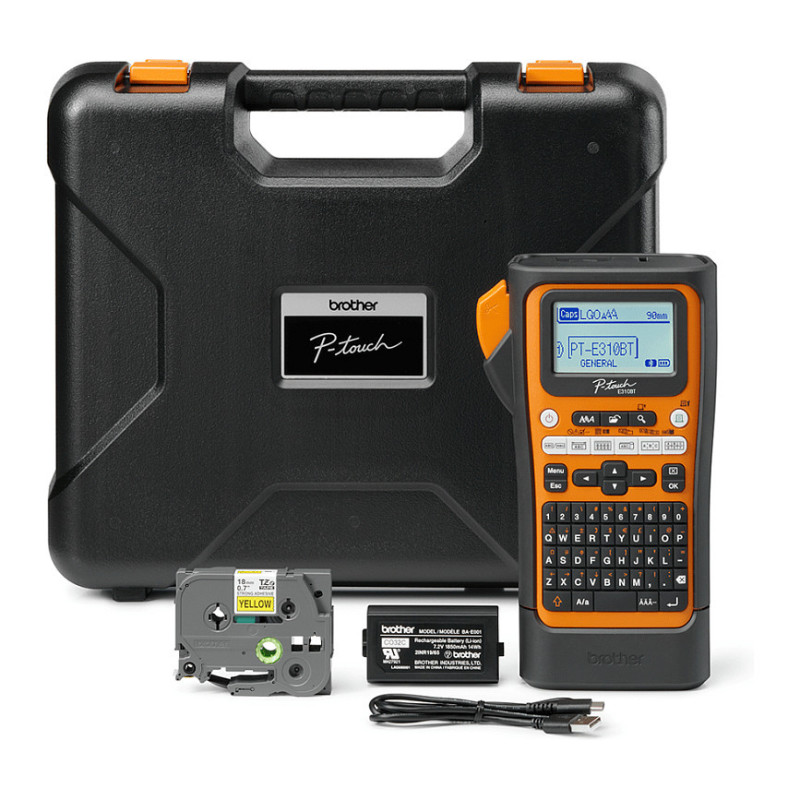

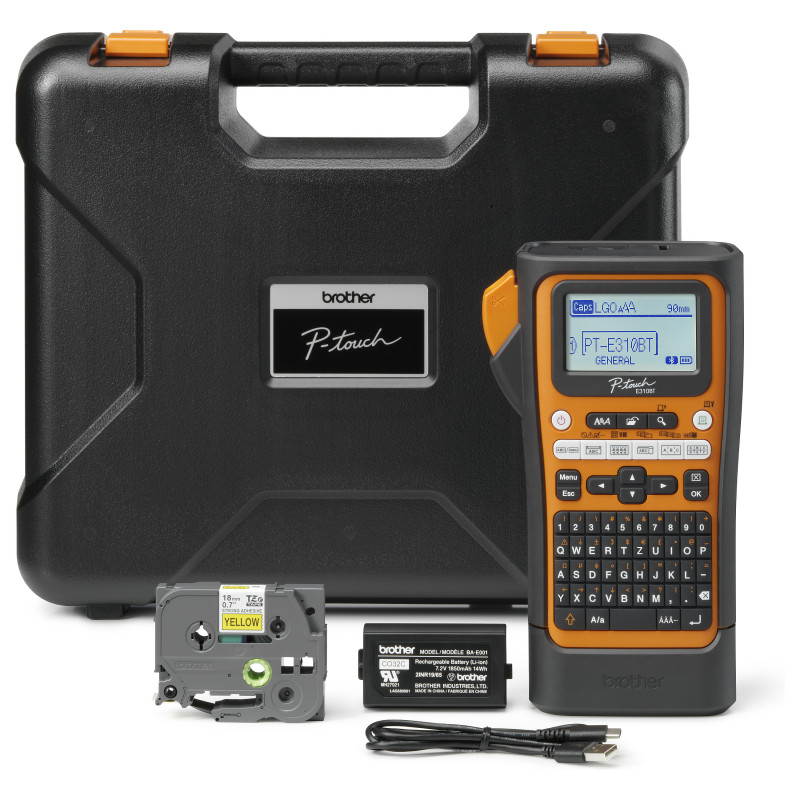

Packaging content

Cables included: USB
Feature: Batteries included
Feature: Quick start guide
Feature: Warranty card
Feature: Wrist strap included

Logistics data

Pallet gross height: 16.5 cm
Pallet gross weight: 258 kg
Master (outer) cases per pallet: 24 pc(s)
Master (outer) cases per pallet layer: 6 pc(s)
Layers per pallet: 4 pc(s)
Products per pallet: 72 pc(s)

Technical details

Multi-block: 99
PC connection: USB 3.2 Gen 1 (3.1 Gen 1)
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR
Pallet type: 1200 x 1000 mm

Other features

Memory capacity: 1500 characters
Feature: Print preview
Label memory: 99 label(s)
Number of frames: 7
Languages support: Multi
