Kostka złącze wtyk hermetyczny 2 PIN AMIO-03518
Product reference:
13-3518
Cube connector hermetic plug 2 PIN AMIO-03518
Kostka złącze wtyk hermetyczny 2 PIN AMIO-03518
Product reference:
13-3518
Cube connector hermetic plug 2 PIN AMIO-03518
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
4 - 14
business days
Not available
CUBE PLUG HERMETIC CONNECTOR SUPERSEAL 2 PIN
This connector is widely used in automotive applications. The set includes a male and female connector, a set of connectors, and seals.

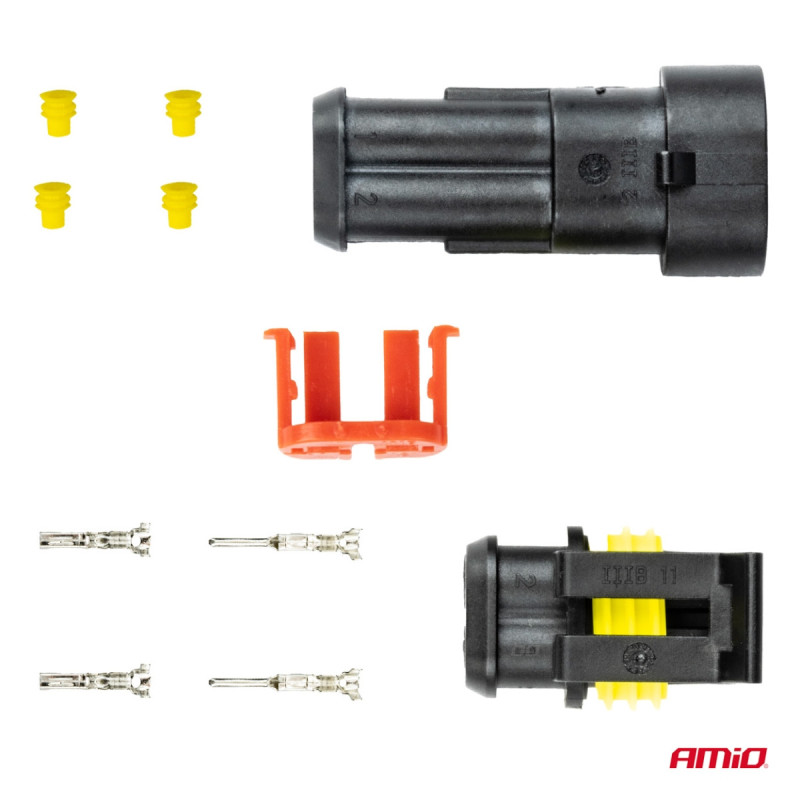

Included in the set:
- 2 pcs male connector
- 2 pcs female connector
- 4 sealing rubbers
- two-piece lockable plug
Specification:
- Number of pins, contacts: 2 pcs.
- Operating Voltage: 12-24V
- Maximum Current: 15 A continuous operation / 18A (5 sec.)
- Working contacts: SS1.5 connector for 0.75-1.5 mm2 wire
- Contact and connector material: Tinned bronze CuZn/Sn
- Operating temperature range: -40°C- +125°C
- Protection class: IP67
- Housing material: polyamide 6.6
- Compliance with the directive: RoHS, EC
