Kostka wtyk złącze hermetyczne superseal 1 PIN AMIO-03517

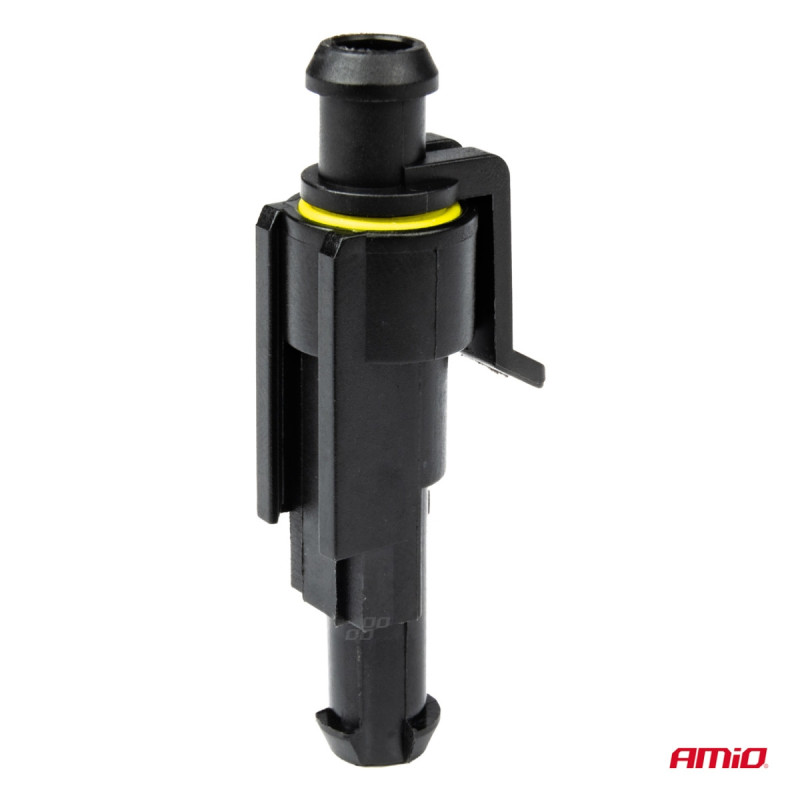

Superseal 1-pin hermetic plug

The Superseal 1-pin hermetic plug is designed for electrical connections. Used in the automotive and machinery industries. Silicone seals provide high resistance to external factors. High-quality contact elements guarantee excellent electrical parameters of the connector.

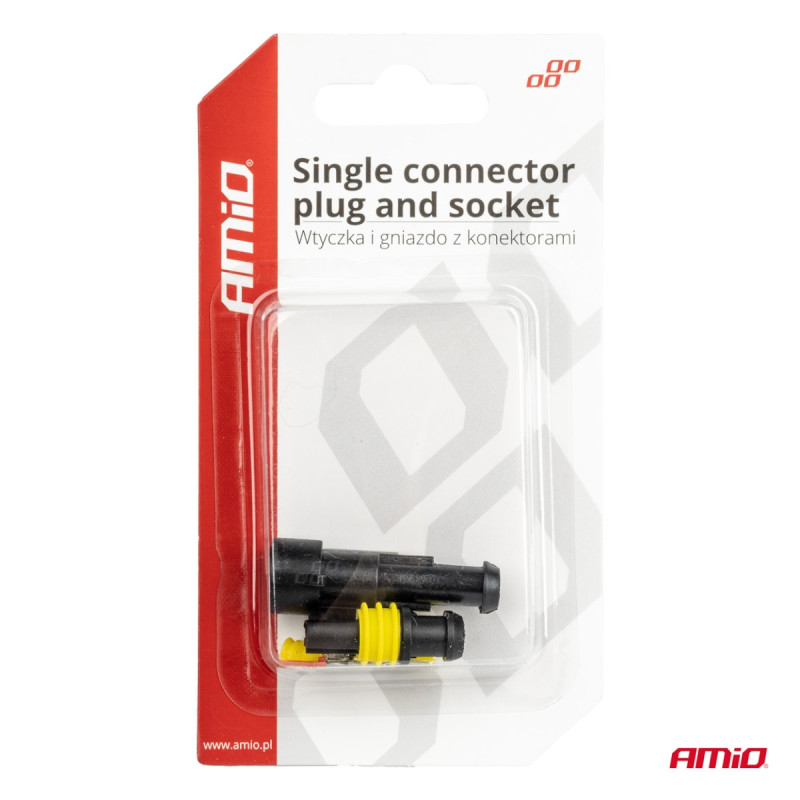

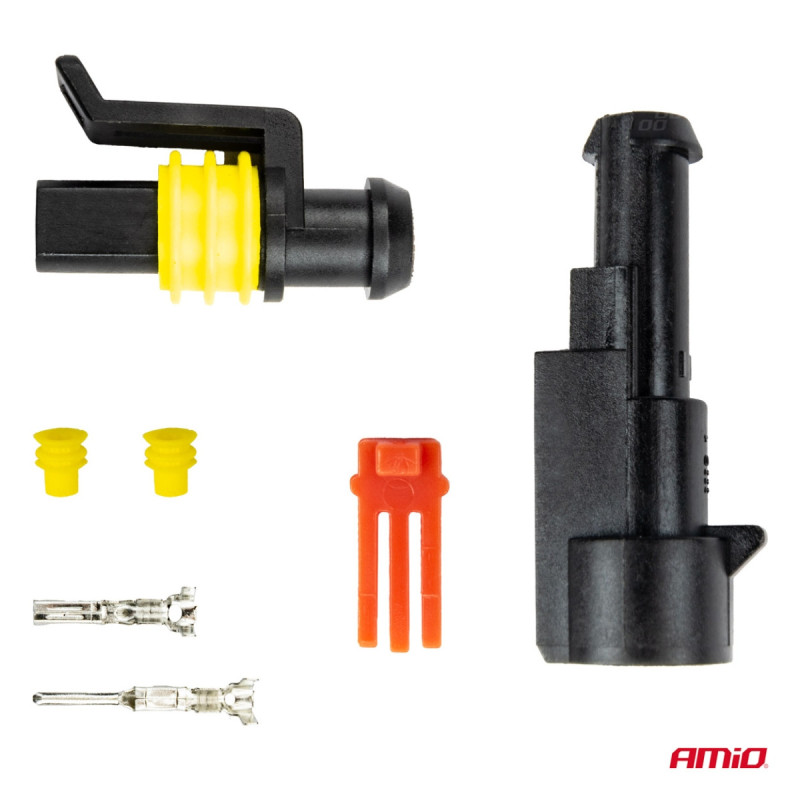

Set components:

• Male connector - 1 pc.
• Female connector - 1 pc.
• Seal - 2 pcs.
• Two-piece lockable plug

Specification:

• Number of pins, contacts: 1 pc.
• Operating Voltage: 12-24V
• Maximum Current: 15 A continuous operation / 18A (5 sec.)
• Working contacts: SS1.5 connector for 0.75-1.5 mm2 wire
• Contact and connector material: Tinned bronze CuZn/Sn
• Operating temperature range: -40°C- +125°C
• Protection class: IP67
• Housing material: polyamide 6.6
• Compliance with the directive: RoHS, EC
