Konektory złączki z cyną koszulki termokurczliwe 100 szt. AMIO-03034

CONNECTORS TUBE SHEATHS COVERS

HEAT SHRINK WITH TIN 100 pieces

• Easy one-step wire connection
• You perform 3 activities at once - soldering, insulating and sealing
• Polyolefin pipe on the outside and tin on the inside
• Solder and gasket and advanced waterproof function
• Polyolefin heat shrink butt connectors improve pull-out strength, provide sealing, strain relief, cable control and insulation

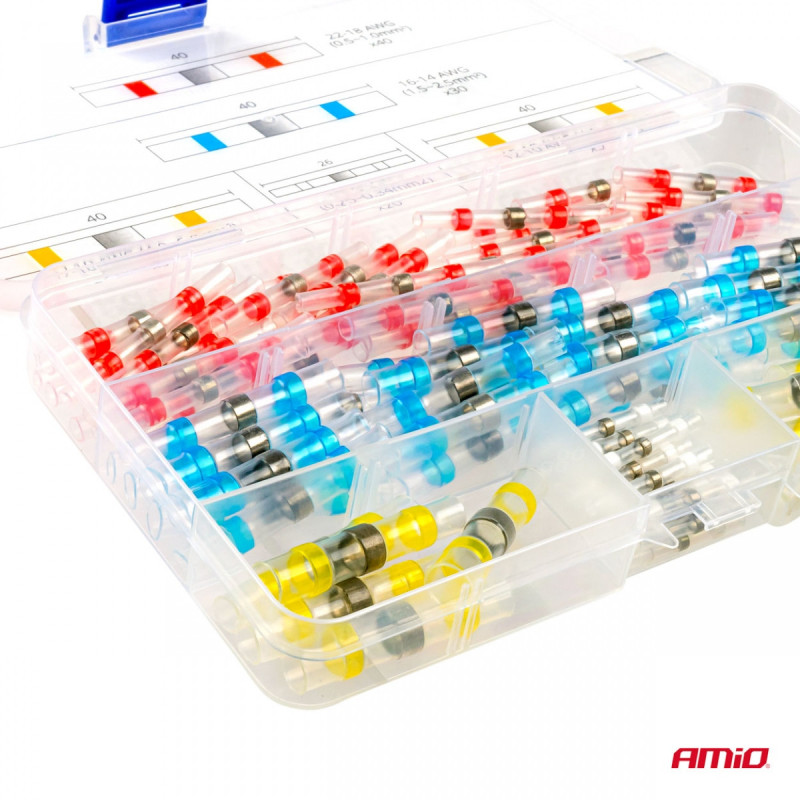

• The set comes in a sturdy packaging with a collective packaging for easy sorting.

Durable - excellent resistance to stretching and mechanical damage; Perfect transparent heat shrink tubing provides tensile strength; High flexibility.

Tin inside - For best results, use hot air until it reduces in size and the melted glue fills the gaps in the sleeving. Constantly rotate the joint while heating to ensure the sleeving is heated evenly.

Waterproof - Polyolefin tubing on the outside and hot melt adhesive on the inside provides excellent waterproofing, can be ideal for marine and automotive, home and electronics applications.

• Minimum soldering temperature to melt: 138°C
• Minimum shrinkage temperature: 80°C
• Operating temperature: -55 - 125

Diameter of electric wires:

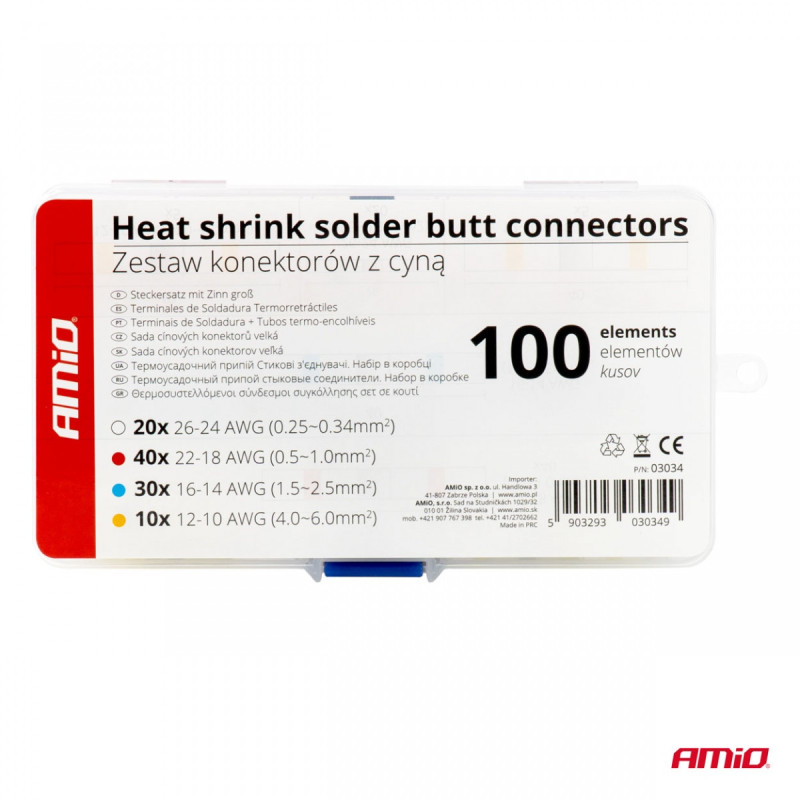

• White: 0.25-0.34 ² mm - 20 pcs
• Red: 0.5-1.0 ² mm - 40 pcs
• Blue: 1.4 -2.5 ² mm - 30 pcs
• Yellow: 4.0-6.0 ² mm - 10 pcs

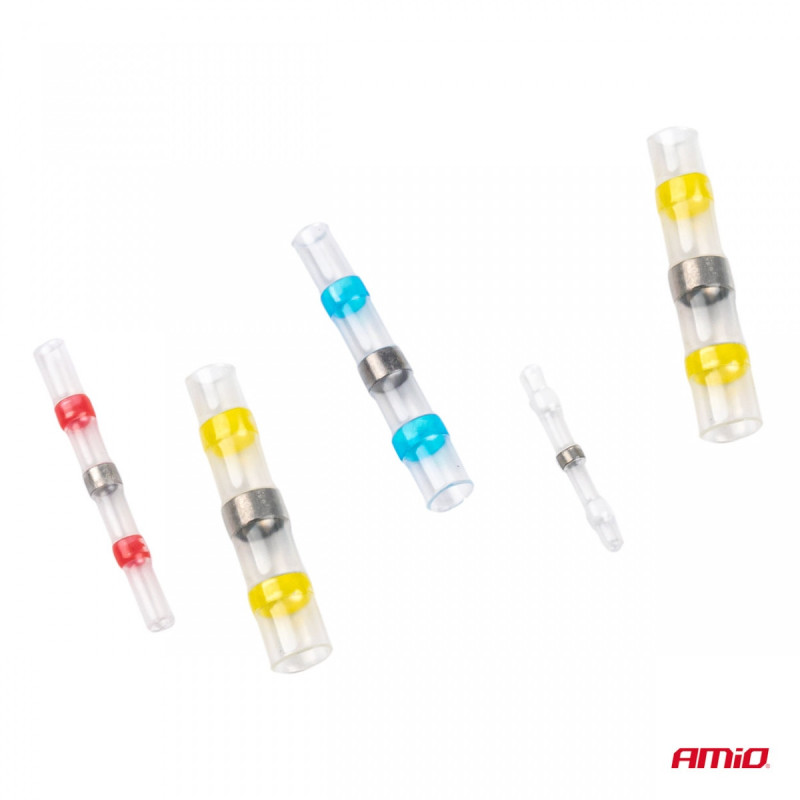

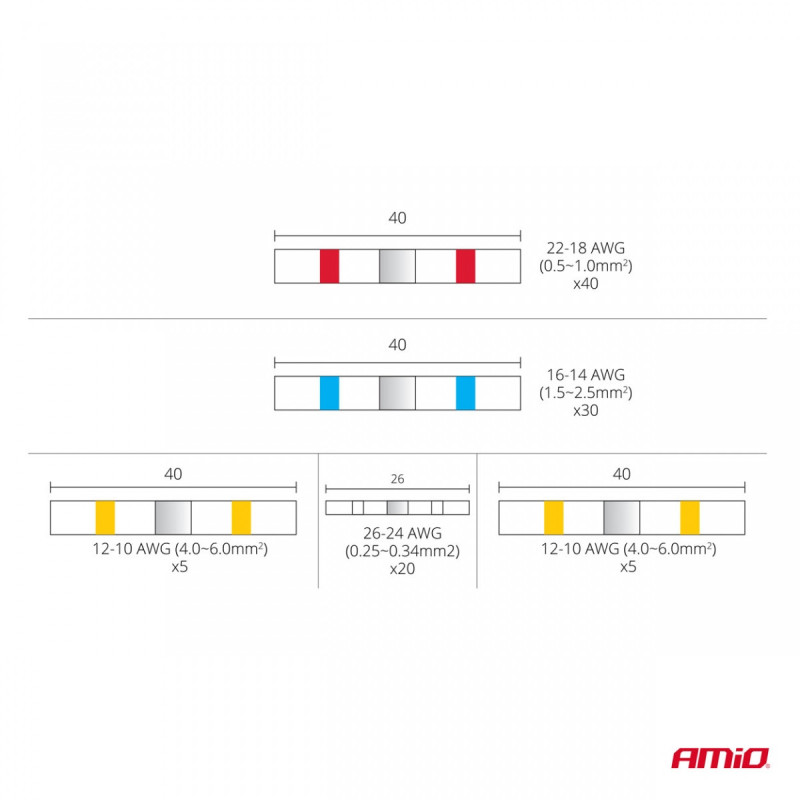

Heat shrink connector sizes:

• Red: diameter 3.0mm
• Blue: diameter 5.0mm
• White: diameter 1.5mm
• Yellow: diameter 6.0mm
