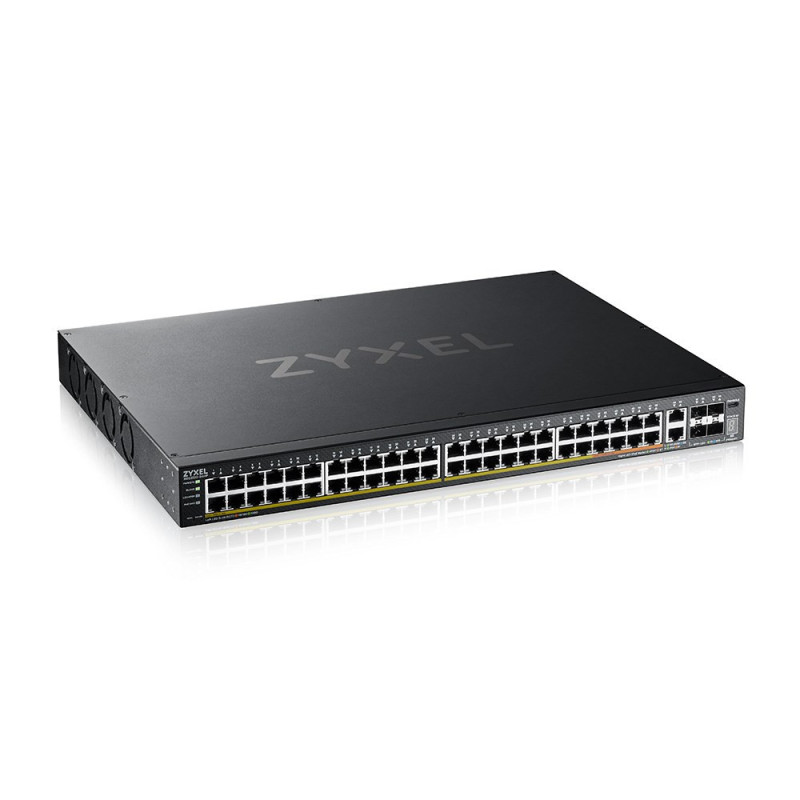

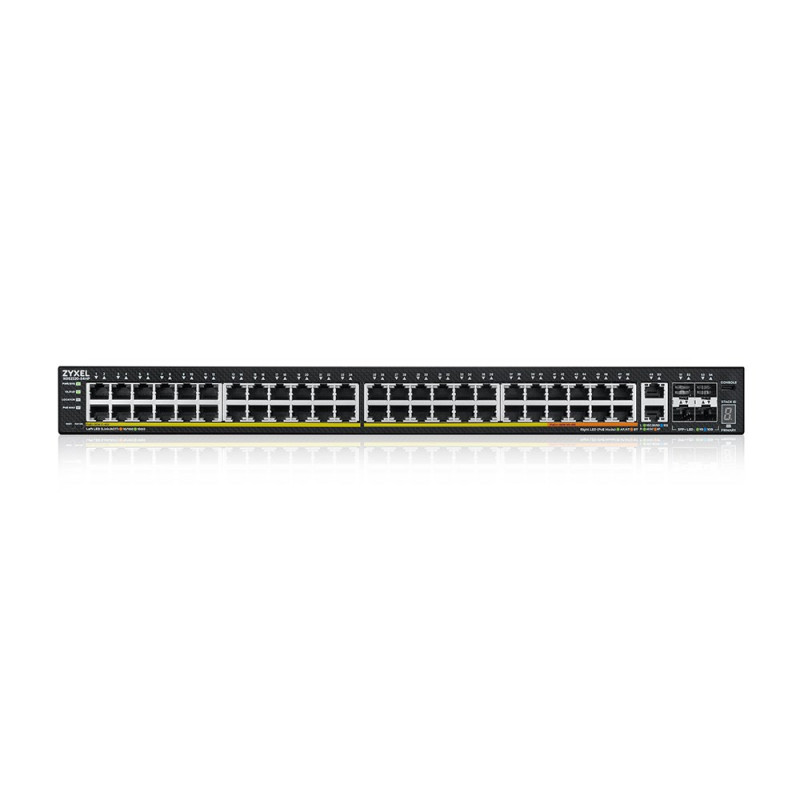

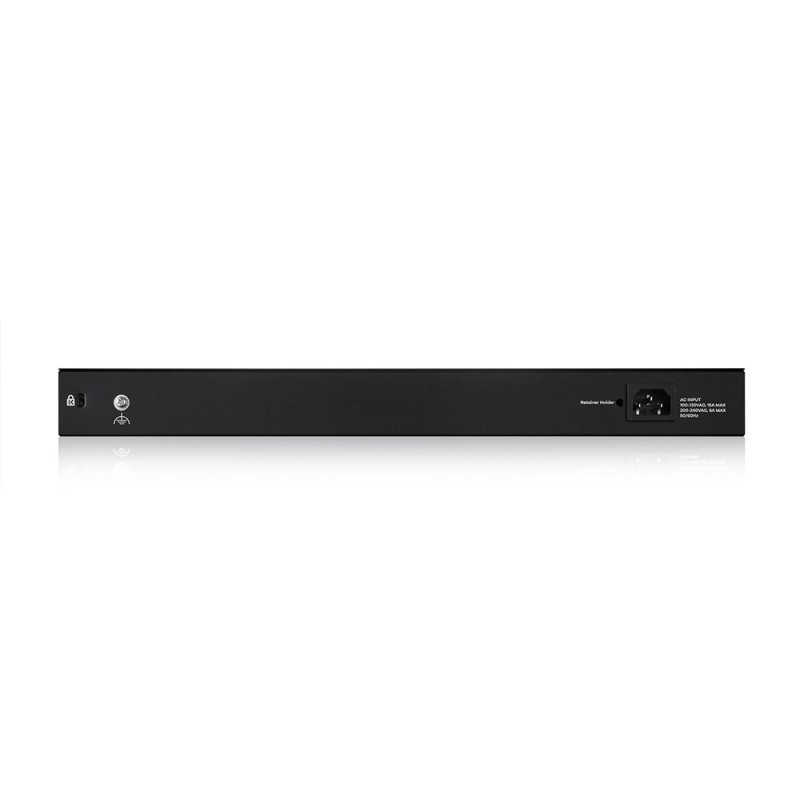

Zyxel XGS2220-54HP Managed L3 Gigabit Ethernet (10 / 100 / 1000) Power over Ethernet (PoE)
Product reference:
3-4718937625178
Zyxel XGS2220-54HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Zyxel XGS2220-54HP Managed L3 Gigabit Ethernet (10 / 100 / 1000) Power over Ethernet (PoE)
Product reference:
3-4718937625178
Zyxel XGS2220-54HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
9 - 14
business days
| Design | |
|---|---|
| Rack mounting | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 754.11 W |
| Power source | AC |
| Security | |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| DHCP features | DHCP server, DHCP relay |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 2571.52 BTU/h |
| Management features | |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| ARP inspection | Yes |
| Weight & dimensions | |
| Depth | 330 mm |
| Weight | 5 kg |
| Height | 44 mm |
| Width | 441 mm |
| Network | |
| Networking standards | IEEE 802.3an, IEEE 802.3at, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.3bt, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s |
| 10G support | Yes |
| Routing entries | 64 |
| Performance | |
| Internal memory | 1024 MB |
| Mean time between failures (MTBF) | 214.388 h |
| Flash memory | 64 MB |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Ports & interfaces | |
| 10G Ethernet (copper) ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Installed SFP+ modules quantity | 4 |
| Data transmission | |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 161 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 600 W |
| Power over Ethernet (PoE) ports quantity | 50 |
| Power over Ethernet (PoE) | Yes |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
