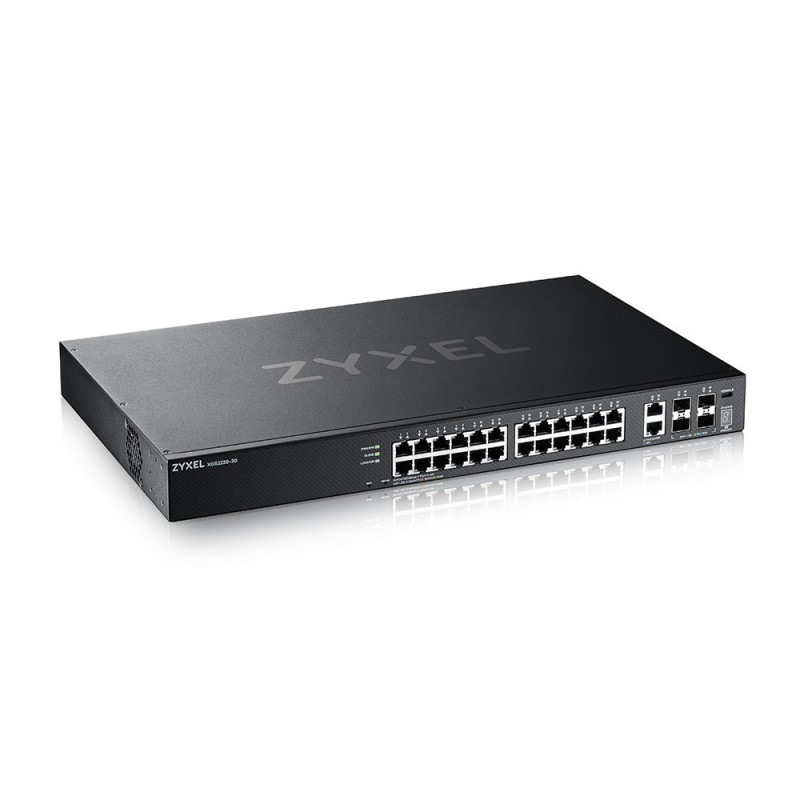

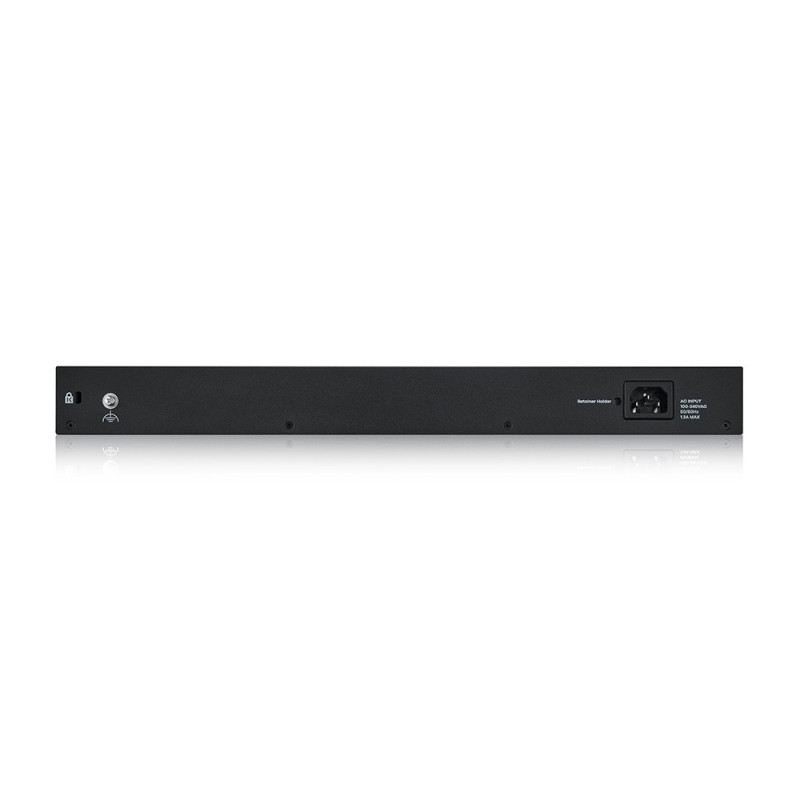

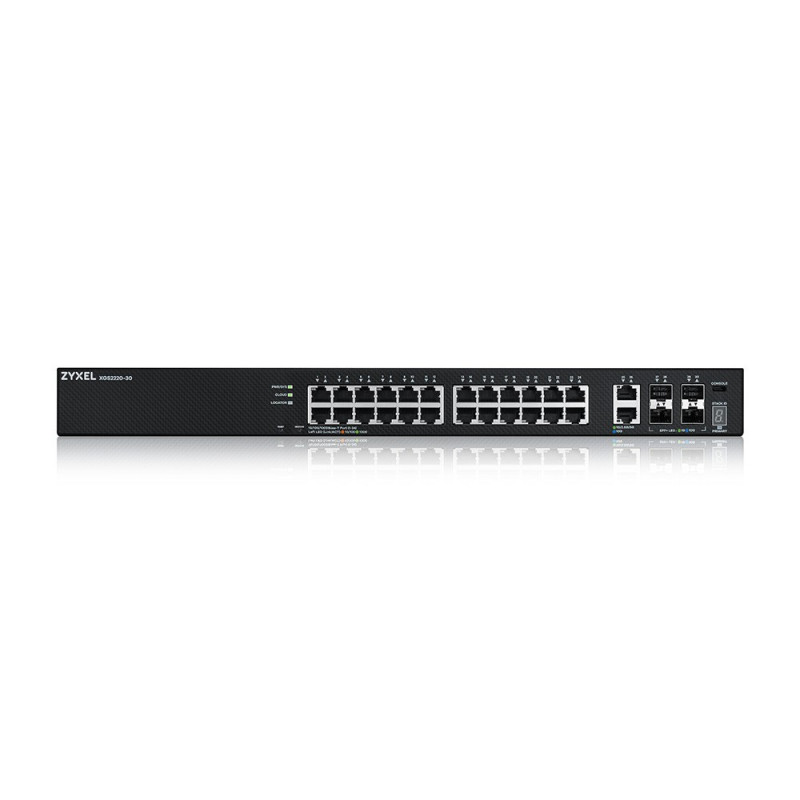

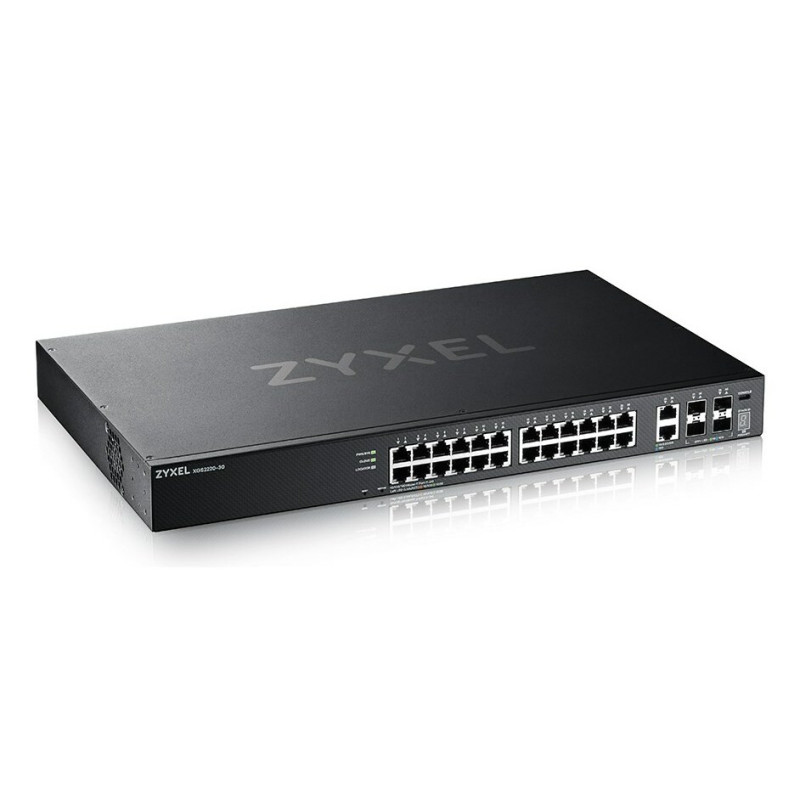

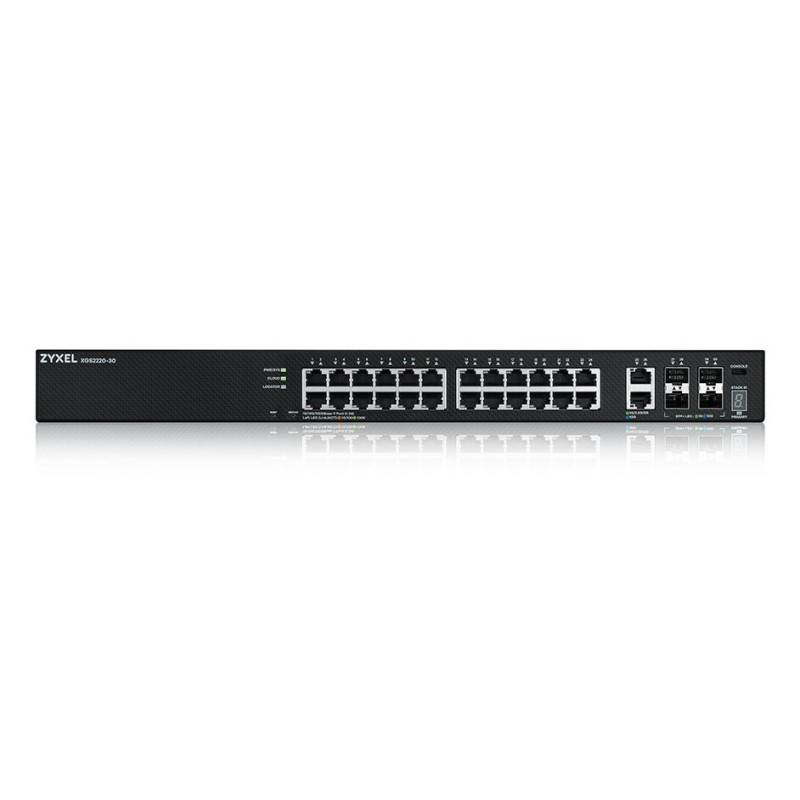

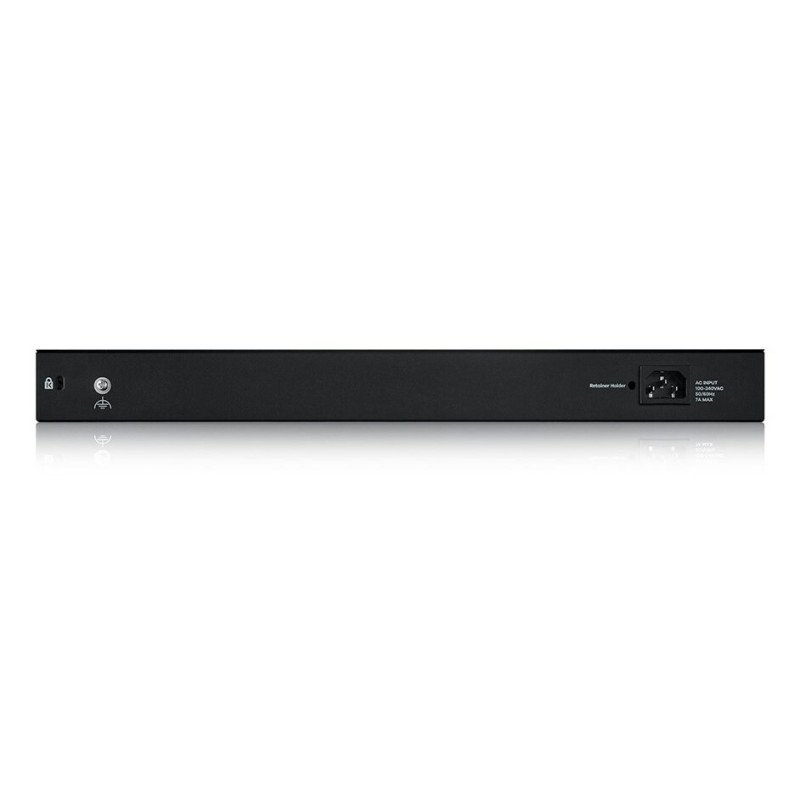

Zyxel XGS2220-30 Managed L3 Gigabit Ethernet (10 / 100 / 1000) Black
Product reference:
3-4718937624942
Zyxel XGS2220-30 Managed L3 Gigabit Ethernet (10/100/1000) Black
Zyxel XGS2220-30 Managed L3 Gigabit Ethernet (10 / 100 / 1000) Black
Product reference:
3-4718937624942
Zyxel XGS2220-30 Managed L3 Gigabit Ethernet (10/100/1000) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 37.62 W |
| Power source | AC |
| Power supply included | Yes |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| DHCP features | DHCP server, DHCP relay |
| BPDU filtering/protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 128.28 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Management features | |
| Web-based management | Yes |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Weight & dimensions | |
| Weight | 3.4 kg |
| Height | 44 mm |
| Depth | 270 mm |
| Width | 441 mm |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab, IEEE 802.3az, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae |
| Routing entries | 64 |
| 10G support | Yes |
| Performance | |
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 520.185 h |
| Packaging data | |
| Package weight | 4.73 kg |
| Package width | 616 mm |
| Package height | 107 mm |
| Package depth | 355 mm |
| Certificates | |
| Compliance certificates | Low Voltage Directive (LVD), RoHS, CE, Federal Communications Commission (FCC) |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Ports & interfaces | |
| 10G Ethernet (copper) ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Installed SFP+ modules quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Data transmission | |
| Static route | Yes |
| Forwarding rate | 125 Mpps |
| Switching capacity | 168 Gbit/s |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Packet buffer memory | 2 MB |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Multicast support | Yes |
| Safety warning | |
| Warnings | Avoid contact of the device with liquid., Follow the safety guidelines for electrical current., Make sure the ventilation of the equipment is not blocked. |
