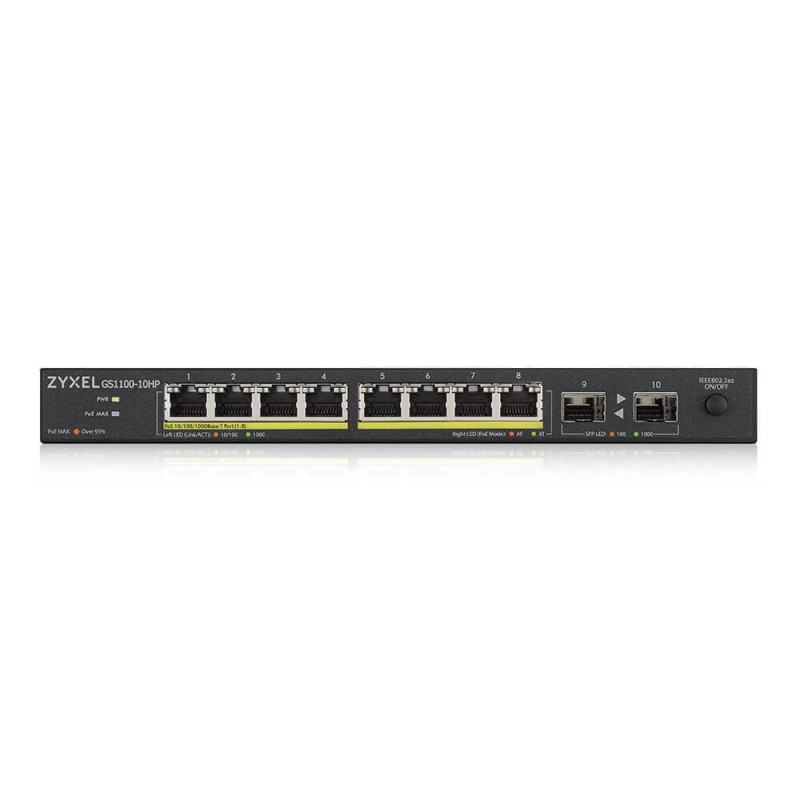

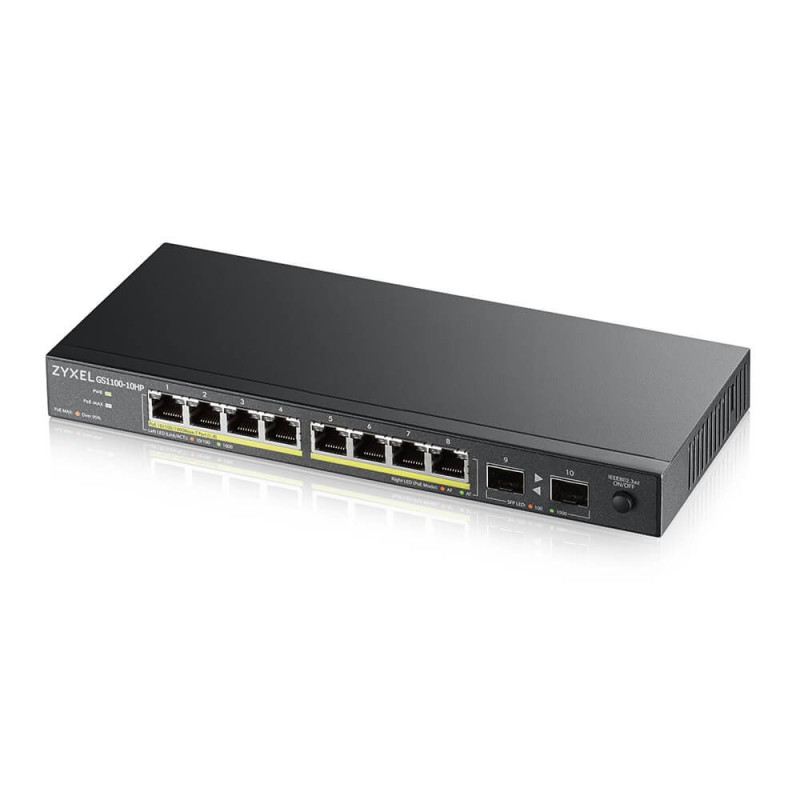

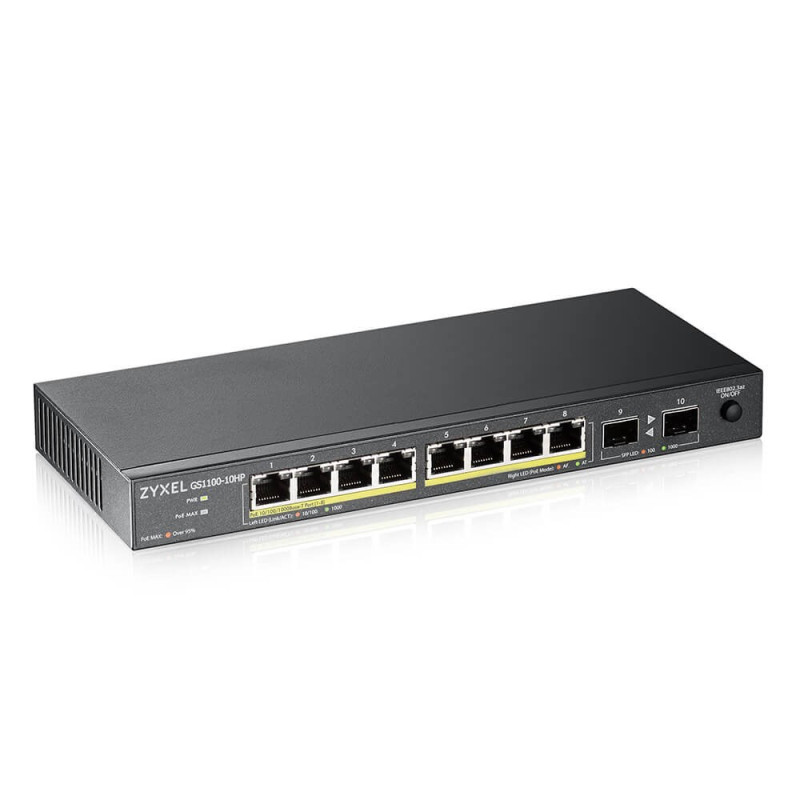

Zyxel GS1100-10HP-EU0102F
Product reference:
3-4718937621187
Zyxel GS1100-10HP-EU0102F
Zyxel GS1100-10HP-EU0102F
Product reference:
3-4718937621187
Zyxel GS1100-10HP-EU0102F
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240V |
| Power consumption (max) | 156.1 W |
| Power source | AC/DC |
| DC input voltage | 54 V |
| Power supply included | Yes |
| Operational conditions | |
| Storage temperature (TT) | -40 - 70 °C |
| Operating relative humidity (HH) | 10 - 90% |
| Operating temperature (TT) | 0 - 50 °C |
| Heat dissipation | 89 BTU/hr |
| Storage relative humidity (HH) | 10 - 95% |
| Management features | |
| Switch type | Unmanaged |
| Weight dimensions | |
| Weight | 730g |
| Height | 27 mm |
| Depth | 104 mm |
| Width | 250mm |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 100,1000 Mbps |
| Car MDI/MDI-X | Yes |
| 10G support | From |
| Performance | |
| Mean time between failures (MTBF) | 1000070 hours |
| Packaging data | |
| Package weight | 1.97 kg |
| Package depth | 304 mm |
| Package width | 228 mm |
| Package height | 67 mm |
| Ports interfaces | |
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet port type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet port quantity | 8 |
| Logistics data | |
| Master (outer) case height | 275 mm |
| Master (outer) case width | 323 mm |
| Master (outer) case gross weight | 13.7 kg |
| Master (outer) case length | 558 mm |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 8 pcs. |
| Data transmission | |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.256 MB |
| MAC address table | 8000 entries |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) port quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130W |
| Safety warning | |
| Warnings | Do not open the housing of the unit due to the risk of electric shock., Do not use the device in damp conditions to avoid a short circuit., Electronic devices should be recycled in accordance with local regulations. |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
