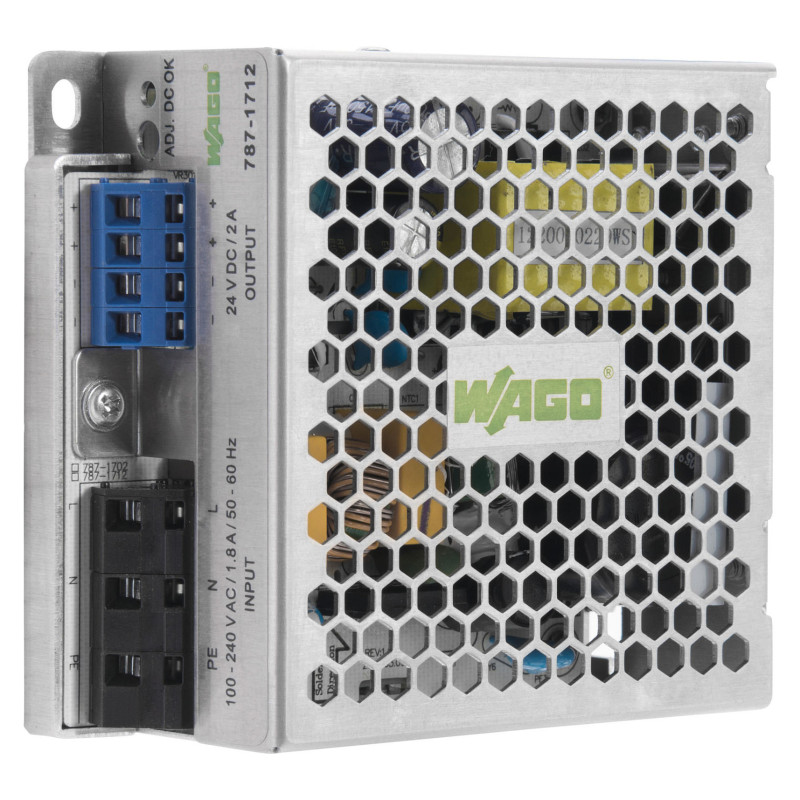

Wago 787-1712 power supply unit

Wago 787-1712. Total power: 60 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Mean time between failures (MTBF): 300000 h. Product colour: Grey, Cooling type: Passive. Certification: EN 60950; EN 61204-3; EN 60335; UL 60950; UL 508. Width: 40 mm, Depth: 99 mm, Height: 90 mm

Power

Total power: 60 W
AC input voltage: 90 - 264 V
AC input frequency: 47 - 63 Hz
Input current: 0.6 - 1.2 A
Power Factor Correction (PFC) type: Passive
Hold time: 10 ms
Efficiency: 88%
Power protection features: Over voltage, Short circuit

Performance

AWG wire size (min): 12
AWG wire size (max): 28
Mean time between failures (MTBF): 300000 h

Design

Product colour: Grey
Cooling type: Passive

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -25 - 75 °C
Operating relative humidity (H-H): 10 - 95%

Certificates

Certification: EN 60950; EN 61204-3; EN 60335; UL 60950; UL 508

Weight & dimensions

Width: 40 mm
Depth: 99 mm
Height: 90 mm
Weight: 300 g

Logistics data

Country of origin: China
