Wago 770-607 terminal block

Wago 770-607. Width: 30 mm, Depth: 46 mm, Height: 32.7 mm. Rated voltage: 250 V
All connectors for fixed installations (snap-in versions for lighting fixtures or devices, female locking latch all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for "flying leads" (plug/socket).
All WINSTA® components are 100% protected against mismating in terms of:
a.) plugging different number of poles
b.) plugging when turned by 180°
c.) plugging when laterally staggered
d.) plugging one pole
Note on Continuous Service Temperature:
-35°C +85°C
PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C

Technical details

Number of poles: 3P
Product colour: Black
Material: Polyamide
Certification: RoHS
Current: 25 A
Connector contacts plating: Copper
Doesn't contain: Halogen
Operating temperature (T-T): -35 - 85 °C

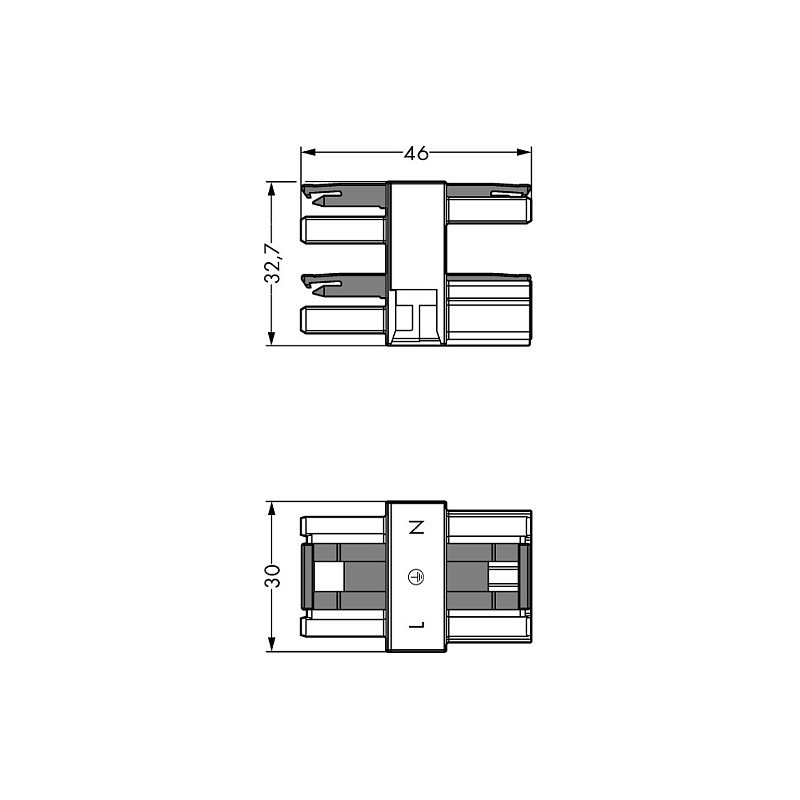

Weight dimensions

Width: 30 mm
Depth: 46 mm
Height: 32.7 mm

Power

Rated voltage: 250 V
