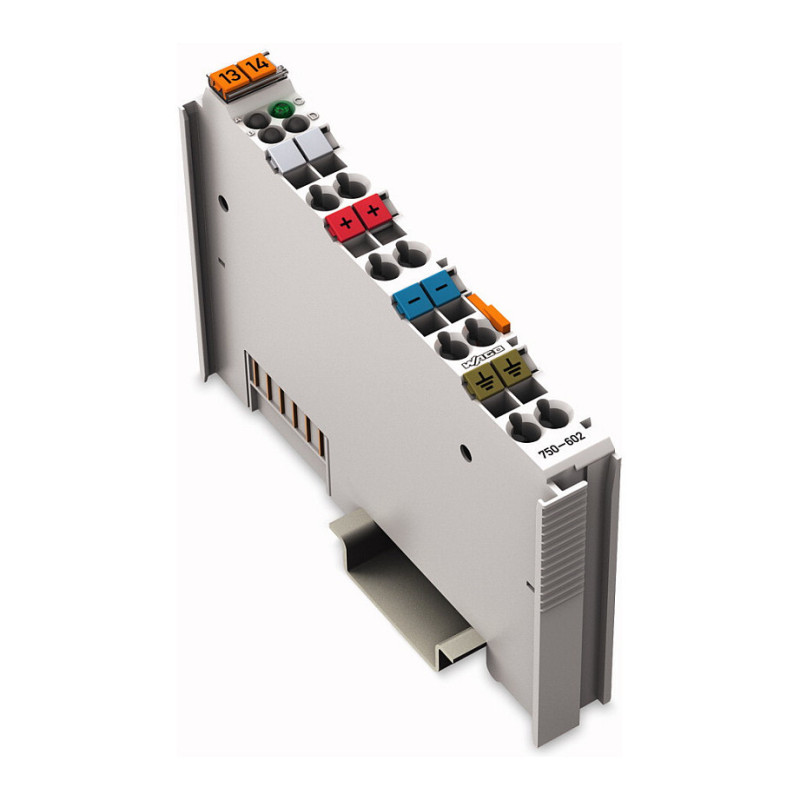

Wago 750-602 fieldbus module

Wago 750-602. Product colour: Grey, Mounting type: DIN 35 × 15, Fire load: 1.081 MJ. DC input voltage: 24 V, Output current: 10 A. Width: 12 mm, Depth: 100 mm, Height: 69.8 mm

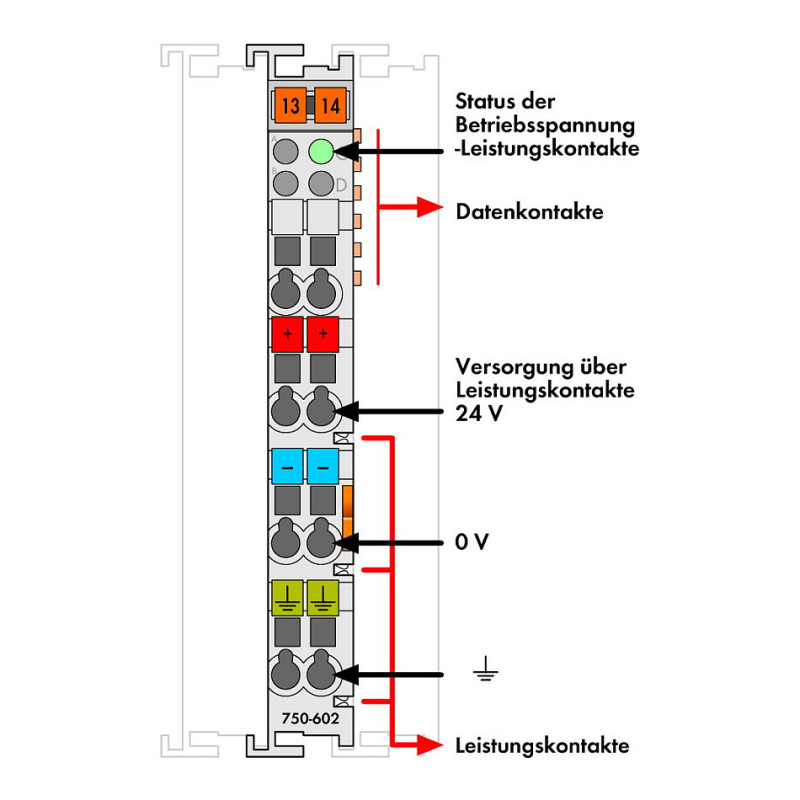

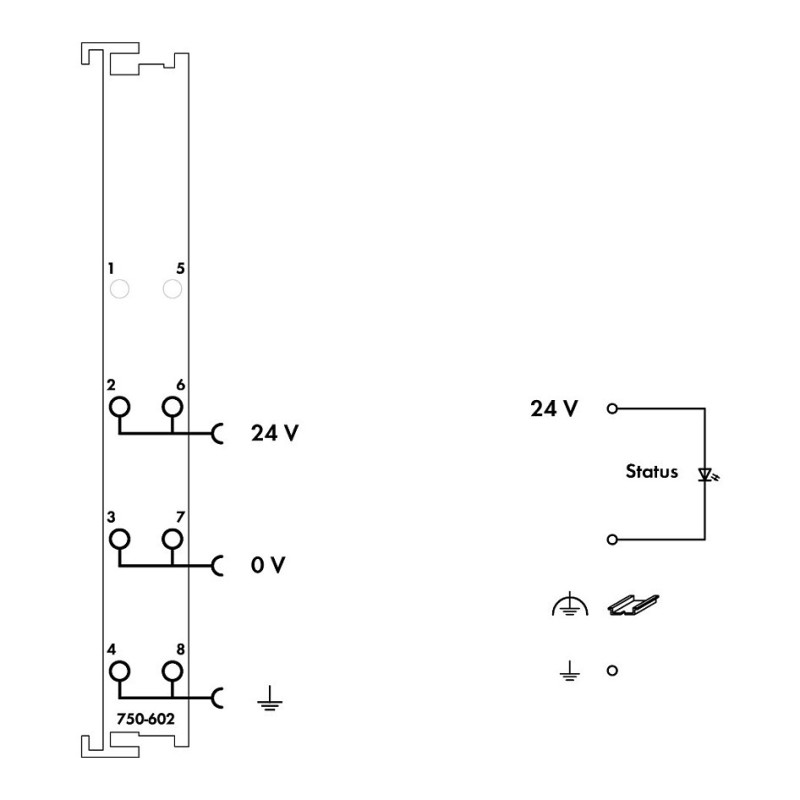

The supply module provides the I/O modules with the corresponding supply potential.

The maximum current at the supply module is 10A. When configuring the system, it must be ensured that this total current is not exceeded.

Should higher currents be necessary, intermediate supply modules must be added in the assembly.

Features

Product colour: Grey
Mounting type: DIN 35 × 15
Fire load: 1.081 MJ
AWG wire size (max): 14
AWG wire size (min): 28
Conductor area (min): 0.08 mm²
Conductor area (max): 2.5 mm²
Wire clamp type: Cage clamp
International Protection (IP) code: IP20
Feature: Shock-resistant
Feature: Vibration resistant

Power

DC input voltage: 24 V
Output current: 10 A

Operational conditions

Operating temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 12 mm
Depth: 100 mm
Height: 69.8 mm
Weight: 43.26 g

Technical details

Compliance certificates: RoHS
