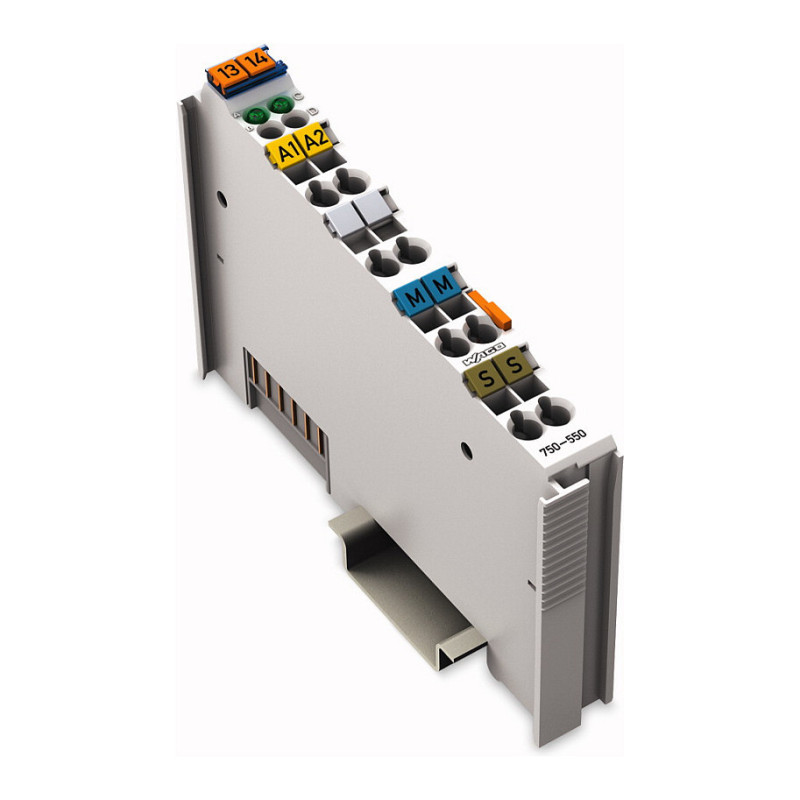

Wago 750-550 fieldbus module

Wago 750-550. Product type: Analog output module, Channels quantity: 2 channels, Number of outputs: 2 outputs. Power source type: DC, Current consumption (internal): 65 mA. Width: 12 mm, Depth: 100 mm, Height: 69.8 mm

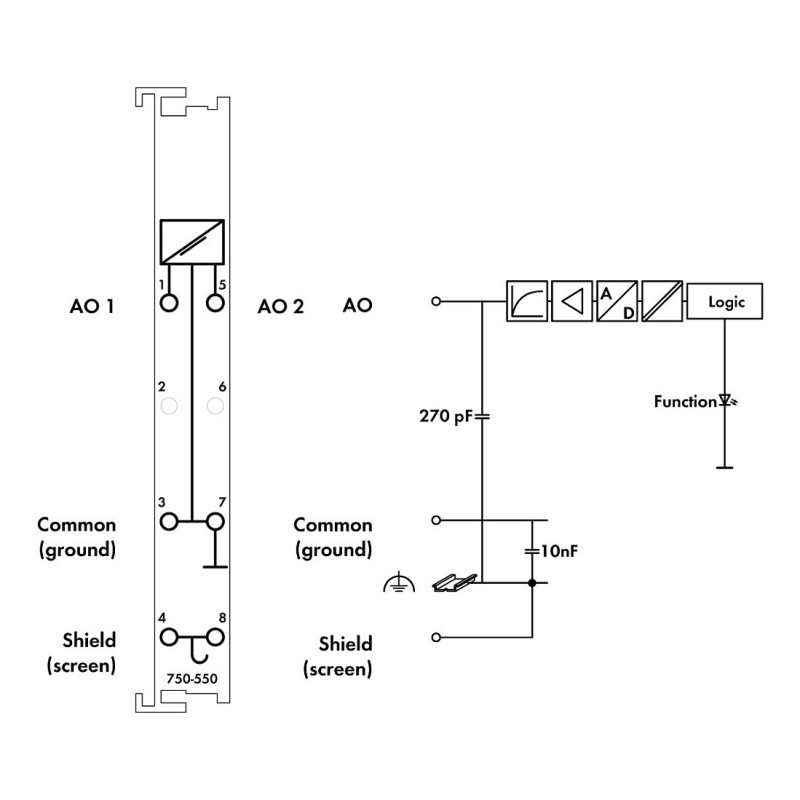

The analog output module generates signals of a standard magnitude 0-10V.

The output signal is electrically isolated and transmitted with a resolution of 12 bits.

The outputs are short-circuit proof.

The internal system supply powers the module.

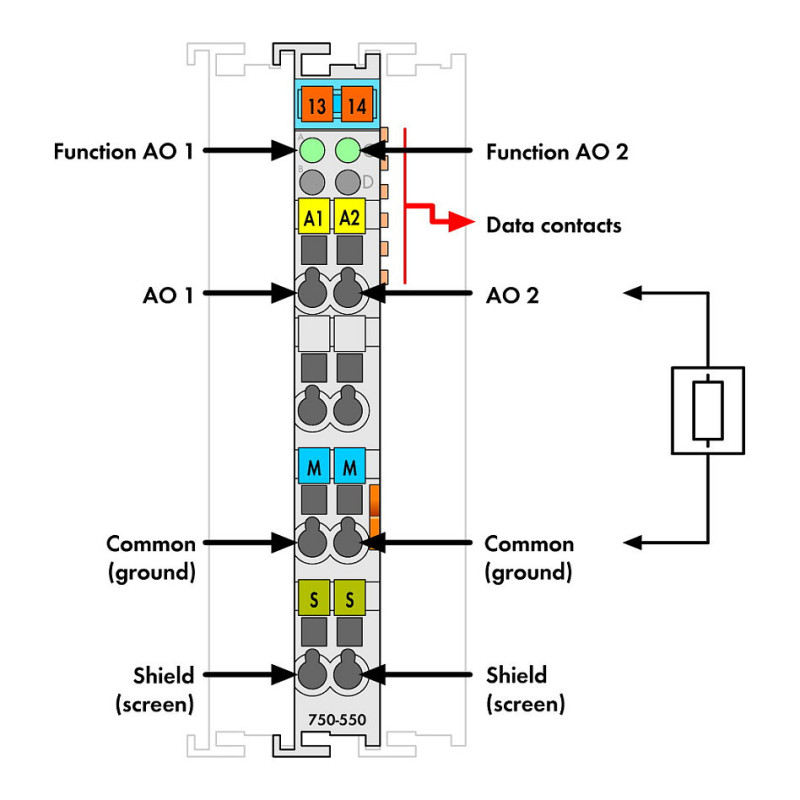

The output channels have one common ground potential.

Features

Channels quantity: 2 channels
Number of outputs: 2 outputs
Product colour: Grey
Mounting type: DIN 35 × 15
Strip length (max): 9 mm
Line impedance: 5 Ω
Isolation: 0.5 kV
AWG wire size (max): 14
AWG wire size (min): 28
Conductor area (min): 0.08 mm²
Conductor area (max): 2.5 mm²
Wire clamp type: Cage clamp
International Protection (IP) code: IP20
Feature: Shock-resistant
Feature: Vibration resistant
Product type: Analog output module
Certification: CE

Power

Power source type: DC
Current consumption (internal): 65 mA

Operational conditions

Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 12 mm
Depth: 100 mm
Height: 69.8 mm
Weight: 47.913 g

Technical details

Compliance certificates: RoHS
