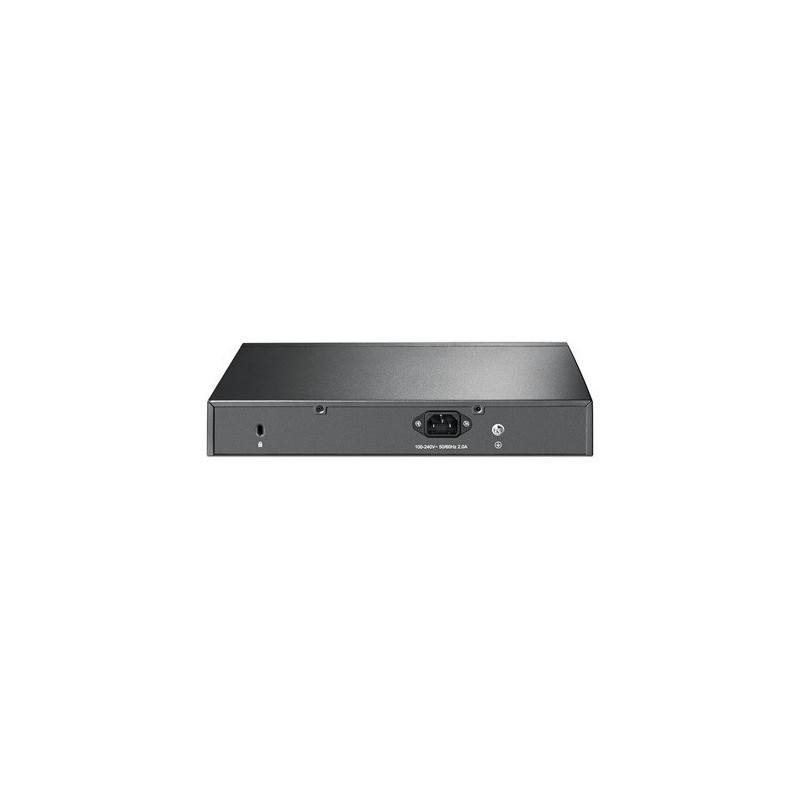

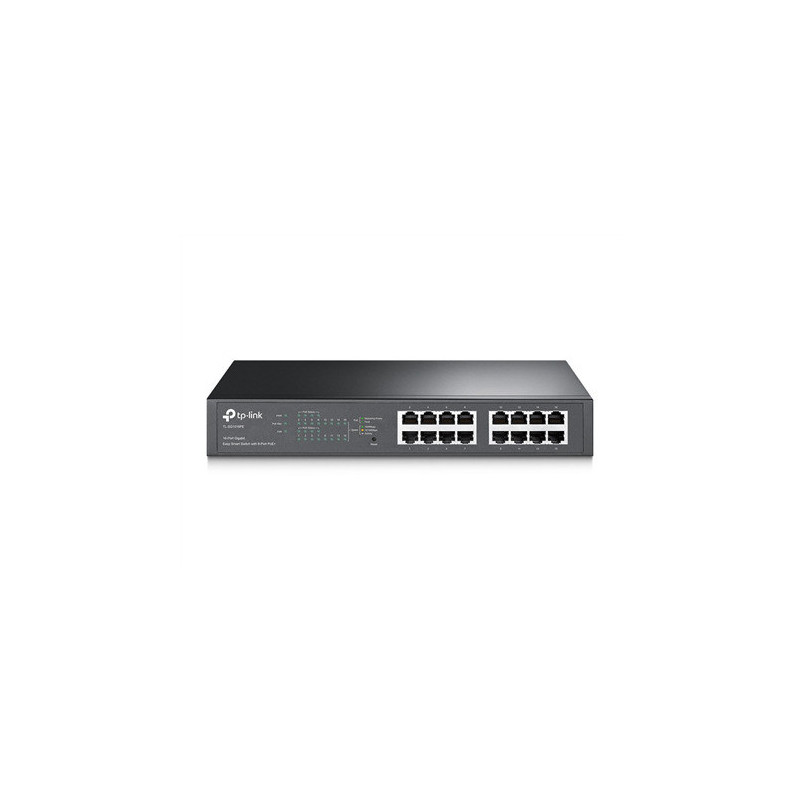

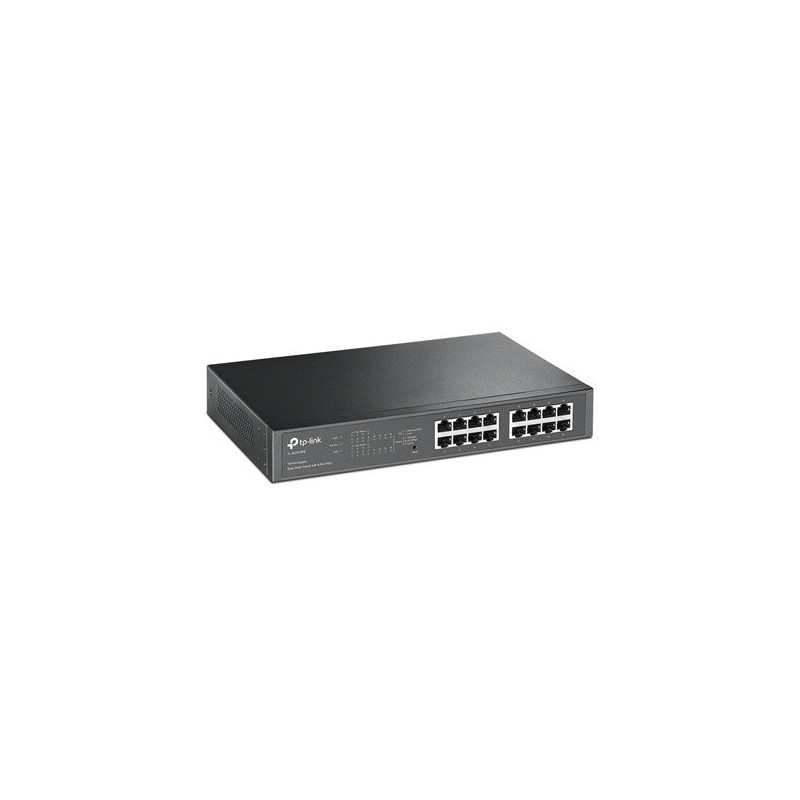

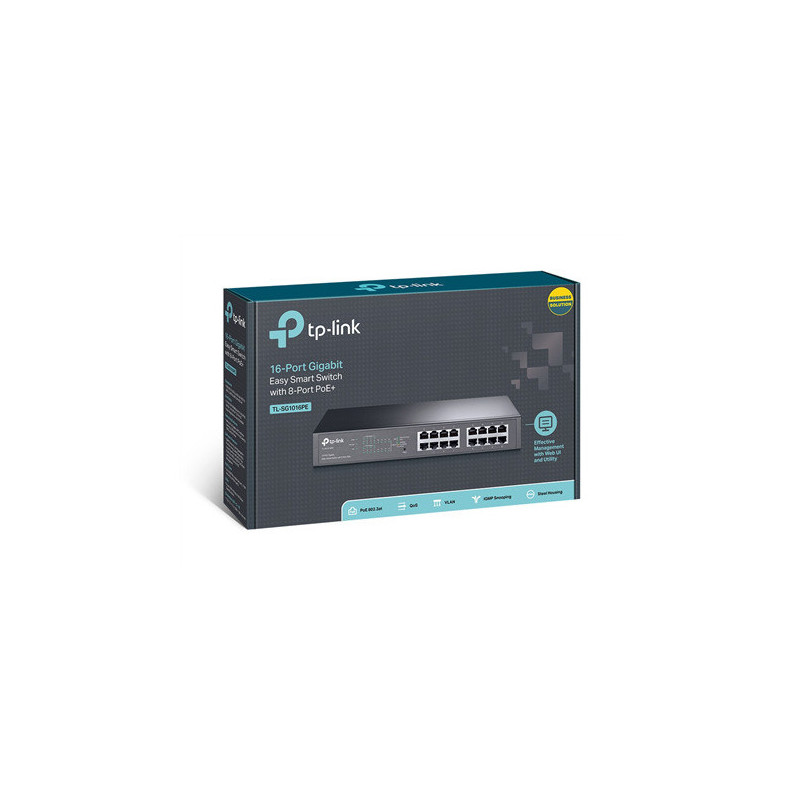

TP-LINK TL-SG1016PE 16x Port Gigabit Desktop Easy Smart Switch 8xPoE+
Product reference:
3-1210002616775
TP-LINK TL-SG1016PE 16x Port Gigabit Desktop Easy Smart Switch 8xPoE+
TP-LINK TL-SG1016PE 16x Port Gigabit Desktop Easy Smart Switch 8xPoE+
Product reference:
3-1210002616775
TP-LINK TL-SG1016PE 16x Port Gigabit Desktop Easy Smart Switch 8xPoE+
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
11 - 16
business days
What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
| Summary: | TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Vendor Homepage: | https://www.tp-link.com/us/products/details/cat-41_TL-SG1016PE.html |
| Category Code: | SWI |
| CnCode: | 85176200 |
| Unit Box Height: | 0.25 |
| Unit Box Length: | 0.4 |
| Unit Box Width: | 0.08 |
| Quality of Service (QoS) support: | Yes |
| Switch layer: | L2 |
| Switch type: | Managed |
| Web-based management: | Yes |
| Basic switching RJ-45 Ethernet ports quantity: | 16 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity: | 16 |
| Power connector: | AC-in jack |
| 10G support: | No |
| Auto MDI/MDI-X: | Yes |
| Auto-negotiation: | Yes |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Copper ethernet cabling technology: | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support: | Yes |
| Link aggregation: | Yes |
| Networking standards: | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs: | 4000 |
| Port mirroring: | Yes |
| Virtual LAN features: | Port-based VLAN/Tagged VLAN |
| VLAN support: | Yes |
| Forwarding rate: | 23.8Mpps |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Yes |
| MAC address table: | 8000entries |
| Number of queues: | 4 |
| Packet buffer memory: | 4.1MB |
| Store-and-forward: | Yes |
| Switching capacity: | 32Gbit/s |
| IGMP snooping: | Yes |
| Form factor: | 1U |
| Housing material: | Metal |
| LED indicators: | Yes |
| Number of fans: | 1fan(s) |
| Product colour: | Black |
| Rack mounting: | Yes |
| Stackable: | No |
| Compatible operating systems: | Windows |
| Maximum cable length: | 100m |
| AC input frequency: | 50/60Hz |
| AC input voltage: | 100 - 240V |
| Power consumption (max): | 124.4W |
| Power source: | AC/PoE |
| Power supply included: | Yes |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) power per port: | 30W |
| Power over Ethernet plus (PoE+) ports quantity: | 8 |
| Total Power over Ethernet (PoE) budget: | 110W |
| Operating relative humidity (H-H): | 10 - 90% |
| Operating temperature (T-T): | 0 - 40°C |
| Storage relative humidity (H-H): | 5 - 90% |
| Storage temperature (T-T): | -40 - 70°C |
| Depth: | 180mm |
| Height: | 44mm |
| Width: | 294mm |
| Cables included: | AC |
| Rack mount kit: | Yes |
| User guide: | Yes |
| Package depth: | 400mm |
| Package height: | 80mm |
| Package type: | Box |
| Package weight: | 2260g |
| Package width: | 250mm |
| Resource CD: | Yes |
| Sustainability compliance: | Yes |
| Compliance certificates: | CE/Federal Communications Commission (FCC)/RoHS |
| Product Net Weight: | 2.2kg |
| Shipping Box Depth: | 53cm |
| Shipping Box Height: | 36cm |
| Shipping Box Weight: | 19.5kg |
| Shipping Box Width: | 43cm |
| Unit Calculated Volume: | 0.01026m³ |
| Unit Calculated Weight: | 2.44kg |
| Units per Shipping Box: | 8 |
| Model name: | 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ |
