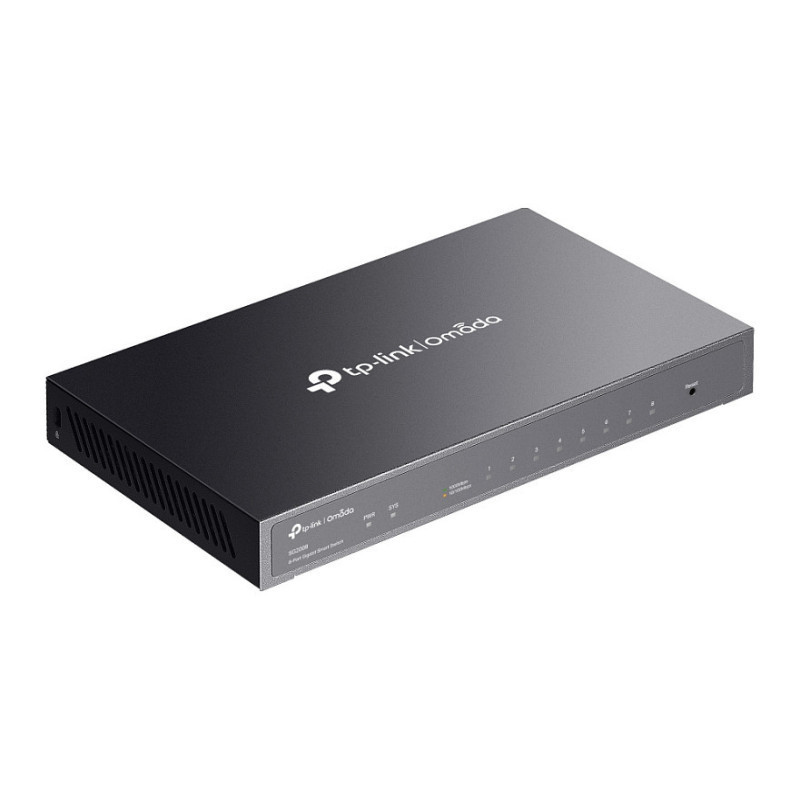

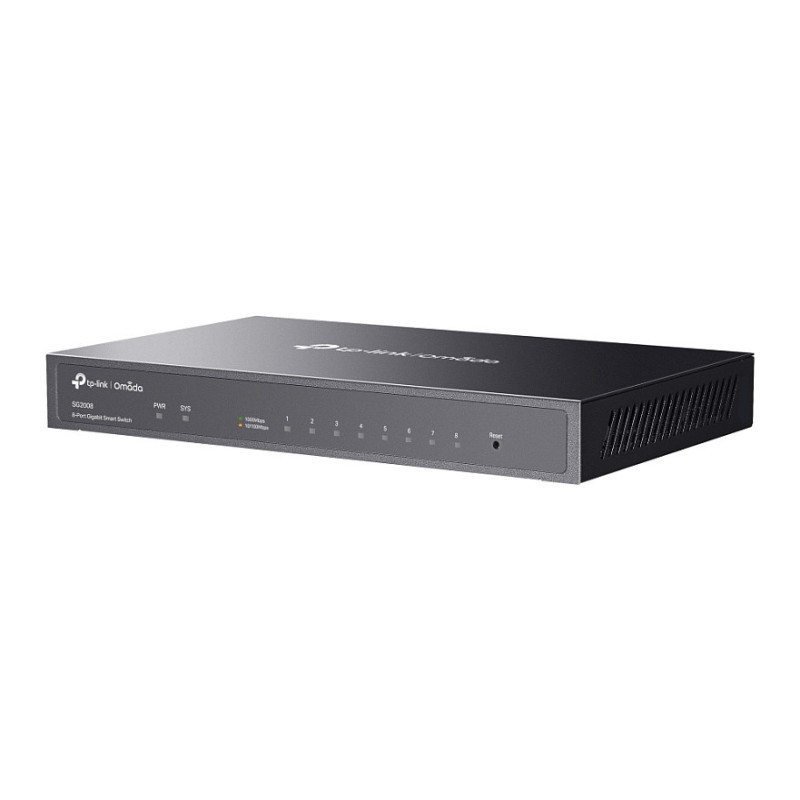

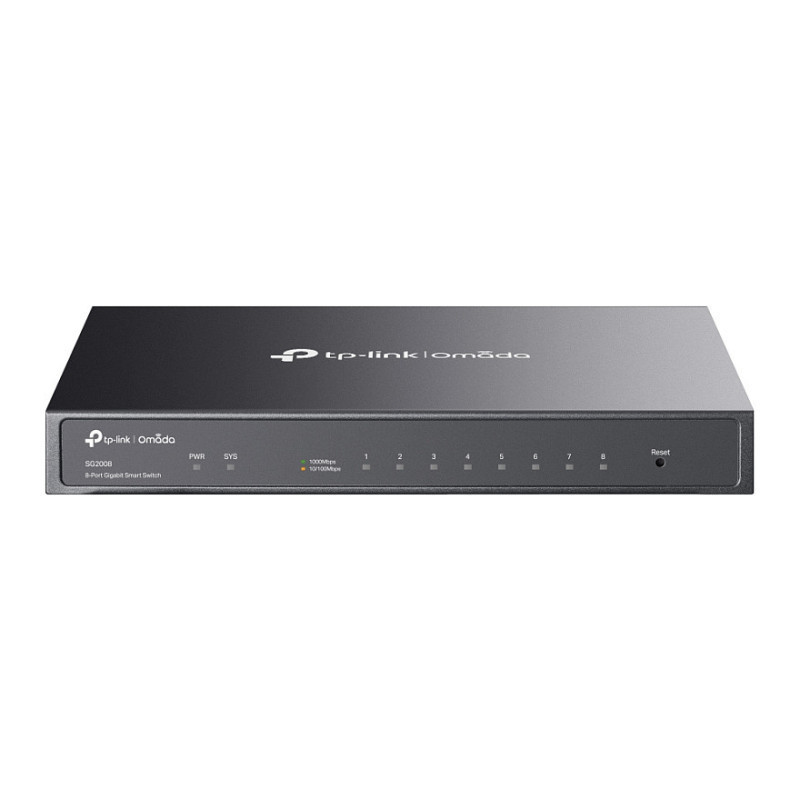

TP-LINK TPLINK Switch Omada Access (SG2008)
Product reference:
3-1210002611756
TP-LINK TPLINK Switch Omada Access (SG2008)
TP-LINK TPLINK Switch Omada Access (SG2008)
Product reference:
3-1210002611756
TP-LINK TPLINK Switch Omada Access (SG2008)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
11 - 16
business days
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Power | |
| Power consumption (max) | 6.42 W |
| Power supply included | Yes |
| Input current | 1 A |
| Power source | DC |
| Input voltage | 12 V |
| Security | |
| Security algorithms | SSH-2, SSH, SSL/TLS |
| DHCP features | DHCP snooping, DHCP server, DHCPv6 snooping, DHCPv6 client, DHCP client, DHCP relay |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| IP-MAC-Port binding | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Y |
| Switch type | Managed |
| Cloud-managed | Yes |
| Switch layer | L2/L2+ |
| System event log | Yes |
| ARP inspection | Yes |
| Weight & dimensions | |
| Depth | 126 mm |
| Width | 209 mm |
| Height | 26 mm |
| Network | |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T, 1000BASE-T |
| VLAN support | Yes |
| Networking standards | IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN, Tagged VLAN |
| Port mirroring | Yes |
| Cable types supported | Cat4, Cat5, Cat5e, Cat3 |
| Number of VLANs | 4000 |
| Spanning tree protocol | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | Yes |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Static route | Yes |
| Number of IP interfaces | 16 |
| Forwarding rate | 11.9 Mpps |
| Store-and-forward | Yes |
| Jumbo frames | 9000 |
| Number of static routes | 32 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Multicast features | |
| Multicast support | Yes |
