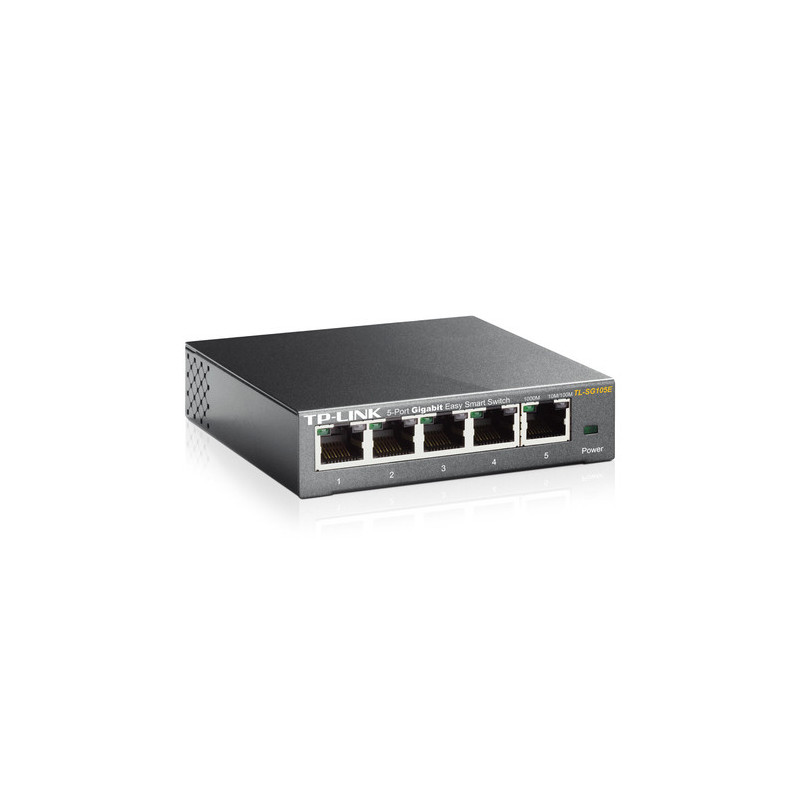

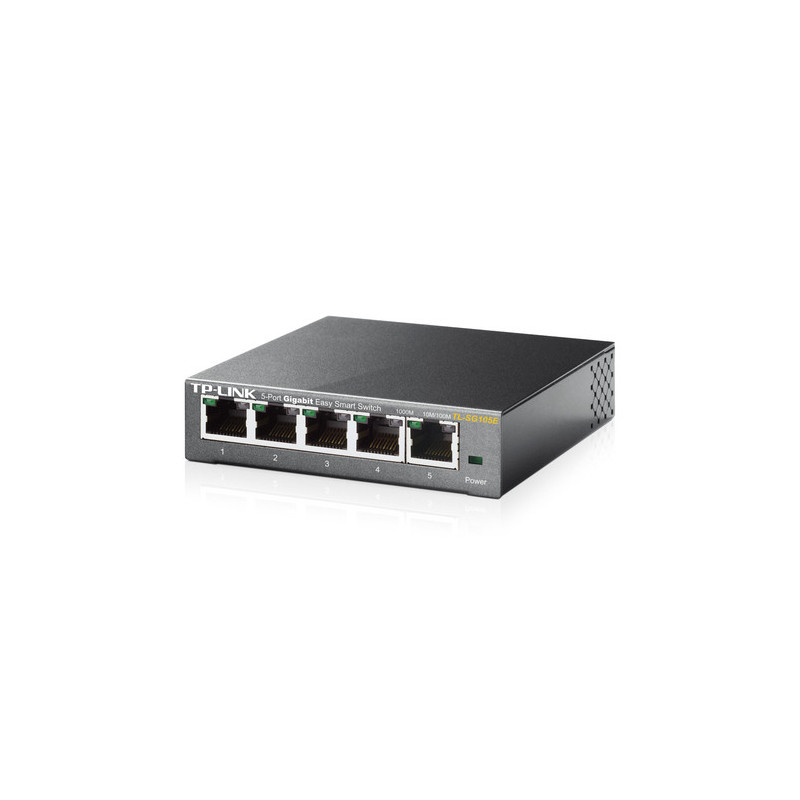

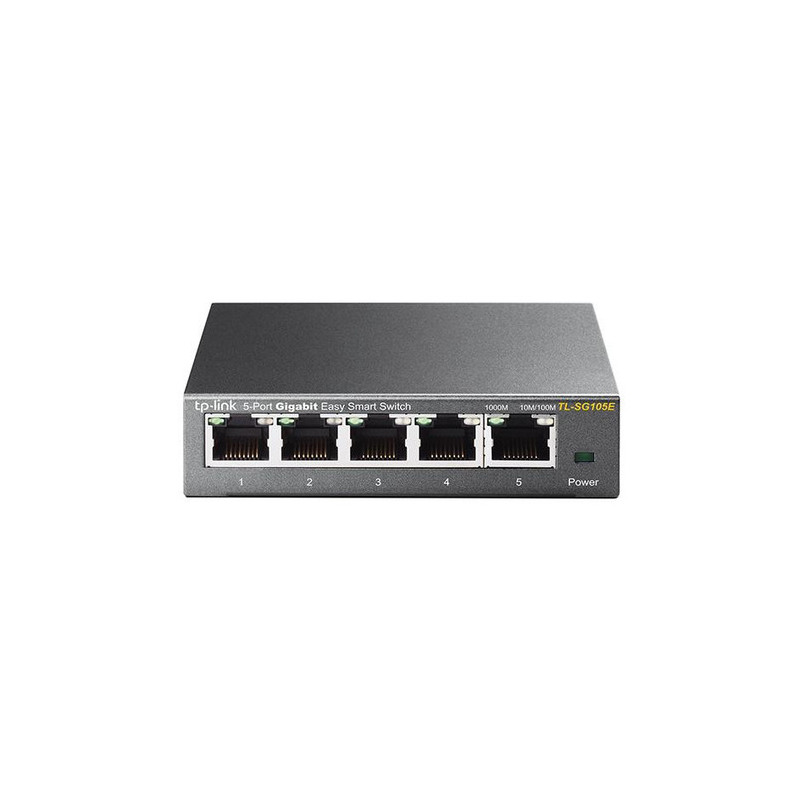

TP-Link TL-SG105E 1Gbit Network switch 5port / 1000Mb / s
Product reference:
3-6935364022037
TP-Link TL-SG105E 1Gbit Network switch 5port / 1000Mb/s
TP-Link TL-SG105E 1Gbit Network switch 5port / 1000Mb / s
Product reference:
3-6935364022037
TP-Link TL-SG105E 1Gbit Network switch 5port / 1000Mb/s
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
Not available
| Design | |
|---|---|
| Certification | FCC, CE, RoHS |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Input current | 0.6 A |
| Power consumption (max) | 2.82 W |
| Power supply included | Yes |
| Power source | DC |
| Input voltage | 5 V |
| Security | |
| IGMP snooping | Yes |
| Operational conditions | |
| Heat dissipation | 9.62 BTU/h |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Management features | |
| Web-based management | Yes |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Weight & dimensions | |
| Depth | 98 mm |
| Height | 26 mm |
| Width | 99.8 mm |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x |
| Auto-negotiation | Yes |
| Virtual LAN features | Port-based VLAN |
| Link aggregation | Yes |
| VLAN support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Packaging data | |
| Package width | 128 mm |
| Package height | 92 mm |
| Rack mount kit | Yes |
| User guide | Yes |
| Package depth | 125 mm |
| Quick start guide | Yes |
| Cables included | AC |
| Package type | Box |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Data transmission | |
| Forwarding rate | 7.44 Mpps |
| Packet buffer memory | 1 MB |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Store-and-forward | Yes |
| MAC address table | 2000 entries |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
