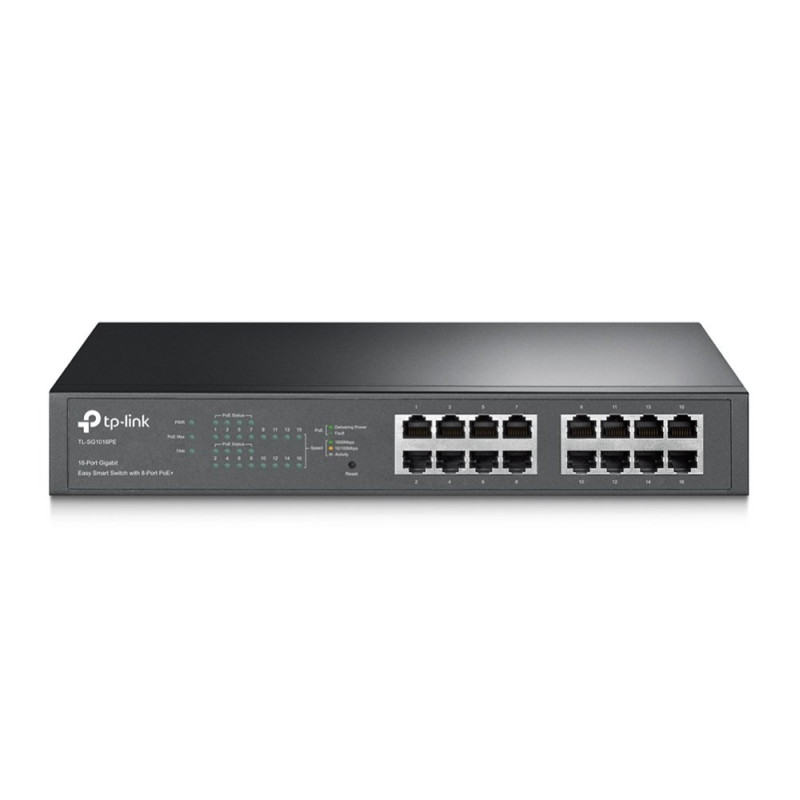

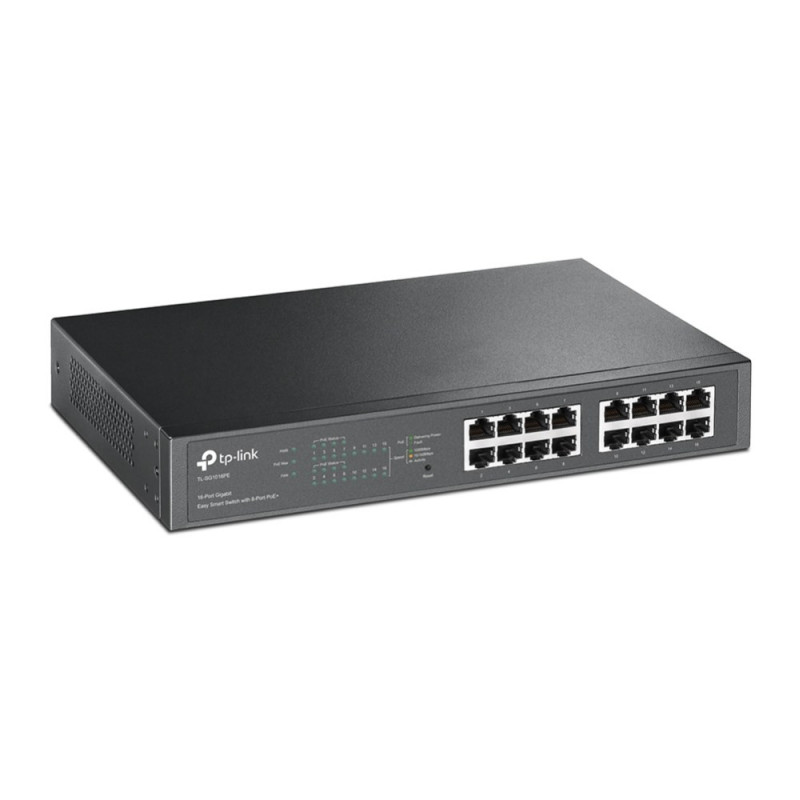

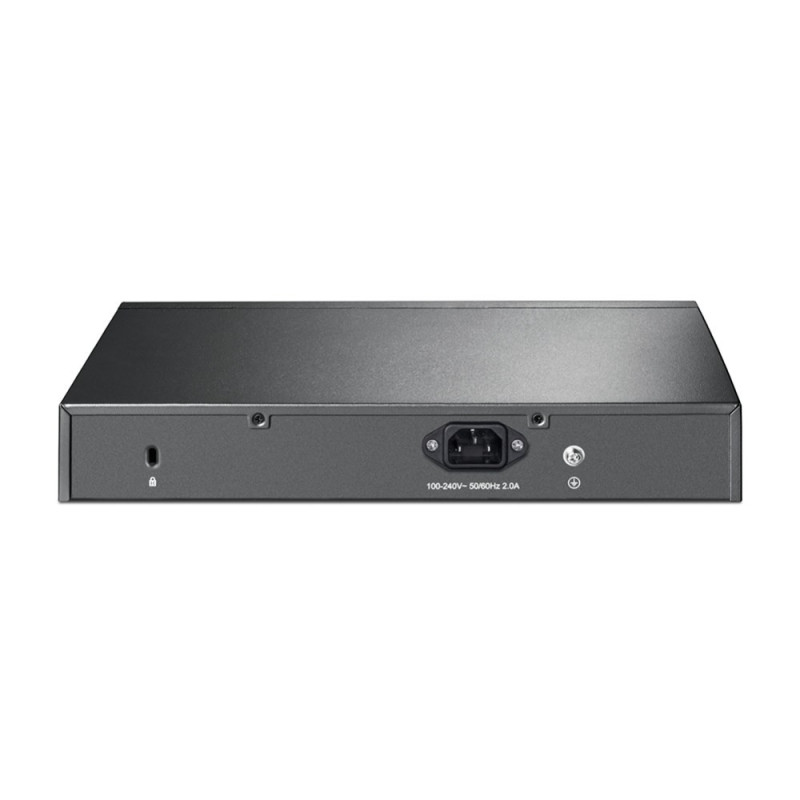

TP-Link TL-SG1016PE Managed L2 Gigabit Ethernet (10/100/1000) Network Switch with Power over Ethernet (PoE) Black
Product reference:
3-1210002616775
TP-Link TL-SG1016PE Managed L2 Gigabit Ethernet (10/100/1000) Network Switch with Power over Ethernet (PoE) Black
TP-Link TL-SG1016PE Managed L2 Gigabit Ethernet (10/100/1000) Network Switch with Power over Ethernet (PoE) Black
Product reference:
3-1210002616775
TP-Link TL-SG1016PE Managed L2 Gigabit Ethernet (10/100/1000) Network Switch with Power over Ethernet (PoE) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Design | |
|---|---|
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 124.4 W |
| Power supply included | Yes |
| AC input frequency | 50 - 60 Hz |
| Security | |
| Static port security | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Management features | |
| Switch layer | L2 |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Weight & dimensions | |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Network | |
| Cable types supported | Cat5, Cat5e, Cat3, Cat6, Cat4 |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T, 100BASE-TX |
| Link aggregation | Yes |
| Full duplex | Yes |
| Rate limiting | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Auto-negotiation | Yes |
| 10G support | No |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Throughput | 23.8 Mpps |
| Number of queues | 4 |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 150 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
