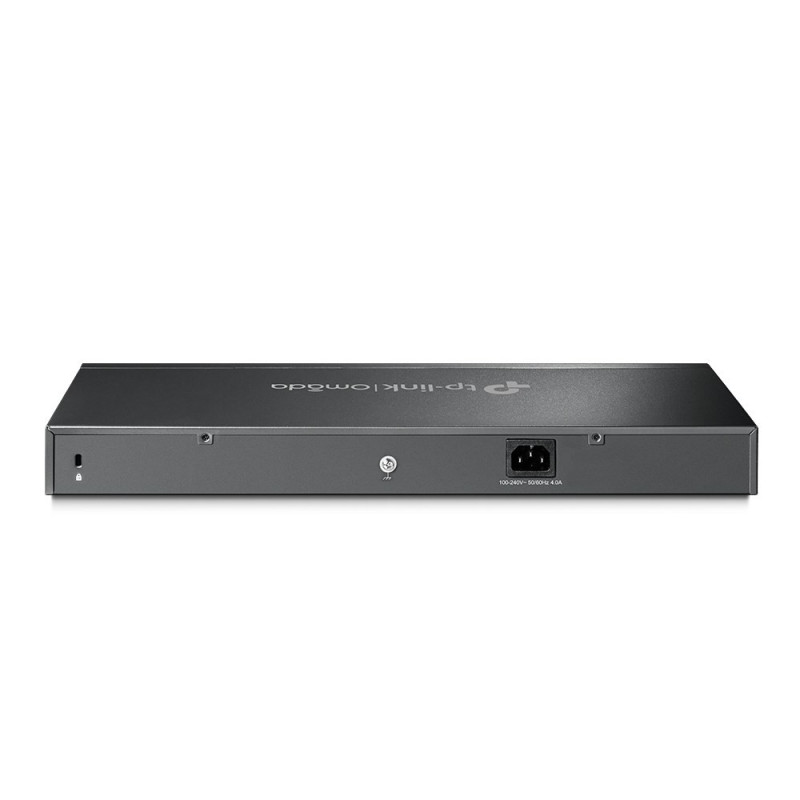

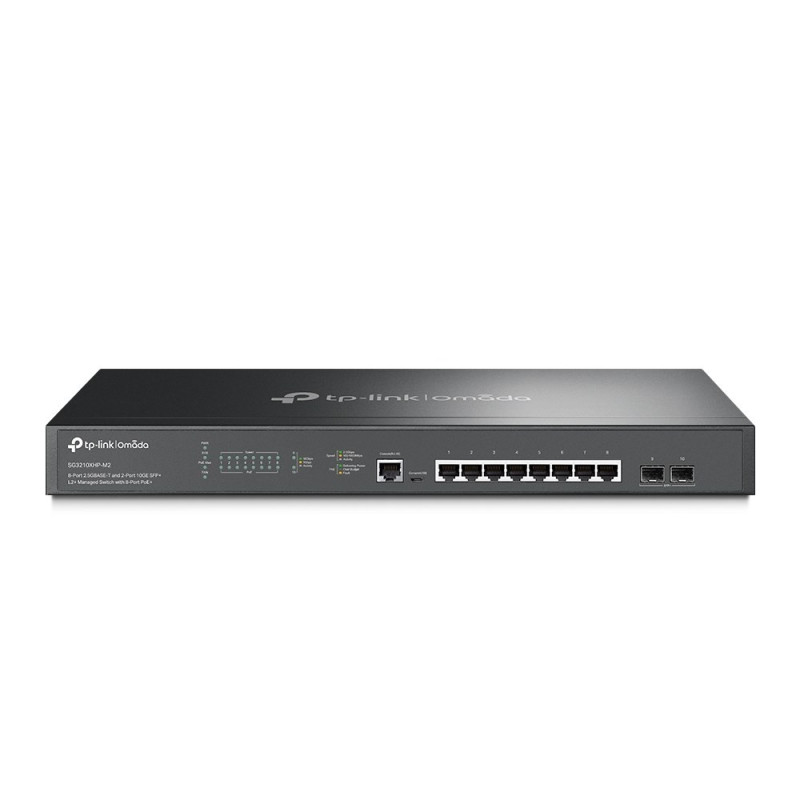

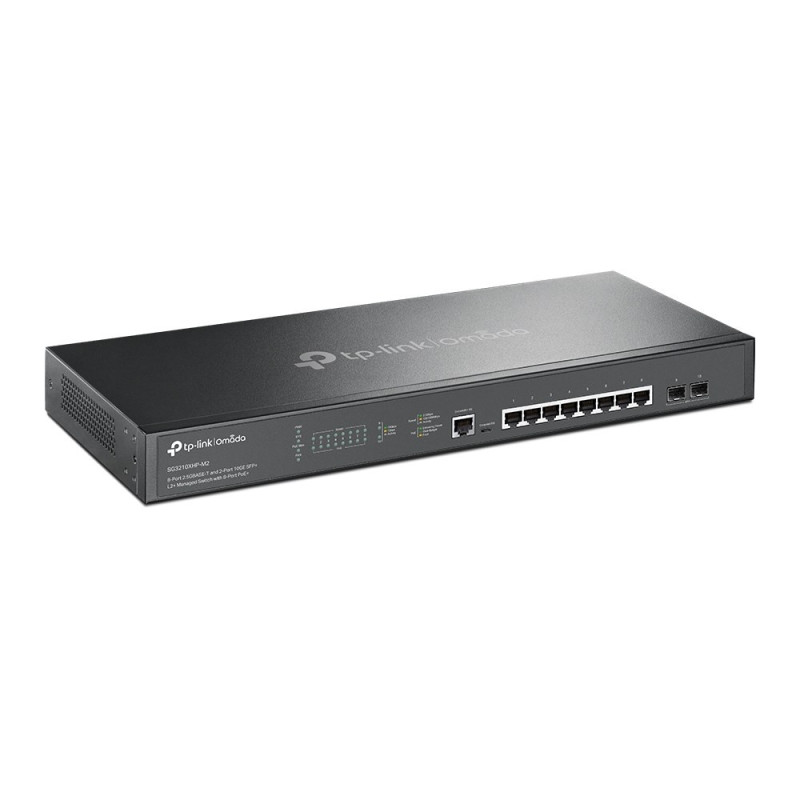

TP-Link Omada Switch 8x GE SG3210XHP-M2 (JetStream) 2x10G
Product reference:
3-1210002611671
TP-Link Omada Switch 8x GE SG3210XHP-M2 (JetStream) 2x10G
TP-Link Omada Switch 8x GE SG3210XHP-M2 (JetStream) 2x10G
Product reference:
3-1210002611671
TP-Link Omada Switch 8x GE SG3210XHP-M2 (JetStream) 2x10G
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Design | |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Form factor | 1U |
| Number of fans | 2 fan(s) |
| Power | |
| Power consumption (max) | 285.9 W |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| AC input frequency | 50/60 Hz |
| Security | |
| Password protection | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSH, SSH-2, HTTPS, SSL/TLS |
| Static port security | Yes |
| Authentication type | AAA, TACACS+ |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| DHCP features | DHCPv6 snooping, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Authentication | MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 975.54 BTU/h |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Switch layer | L2+ |
| Switch type | Managed |
| System event log | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Height | 44 mm |
| Depth | 180 mm |
| Network | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| 10G support | Yes |
| Networking standards | IEEE 802.1w, IEEE 802.1s, IEEE 802.1D |
| Head-of-line (HOL) blocking | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN, Private VLAN |
| Flow control support | Yes |
| IP routing | Yes |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | AC-in jack |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | RJ-45/micro-USB |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Data transmission | |
| Switching capacity | 80 Gbit/s |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Static route | Yes |
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Number of static routes | 48 |
| Forwarding rate | 59.52 Mpps |
| Number of IP interfaces | 16 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Safety warning | |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation. |
