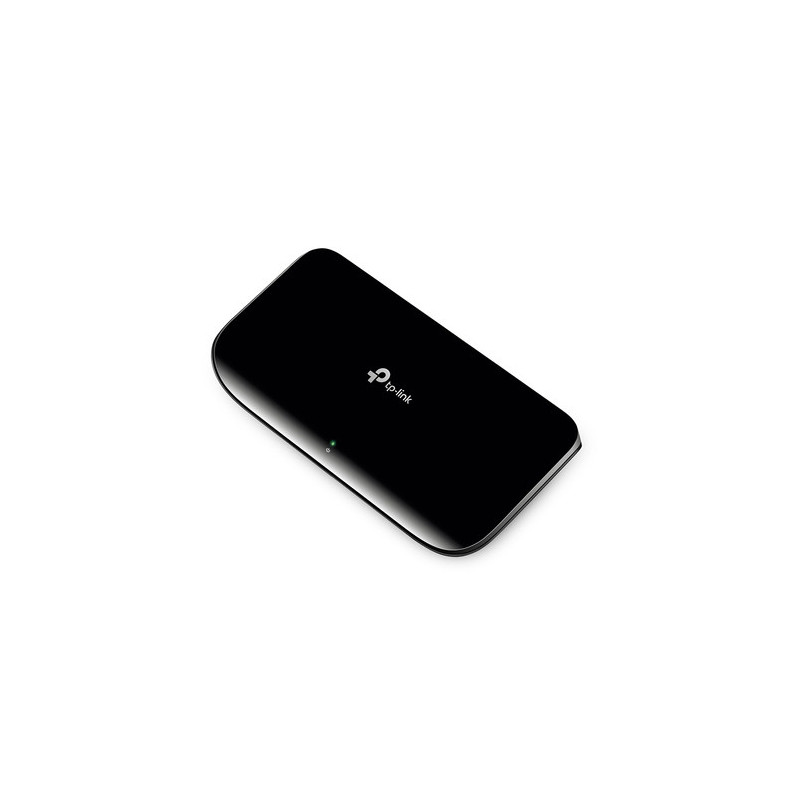

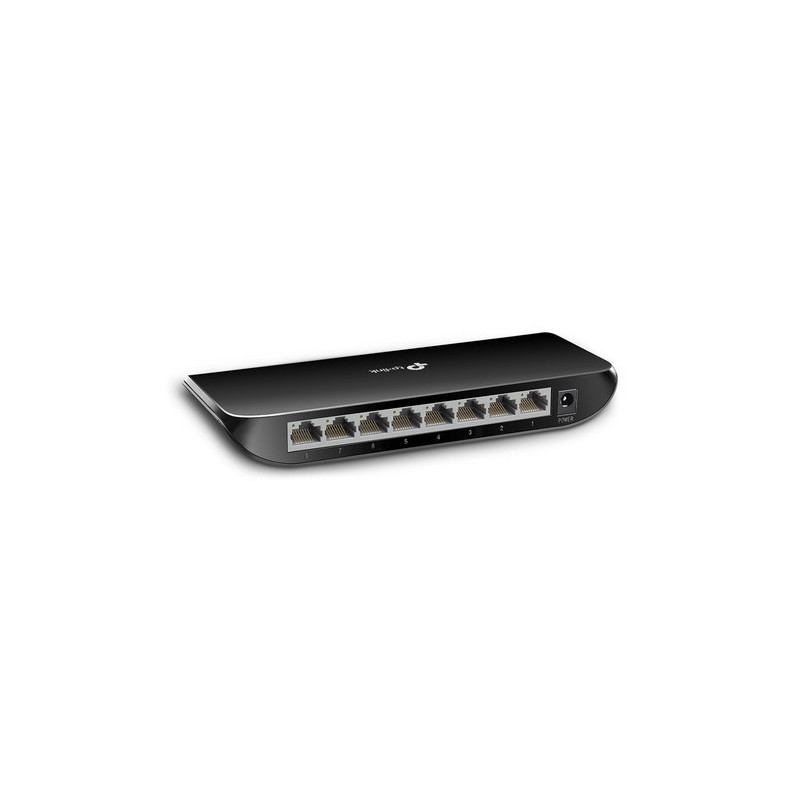

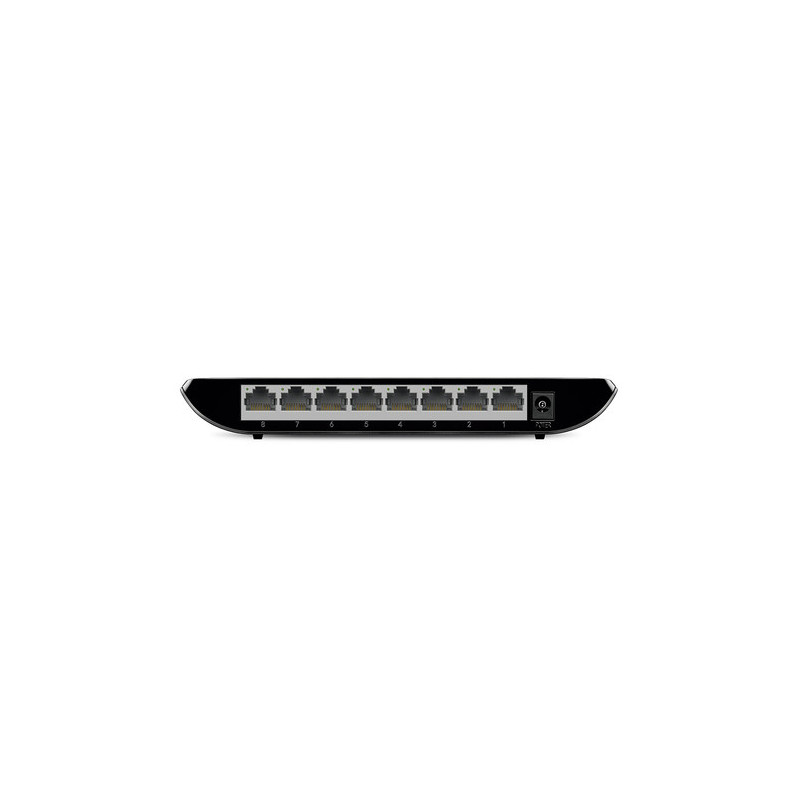

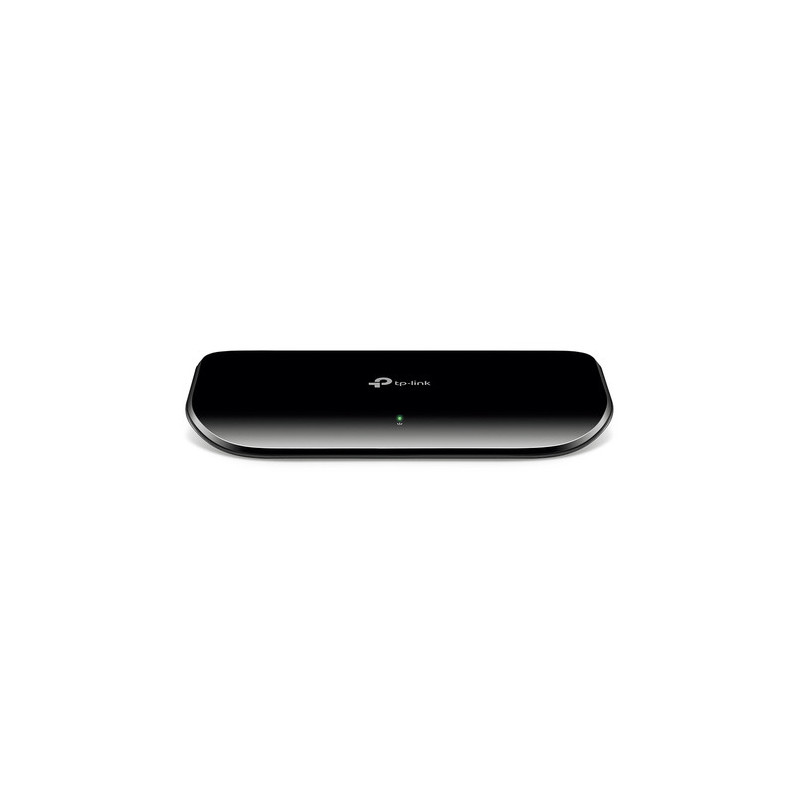

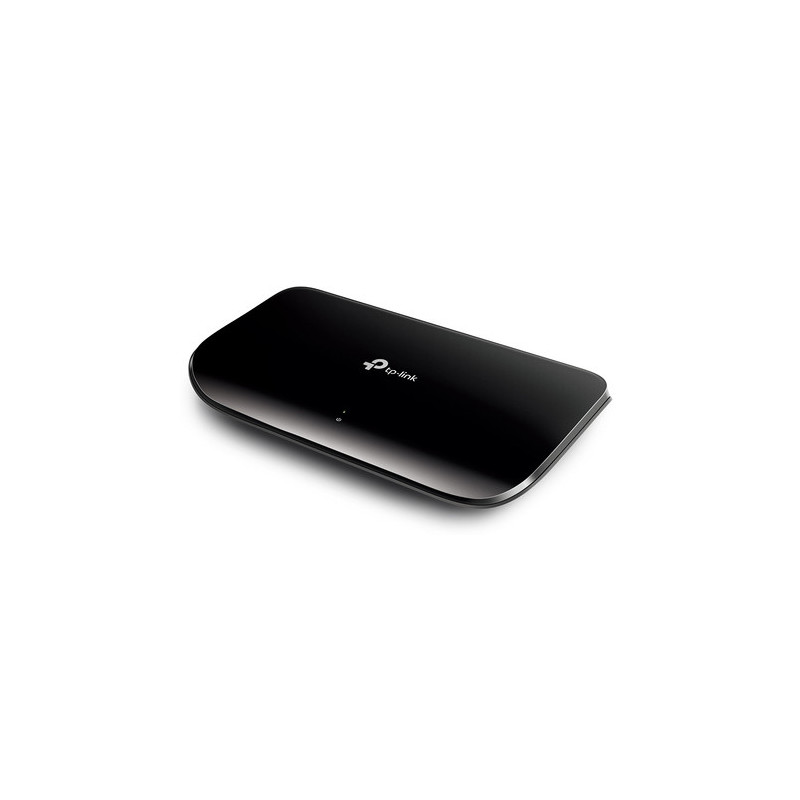

TP-Link 8-Port Gigabit Desktop Network Switch
Product reference:
3-6935364092313
TP-Link 8-Port Gigabit Desktop Network Switch
TP-Link 8-Port Gigabit Desktop Network Switch
Product reference:
3-6935364092313
TP-Link 8-Port Gigabit Desktop Network Switch
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
Not available
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Plastic |
| Wall mountable | Yes |
| Stackable | No |
| Rack mounting | No |
| Power | |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 3.53 W |
| Input current | 0.6 A |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 4.63 W |
| Power source | DC |
| DC input voltage | 9 V |
| Power supply included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 15.8 BTU/h |
| Management features | |
| Switch type | Unmanaged |
| Weight & dimensions | |
| Depth | 90 mm |
| Height | 25.5 mm |
| Width | 180 mm |
| Network | |
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Flow control support | Yes |
| 10G support | No |
| Performance | |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Packaging data | |
| Package weight | 300 g |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 110 mm |
| Package height | 85 mm |
| Package depth | 185 mm |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, CE |
| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 2 MB |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Switching capacity | 16 Gbit/s |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Jumbo frames | 15000 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Safety warning | |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself. |
| Sustainability | |
| Sustainability compliance | Yes |
