TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Product reference:
3-1210002617123
TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Product reference:
3-1210002617123
TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 1039.03 W |
| Power supply included | Yes |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| IGMP snooping | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Management features | |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| Weight & dimensions | |
| Height | 44 mm |
| Depth | 220 mm |
| Width | 440 mm |
| Network | |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Link aggregation | Yes |
| Cable types supported | Cat6, Cat5, Cat5e, Cat4, Cat3 |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3af |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| 10G support | No |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T, 1000BASE-T |
| VLAN support | Yes |
| Packaging data | |
| Package weight | 2.29 kg |
| Package depth | 528 mm |
| Package width | 336 mm |
| Package height | 100 mm |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Forwarding rate | 41.7 Mpps |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |

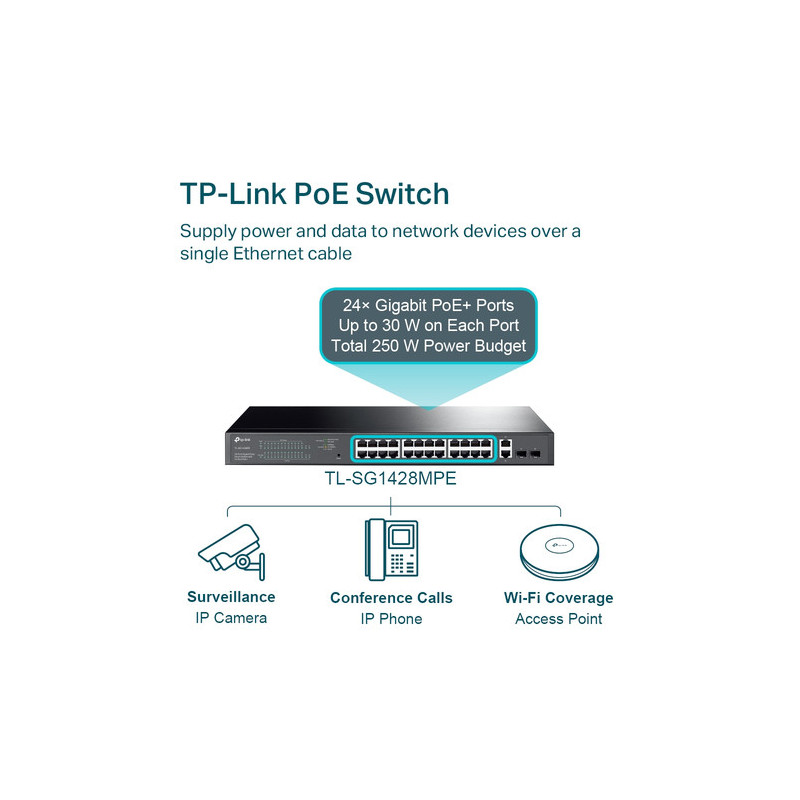

| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 250 W |
| Multicast features | |
| Multicast support | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
