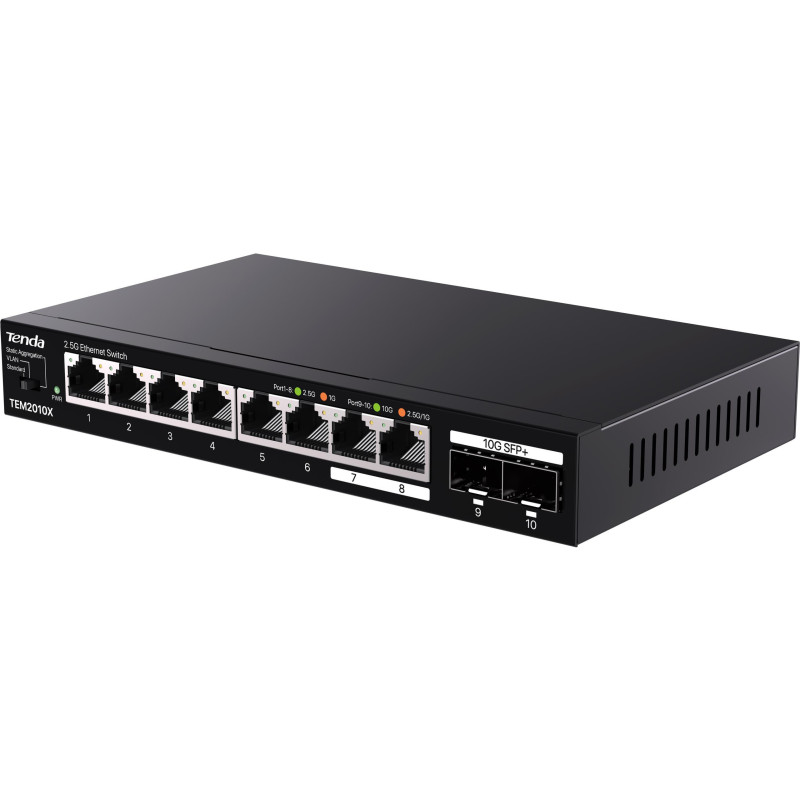

Tenda TEM2010X - Multi-gigabit switch, 8x 2.5G RJ45 + 2x 10G SFP+ port, MAC 16K, ochrana 6kV

Standard protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3bz, IEEE802.3ae, IEEE802.3z_
Porty: 8x 100/1000/2500 Mbps porty RJ45 auto-negácia
Porty SFP+: 2x SFP+ 1000/2500/10,000 Mb/s
Total bandwidth: 80 Gbps
Table size MAC address: 16K
Mód prepínania: Store-And-Forward
LED indication: 8x Activity port, 8x Link port, 2x 1G/2,5 pre SFP, 2x 10G for SFP, 1x Power supply
Power supply: input 100 to 240 V, AC 50/60 Hz for power adapter
Packet capacity: 59.5 Mpps
Spotreba: max. 12 W
Rozmery: 177 mm x 104 mm x 26 mm (L*W*H)
Ochrana proti prepätiu: 6,000 V
Placement: na stenu, desktop
Uchytenie do Racku: nie
Working temperature: 0 °C ~ 45 °C
Temperature: 10%-90%RH (non-condensing)
Certification: FCC/CE/RoHS
Product details
Tenda TEM2010X transmits data using 8 ports RJ45 and 2 optical SFP+ slots. 8 RJ45 portov 100/1000/2500 Mb/s 2x SFP+ slot s veresou 100/1000/10 000 Mb/s. Switch má ochranu proti prepätiu 6 kV. Podpora prepojovania uzlov v mode Store-and-Forward. The switch supports three modes: Standard / VLAN / Aggregation.
Tenda TEM2010X is suitable for smaller and medium companies as well as larger households.
Standard switch / VLAN / Static Aggregation mode

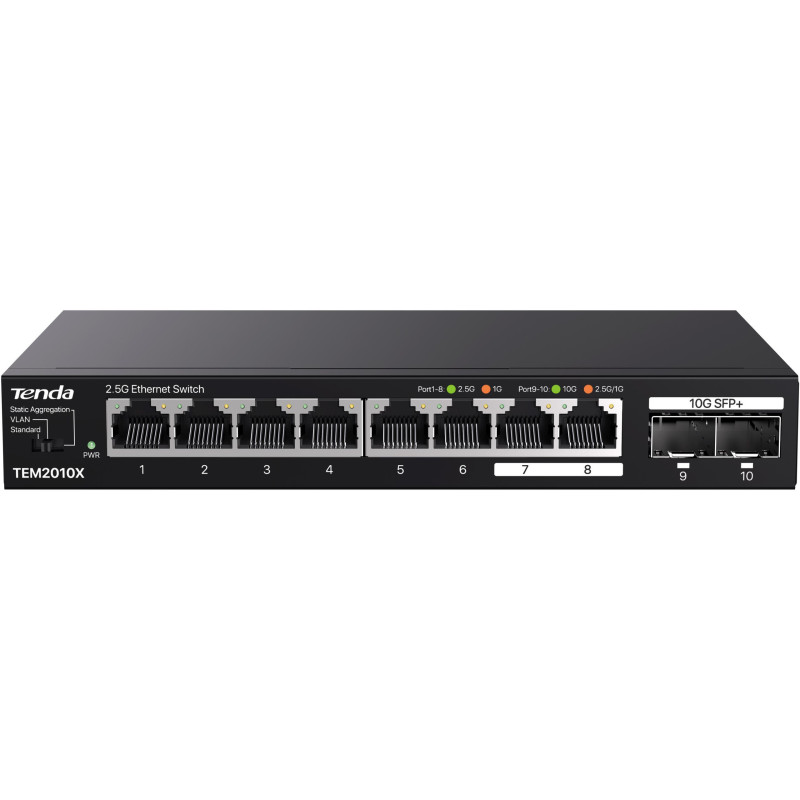

Tenda TEM2010X contains a switch for selecting three modes: Standard / VLAN / Static Aggregation mode.
Standard mode: In this mode it works like a classic switch, all ports have auto-negation, all ports communicate.
VLAN mode: In this mode, Port1 to Port6 are isolated from each other, each port Port1 to Port6 can only communicate with ports Port7 to Port10.
Static Aggregation mode (NAS Dedicated mode): Group1 sú porty Port7 a Port8. Group 2 is ported Port9 a Port10. Určené pre eg. dvojportové NAS.
Package contents
1x Tenda TEM2010X
1x Quick Installation Guide (CZ, SK, PL, EN)
1x Napájací adapter
