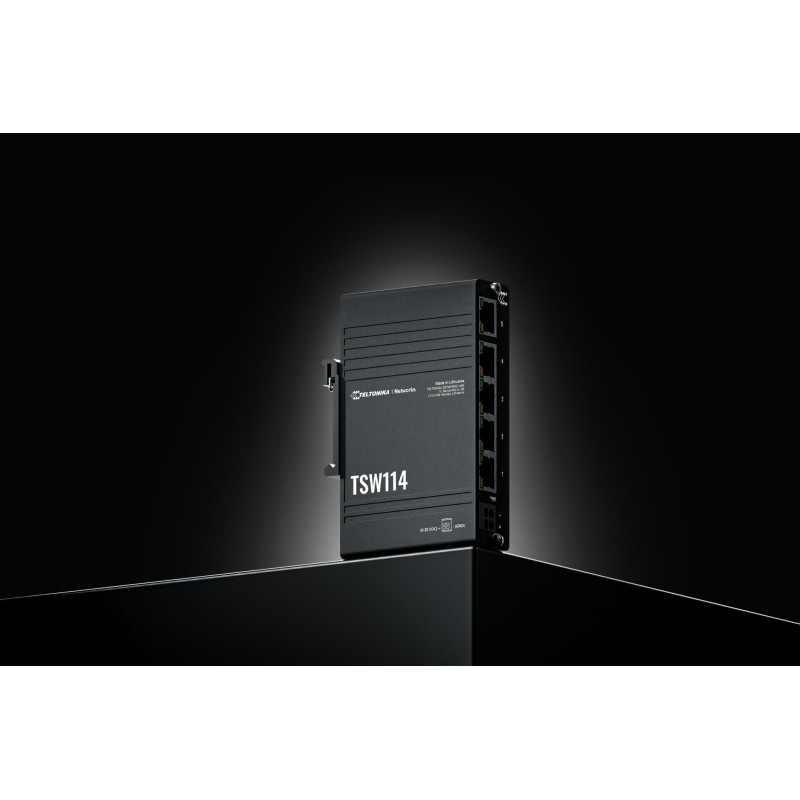

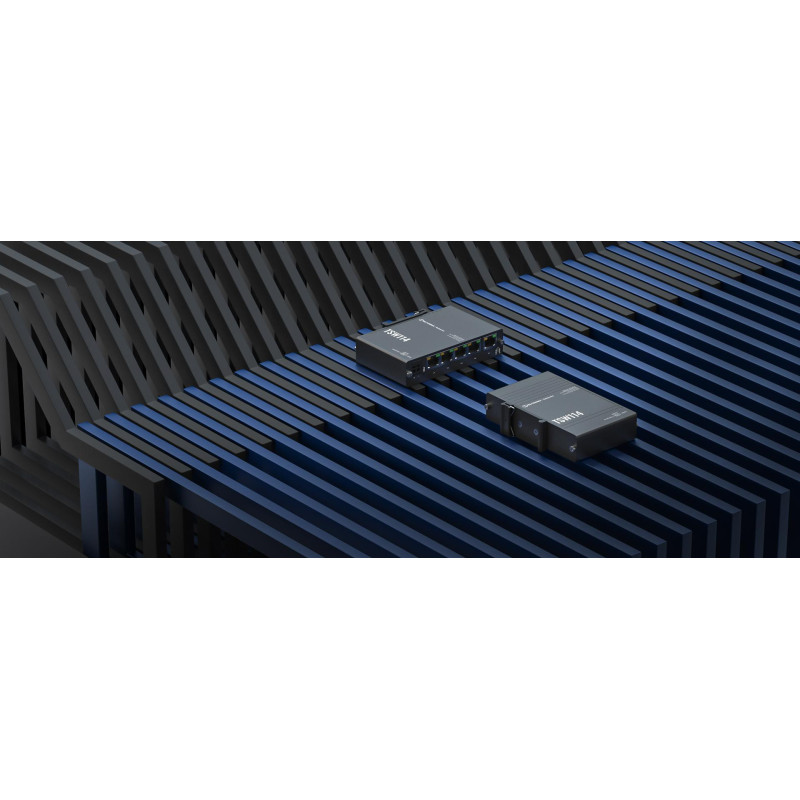

Teltonika TSW114 Switch, 5x RJ45 1000Mb / s, DIN Rail

Teltonika TSW114 - simple and reliable industrial switch

If you're looking for an industrial switch that provides stable and fast connectivity for high-bandwidth solutions, the Teltonika TSW114 is an ideal choice. It's a simple, unmanaged and compact DIN-rail mountable switch. The switch has 5 Gigabit Ethernet port with speeds up to 1000 Mbps that supports IEEE 802.3, IEEE 802.3u and 802.3az standards. The switch is easy to use, requires no additional configuration and supports auto MDI/MDIX. The switch also has low power consumption and a wide input voltage range from 9 to 30 VDC.

Key features of the Teltonika TSW114 switch

Easy installation and operation

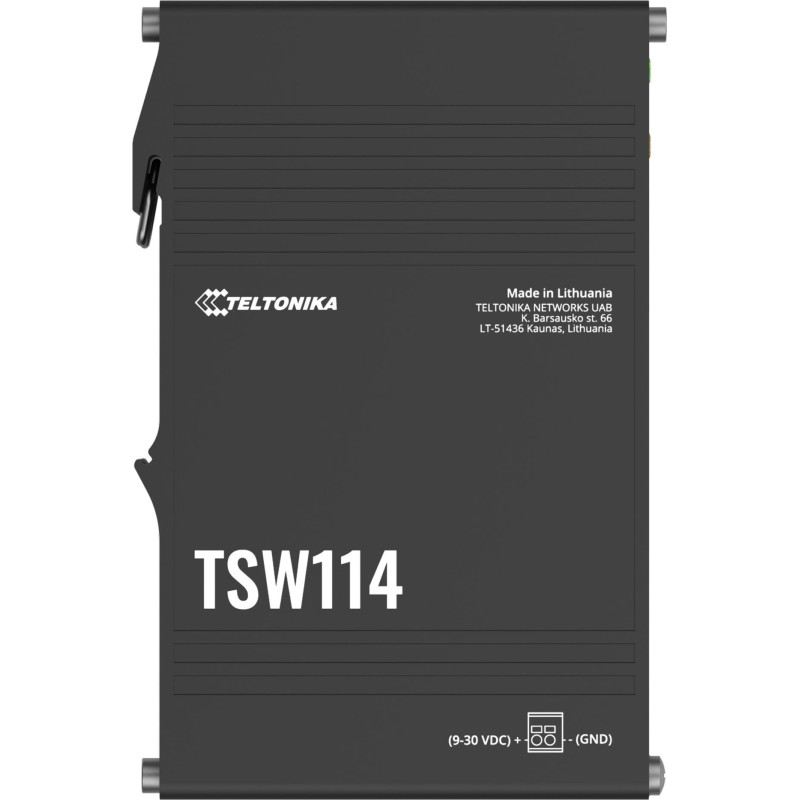

Teltonika's TSW114 switch has a rugged anodized aluminum housing and IP30 protection rating. The switch is easy to mount thanks to its integrated DIN rail bracket and front-facing port. The switch is also easy to operate with LEDs indicating power and network connection status. The TSW114 requires no additional configuration, just connect the Ethernet and power cables.

Fast and stable connectivity

Teltonika's TSW114 switch provides fast and stable connectivity for high-bandwidth solutions. The TSW114 has 5 Gigabit Ethernet ports with speeds up to 1000 Mbps that supports IEEE 802.3, IEEE 802.3u and 802.3az standards. The switch also supports auto MDI/MDIX, which automatically detects the type of Ethernet cable and adjusts to it. The switch also supports jumbo frames of up to 9216 bytes, which improves data transmission performance.

Low power consumption and wide voltage range

The Teltonika TSW114 switch has low power consumption and a wide input voltage range of 9 to 30 VDC, consuming only 0.3 W at idle and a maximum of 2.3 W under full load. The switch also has the ability to be powered by passive PoE on one of its LAN ports, reducing the number of cables. The TSW114 is compatible with a variety of power sources, such as AC adapters, batteries or solar panels.
