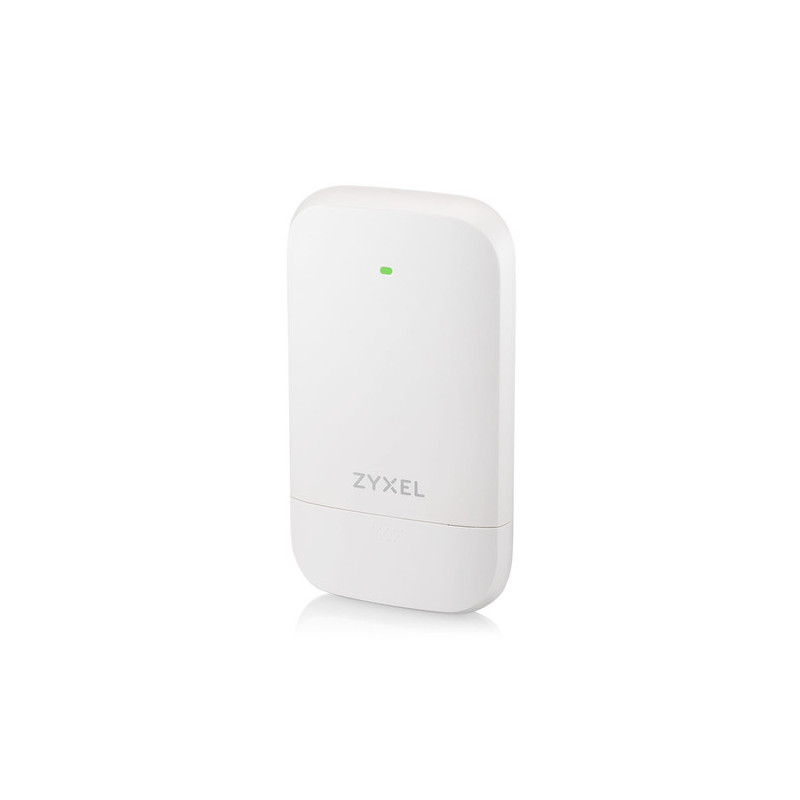

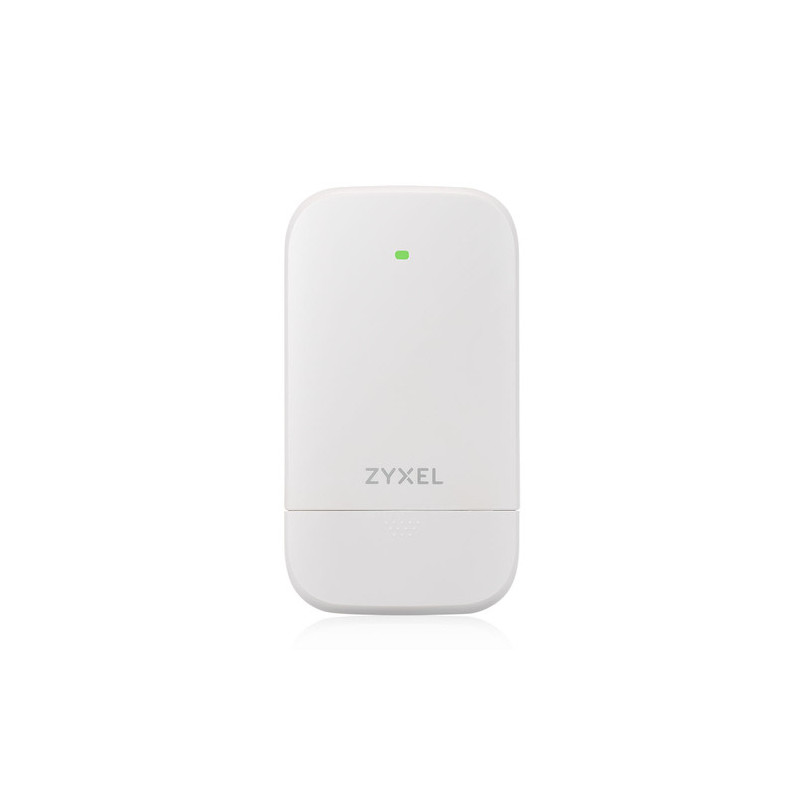

Switch ZyXEL Zyxel PoE12-3PD, 4x 1Gb PoE extender. 45W PoE budget, IP55 protection (for outdoor use)

PoE12-3PD - 802.3bt Outdoor PoE Extender
PoE12-3PD is a Gigabit PoE Extender designed for point-to-multipoint PoE applications that effortlessly
extend the range of power and data connections when your devices are located in larger

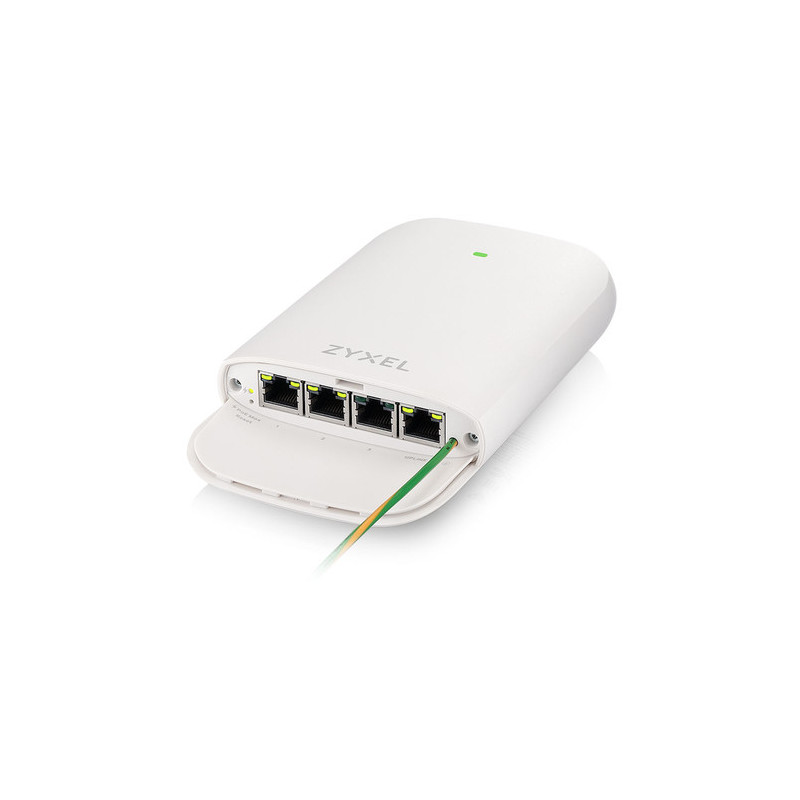

distance from power source or connection to PoE switch. It contains four ports RJ-45 Gigabit
Ethernet, which offer one (1) PoE++ input port with input up to 60 W and three (3) PoE outputs for your
devices. Instead of connecting to power adapters, it is possible to connect via PoE switch for better
viditelnosť pre maištu siete, aby ste pokryli važu siete. It contains three (3) PoE+ ports for powering different
PoE devices including IP cameras, VoIP headphones, IoT devices, sensors, PoE switches and wireless
access points.
PoE12-3PD is suitable for residential and commercial network environments and uses four gigabit ports RJ-
45 s PoE, which offers data aj napájanie cez estámán ethernetový kábel. Input port IEEE 802.3bt
supports up to 60 W for PoE extender, while output ports 802.3at PoE+ (Port 1-3) give your
devices up to 30 W na port. Rozshiruje PoE connection over the standard maximum distance of 100
meters.
With the support of management Nebula, you can monitor the status of PoE12-3PD both via the web interface and the
mobile application, which allows convenient access at any time.

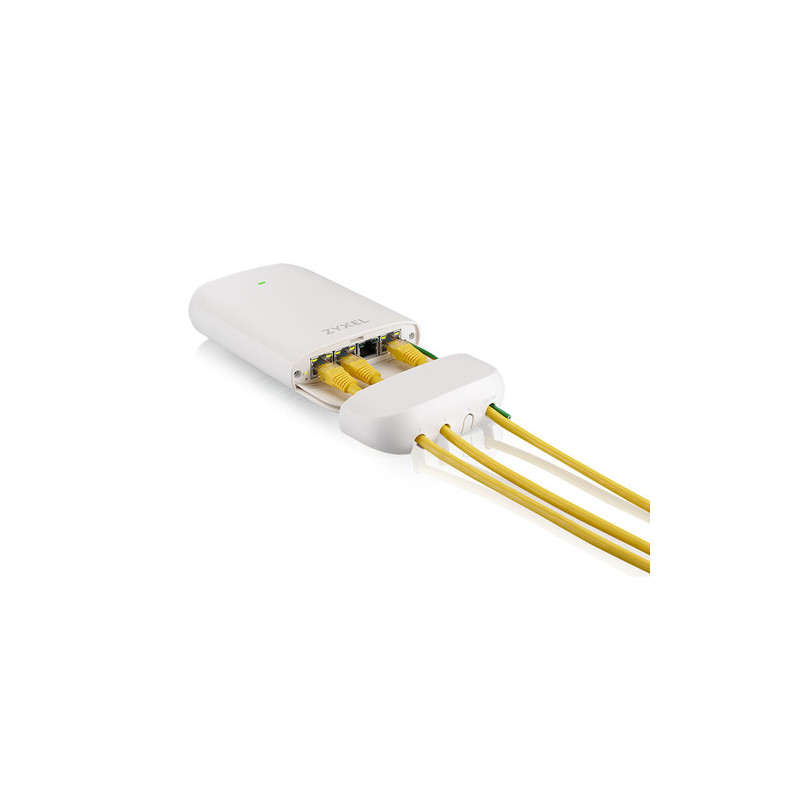

If you want to install PoE12-3PD, simply connect it. No other settings are required,
nor external power supply required. In addition, PoE12-3PD is designed for mounting on a wall with a
cover IP55, so it can be easily installed in most vertical places. It is suitable for installation in difficult
accessible places, such as large buildings or outdoor environments.
Thanks to the built-in 6KV anti-voltage protection, it can handle temperatures from -20 °C to 50 °C. demanding environments to accommodate a wide range of applications in the field.
Technical parameters -
Total portov - 4
PoE Power budget - 45 W with 802.3bt 60 W input power, 19 W with 802.3at 30 W input power
7 W with 802.3af 15 W input power / PoE Standard - 802.3at PoE+, 802.3bt PoE++
Switching capacity (Gbps) - 8
Ethernet port surge protection - 6 KV
Ethernet port ESD protection (air/contact) - 8 KV/ 6 KV
