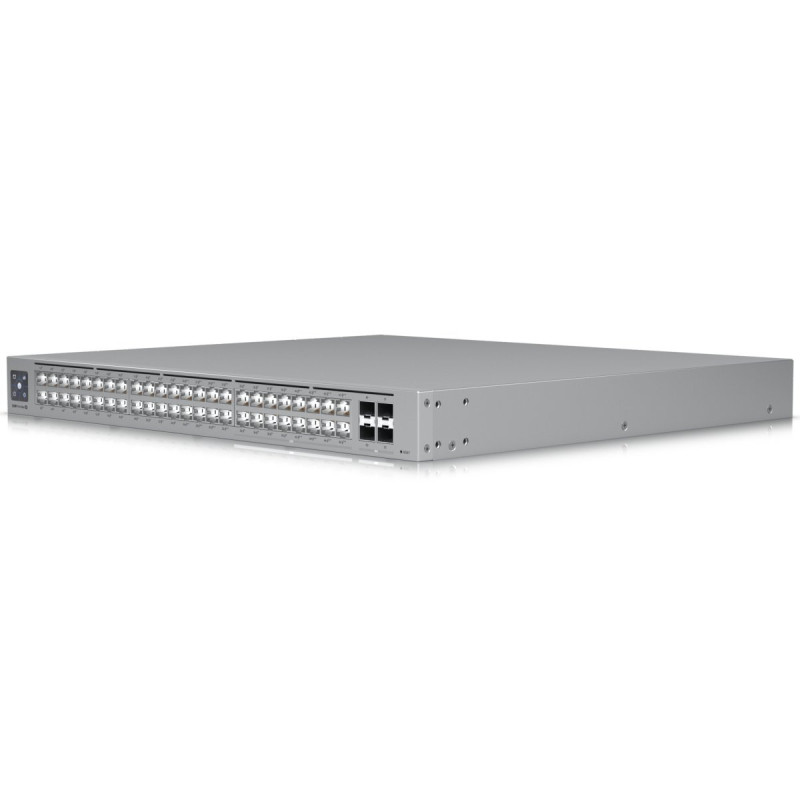

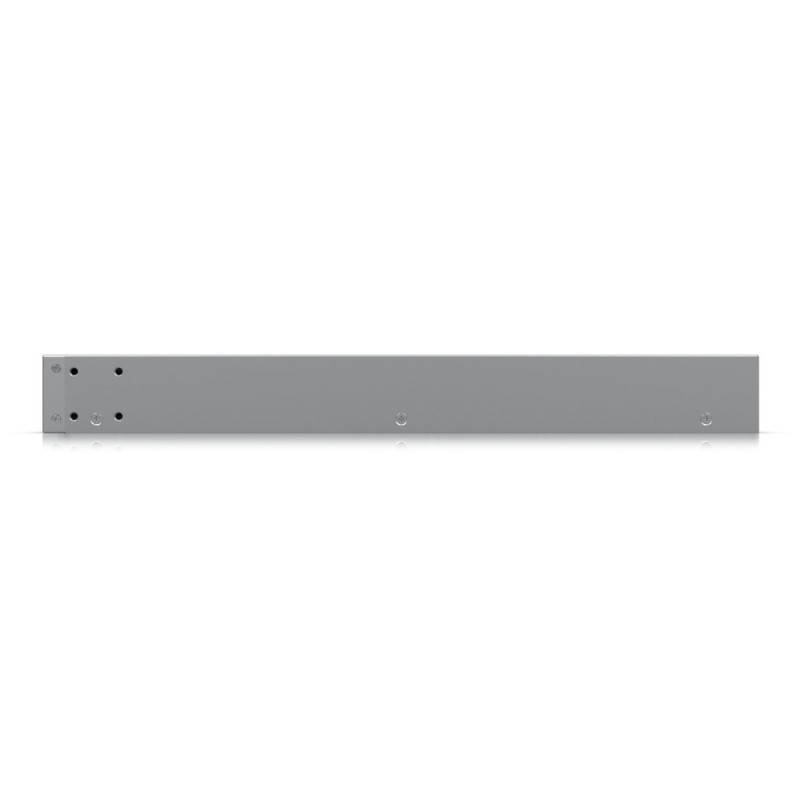

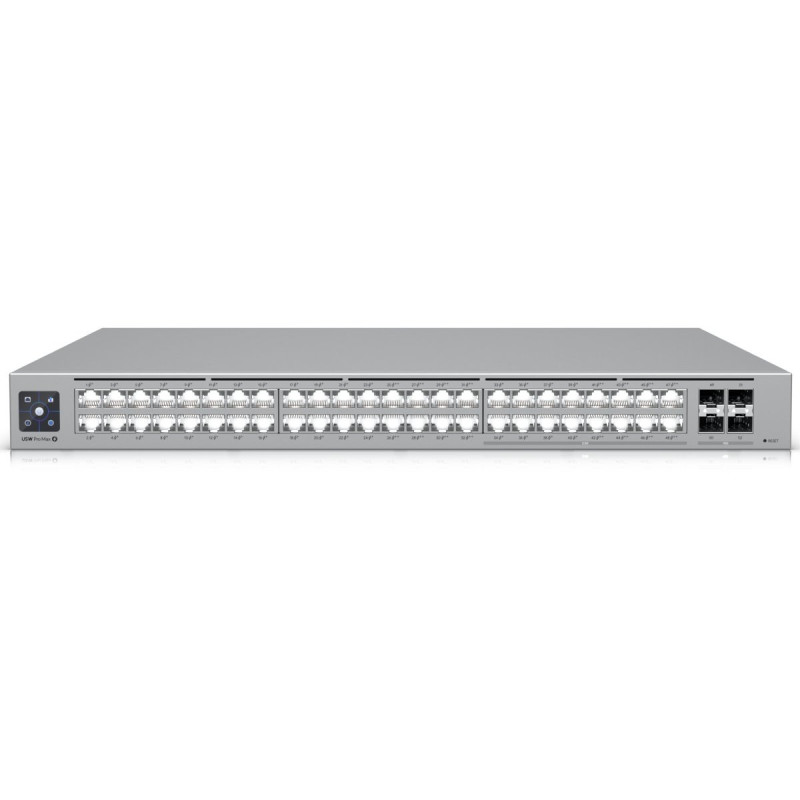

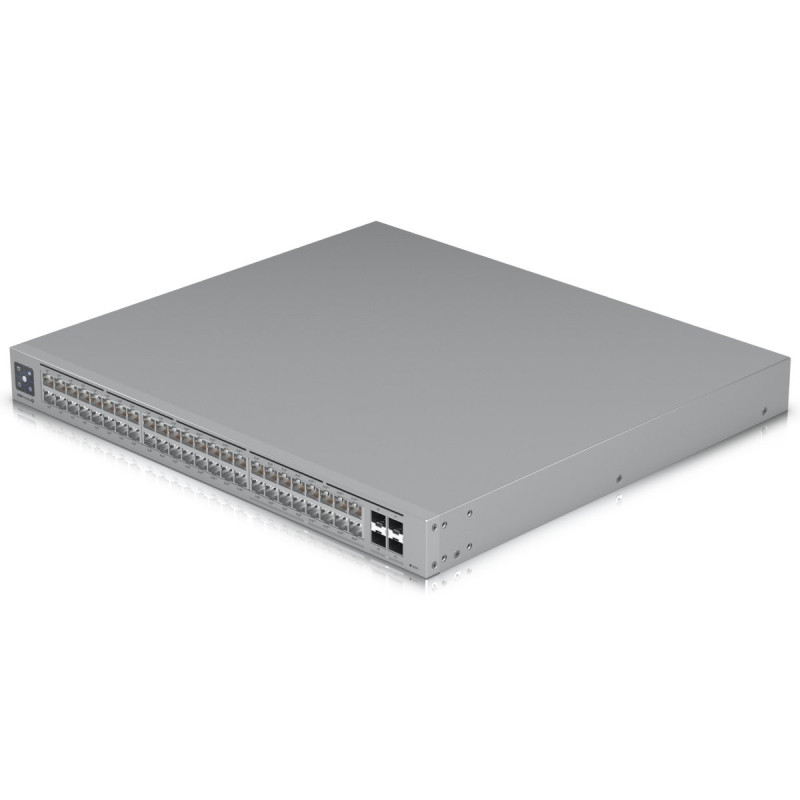

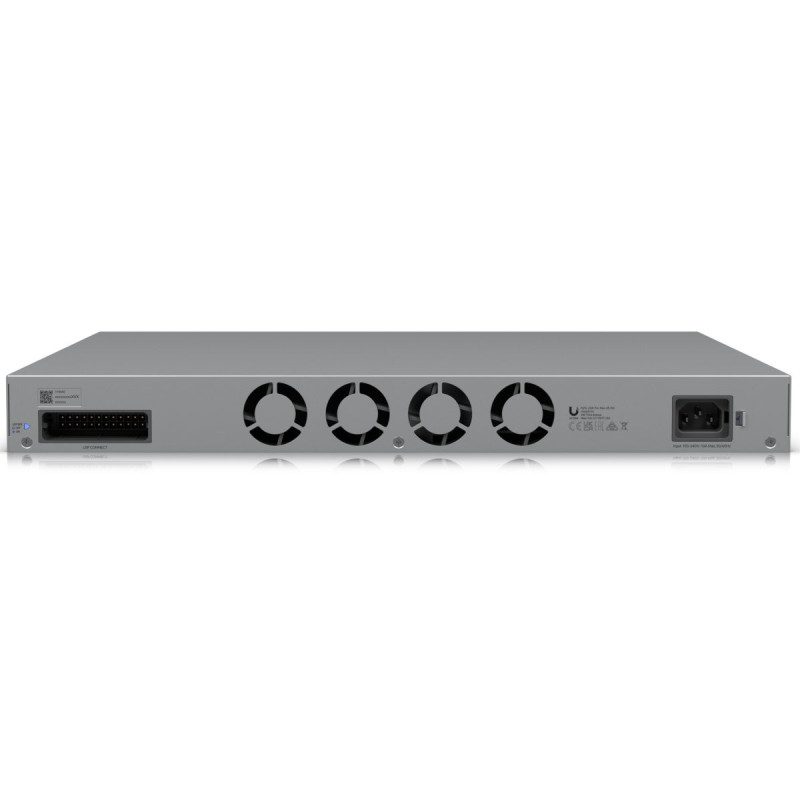

Switch Ubiquiti UniFi Pro Max (USW-PRO-MAX-48-POE)
Product reference:
3-810084692721
Switch Ubiquiti UniFi Pro Max (USW-PRO-MAX-48-POE)
Switch Ubiquiti UniFi Pro Max (USW-PRO-MAX-48-POE)
Product reference:
3-810084692721
Switch Ubiquiti UniFi Pro Max (USW-PRO-MAX-48-POE)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
9 - 14
business days
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
- (32) GbE ports including (24) PoE+ and (8) PoE++
- (4) 10G SFP+ port
- DC power backup ready
- 720W total PoE availability
- Managed with UniFi Network 8.0.24 and later
| Summary: | Ubiquiti UniFi Pro Max 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 224 Gbit/s. Networking standard: IEEE 802.1x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Vendor Homepage: | https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/collections/unifi-switching-pro-max/products/usw-pro-max-48-poe?variant=usw-pro-max-48-poe-eu |
| Category Code: | SWI |
| CnCode: | 85176200 |
| Unit Box Height: | 0.52 |
| Unit Box Length: | 0.538 |
| Unit Box Width: | 0.12 |
| Quality of Service (QoS) support: | Yes |
| Switch layer: | L3 |
| Switch type: | Managed |
| 2.5G Ethernet (copper) port quantity: | 16 |
| Basic switching RJ-45 Ethernet port quantity: | 48 |
| Basic switching RJ-45 Ethernet port type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) port quantity: | 32 |
| Power connector: | AC-in jack |
| SFP+ module slots quantity: | 4 |
| 10G support: | From |
| Broadcast storm control: | Yes |
| Flow control support: | Yes |
| IPv4 routes: | 12000 |
| Networking standards: | IEEE 802.1x |
| Number of VLANs: | 1000 |
| Port mirroring: | Yes |
| Rate limiting: | Yes |
| Virtual LAN features: | Voice VLAN |
| VLAN support: | Yes |
| Forwarding rate: | 167Mpps |
| Jumbo frames support: | Yes |
| MAC address table: | 32000entries |
| Packet buffer memory: | 2MB |
| Static route: | Yes |
| Switching capacity: | 224Gbit/s |
| Throughput: | 112Gbit/s |
| DHCP features: | DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping |
| IGMP snooping: | Yes |
| Loop protection: | Yes |
| Backlight display: | Yes |
| Display type: | LCM |
| Form factor: | 1U |
| Housing material: | SGCC |
| LED indicators: | System |
| Product colour: | Grey |
| Rack mounting: | Yes |
| Reset button: | Yes |
| AC input frequency: | 50/60Hz |
| AC input voltage: | 100 - 240V |
| Power consumption (max): | 820W |
| Power source: | AC |
| Power supply included: | Yes |
| Redundant power supply (RPS) support: | Yes |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) power per port: | 15.4W |
| Power over Ethernet (PoE) type supported: | PoE+/PoE++ (4PPoE) |
| Power over Ethernet (PoE) voltage: | 57V |
| Power over Ethernet 4PPoE (PoE++) port quantity: | 16 |
| Power over Ethernet plus (PoE+) port quantity: | 32 |
| Total Power over Ethernet (PoE) budget: | 720W |
| Heat dissipation: | 341.2BTU/h |
| Operating relative humidity (HH): | 10 - 90% |
| Operating temperature (TT): | -5 - 40°C |
| Depth: | 399.6mm |
| Height: | 43.7mm |
| Weight: | 6200g |
| Width: | 442.4mm |
| Cables included: | Power |
| Manual: | Yes |
| Rack mount kit: | Yes |
| Sustainability compliance: | Yes |
| Compliance certificates: | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
| Model: | USW-PRO-MAX-48-POE |
| Model name: | Pro Max 48 PoE |
| Units per Shipping Box: | 2 |
| Unit Calculated Volume: | 0.04008m³ |
| Unit Calculated Weight: | 8.68kg |
