Switch, UBIQUITI, 180 Watts, USW-PRO-MAX-16-POE
Product reference:
3-810084694572
Switch|UBIQUITI|180 Watts|USW-PRO-MAX-16-POE
Switch, UBIQUITI, 180 Watts, USW-PRO-MAX-16-POE
Product reference:
3-810084694572
Switch|UBIQUITI|180 Watts|USW-PRO-MAX-16-POE
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
9 - 14
business days

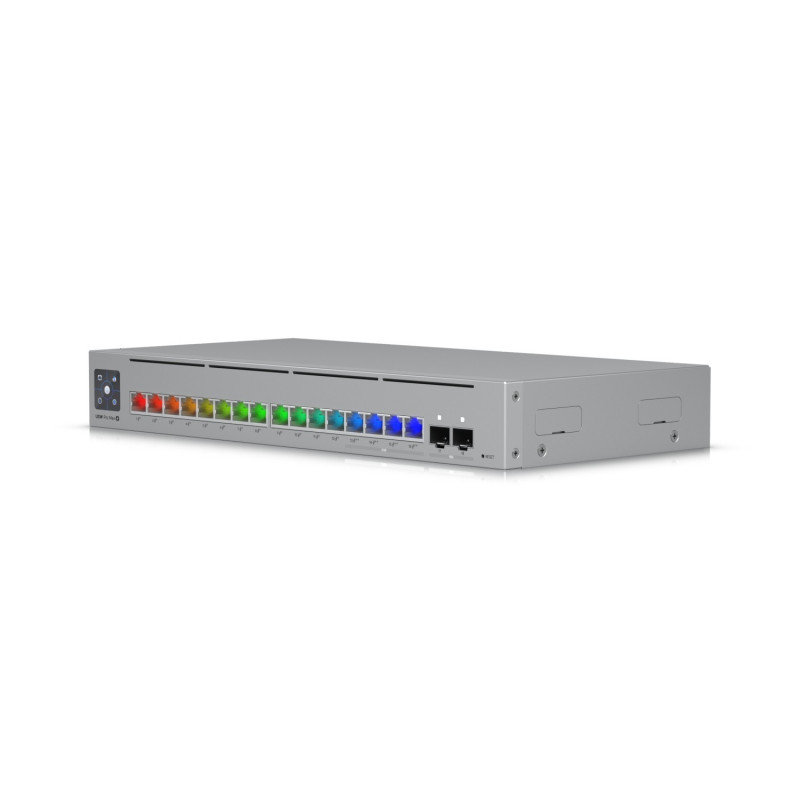

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5GbE PoE++ port
- (12) GbE PoE+ port
- (2) 10G SFP+ port
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
| Summary: | Ubiquiti Pro Max 16 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet port type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet port quantity: 16. Switching capacity: 84 Gbit/s. Networking standard: IEEE 802.1x. DC input voltage: 44 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting |
| Vendor Homepage: | https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/products/usw-pro-max-16-poe |
| Category Code: | SWI |
| CnCode: | 85176200 |
| Unit Box Height: | 0.11 |
| Unit Box Length: | 0.515 |
| Unit Box Width: | 0.25 |
| Switch layer: | L3 |
| Switch type: | Managed |
| 2.5G Ethernet (copper) port quantity: | 4 |
| Basic switching RJ-45 Ethernet port quantity: | 16 |
| Basic switching RJ-45 Ethernet port type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) port quantity: | 12 |
| Power connector: | DC-in jack |
| SFP+ module slots quantity: | 2 |
| 10G support: | Yes |
| Broadcast storm control: | Yes |
| Flow control support: | Yes |
| Networking standards: | IEEE 802.1x |
| Port mirroring: | Yes |
| Rate limiting: | Yes |
| Virtual LAN features: | Voice VLAN |
| VLAN support: | Yes |
| Forwarding rate: | 62.496Mpps |
| Jumbo frames support: | Yes |
| Switching capacity: | 84Gbit/s |
| Throughput: | 42Gbit/s |
| DHCP features: | DHCP snooping/DHCPv6 relay |
| IGMP snooping: | Yes |
| Loop protection: | Yes |
| Multicast support: | Yes |
| Display type: | LCM |
| Housing material: | Steel |
| LED indicators: | System |
| Product colour: | Grey |
| Rack mounting: | Yes |
| Reset button: | Yes |
| AC input frequency: | 50/60Hz |
| AC input voltage: | 100 - 240V |
| DC input voltage: | 44 - 57V |
| Power consumption (max): | 30W |
| Power source: | AC/DC |
| Power supply included: | Yes |
| Redundant power supply (RPS) support: | Yes |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) power per port: | 15W |
| Power over Ethernet 4PPoE (PoE++) port quantity: | 4 |
| Power over Ethernet plus (PoE+) port quantity: | 12 |
| Total Power over Ethernet (PoE) budget: | 180W |
| Operating relative humidity (HH): | 10 - 90% |
| Operating temperature (TT): | -5 - 40°C |
| Depth: | 160mm |
| Height: | 43.7mm |
| Weight: | 2100g |
| Width: | 325.1mm |
| Cables included: | Power |
| Manual: | Yes |
| Mounting brackets included: | Yes |
| Compliance certificates: | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| Model: | USW-PRO-MAX-16-POE |
| Model name: | Pro Max 16 PoE |
| Units per Shipping Box: | 4 |
| Unit Calculated Volume: | 0.01723m³ |
| Unit Calculated Weight: | 4.08kg |
