Switch Tenda Switch TEG2224D 24GE Cloud

Spósoby umieštenia: do racku (rackmount), na stenu, desktop
Standarby a protokoly: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1p, IEEE802.1q
LED indication: 24x Link/Act, 2x PWR/SYS LED
Porty: 24x 10/100/1000 Base-T
Level of protection: - pre porty: 6kV, - pre-loading: 6kV
Prepínania mode: Store-and-forward
Total bandwidth: 48 Gbps
Prepínanie paketov: 35,7Mpps
Buffer: 4MB
Size of table MAC adries: 8K
Output: zo siete 100-240V AC 50/60Hz
Rozmery devices: 294mm x 178mm x 44mm(D*Š*V)
Working temperature: 0°C ~ 45°C_
Vlhkosť: 10%-90%RH (non-condensing)
Certification: CE/RoHS
Bezpečnostné functions:
- Support for communication MAC adries, portov a VLAN na bielu listin,
- Support for isolation of ports
VLAN:
- Podpora transparentného prenosu VLAN,
- Podpora IEEE 802.1Q VLAN,
DHCP:
- Podpora DHCP Client,
- Podpora DHCP Snooping,
IGMP:
- Support IGMP fast leave,
- Support IGMP Report Suppression
QoS:
- Support DSCP priority,
- Support SP, SWP, WP,
Properties portov:
- Support for flow management on ports,
- Support for isolation of ports,
- Support for N:1 port mirroring,
- Support for statistics of clients sent packets, multiple packets and CRC error packets
Speed limitation:
- Speed limitation support on input and output ports
Protection against loops:
- Support detection of protection against loops on each porte
Riadenie búrok:
- Podpora rijanje búrok na portoch
Aktualizácia, import, export:
- Podpora HTTP update a import/exportu configuration
Správa a maintenance:
- Support for administration via CloudFi App,
- Support for administration via Cloud web UI,
- Support for local web UI administration,
- Support for ping test
Product details

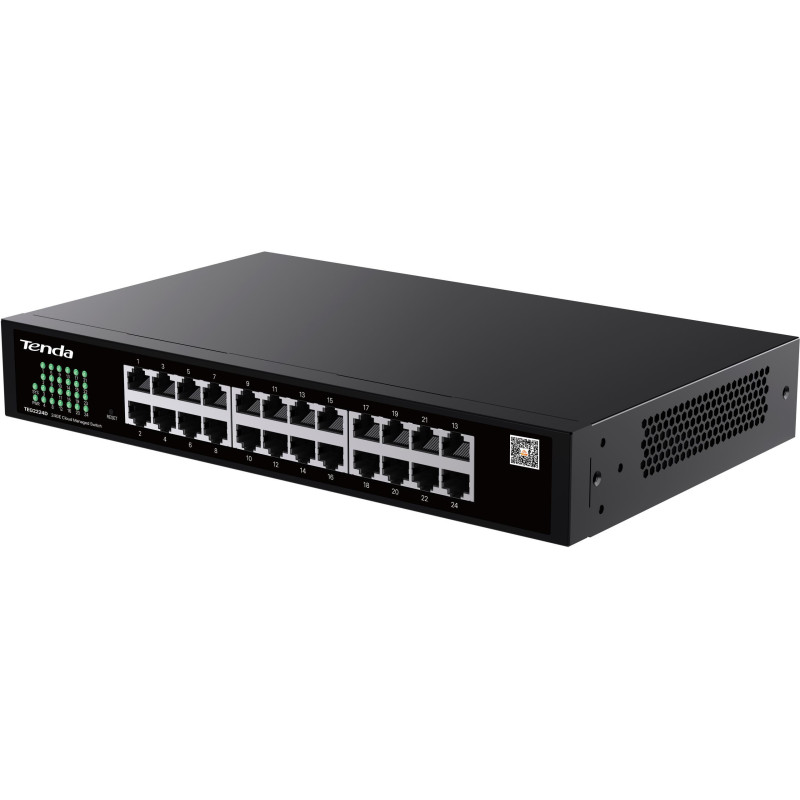

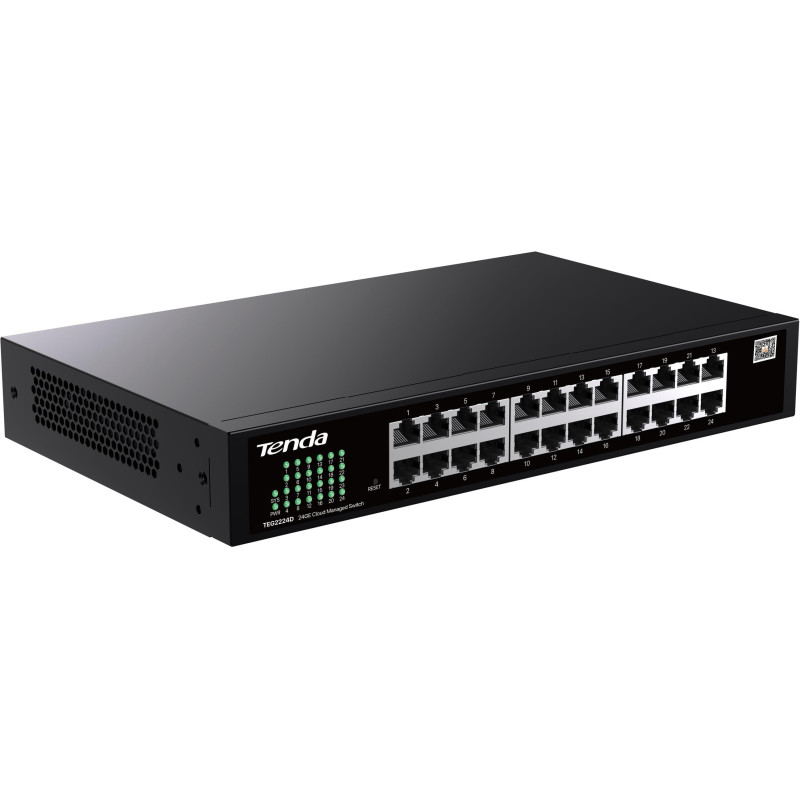

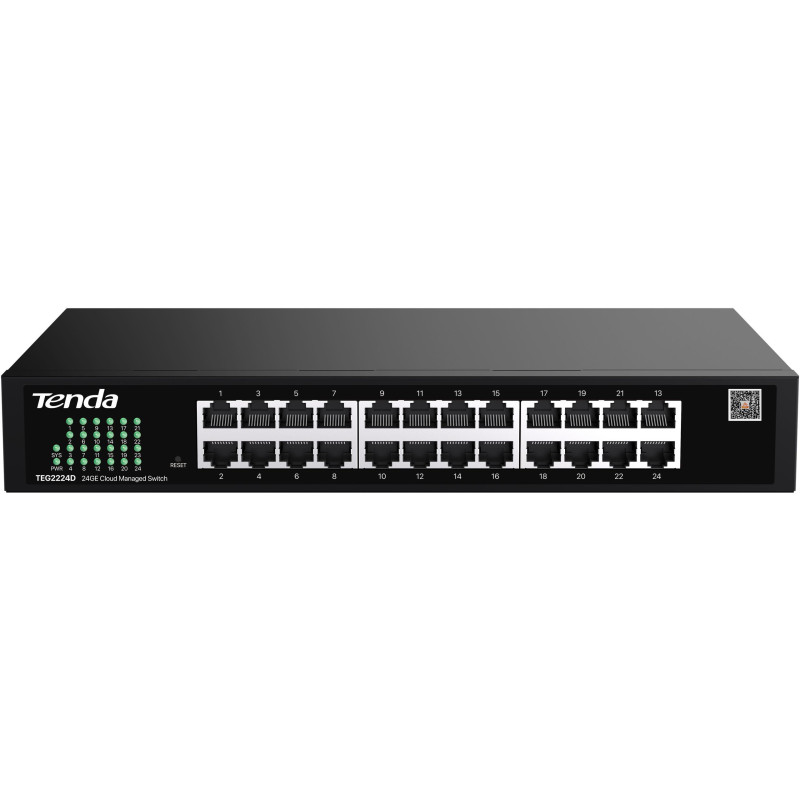

Tenda TEG2224D represents a very convenient local or cloud setting including advanced network functions, control, protection, restrictions and pod.
Flexible QoS, precise management of data traffic
TEG2224D supports three QoS scheduling modes (SP, SWP, WP) for more accurate traffic control. After enabling the QoS function, the operation of the network will be precisely controlled by priority data.
Report
Supports the use of standard local web administration, or if available in cloud web administration, a CloudiFi application for mobile devices.
Network topology display
Switch supports automatic search and display topology siete.
Safety
In real time, the switch controls network settings, supports DHCP Snooping, Loop Guard, Storm control, 7/24 Watchdog and more.
Placement methods
Switch supports 19" rack mounting, wall mounting and also standard table (desktop) mounting.
Package contents
1x Tenda TEG2224D
1x rack/wall mounts
1x Quick Installation Guide (CZ, SK, PL, EN)
1x Napájací kabel
