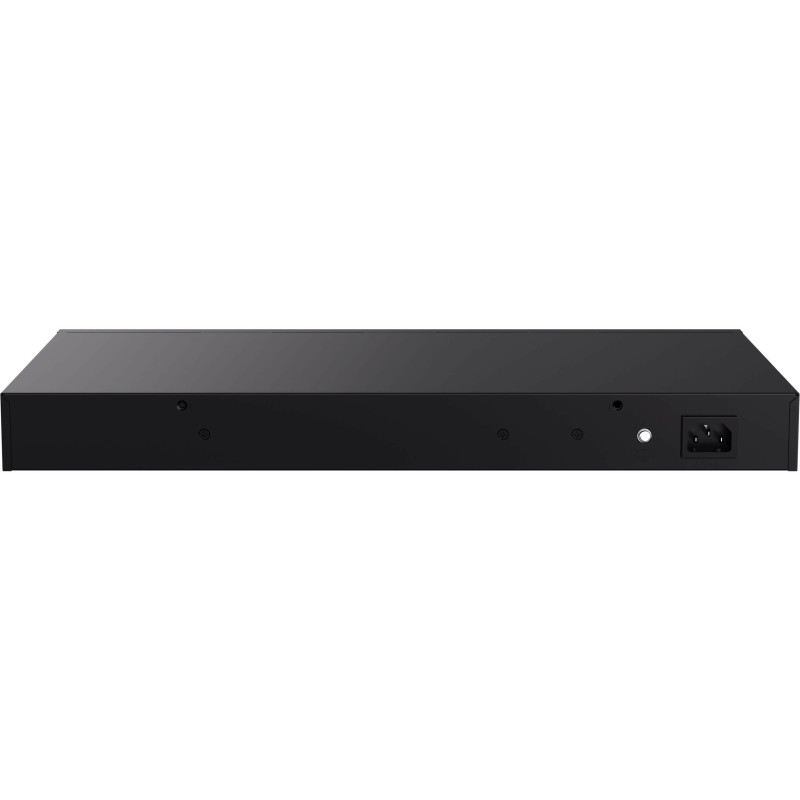

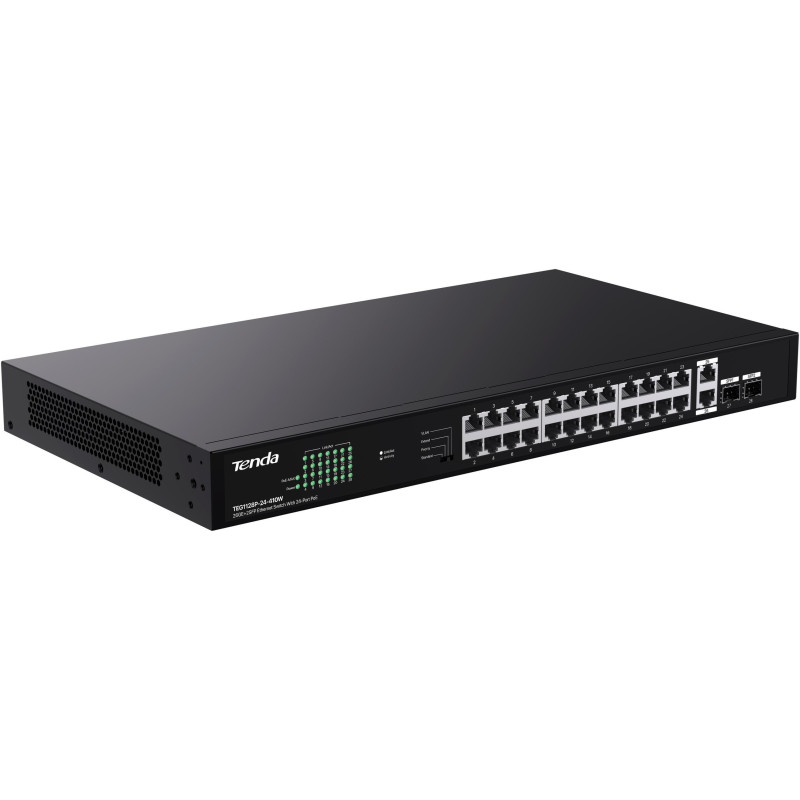

Switch niezarządzalny Tenda TEG1128P-24-410W 26x1GbE 2xSFP PoE

Standardprotokoly: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at
Porty PoE: 24x 10/100/1000 Mbps porty RJ45 auto-negácia as podporou PoE IEEE802.3 at/af PoE standard
Porty Uplink: 2x 10/100/1000 Mbps porty RJ45 auto-negácia, 2x 100/1000 Mbps SFP
Total bandwidth: 56 Gbps
Size table MAC adresácie: 8K
Mode prepínania: Store-And-Forward
LED Indication: 28x Link/Activity port, 1x PoE-Max, 1x Power supply
PoE power supply: Port 1 to Port 24 supports standard IEEE802.3at/af power supply (maximum power for each port is 30W), typ PoE power supply ie (1 a 2 +, 3 a 6 - párovanie vodikov), total 370 Watt pre PoE
Level of voltage protection: - pre port: 6kV, - pre napájanie: 6kV, ESD: air: ±10kV, contact: ±8kV_
Buffer: 4M_
Packet forwarding rate: 41.7 Mpps
Power supply: 100 to 240 V, AC 50/60 Hz
Spotreba: 15 W (without PoE power supply), 410 W (s pripojnemi PoE devices max. 370 W)
Rozmery: 440mm x 240mm x 44mm(D*Š*V)
Total max. napájanie PoE: 370 W
Location: rackmount 19", na stenu, desktop
MTBF: 50,000 hours+
Working temperature: 0oC ~ 45oC_
Vlhkosť: 10%-90%RH (non-condensing)
Certification: FCC/CE/RoHS
Product details
Tenda TEG1128P-24-410W forwards data using 26 ports RJ45 and 2x SFP slots, 24 ports 10/100/1000 Mb/s supports PoE802.3af/at. Switch has protection namely prepätiu 6kV. Podpora prepájania uzlov v mode Store-and-Forward. Full-duplex control flow 802.3x, half-duplex control flow in the Back-Pressure mode.
Tenda TEG1128P-24-410W is suitable for small and medium-sized houses as well as for larger households.
Switch Standard / Priority / Extend / VLAN mode
Tenda TEG1128P-24-410W contains a switch for choosing four modes: CCTV / Standard / VLAN / Extend mode.
- Standard mode: In this mode, it works like a classic switch, all ports have auto-negation, all ports communicate with each other, Port1 to Port26 10/100/1000 Mb/s, SFP port speed 100/1000 Mb/s.
- Priority mode: Port1 to Port8 have set very high QoS priority.
- Extend mode: PoE port Port17 aj Port24 maju navýšený dosah ku endovému zariadeniu až na 250m (depends on end device, cable, etc.). All port switches communicate with each other.
- VLAN mode: In this mode, Port1 to Port24 are isolated from each other, each port Port1 to Port24 can only communicate with uplink ports Port25, Port26, SFP1 (27), SFP2 (28). This mode prevents large spread broadcasts and DHCP spoofing.
PoE power supply options - Power over Ethernet
Power supply ports using PoE 802.3af (15,4W) a 802.3at (30W). Max. a total of 370 Watts and 24 PoE ports, used for external and internal IP cameras, Access Pointy/Routery, IP telephony, etc.
Always a total of max. 370 W
Package contents
1x Tenda TEG1128P-24-410W
1x Sada "L" holder for rack
1x Professional installation manual (CZ, SK, PL, EN)
1x Napájací kabel 230V
