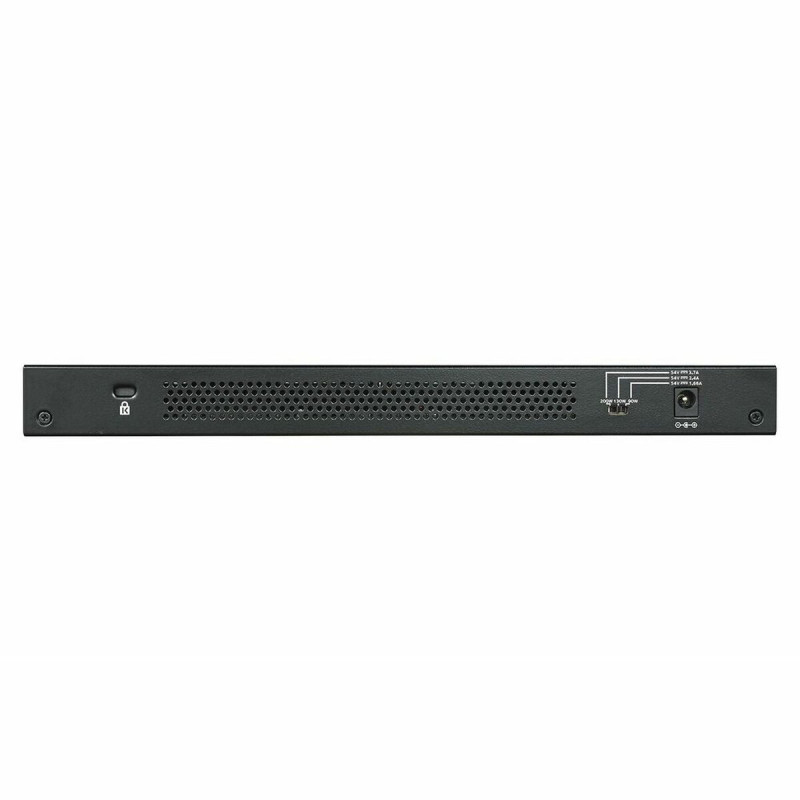

Switch NETGEAR GS316P-100EUS
Product reference:
3-0606449146882
Switch NETGEAR GS316P-100EUS
Switch NETGEAR GS316P-100EUS
Product reference:
3-0606449146882
Switch NETGEAR GS316P-100EUS
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
| Design | |
|---|---|
| Wall mountable | Yes |
| Rack mounting | No |
| Housing material | Metal |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| DC input voltage | 54 V |
| Power consumption (max) | 127.9 W |
| Input current | 2.4 A |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Heat dissipation | 437.42 BTU/h |
| Operating altitude | 0 - 3000 m |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 880 g |
| Network | |
| Full duplex | Yes |
| 10G support | No |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az |
| Performance | |
| Mean time between failures (MTBF) | 2362192 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 1 MB |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| MAC address table | 4000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 3.7 µs |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Safety warning | |
| Warnings | Do not open the housing of the unit due to the risk of electric shock., Electronic devices should be recycled in accordance with local regulations., Do not use the device in damp conditions to avoid a short circuit. |
