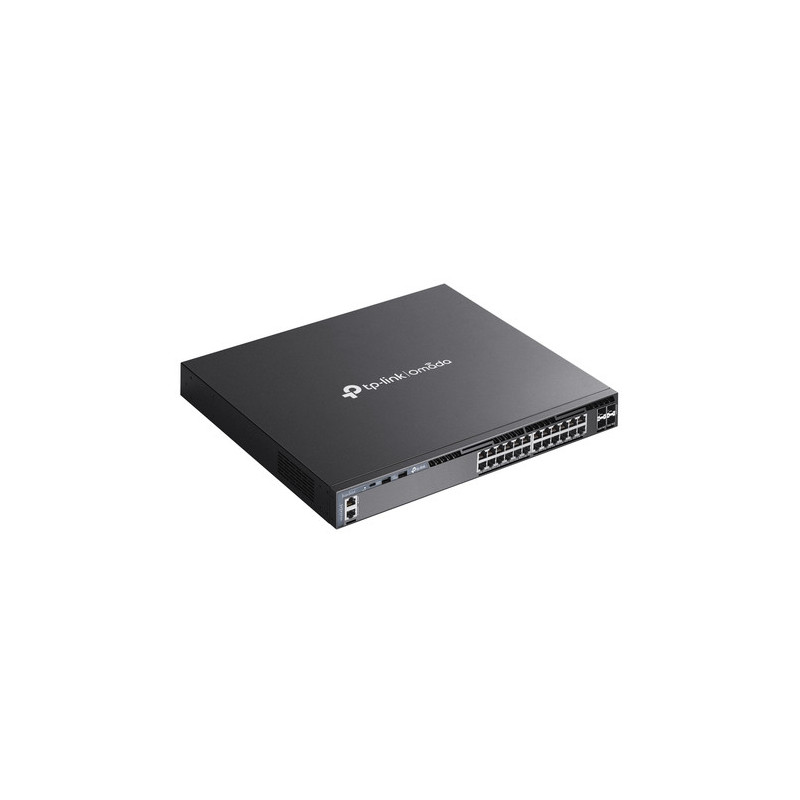

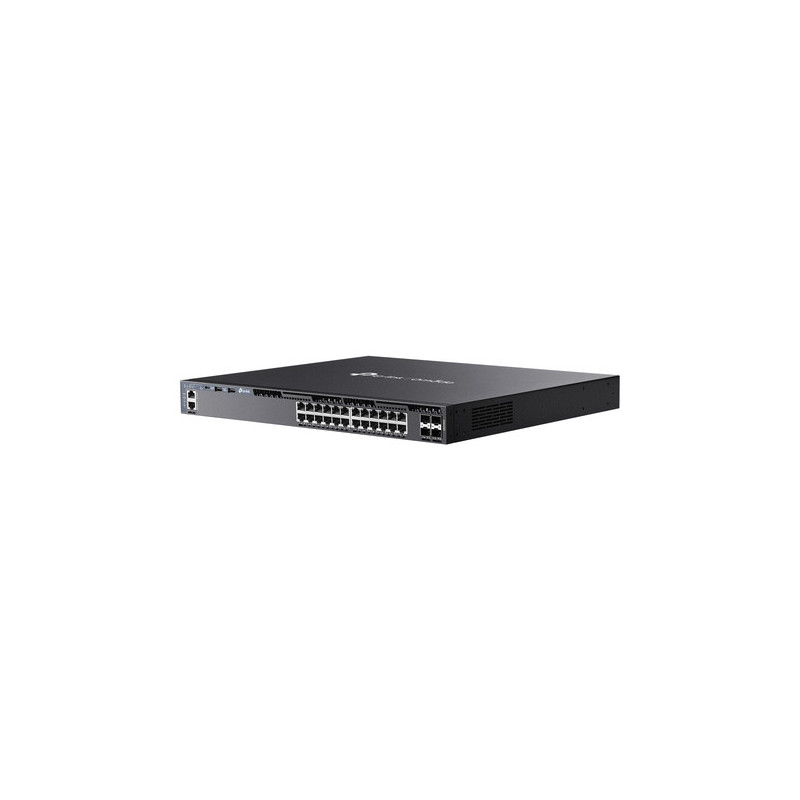

SG6428X - 24-portový L3 prepínač s podporou stohovania a 4x10G SFP+

SG6428X
Omada 24-portový gigabitový stohovatelní spravovaný prenapčiní L3 so 4 slotmi 10G
Functions

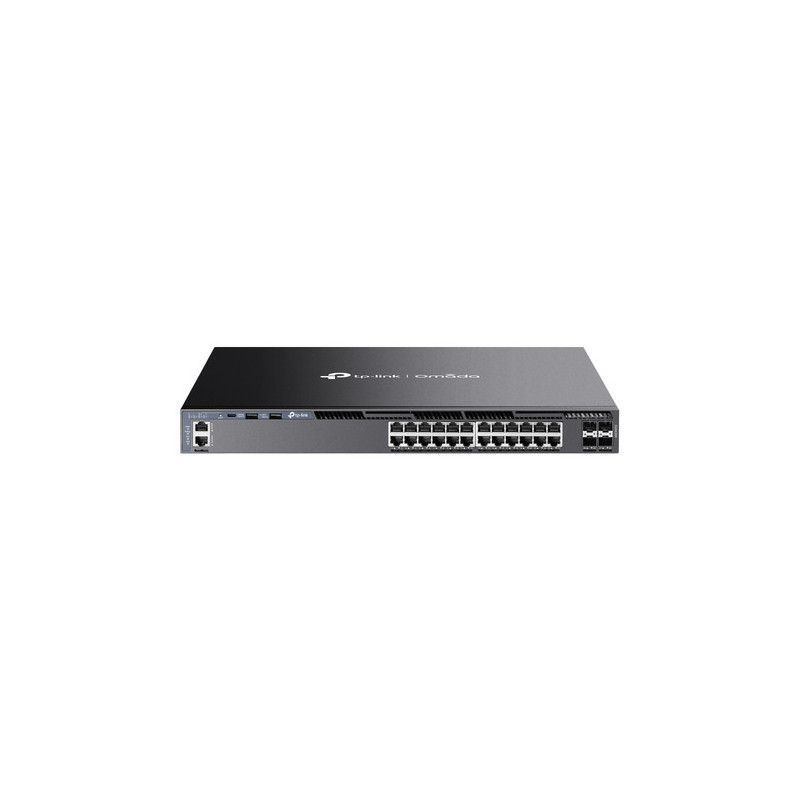

*24× gigabitových ports RJ45 a 4× 10 Gb/s slots SFP+
*Switching capacity 128 Gb/s per unit
*Physical storage for integrated redundancy and performance
*Functions L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
*Security strategies: ACL, port protection, DoS Defend, 802.1X
*High availability thanks to two internal fixed power sources, VRRP a ERPS
*Centralized cloud management through the Omada SDN module
*Samostatná management cez web, CLI, SNMP a RMON

Rozhranie
*24× 10/100/1000 Mbps RJ45 porty
*4× 10G SFP+ sloty
*2× USB 2.0 porty
*1× console port RJ45
*1× console port USB Type-C
*1× control port RJ45
Počet ventilatorov

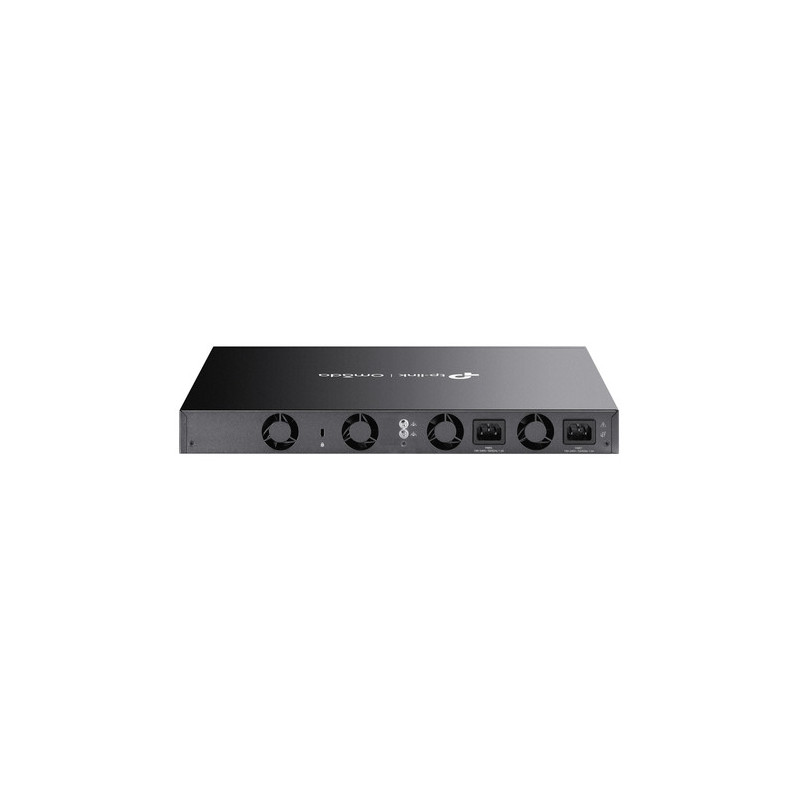

*Styri interné fixed ventiladory
Power supply
*Two internal fixed power supply modules (100-240 VAC, 50/60 Hz)
Max. energy consumption
*28.4 W (220 V/50 Hz)
Rozmery (W x H x H)
*440 × 380 × 44 mm
Montáž
*Možnosť montáže do racku
Maximální odvod tepla
*96.91 BTU/h (220 V/50 Hz)
Performance
Storage capacity
*128 Gbps per unit
Stacking
*Pochet stohov: 8
*Stacking port: 10G SFP+ slot (všetky uplink ports can be used as a stacking port)
*Wideband stohu: Až 80 Gbps (4 stohovacie ports)
Speed packet transfer
*95.2 Mpps
Table MAC adries
*32 K
Pamäť tavrancej cache paketov
*3 MB
Jumbo frame
*9 KB
Software
Quality of service
-Trieda služby
*8 front priority
*Priority port
*Priority IEEE 802.1p
*Priority DSCP
*Minimálna width pásma fronty
*Planning mode (SP, WRR, SP+WRR)
-Riadenie width pásma
*Obmedzenie speed
*Riadenie preteženia
-Hlasová VLAN
-OUI defined by the user
-Plynulejší požadja
-Akcia pre toky
*Note QoS (802.1P Remark, DSCP Remark)
Function L3
-IP rozhrania:
*IPv4: Max 256, IPv6: Max 256
-Statické smerovanie
*Max 1 024, IPv6: Max 512
-Tabuľka smerovania hostiteľa: Max 6 100 erveliov
-RIP: Verzia v1/v2, Max 8 190
-OSPF: Verzia v2/v3; v2: Max. 8 190, v3: Max. 4 097
-VRRP: Verzia v2/v3, Max. 64 groups
-ECMP: 256 records, max. 32 ECMP Nexthops na číl
-Statická ARP: 512 statických účerov
-Dynamiká ARP: 7 680 dynamíká účerov
-Proxy ARP
-DHCP Server:
*Max. 8,000 IP groups
*Max. 1,000 manual binding entries
-DHCP Relay:
*Relayed Interface
*Relayed VLAN
Function L2 a L2+
-Link Aggregation
-Spanning Tree Protocol
-Port-based and VLAN-based Loopback Detection
-802.3x Flow Control
-Supports 2,048 groups IGMP
-ERPS
-Zrkadlenie
-RSPAN
- Table MAC addresses
-PIM-DM (IPv4)
-Multicast
*IGMP Snooping
*MLD Snooping
*L2 multicastová table
*Fast Leave
*Multicast VLAN Registration (MVR)
*Statická multicastová IP adresa
*Multicast filtrovanie
Advanced features
-Automatické vyčačanie začítě
-Hromadná konfigurationa
-Hromadná attältivia firmvéru
-Inteligentné monitorovanie siete
-Upozornenia na abnormálne odstavični
-Unifikovaná konfigurationa
-Plán reštartovania
ISP functions
-802.3ah Ethernet Link OAM
-L2PT (Layer 2 Protocol Tunneling)
-Protokol detektie propojenia zažičenie (DLDP)
-DDM
-sFlow
-Vkladanie ID PPPoE
VLANs
-Max. 4K group VLAN (802.1q VLAN)
-802.1Q marked VLAN
-Záznamy MAC VLAN: 200
-Multicast VLAN
-Management VLAN
-VLAN VPN (QinQ): Max. 256 recordov
-GVRP
-Protocol VLAN: Template protocol 16, Protocol VLAN 12 recordov
-VLAN VPN
-Voice VLAN
-Private VLAN
Safety
-Izolácia portov
-CPU-Defend
-ARP Inspection (Dynamic ARP Inspection)
-DoS Defend
-IP-MAC-Port Binding
*1 024 records
*DHCP Snooping
*ARP Inspection
*IPv4 Source Guard
-IPv6-MAC
*Port Binding
*1 024 ответиров
*DHCPv6 Snooping
*ND Detection
*ND Snooping
*IPv6 Source Guard_
-DHCP Filter
- Static/Dynamic security portov
*Up to 64 MAC adries na port
-Broadcast/Multicast/Unknown-unicast Storm Control
*Mode of kbps control/pomeru
-802.1X
*Overview based on port
*Overview based on MAC adresy
*Praradenie VLAN
*MAB
*VLAN pre hostí
*Podpora overovania a zodnonosti RADIUS
-AAA (including TACACS+)
-Secure web management via HTTPS SSLv3/TLS 1.2
- Secure management through the CLI (Command Line Interface) s SSHv2
- Control access based on IP/port/MAC
Management
Management functions
-Webové graphic user interface (GUI)
-Command command line (CLI) via console port, telnet
-SNMPv1/v2c/v3_
*Trap/Inform
*RMON (skupiny 1, 2, 3, 9)
-Template SDM
-Client DHCP/BOOTP
-802.1ab LLDP/LLDP-MED
-Automatic installation of DHCP
-Dual image, dual configuration
-Monitoring CPU
-Diagnostic cables
-Obnovenie hesla
-SNTP
-Systémový protokol
-EEE
