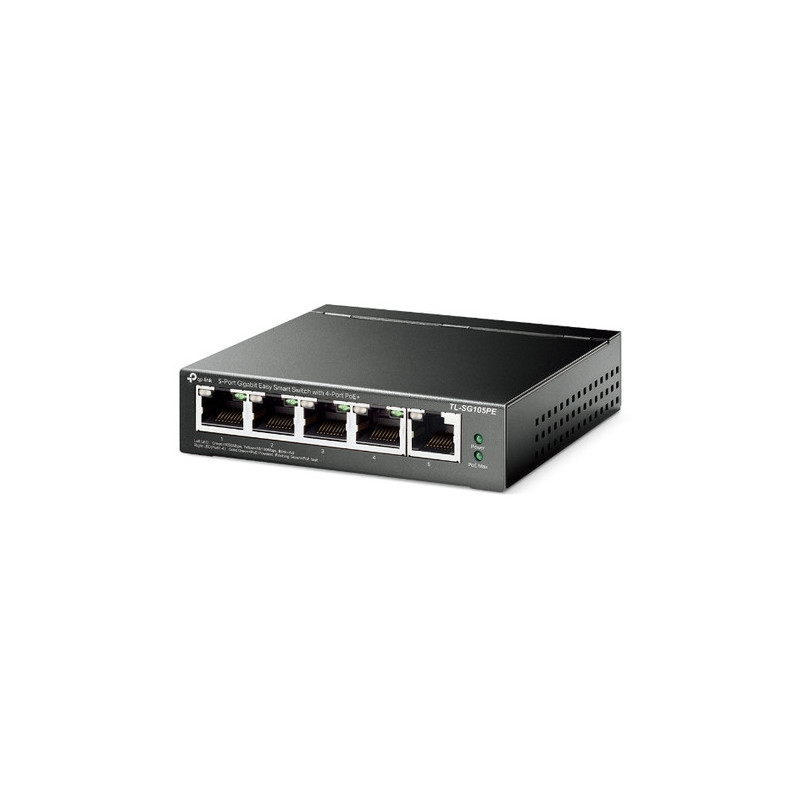

SG105PE Switch Smart 5xGb (4xPoE+)
Product reference:
3-6935364052744
SG105PE Switch Smart 5xGb (4xPoE+)
SG105PE Switch Smart 5xGb (4xPoE+)
Product reference:
3-6935364052744
SG105PE Switch Smart 5xGb (4xPoE+)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Design | |
|---|---|
| LED indicators | Activity, PoE, Link, Power, Speed, Status |
| Product colour | Black |
| Rack mounting | No |

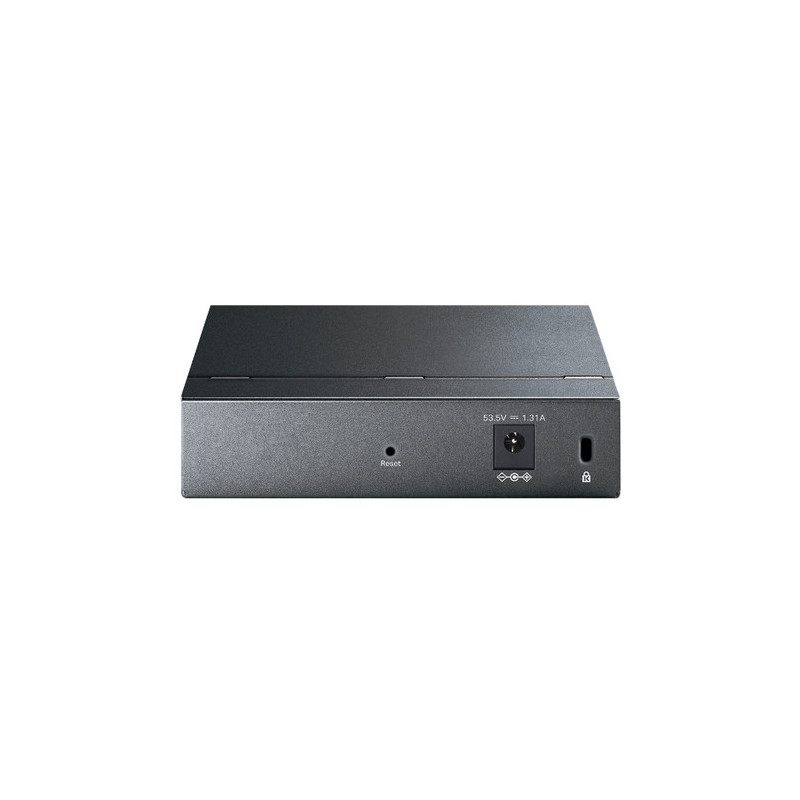

| Power | |
| Input current | 1.31 A |
| Power source | DC |
| Input voltage | 53.5 V |
| Power consumption (max) | 75.16 W |
| Power supply included | Yes |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Heat dissipation | 256.3 BTU/h |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Weight & dimensions | |
| Height | 25 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat3, Cat6, Cat4, Cat5, Cat5e |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| 10G support | No |
| Flow control support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
| VLAN support | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Performance | |
| Fanless | Yes |
| Packaging data | |
| Package height | 121 mm |
| Package weight | 770 g |
| Package depth | 196 mm |
| Package width | 131 mm |
| Packaging content | |
| User guide | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Packet buffer memory | 1 MB |
| Number of queues | 4 |
| MAC address table | 2000 entries |
| Forwarding rate | 7.44 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |

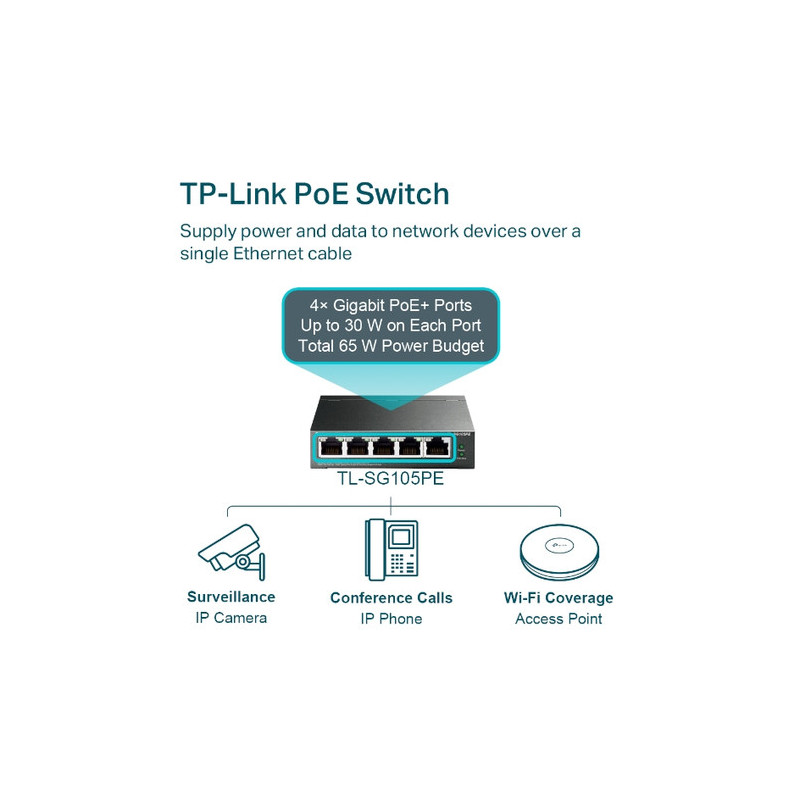

| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Safety warning | |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation. |
